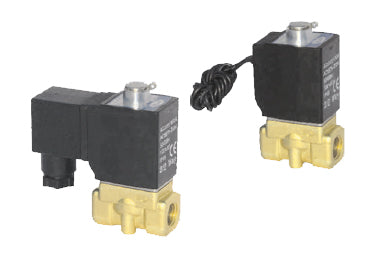

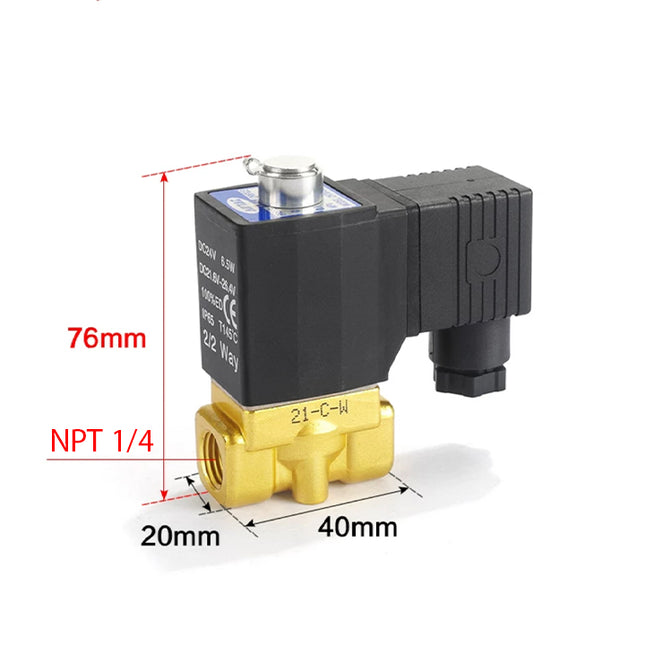

Valve
Product Features
- Direct-acting, normally open type; starts at zero pressure difference with fast and sensitive action.
- Wide operating pressure range, available in ultra-high pressure (X), high pressure (H), standard, and large flow (L) models.
- The valve body is made of brass, featuring a small size, light weight, and easy installation.
- The standard seal material is FPM-F (Viton), which is suitable for various working media. The material is selected based on the actual working conditions.
- The coil has a protection class of IP65, with electrical connection options of direct lead wire or DIN connector.
Specifications
| Model No. | Port Size [Note 1] | Orifice Dia. (mm) | Cv Value | Effective Area (mm²) | Weight (g) [Note 2] | Max. Operating Pressure | Max. Proof Pressure | ||
|---|---|---|---|---|---|---|---|---|---|
| MPa | psi | MPa | psi | ||||||
| 2KWX030 | -06 PT1/8 | 1.5 | 0.10 | 1.8 | 315 | 2.0 | 300 | 3.0 | 450 |
| -08 PT1/4 | 305 | ||||||||
| 2KWH030 | -06 PT1/8 | 2.0 | 0.18 | 3.0 | 315 | 1.5 | 220 | ||
| -08 PT1/4 | 305 | ||||||||
| 2KW030 | -06 PT1/8 | 3.0 | 0.33 | 6.0 | 315 | 0.7 | 100 | ||
| -08 PT1/4 | 305 | ||||||||
| 2KWL030 | -06 PT1/8 | 4.0 | 0.55 | 10.0 | 315 | 0.4 | 60 | ||
| -08 PT1/4 | 305 | ||||||||
| 2KWX050 | -10 PT3/8 | 3.0 | 0.34 | 6.1 | 635 | 2.0 | 300 | ||
| -15 PT1/2 | 615 | ||||||||
| 2KWH050 | -10 PT3/8 | 4.0 | 0.55 | 10.0 | 635 | 1.5 | 220 | ||
| -15 PT1/2 | 615 | ||||||||
| 2KW050 | -10 PT3/8 | 5.0 | 0.83 | 15.0 | 635 | 0.7 | 100 | ||
| -15 PT1/2 | 615 | ||||||||
| 2KWL050 | -10 PT3/8 | 7.0 | 1.40 | 25.0 | 635 | 0.4 | 60 | ||
| -15 PT1/2 | 615 | ||||||||
Note 1: G, NPT threads are available.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2KW030 series is 10g lighter, and for the 2KW050 series, it is 20g lighter.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2KW030 series is 10g lighter, and for the 2KW050 series, it is 20g lighter.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Pressure Type |
|
| 3 | Series Code |
|
| 4 | Port Size |
|
| 5 | Coil Voltage |
|
| 6 | Connection Type |
|
| 7 | Thread Code |
|
Note 1: The standard length for the lead wire type is 0.5m.
