6TA Series Valve Product Information

Valve

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

  • The main body is formed by aluminum alloy extrusion, with a special internal bore processing to effectively increase the flow rate.
  • Can be integrated with a base to form a valve bank, saving installation space.

Specifications

Model 6TA0510 6TA0520 6TA110 6TA120
Port Size Inlet=Outlet=Exhaust=M5 Inlet=Exhaust=Outlet=PT1/8 or M5
Effective Area (Cv) M5: 3.4mm² (0.2) 06: 8.9mm² (0.52)
Model 6TA210 6TA220 6TA310 6TA320
Port Size 06: Inlet/Outlet/Exhaust=PT1/8
08: Inlet/Outlet=PT1/4; Exhaust=PT1/8		 Inlet/Outlet=PT3/8; Exhaust=PT1/4
Effective Area (Cv) 08: 15.4mm² (0.91) 10: 38.4mm² (2.26)
Working Medium Air (filtered by 40μm or larger)
Actuation Mode Externally air piloted
Operating Pressure 0.15~0.8MPa (21~114psi)
Proof Pressure 1.2MPa (175psi)
Operating Temperature -20~70℃
Max. Operating Frequency 5 cycles/sec
Note:
• PT, NPT, and G threads are available.
• If lubricated, do not stop midway. Use turbine oil ISO VG32 or equivalent.

Product Ordering Code

Example: 6TA 2 10 08 NC □

Item Code Description
Series Code 05 / 1 / 2 / 3 0500 / 100 / 200 / 300 Series
Control Type 10 / 20 Single Air Control / Double Air Control
Port Size M5 / 06 / 08 / 10 M5 / PT1/8 / PT1/4 / PT3/8
Initial State NC / NO Normally Closed / Normally Open
Thread Type Blank / G / T PT / G / NPT Thread
Note: No initial state option is available for the double air control model.

Show previous products

  • 6TV300M9FT

    View options

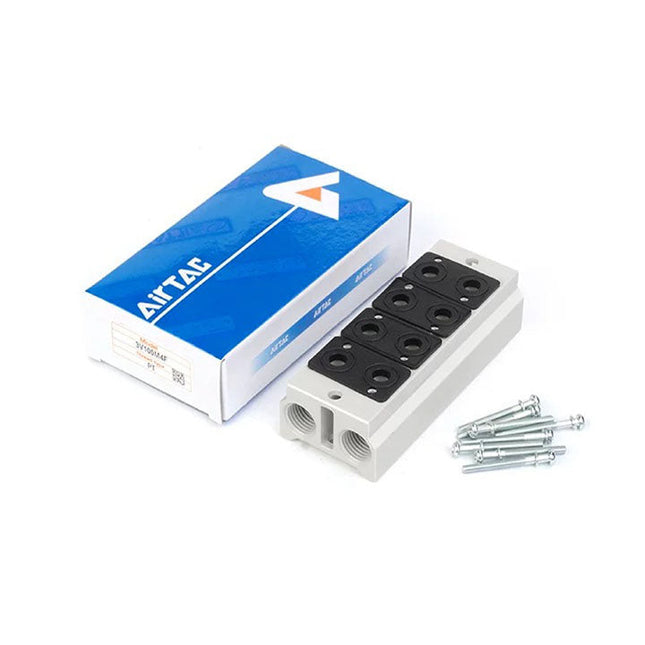

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M9FT

    Specifications: 6TV300M9FT is a 9-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 9F 9 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 9 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 9F 240 / 230 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1487 g. The same size-family, station count and thread arrangement of 6V300M9FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $47.54

    View options

  • 6TV300M8FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M8FT

    Specifications: 6TV300M8FT is a 8-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 8F 8 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 8 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 8F 216 / 206 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1338 g. The same size-family, station count and thread arrangement of 6V300M8FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $43.43

    View options

  • 6TV300M7FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M7FT

    Specifications: 6TV300M7FT is a 7-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 7F 7 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 7 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 7F 192 / 182 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1190 g. The same size-family, station count and thread arrangement of 6V300M7FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $38.63

    View options

  • 6TV300M6FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M6FT

    Specifications: 6TV300M6FT is a 6-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 6F 6 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 6 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 6F 168 / 158 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1041 g. The same size-family, station count and thread arrangement of 6V300M6FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $34.52

    View options

  • 6TV300M5FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M5FT

    Specifications: 6TV300M5FT is a 5-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 5F 5 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 5 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 5F 144 / 134 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 892 g. The same size-family, station count and thread arrangement of 6V300M5FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $29.87

    View options

  • 6TV300M4FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M4FT

    Specifications: 6TV300M4FT is a 4-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 4F 4 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 4 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 4F 120 / 110 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 744 g. The same size-family, station count and thread arrangement of 6V300M4FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $25.21

    View options

  • 6TV300M3FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M3FT

    Specifications: 6TV300M3FT is a 3-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 3F 3 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 3 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 3F 96 / 86 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 595 g. The same size-family, station count and thread arrangement of 6V300M3FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $21.10

    View options

  • 6TV300M2FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M2FT

    Specifications: 6TV300M2FT is a 2-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 2F 2 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 2 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 2F 72 / 62 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 446 g. The same size-family, station count and thread arrangement of 6V300M2FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $16.44

    View options

  • 6TV300M1FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M1FT

    Specifications: 6TV300M1FT is a 1-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 1F 1 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 1 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 1F 48 / 38 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 297 g. The same size-family, station count and thread arrangement of 6V300M1FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $11.65

    View options

  • 6TV300M20FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M20FG

    Specifications: 6TV300M20FG is a 20-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 20F 20 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 20 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 20F 504 / 494 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 3123 g. The same size-family, station count and thread arrangement of 6V300M20FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $97.41

    View options

  • 6TV300M19FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M19FG

    Specifications: 6TV300M19FG is a 19-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 19F 19 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 19 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 19F 480 / 470 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2974 g. The same size-family, station count and thread arrangement of 6V300M19FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $92.75

    View options

  • 6TV300M18FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M18FG

    Specifications: 6TV300M18FG is a 18-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 18F 18 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 18 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 18F 456 / 446 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2826 g. The same size-family, station count and thread arrangement of 6V300M18FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $87.95

    View options

  • 6TV300M17FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M17FG

    Specifications: 6TV300M17FG is a 17-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 17F 17 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 17 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 17F 432 / 422 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2677 g. The same size-family, station count and thread arrangement of 6V300M17FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $83.84

    View options

  • 6TV300M16FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M16FG

    Specifications: 6TV300M16FG is a 16-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 16F 16 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 16 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 16F 408 / 398 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2528 g. The same size-family, station count and thread arrangement of 6V300M16FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $79.19

    View options

  • 6TV300M15FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M15FG

    Specifications: 6TV300M15FG is a 15-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 15F 15 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 15 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 15F 384 / 374 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2379 g. The same size-family, station count and thread arrangement of 6V300M15FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $74.53

    View options

  • 6TV300M14FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M14FG

    Specifications: 6TV300M14FG is a 14-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 14F 14 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 14 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 14F 360 / 350 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2231 g. The same size-family, station count and thread arrangement of 6V300M14FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $70.42

    View options

  • 6TV300M13FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M13FG

    Specifications: 6TV300M13FG is a 13-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 13F 13 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 13 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 13F 336 / 326 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2082 g. The same size-family, station count and thread arrangement of 6V300M13FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $65.76

    View options

  • 6TV300M12FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M12FG

    Specifications: 6TV300M12FG is a 12-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 12F 12 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 12 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 12F 312 / 302 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1933 g. The same size-family, station count and thread arrangement of 6V300M12FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $60.97

    View options

  • 6TV300M11FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M11FG

    Specifications: 6TV300M11FG is a 11-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 11F 11 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 11 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 11F 288 / 278 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1785 g. The same size-family, station count and thread arrangement of 6V300M11FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $56.86

    View options

  • 6TV300M10FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M10FG

    Specifications: 6TV300M10FG is a 10-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 10F 10 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 10 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 10F 264 / 254 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1636 g. The same size-family, station count and thread arrangement of 6V300M10FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $51.65

    View options

  • 6TV300M9FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M9FG

    Specifications: 6TV300M9FG is a 9-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 9F 9 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 9 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 9F 240 / 230 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1487 g. The same size-family, station count and thread arrangement of 6V300M9FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $47.54

    View options

  • 6TV300M8FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M8FG

    Specifications: 6TV300M8FG is a 8-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 8F 8 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 8 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 8F 216 / 206 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1338 g. The same size-family, station count and thread arrangement of 6V300M8FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $43.43

    View options

  • 6TV300M7FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M7FG

    Specifications: 6TV300M7FG is a 7-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 7F 7 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 7 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 7F 192 / 182 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1190 g. The same size-family, station count and thread arrangement of 6V300M7FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $38.63

    View options

  • 6TV300M6FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M6FG

    Specifications: 6TV300M6FG is a 6-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 6F 6 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 6 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 6F 168 / 158 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1041 g. The same size-family, station count and thread arrangement of 6V300M6FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $34.52

    View options

You have seen 48 out of 286 products
