AirTAC Silencers & Accessories

Exhaust Mufflers | Plugs & Caps | Visual Pressure Indicators

Product Features
Silencers & Plugs Specs
Visual Indicator (VIS)

Product Features

Exhaust Noise Reduction: A comprehensive range of silencers (including sintered bronze, plastic foam, and plastic granule types) effectively reduces pneumatic exhaust noise to meet safety standards.
Speed Control (BESL Series): Features an integrated exhaust throttle valve, allowing for precise speed regulation of pneumatic cylinders while simultaneously silencing exhaust noise.
Compact Design: Specific models like the BSLM and PSU offer extremely low-profile and space-saving solutions for applications where clearance is restricted.
Visual Indication (VIS Series): The VIS series provides immediate, clear visual feedback (Red/Green transition) representing the pressure status in the air line.
Tube Accessories: High-quality plugs (APP) and caps (APF) are available for quickly and securely sealing unused tube ends or pneumatic ports.

Specifications & Models

1. Metal Silencers (Sintered Bronze)

Series	Description	Model & Thread Size (PT)

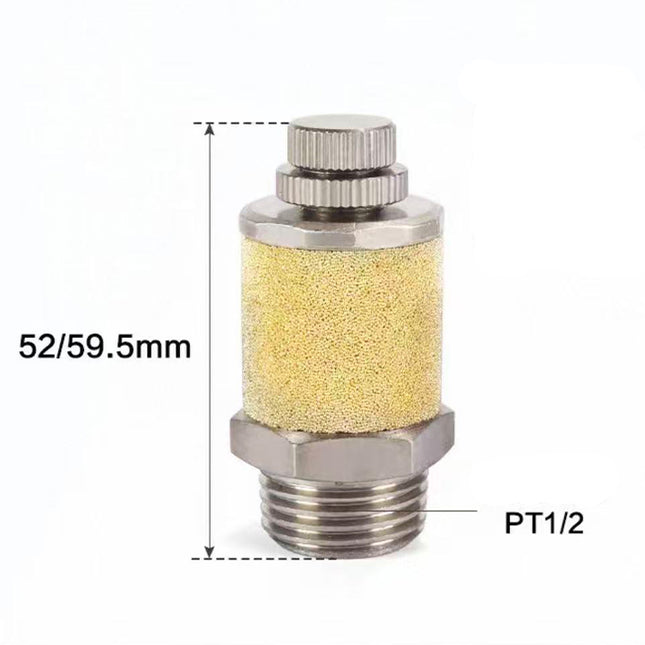

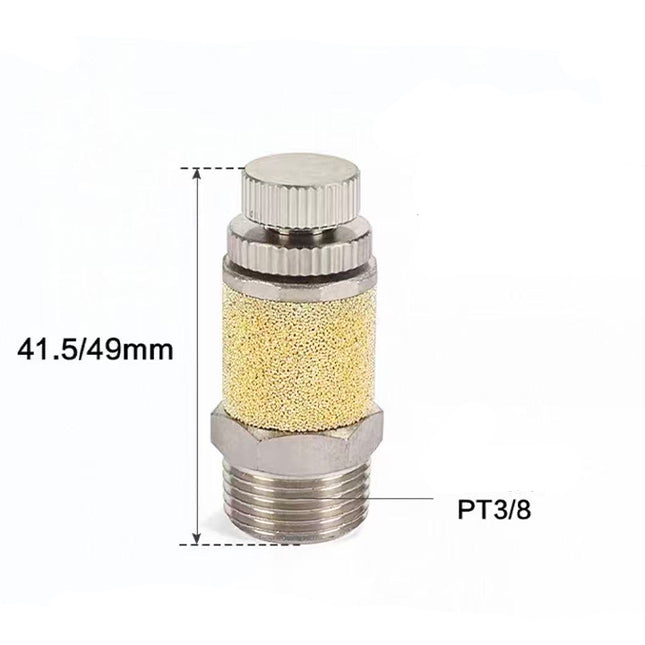

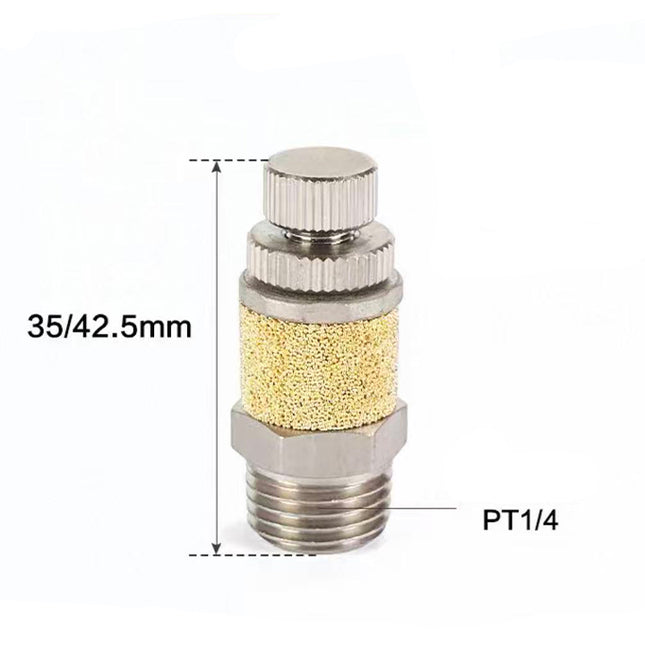

BESL	Silencer Exhaust Throttle Valve (Adjustable)	BESL01: 1/8" \| BESL02: 1/4" \| BESL03: 3/8" BESL04: 1/2" \| BESL06: 3/4"

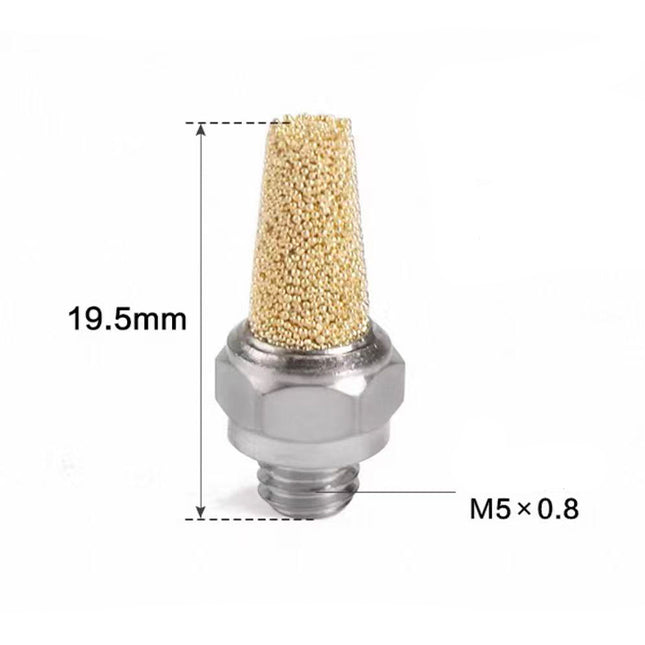

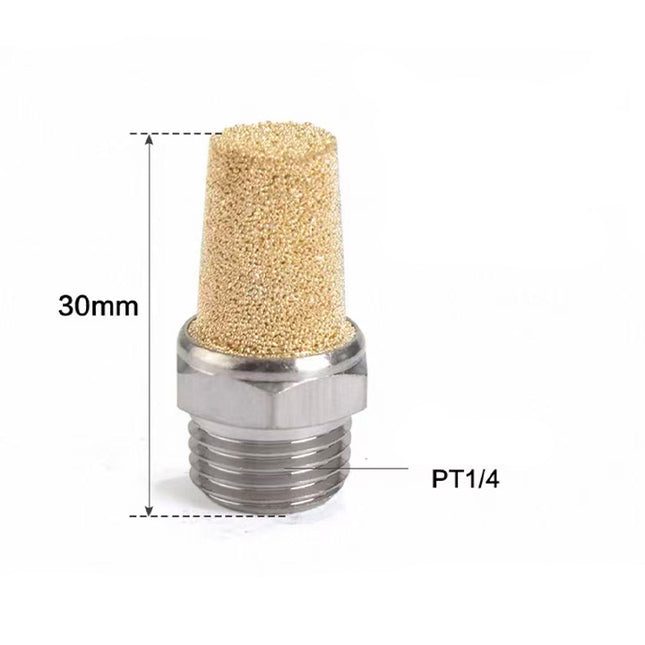

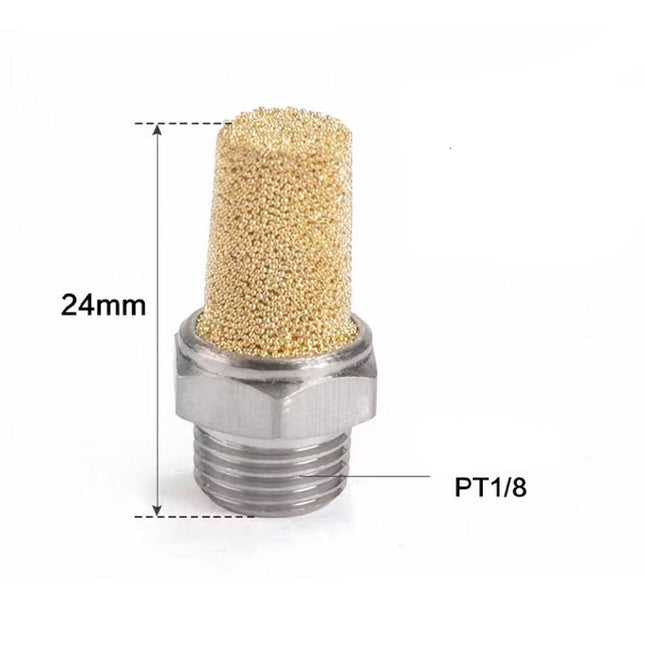

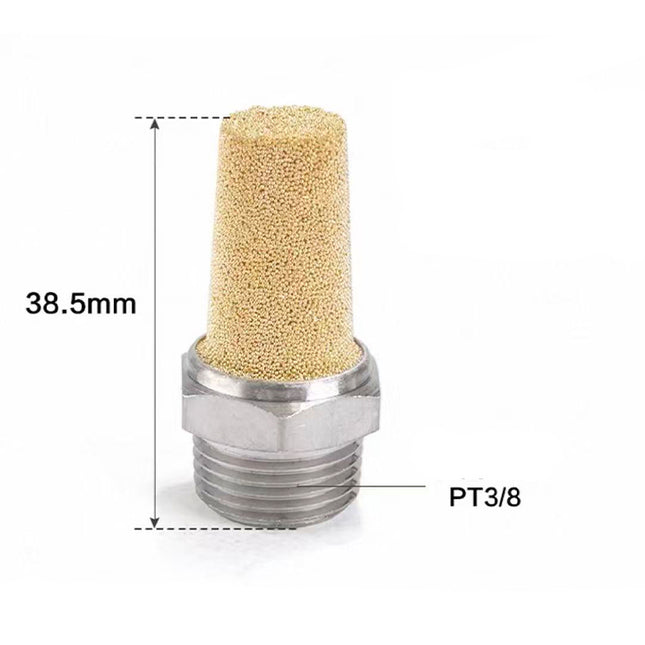

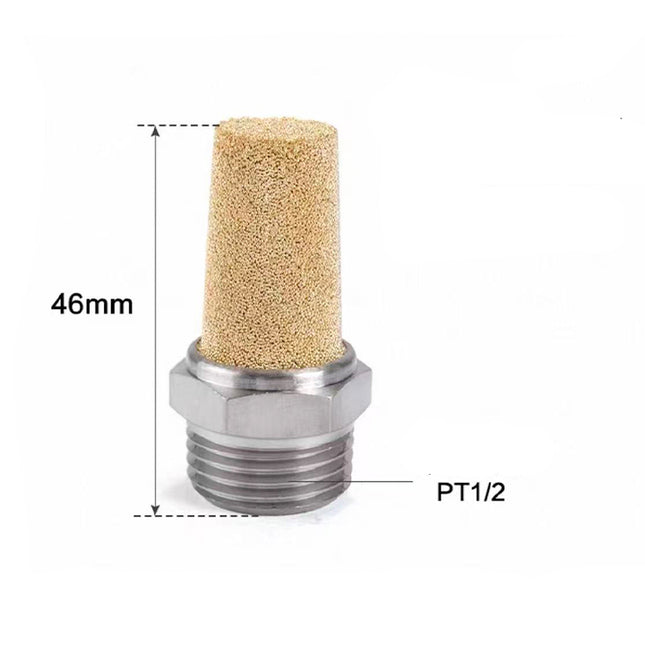

BSL	Universal Sintered Bronze Silencer	BSLM5: M5 \| BSL01: 1/8" \| BSL02: 1/4" BSL03: 3/8" \| BSL04: 1/2" \| BSL06: 3/4" BSL08: 1" \| BSL10: G 1 1/4" \| BSL12: G 1 1/2"

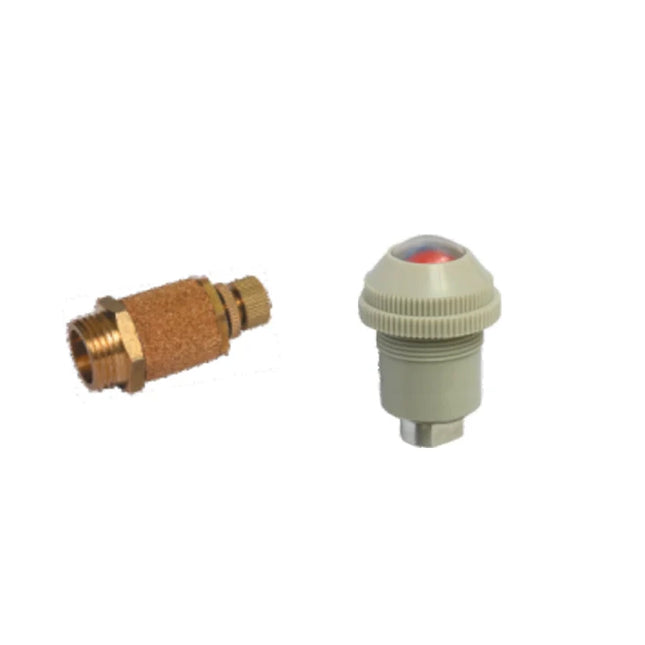

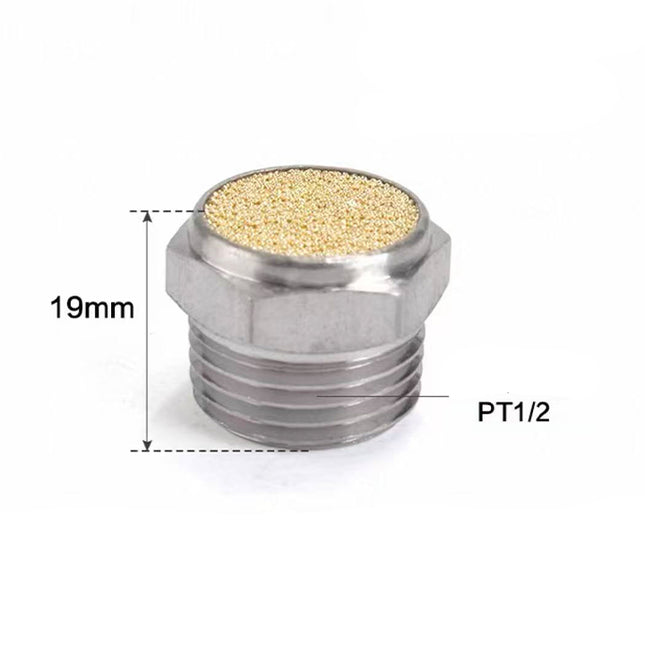

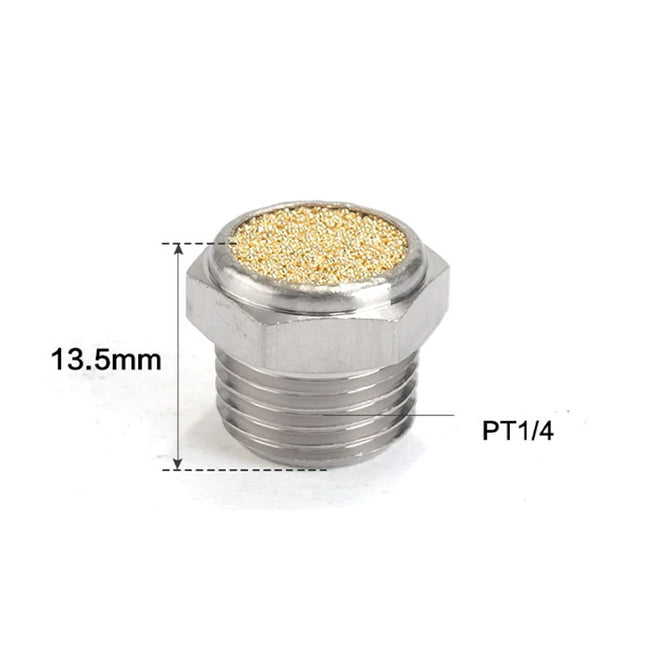

BSLM	Compact Bronze Silencer	BSLM01: 1/8" \| BSLM02: 1/4" \| BSLM3: 3/8" BSLM04: 1/2" \| BSLM06: 3/4"

2. Plastic Silencers

Series	Description	Model & Thread Size (PT)
PAL	Plastic Foam Silencer	PAL01: 1/8" \| PAL02: 1/4" \| PAL3: 3/8" PAL04: 1/2" \| PAL06: 3/4"
PSL	Plastic Granule Silencer	PSL01: 1/8" \| PSL02: 1/4" \| PSL3: 3/8" PSL04: 1/2" \| PSL06: 3/4"
PSU	Compact Plastic Silencer	PSU01: 1/8" \| PSU02: 1/4" PSU3: 3/8" \| PSU04: 1/2"

3. Tube Plugs & Caps

Series	Description	Model & Tube O.D. (mm)
APP	Pneumatic Tube Plug (Male)	APP4: Φ4 \| APP6: Φ6 \| APP8: Φ8 APP10: Φ10 \| APP12: Φ12 \| APP16: Φ16
APF	Pneumatic Tube Cap (Female)	APF4: Φ4 \| APF6: Φ6 \| APF8: Φ8 APF10: Φ10 \| APF12: Φ12 \| APF16: Φ16

Visual Pressure Indicator (VIS Series)

Example Code: VIS001 - 04 A

Model Series	Port Size	Operating Pressure Range (Open / Closed)	Indicator Color Transition
VIS001 (Pressure Indicator)	04: M5 x 0.8	Full Open: 0.05 ~ 0.7 MPa (7 ~ 100 psi) Full Closed: 0 ~ 0.015 MPa (0 ~ 2 psi)	A: Red → Green B: Green → Red
VIS001 (Pressure Indicator)	06: PT 1/8"		A: Red → Green B: Green → Red

Mounting Requirement: Panel mounting hole diameter Φ31mm, Panel thickness should be less than 9mm.
Operating Medium: Clean Compressed Air.

Show previous products

View options

Airtac APF series: tube-end cap - APF8

Specifications: APF8 — tube-end cap, 8 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APF tube-end cap 8 8 mm nominal tube/socket size Technical Specifications Parameter Details Model APF8 Connection size 8 mm Component type tube-end cap Compatible Fittings and Tubing Caps the end of 8 mm outside-diameter tube using the cap connection. It is not a threaded port plug. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 8 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APF8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 4 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.64

View options
View options

Airtac APF series: tube-end cap - APF6

Specifications: APF6 — tube-end cap, 6 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APF tube-end cap 6 6 mm nominal tube/socket size Technical Specifications Parameter Details Model APF6 Connection size 6 mm Component type tube-end cap Compatible Fittings and Tubing Caps the end of 6 mm outside-diameter tube using the cap connection. It is not a threaded port plug. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 6 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APF6. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 3.2 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac APF series: tube-end cap - APF4

Specifications: APF4 — tube-end cap, 4 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APF tube-end cap 4 4 mm nominal tube/socket size Technical Specifications Parameter Details Model APF4 Connection size 4 mm Component type tube-end cap Compatible Fittings and Tubing Caps the end of 4 mm outside-diameter tube using the cap connection. It is not a threaded port plug. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 4 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APF4. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 2.6 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac APP series: push-in fitting blanking plug - APP16

Specifications: APP16 — push-in fitting blanking plug, 16 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APP push-in fitting blanking plug 16 16 mm nominal tube/socket size Technical Specifications Parameter Details Model APP16 Connection size 16 mm Component type push-in fitting blanking plug Compatible Fittings and Tubing Closes an unused push-in fitting socket intended for 16 mm OD tube. The plug shank enters the fitting; it is not a plug selected by the tube inside diameter. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 16 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APP16. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 8.2 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.64

View options
View options

Airtac APP series: push-in fitting blanking plug - APP12

Specifications: APP12 — push-in fitting blanking plug, 12 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APP push-in fitting blanking plug 12 12 mm nominal tube/socket size Technical Specifications Parameter Details Model APP12 Connection size 12 mm Component type push-in fitting blanking plug Compatible Fittings and Tubing Closes an unused push-in fitting socket intended for 12 mm OD tube. The plug shank enters the fitting; it is not a plug selected by the tube inside diameter. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 12 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APP12. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 3.8 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac APP series: push-in fitting blanking plug - APP10

Specifications: APP10 — push-in fitting blanking plug, 10 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APP push-in fitting blanking plug 10 10 mm nominal tube/socket size Technical Specifications Parameter Details Model APP10 Connection size 10 mm Component type push-in fitting blanking plug Compatible Fittings and Tubing Closes an unused push-in fitting socket intended for 10 mm OD tube. The plug shank enters the fitting; it is not a plug selected by the tube inside diameter. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 10 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APP10. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 2.4 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac APP series: push-in fitting blanking plug - APP8

Specifications: APP8 — push-in fitting blanking plug, 8 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APP push-in fitting blanking plug 8 8 mm nominal tube/socket size Technical Specifications Parameter Details Model APP8 Connection size 8 mm Component type push-in fitting blanking plug Compatible Fittings and Tubing Closes an unused push-in fitting socket intended for 8 mm OD tube. The plug shank enters the fitting; it is not a plug selected by the tube inside diameter. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 8 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APP8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 1.5 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac APP series: push-in fitting blanking plug - APP6

Specifications: APP6 — push-in fitting blanking plug, 6 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APP push-in fitting blanking plug 6 6 mm nominal tube/socket size Technical Specifications Parameter Details Model APP6 Connection size 6 mm Component type push-in fitting blanking plug Compatible Fittings and Tubing Closes an unused push-in fitting socket intended for 6 mm OD tube. The plug shank enters the fitting; it is not a plug selected by the tube inside diameter. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 6 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APP6. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 0.9 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac APP series: push-in fitting blanking plug - APP4

Specifications: APP4 — push-in fitting blanking plug, 4 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APP push-in fitting blanking plug 4 4 mm nominal tube/socket size Technical Specifications Parameter Details Model APP4 Connection size 4 mm Component type push-in fitting blanking plug Compatible Fittings and Tubing Closes an unused push-in fitting socket intended for 4 mm OD tube. The plug shank enters the fitting; it is not a plug selected by the tube inside diameter. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 4 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APP4. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 0.6 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac PSU series: plastic silencer - PSU04

Specifications: PSU04 — plastic silencer, PT 1/2 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PSU plastic silencer 04 Connection: PT 1/2 Technical Specifications Parameter Details Current model PSU04 Type plastic silencer Connection PT 1/2 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PSU04 at a compatible exhaust port with a mating PT 1/2 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies PSU as a plastic exhaust silencer. It is separate from the PAL foam and PSL particle styles. External and Mounting Dimensions Parameter Details Published connection PT 1/2 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 23.1 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac PSU series: plastic silencer - PSU3

Specifications: PSU3 — plastic silencer, PT 3/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PSU plastic silencer 3 Connection: PT 3/8 Technical Specifications Parameter Details Current model PSU3 Type plastic silencer Connection PT 3/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PSU3 at a compatible exhaust port with a mating PT 3/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies PSU as a plastic exhaust silencer. It is separate from the PAL foam and PSL particle styles. External and Mounting Dimensions Parameter Details Published connection PT 3/8 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 20 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$0.55

View options
View options

Airtac PSL series: plastic particle silencer - PSL06

Specifications: PSL06 — plastic particle silencer, PT 3/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PSL plastic particle silencer 06 Connection: PT 3/4 Technical Specifications Parameter Details Current model PSL06 Type plastic particle silencer Connection PT 3/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PSL06 at a compatible exhaust port with a mating PT 3/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this as the plastic-particle silencer family. PSL here is the legacy silencer code, not the modern PSL elbow speed-controller family. External and Mounting Dimensions Parameter Details Published connection PT 3/4 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 78 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$4.66

View options
View options

Airtac PSL series: plastic particle silencer - PSL04

Specifications: PSL04 — plastic particle silencer, PT 1/2 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PSL plastic particle silencer 04 Connection: PT 1/2 Technical Specifications Parameter Details Current model PSL04 Type plastic particle silencer Connection PT 1/2 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PSL04 at a compatible exhaust port with a mating PT 1/2 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this as the plastic-particle silencer family. PSL here is the legacy silencer code, not the modern PSL elbow speed-controller family. External and Mounting Dimensions Parameter Details Published connection PT 1/2 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 23.1 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac PSL series: plastic particle silencer - PSL3

Specifications: PSL3 — plastic particle silencer, PT 3/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PSL plastic particle silencer 3 Connection: PT 3/8 Technical Specifications Parameter Details Current model PSL3 Type plastic particle silencer Connection PT 3/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PSL3 at a compatible exhaust port with a mating PT 3/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this as the plastic-particle silencer family. PSL here is the legacy silencer code, not the modern PSL elbow speed-controller family. External and Mounting Dimensions Parameter Details Published connection PT 3/8 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 20 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac PSL series: plastic particle silencer - PSL02

Specifications: PSL02 — plastic particle silencer, PT 1/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PSL plastic particle silencer 02 Connection: PT 1/4 Technical Specifications Parameter Details Current model PSL02 Type plastic particle silencer Connection PT 1/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PSL02 at a compatible exhaust port with a mating PT 1/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this as the plastic-particle silencer family. PSL here is the legacy silencer code, not the modern PSL elbow speed-controller family. External and Mounting Dimensions Parameter Details Published connection PT 1/4 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 10.7 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$1.10

View options
View options

Airtac PSL series: plastic particle silencer - PSL01

Specifications: PSL01 — plastic particle silencer, PT 1/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PSL plastic particle silencer 01 Connection: PT 1/8 Technical Specifications Parameter Details Current model PSL01 Type plastic particle silencer Connection PT 1/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PSL01 at a compatible exhaust port with a mating PT 1/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this as the plastic-particle silencer family. PSL here is the legacy silencer code, not the modern PSL elbow speed-controller family. External and Mounting Dimensions Parameter Details Published connection PT 1/8 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 4.2 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$0.55

View options
View options

Airtac PAL series: plastic foam silencer - PAL06

Specifications: PAL06 — plastic foam silencer, PT 3/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PAL plastic foam silencer 06 Connection: PT 3/4 Technical Specifications Parameter Details Current model PAL06 Type plastic foam silencer Connection PT 3/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PAL06 at a compatible exhaust port with a mating PT 3/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this family as a plastic foam silencer. Its exhaust accessory function and connection are independent of the adjacent PSL and PSU families. External and Mounting Dimensions Parameter Details Published connection PT 3/4 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 78 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$5.75

View options
View options

Airtac PAL series: plastic foam silencer - PAL3

Specifications: PAL3 — plastic foam silencer, PT 3/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PAL plastic foam silencer 3 Connection: PT 3/8 Technical Specifications Parameter Details Current model PAL3 Type plastic foam silencer Connection PT 3/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PAL3 at a compatible exhaust port with a mating PT 3/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this family as a plastic foam silencer. Its exhaust accessory function and connection are independent of the adjacent PSL and PSU families. External and Mounting Dimensions Parameter Details Published connection PT 3/8 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 20 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$2.88

View options
View options

Airtac BSLM series: miniature silencer - BSLM06

Specifications: BSLM06 — miniature silencer, PT 3/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSLM miniature silencer 06 Connection: PT 3/4 Technical Specifications Parameter Details Current model BSLM06 Type miniature silencer Connection PT 3/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSLM06 at a compatible exhaust port with a mating PT 3/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The miniature silencer provides a compact threaded exhaust accessory. It is a distinct low-profile family; do not confuse BSLM01 with the longer BSL01. External and Mounting Dimensions Parameter Details Published connection PT 3/4 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 87.4 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$6.44

View options
View options

Airtac BSLM series: miniature silencer - BSLM3

Specifications: BSLM3 — miniature silencer, PT 3/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSLM miniature silencer 3 Connection: PT 3/8 Technical Specifications Parameter Details Current model BSLM3 Type miniature silencer Connection PT 3/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSLM3 at a compatible exhaust port with a mating PT 3/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The miniature silencer provides a compact threaded exhaust accessory. It is a distinct low-profile family; do not confuse BSLM01 with the longer BSL01. External and Mounting Dimensions Parameter Details Published connection PT 3/8 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 15.8 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$2.33

View options
View options

Airtac BSL series: general-purpose silencer - BSL12

Specifications: BSL12 — general-purpose silencer, G 1 1/2 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSL general-purpose silencer 12 Connection: G 1 1/2 Technical Specifications Parameter Details Current model BSL12 Type general-purpose silencer Connection G 1 1/2 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSL12 at a compatible exhaust port with a mating G 1 1/2 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone. Use the specified G thread; PT and NPT threads are not substitutes. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element. External and Mounting Dimensions Parameter Details Published connection G 1 1/2 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 945 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$48.09

View options
View options

Airtac BSL series: general-purpose silencer - BSL10

Specifications: BSL10 — general-purpose silencer, G 1 1/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSL general-purpose silencer 10 Connection: G 1 1/4 Technical Specifications Parameter Details Current model BSL10 Type general-purpose silencer Connection G 1 1/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSL10 at a compatible exhaust port with a mating G 1 1/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone. Use the specified G thread; PT and NPT threads are not substitutes. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element. External and Mounting Dimensions Parameter Details Published connection G 1 1/4 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 546.9 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$47.54

View options
View options

Airtac BSL series: general-purpose silencer - BSL08

Specifications: BSL08 — general-purpose silencer, PT 1 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSL general-purpose silencer 08 Connection: PT 1 Technical Specifications Parameter Details Current model BSL08 Type general-purpose silencer Connection PT 1 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSL08 at a compatible exhaust port with a mating PT 1 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element. External and Mounting Dimensions Parameter Details Published connection PT 1 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 280 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$13.43

View options
View options

Airtac BSL series: general-purpose silencer - BSL06

Specifications: BSL06 — general-purpose silencer, PT 3/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSL general-purpose silencer 06 Connection: PT 3/4 Technical Specifications Parameter Details Current model BSL06 Type general-purpose silencer Connection PT 3/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSL06 at a compatible exhaust port with a mating PT 3/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element. External and Mounting Dimensions Parameter Details Published connection PT 3/4 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 118.1 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

Read more less

$9.86

View options
