AirTAC Silencers & Accessories
Exhaust Mufflers | Plugs & Caps | Visual Pressure Indicators
Product Features
- Exhaust Noise Reduction: A comprehensive range of silencers (including sintered bronze, plastic foam, and plastic granule types) effectively reduces pneumatic exhaust noise to meet safety standards.
- Speed Control (BESL Series): Features an integrated exhaust throttle valve, allowing for precise speed regulation of pneumatic cylinders while simultaneously silencing exhaust noise.
- Compact Design: Specific models like the BSLM and PSU offer extremely low-profile and space-saving solutions for applications where clearance is restricted.
- Visual Indication (VIS Series): The VIS series provides immediate, clear visual feedback (Red/Green transition) representing the pressure status in the air line.
- Tube Accessories: High-quality plugs (APP) and caps (APF) are available for quickly and securely sealing unused tube ends or pneumatic ports.
Specifications & Models
1. Metal Silencers (Sintered Bronze)
| Series | Description | Model & Thread Size (PT) |
|---|---|---|

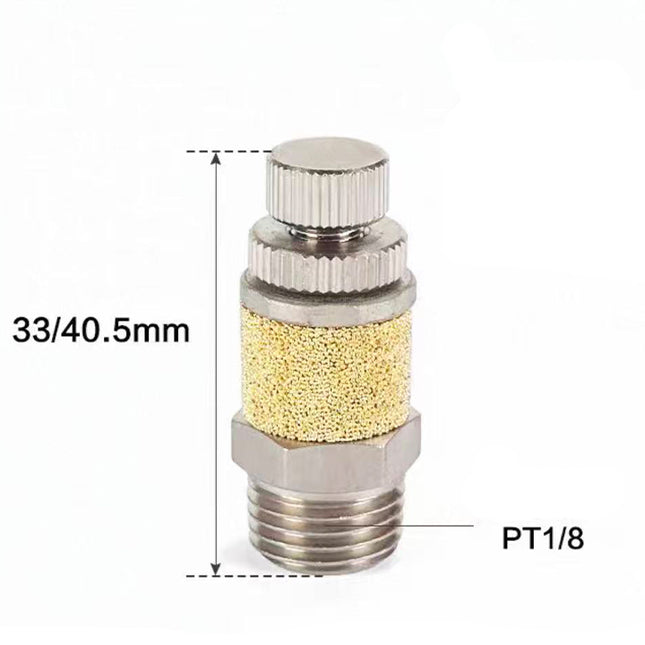

| BESL | Silencer Exhaust Throttle Valve (Adjustable) |
BESL01: 1/8" | BESL02: 1/4" | BESL03: 3/8" BESL04: 1/2" | BESL06: 3/4" |
| BSL | Universal Sintered Bronze Silencer |
BSLM5: M5 | BSL01: 1/8" | BSL02: 1/4" BSL03: 3/8" | BSL04: 1/2" | BSL06: 3/4" BSL08: 1" | BSL10: G 1 1/4" | BSL12: G 1 1/2" |
| BSLM | Compact Bronze Silencer |
BSLM01: 1/8" | BSLM02: 1/4" | BSLM3: 3/8" BSLM04: 1/2" | BSLM06: 3/4" |
2. Plastic Silencers
| Series | Description | Model & Thread Size (PT) |
|---|---|---|
| PAL | Plastic Foam Silencer |
PAL01: 1/8" | PAL02: 1/4" | PAL3: 3/8" PAL04: 1/2" | PAL06: 3/4" |
| PSL | Plastic Granule Silencer |
PSL01: 1/8" | PSL02: 1/4" | PSL3: 3/8" PSL04: 1/2" | PSL06: 3/4" |
| PSU | Compact Plastic Silencer |
PSU01: 1/8" | PSU02: 1/4" PSU3: 3/8" | PSU04: 1/2" |
3. Tube Plugs & Caps
| Series | Description | Model & Tube O.D. (mm) |
|---|---|---|
| APP | Pneumatic Tube Plug (Male) |
APP4: Φ4 | APP6: Φ6 | APP8: Φ8 APP10: Φ10 | APP12: Φ12 | APP16: Φ16 |
| APF | Pneumatic Tube Cap (Female) |
APF4: Φ4 | APF6: Φ6 | APF8: Φ8 APF10: Φ10 | APF12: Φ12 | APF16: Φ16 |
Visual Pressure Indicator (VIS Series)
Example Code: VIS001 - 04 A
| Model Series | Port Size | Operating Pressure Range (Open / Closed) | Indicator Color Transition |
|---|---|---|---|
|
VIS001 (Pressure Indicator) |
04: M5 x 0.8 |
Full Open: 0.05 ~ 0.7 MPa (7 ~ 100 psi) Full Closed: 0 ~ 0.015 MPa (0 ~ 2 psi) |
A: Red → Green B: Green → Red |
| 06: PT 1/8" |
Mounting Requirement: Panel mounting hole diameter Φ31mm, Panel thickness should be less than 9mm.
Operating Medium: Clean Compressed Air.
