Airtac BESL series: adjustable exhaust silencer / throttle valve - BESL04

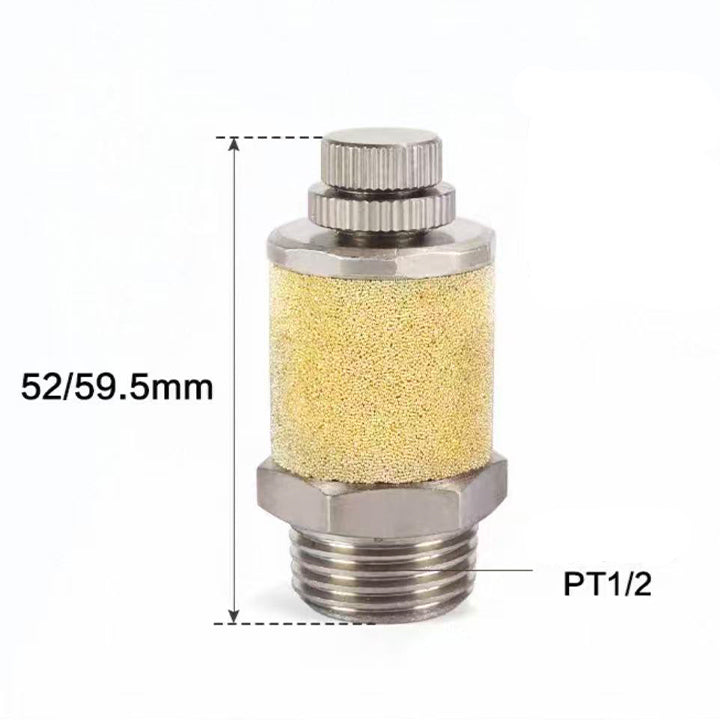

Photos are for reference only. Not all models have pictures.

Description

Specifications: BESL04 — adjustable exhaust silencer / throttle valve, PT 1/2 connection for a matching pneumatic exhaust port.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning
BESL adjustable exhaust silencer / throttle valve
04 Connection: PT 1/2

Technical Specifications

Parameter Details
Current model BESL04
Type adjustable exhaust silencer / throttle valve
Connection PT 1/2
Use Pneumatic exhaust noise reduction; adjustable exhaust restriction

Compatible Valve Series and Port Conditions

Install BESL04 at a compatible exhaust port with a mating PT 1/2 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance.

Features and Operation

The adjustable restrictor and silencing element combine exhaust-flow adjustment with noise reduction. Adjusting exhaust restriction affects the connected pneumatic circuit; this is an exhaust accessory, not a directional solenoid valve.

2022 Reference Specifications

The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs.

Parameter Details
Working medium Air
Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed)
Vacuum reference −750 mmHg (10 Torr as printed)
Proof pressure 1.5 MPa
Temperature −20–70 °C
Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level

External and Mounting Dimensions — 2022 Reference

Parameter Details
R / thread PT 1/2
L 10.5 mm
C max 59.5 mm
C min 52 mm
H 24 mm

L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Internal Components — 2022 Reference

Parameter Details
1 — Adjustment cap Aluminum alloy
2 — Throttle rod Aluminum alloy
3 — Locking cap Aluminum alloy
4 — Locking ring Aluminum alloy
5 — Silencing element Sintered particles
6 — Threaded body Brass

Flow Characteristics — 2022 Reference

BESL fully-open flow chart: inlet pressure 0–6 bar and exhaust flow 0–2500 L/min. The adjustment chart shows 0–15 turns versus 0–2000 L/min; refer to its individual thread-size curves. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here.

Cylinder and Valve Selection Reference — 2022 Catalog, Page 299

The selection chart includes BESL04 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection.

Parameter Details
Example operating point 100 mm cylinder bore, 500 mm/s theoretical reference speed, required effective area 20.4 mm²
Valve choices shown in the same block 5V31010 or 5V41015 / 5V32010 or 5V42015; 4V31010 or 4V41015 / 4V32010 or 4V42015; 4A31010 or 4A41015 / 4A32010 or 4A42015
Tubing in the reference block 16 × 11 mm (outside × inside diameter)

The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points.

2022 Chinese Catalog Supplement

The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Weight Reference

69.8 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded.

2022 Chinese catalog, printed page 274, BESL04 row; nominal catalog mass.
