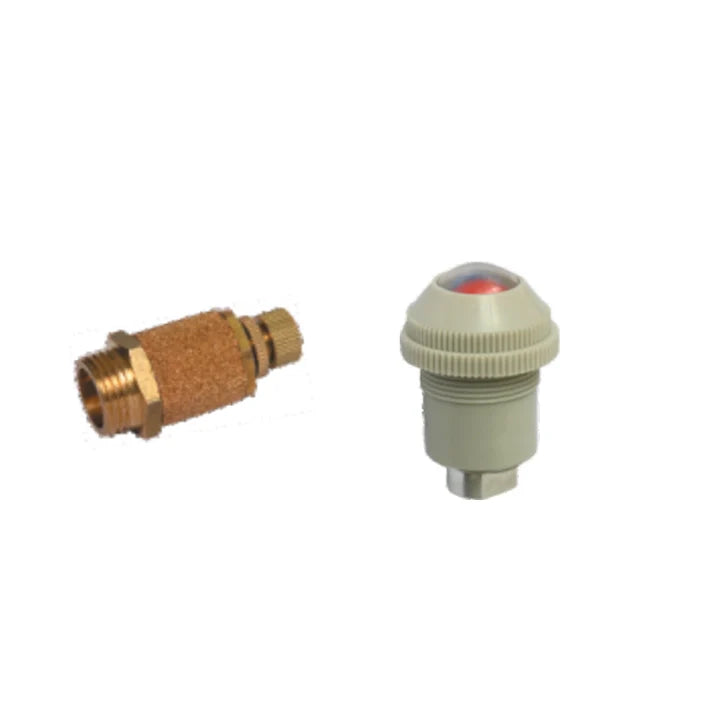

Airtac VIS series: pneumatic pressure indicator - VIS001-06A

Photos are for reference only. Not all models have pictures.

Description

Specifications: VIS001-06A — pneumatic pressure indicator, PT 1/8 port, red to green indication.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning
VIS001 Pneumatic pressure indicator
06 Air connection: PT 1/8
A Indication change: red to green

Technical Specifications

Parameter Details
Model VIS001-06A
Working medium Compressed air
Connection PT 1/8
Indication direction red to green
Fully-on pressure range 0.05–0.7 MPa (7–100 psi as printed)
Fully-off pressure range 0–0.015 MPa (0–2 psi as printed)
Mounting Panel mounting

Compatible Circuit and Operation

This indicator connects to a pneumatic pressure signal through a mating PT 1/8 port. It is a visual pressure-status accessory; the source specifies no voltage, electrical contacts or electronic switching output. It is not a replacement for an EMS/DMS/CMS cylinder-position sensor. The catalog does not identify one exclusive valve family, so the actual signal port, pressure range and panel fit must be checked.

External and Mounting Dimensions

Parameter Details
Panel cutout Φ31 mm
Panel thickness Less than 9 mm
Connection PT 1/8
Other dimensions Overall length and body envelope are not published on the supplied page.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Series Ordering Options

04 denotes M5 × 0.8 and 06 denotes PT 1/8. A changes red to green; B changes green to red. These are separate order variants; this item has only the connection and indication specified above.

Weight Reference

35 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.
