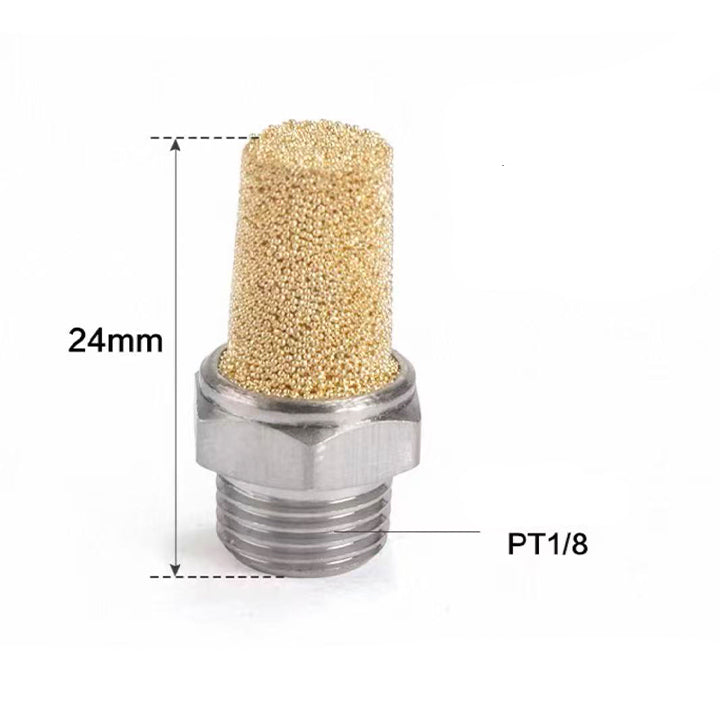

Airtac BSL series: general-purpose silencer - BSL01

Photos are for reference only. Not all models have pictures.

Description

Specifications: BSL01 — general-purpose silencer, PT 1/8 connection for a matching pneumatic exhaust port.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning
BSL general-purpose silencer
01 Connection: PT 1/8

Technical Specifications

Parameter Details
Current model BSL01
Type general-purpose silencer
Connection PT 1/8
Use Pneumatic exhaust noise reduction

Compatible Valve Series and Port Conditions

Install BSL01 at a compatible exhaust port with a mating PT 1/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance.

Features and Operation

The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element.

2022 Reference Specifications

The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs.

Parameter Details
Working medium Air
Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed)
Vacuum reference −750 mmHg (10 Torr as printed)
Proof pressure 1.5 MPa
Temperature −20–70 °C
Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level

External and Mounting Dimensions — 2022 Reference

Parameter Details
R / thread PT 1/8
L 6 mm
C 24 mm
H 12 mm

L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Internal Components — 2022 Reference

Parameter Details
1 — Silencing element Sintered particles
2 — Threaded body HPb59-1 brass

Flow Characteristics — 2022 Reference

BSL: inlet pressure 0–6 bar and exhaust flow 0–8000 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here.

Cylinder and Valve Selection Reference — 2022 Catalog, Page 299

The selection chart includes BSL01 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection.

Parameter Details
Example operating point 20 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 0.5 mm²
Valve choices shown in the same block 5V110M5 / 5V120M5; 4V110M5 or 4V11006 / 4V120M5 or 4V12006; 4M110M5 or 4M11006 / 4M120M5 or 4M12006; 4A110M5 or 4A11006 / 4A120M5 or 4A12006
Tubing at this example point 6 × 4 mm (outside × inside diameter)

The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points.

2022 Chinese Catalog Supplement

The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Weight Reference

6.7 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded.

2022 Chinese catalog, printed page 274, BSL01 row; nominal catalog mass.

Product form

Specifications: BSL01 — general-purpose silencer, PT 1/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog... Read more

SKU: BSL01

$1.64 Incl. VAT
