SAI Series ISO15552 Standard Cylinder

Product Features
Specifications
Stroke Specifications
Product Ordering Code

Product Features

ISO15552 (Original ISO6431) standard cylinder.
The piston seal adopts a heterogeneous two-way seal structure. It is compact in size and has an oil storage function.
"米" (star/cross) shaped aluminum tube, no tie rod, has good corrosion resistance. With sensor mounting grooves on the outside, sensor installation is convenient.
Cylinder buffer adjustment is smooth.
Various specifications of cylinder and mounting accessories are available for customers to choose from.

Specifications

Bore Size (mm)	32	40	50	63	80	100	125	160
Action	Double Acting
Fluid	Air (Filtered 40μm or better)
Mounting (SAI)	Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2
Mounting (others)	Basic, FA, LB, TC, FTC, TCM1, TCM2 (For SAID, SAIJ)
Operating Pressure	0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure	1.5MPa (215psi) (15bar)
Temperature	-20~70°C
Speed Range	30~800 mm/s						30~500 mm/s
Stroke Tolerance	0~250: +1.0/0 251~1000: +1.5/0 1001~1500: +2.0/0
Cushion Type	Adjustable Cushion
Cushion Stroke	27mm		30mm		36mm		40mm	50mm
Port Size [Note 1]	PT1/8	PT1/4		PT3/8		PT1/2		PT3/4

Note: [1] PT thread and G thread are available.

Standard Stroke

Bore Size (mm)	Standard Stroke (mm)	Max Stroke	Allowable Stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	1800
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	1800
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
160	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

Note: 1. For bores 40-160, strokes 600, 700, 800 are also standard.
2. Please contact the company for other special strokes.

Product Ordering Code

No.	Item	Code	Description
1	Model	SAI	Standard Double Acting
		SAID	Double Shaft Double Acting
		SAIJ	Double Shaft Adjustable Stroke
2	Bore Size	32~200	32, 40, 50, 63, 80, 100, 125, 160, 200
3	Rod Material	Blank	Carbon Steel
		A	SUS420J2 Stainless Steel
		B	SUS304 Stainless Steel
4	Stroke	-	Refer to Stroke Table
5	Adjustable Stroke	10~100	10, 20, 30, 40, 50, 75, 100 (Only for SAIJ)
6	Magnet	Blank	No Magnet
6	Magnet	S	With Magnet
7	Mounting	Blank	Standard (No bracket)
7	Mounting	LB, FA, FB, CA, CB, CR, TC, FTC	Mounting accessories (See catalog)

Notes:
1. CR mounting is used with CB.
2. FTC and TC mountings are used with TCM1, TCM2.

Show previous products

View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ40AX796-30LB

Specifications: Double-axis compound stroke adjustable type Cylinder diameter: 40mm Piston rod material: SUS420J2 Stroke: 796mm Adjusting stroke: 30mm Magnet: no magnet Fixed type: LB Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SAIJ40AX796-30LB 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/4 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ40-R1 TPU material P-SAIJ40N-R1 NBR Material P-SAIJ40-R2 Fluorine rubber material ， Installation accessories :F-SI40LB Axial mounting F-SI40FA Flange connecting plate F-SAI40TC Middle Trunnion Bracket F-SI40FTC Front cover trunnion bracket F-SI40TCM1 trunnion mount F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$387.03

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ160BX876-20

Specifications: Double-axis compound stroke adjustable type Cylinder diameter: 160mm Piston rod material: SUS304 Stroke: 876mm Adjusting stroke: 20mm Magnet: no magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SAIJ160BX876-20 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 50, Nozzle caliber: PT3/4 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ160-R1 TPU material P-SAIJ160N-R1 NBR Material P-SAIJ160-R2 Fluorine rubber material ， Installation accessories :F-SI160LB Axial mounting F-SI160FA Flange connecting plate F-SI160TC Middle Trunnion Bracket F-SI160FTC Front cover trunnion bracket F-SI160TCM1 trunnion mount F-SI160TCM2 trunnion mount ， Piston rod end joint :F-M36X200I I Connector F-M36X200Y Y connector F-M36X200F Floating joint F-M36X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$2,910.41

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ160X464-10SLBNG

Specifications: Double-axis compound stroke adjustable type Cylinder diameter: 160mm Piston rod material: medium carbon steel Travel: 464mm Adjusting stroke: 10mm Magnet: with magnet Fixed type: LB Seal material: NBR Tooth type: G tooth Specifications 1. Model: SAIJ160X464-10SLBNG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 50, Nozzle caliber: PT3/4 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ160-R1 TPU material P-SAIJ160N-R1 NBR Material P-SAIJ160-R2 Fluorine rubber material ， Installation accessories :F-SI160LB Axial mounting F-SI160FA Flange connecting plate F-SI160TC Middle Trunnion Bracket F-SI160FTC Front cover trunnion bracket F-SI160TCM1 trunnion mount F-SI160TCM2 trunnion mount ， Piston rod end joint :F-M36X200I I Connector F-M36X200Y Y connector F-M36X200F Floating joint F-M36X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$1,726.05

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ32X978-20STCTCM2G

Specifications: Double-axis compound stroke adjustable type Bore: 32mm Piston rod material: medium carbon steel Stroke: 978mm Adjusting stroke: 20mm Magnet: with magnet Fixed type: TCM2 Seal material: TPU Tooth type: G tooth Specifications 1. Model: SAIJ32X978-20STCTCM2G 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ32-R1 TPU material P-SAIJ32N-R1 NBR Material P-SAIJ32-R2 Fluorine rubber material ， Installation accessories :F-SI32LB Axial mounting F-SI32FA Flange connecting plate F-SAI32TC Middle Trunnion Bracket F-SI32FTC Front cover trunnion bracket F-SI32TCM1 trunnion mount F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$351.92

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ32X577-20TCTCM2H

Specifications: Double-axis compound stroke adjustable type Bore: 32mm Piston rod material: medium carbon steel Stroke: 577mm Adjusting stroke: 20mm Magnet: no magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: PT tooth Specifications 1. Model: SAIJ32X577-20TCTCM2H 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ32-R1 TPU material P-SAIJ32N-R1 NBR Material P-SAIJ32-R2 Fluorine rubber material ， Installation accessories :F-SI32LB Axial mounting F-SI32FA Flange connecting plate F-SAI32TC Middle Trunnion Bracket F-SI32FTC Front cover trunnion bracket F-SI32TCM1 trunnion mount F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$269.09

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ40X288-50SFTCN

Specifications: Double-axis compound stroke adjustable type Cylinder diameter: 40mm Piston rod material: medium carbon steel Travel: 288mm Adjusting stroke: 50mm Magnet: with magnet Fixed type: FTC Seal material: NBR Tooth type: PT tooth Specifications 1. Model: SAIJ40X288-50SFTCN 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/4 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ40-R1 TPU material P-SAIJ40N-R1 NBR Material P-SAIJ40-R2 Fluorine rubber material ， Installation accessories :F-SI40LB Axial mounting F-SI40FA Flange connecting plate F-SAI40TC Middle Trunnion Bracket F-SI40FTC Front cover trunnion bracket F-SI40TCM1 trunnion mount F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$209.40

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ40BX567-50SFTCHG

Specifications: Double-axis compound stroke adjustable type Cylinder diameter: 40mm Piston rod material: SUS304 Stroke: 567mm Adjusting stroke: 50mm Magnet: with magnet Fixed type: FTC Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SAIJ40BX567-50SFTCHG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/4 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ40-R1 TPU material P-SAIJ40N-R1 NBR Material P-SAIJ40-R2 Fluorine rubber material ， Installation accessories :F-SI40LB Axial mounting F-SI40FA Flange connecting plate F-SAI40TC Middle Trunnion Bracket F-SI40FTC Front cover trunnion bracket F-SI40TCM1 trunnion mount F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$338.06

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ32BX996-75SHG

Specifications: Double-axis compound stroke adjustable type Bore: 32mm Piston rod material: SUS304 Stroke: 996mm Adjusting stroke: 75mm Magnet: with magnet Fixed type: none Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SAIJ32BX996-75SHG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ32-R1 TPU material P-SAIJ32N-R1 NBR Material P-SAIJ32-R2 Fluorine rubber material ， Installation accessories :F-SI32LB Axial mounting F-SI32FA Flange connecting plate F-SAI32TC Middle Trunnion Bracket F-SI32FTC Front cover trunnion bracket F-SI32TCM1 trunnion mount F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$350.80

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ32AX839-75H

Specifications: Double-axis compound stroke adjustable type Bore: 32mm Piston rod material: SUS420J2 Stroke: 839mm Adjusting stroke: 75mm Magnet: no magnet Fixed type: none Seal material: fluorine rubber Tooth type: PT tooth Specifications 1. Model: SAIJ32AX839-75H 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ32-R1 TPU material P-SAIJ32N-R1 NBR Material P-SAIJ32-R2 Fluorine rubber material ， Installation accessories :F-SI32LB Axial mounting F-SI32FA Flange connecting plate F-SAI32TC Middle Trunnion Bracket F-SI32FTC Front cover trunnion bracket F-SI32TCM1 trunnion mount F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$308.03

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ125BX906-75STCTCM1

Specifications: Double-axis compound stroke adjustable type Bore: 125mm Piston rod material: SUS304 Stroke: 906mm Adjusting stroke: 75mm Magnet: with magnet Fixed type: TCM1 Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SAIJ125BX906-75STCTCM1 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ125-R1 TPU material P-SAIJ125N-R1 NBR Material P-SAIJ125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SAI125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$2,057.62

View options
View options

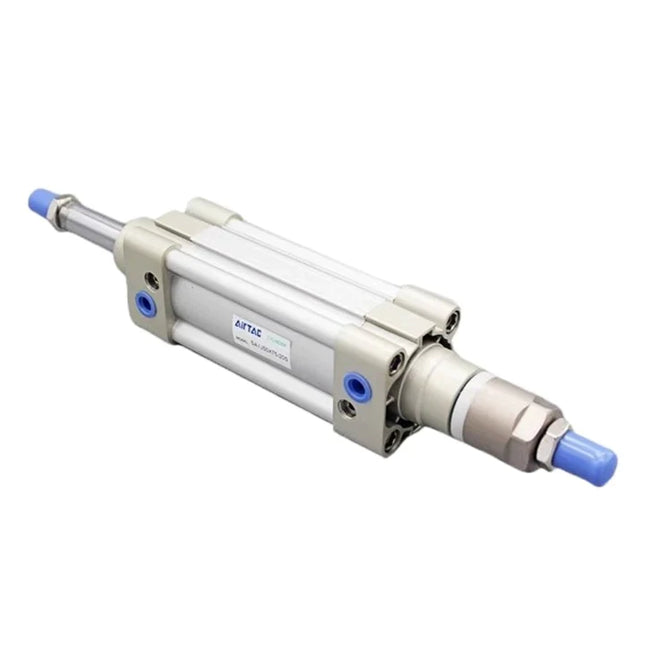

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ125BX1384-75SLB
