SAI Series ISO15552 Standard Cylinder

Product Features
Specifications
Stroke Specifications
Product Ordering Code

Product Features

ISO15552 (Original ISO6431) standard cylinder.
The piston seal adopts a heterogeneous two-way seal structure. It is compact in size and has an oil storage function.
"米" (star/cross) shaped aluminum tube, no tie rod, has good corrosion resistance. With sensor mounting grooves on the outside, sensor installation is convenient.
Cylinder buffer adjustment is smooth.
Various specifications of cylinder and mounting accessories are available for customers to choose from.

Specifications

Bore Size (mm)	32	40	50	63	80	100	125	160
Action	Double Acting
Fluid	Air (Filtered 40μm or better)
Mounting (SAI)	Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2
Mounting (others)	Basic, FA, LB, TC, FTC, TCM1, TCM2 (For SAID, SAIJ)
Operating Pressure	0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure	1.5MPa (215psi) (15bar)
Temperature	-20~70°C
Speed Range	30~800 mm/s						30~500 mm/s
Stroke Tolerance	0~250: +1.0/0 251~1000: +1.5/0 1001~1500: +2.0/0
Cushion Type	Adjustable Cushion
Cushion Stroke	27mm		30mm		36mm		40mm	50mm
Port Size [Note 1]	PT1/8	PT1/4		PT3/8		PT1/2		PT3/4

Note: [1] PT thread and G thread are available.

Standard Stroke

Bore Size (mm)	Standard Stroke (mm)	Max Stroke	Allowable Stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	1800
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	1800
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
160	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

Note: 1. For bores 40-160, strokes 600, 700, 800 are also standard.
2. Please contact the company for other special strokes.

Product Ordering Code

No.	Item	Code	Description
1	Model	SAI	Standard Double Acting
		SAID	Double Shaft Double Acting
		SAIJ	Double Shaft Adjustable Stroke
2	Bore Size	32~200	32, 40, 50, 63, 80, 100, 125, 160, 200
3	Rod Material	Blank	Carbon Steel
		A	SUS420J2 Stainless Steel
		B	SUS304 Stainless Steel
4	Stroke	-	Refer to Stroke Table
5	Adjustable Stroke	10~100	10, 20, 30, 40, 50, 75, 100 (Only for SAIJ)
6	Magnet	Blank	No Magnet
6	Magnet	S	With Magnet
7	Mounting	Blank	Standard (No bracket)
7	Mounting	LB, FA, FB, CA, CB, CR, TC, FTC	Mounting accessories (See catalog)

Notes:
1. CR mounting is used with CB.
2. FTC and TC mountings are used with TCM1, TCM2.

Show previous products

View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ63X917-30S

Specifications: Double-axis compound stroke adjustable type Bore: 63mm Piston rod material: medium carbon steel Stroke: 917mm Adjusting stroke: 30mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SAIJ63X917-30S 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 30, Nozzle caliber: PT3/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ63-R1 TPU material P-SAIJ63N-R1 NBR Material P-SAIJ63-R2 Fluorine rubber material ， Installation accessories :F-SI63LB Axial mounting F-SI63FA Flange connecting plate F-SAI63TC Middle Trunnion Bracket F-SI63FTC Front cover trunnion bracket F-SI63TCM1 trunnion mount F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$527.50

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ125AX739-20LBG

Specifications: Double-axis compound stroke adjustable type Bore: 125mm Piston rod material: SUS420J2 Stroke: 739mm Adjusting stroke: 20mm Magnet: no magnet Fixed type: LB Seal material: TPU Tooth type: G tooth Specifications 1. Model: SAIJ125AX739-20LBG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ125-R1 TPU material P-SAIJ125N-R1 NBR Material P-SAIJ125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SAI125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$1,662.05

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ125BX1406-30N

Specifications: Double-axis compound stroke adjustable type Bore: 125mm Piston rod material: SUS304 Stroke: 1406mm Adjusting stroke: 30mm Magnet: no magnet Fixed type: none Seal material: NBR Tooth type: PT tooth Specifications 1. Model: SAIJ125BX1406-30N 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ125-R1 TPU material P-SAIJ125N-R1 NBR Material P-SAIJ125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SAI125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$2,491.76

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ125X307-30SFAHG

Specifications: Double-axis compound stroke adjustable type Bore: 125mm Piston rod material: medium carbon steel Stroke: 307mm Adjusting stroke: 30mm Magnet: with magnet Fixed type: FA Seal material: fluorine rubber Tooth type: G tooth Specifications 1. Model: SAIJ125X307-30SFAHG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ125-R1 TPU material P-SAIJ125N-R1 NBR Material P-SAIJ125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SAI125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$910.04

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ63AX243-40STCH

Specifications: Double-axis compound stroke adjustable type Bore: 63mm Piston rod material: SUS420J2 Stroke: 243mm Adjusting stroke: 40mm Magnet: with magnet Fixed type: TC Seal material: fluorine rubber Tooth type: PT tooth Specifications 1. Model: SAIJ63AX243-40STCH 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 30, Nozzle caliber: PT3/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ63-R1 TPU material P-SAIJ63N-R1 NBR Material P-SAIJ63-R2 Fluorine rubber material ， Installation accessories :F-SI63LB Axial mounting F-SI63FA Flange connecting plate F-SAI63TC Middle Trunnion Bracket F-SI63FTC Front cover trunnion bracket F-SI63TCM1 trunnion mount F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$403.10

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ63AX1456-40STCTCM1G

Specifications: Double-axis compound stroke adjustable type Bore: 63mm Piston rod material: SUS420J2 Stroke: 1456mm Adjusting stroke: 40mm Magnet: with magnet Fixed type: TCM1 Seal material: TPU Tooth type: G tooth Specifications 1. Model: SAIJ63AX1456-40STCTCM1G 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 30, Nozzle caliber: PT3/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ63-R1 TPU material P-SAIJ63N-R1 NBR Material P-SAIJ63-R2 Fluorine rubber material ， Installation accessories :F-SI63LB Axial mounting F-SI63FA Flange connecting plate F-SAI63TC Middle Trunnion Bracket F-SI63FTC Front cover trunnion bracket F-SI63TCM1 trunnion mount F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$1,051.18

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ80BX434-20TCTCM1NG

Specifications: Double-axis compound stroke adjustable type Bore: 80mm Piston rod material: SUS304 Stroke: 434mm Adjusting stroke: 20mm Magnet: no magnet Fixed type: TCM1 Seal material: NBR Tooth type: G tooth Specifications 1. Model: SAIJ80BX434-20TCTCM1NG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 36, Nozzle caliber: PT3/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ80-R1 TPU material P-SAIJ80N-R1 NBR Material P-SAIJ80-R2 Fluorine rubber material ， Installation accessories :F-SI80LB Axial mounting F-SI80FA Flange connecting plate F-SAI80TC Middle Trunnion Bracket F-SI80FTC Front cover trunnion bracket F-SI63TCM1 trunnion mount F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$754.00

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ100AX1131-50FA

Specifications: Double-axis compound stroke adjustable type Bore: 100mm Piston rod material: SUS420J2 Travel: 1131mm Adjusting stroke: 50mm Magnet: no magnet Fixed type: FA Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SAIJ100AX1131-50FA 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 36, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ100-R1 TPU material P-SAIJ100N-R1 NBR Material P-SAIJ100-R2 Fluorine rubber material ， Installation accessories :F-SI100LB Axial mounting F-SI100FA Flange connecting plate F-SAI100TC Middle Trunnion Bracket F-SI100FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$1,386.31

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ100X221-40H

Specifications: Double-axis compound stroke adjustable type Bore: 100mm Piston rod material: medium carbon steel Travel: 221mm Adjusting stroke: 40mm Magnet: no magnet Fixed type: none Seal material: fluorine rubber Tooth type: PT tooth Specifications 1. Model: SAIJ100X221-40H 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 36, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ100-R1 TPU material P-SAIJ100N-R1 NBR Material P-SAIJ100-R2 Fluorine rubber material ， Installation accessories :F-SI100LB Axial mounting F-SI100FA Flange connecting plate F-SAI100TC Middle Trunnion Bracket F-SI100FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$472.52

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ100BX1478-40STCG

Specifications: Double-axis compound stroke adjustable type Bore: 100mm Piston rod material: SUS304 Stroke: 1478mm Adjusting stroke: 40mm Magnet: with magnet Fixed type: TC Seal material: TPU Tooth type: G tooth Specifications 1. Model: SAIJ100BX1478-40STCG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 36, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ100-R1 TPU material P-SAIJ100N-R1 NBR Material P-SAIJ100-R2 Fluorine rubber material ， Installation accessories :F-SI100LB Axial mounting F-SI100FA Flange connecting plate F-SAI100TC Middle Trunnion Bracket F-SI100FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$1,761.40

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ100AX52-30FAH

Specifications: Double-axis compound stroke adjustable type Bore: 100mm Piston rod material: SUS420J2 Stroke: 52mm Adjusting stroke: 30mm Magnet: no magnet Fixed type: FA Seal material: fluorine rubber Tooth type: PT tooth Specifications 1. Model: SAIJ100AX52-30FAH 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 36, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ100-R1 TPU material P-SAIJ100N-R1 NBR Material P-SAIJ100-R2 Fluorine rubber material ， Installation accessories :F-SI100LB Axial mounting F-SI100FA Flange connecting plate F-SAI100TC Middle Trunnion Bracket F-SI100FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$464.01

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ80X937-20SFTCH

Specifications: Double-axis compound stroke adjustable type Bore: 80mm Piston rod material: medium carbon steel Stroke: 937mm Adjusting stroke: 20mm Magnet: with magnet Fixed type: FTC Seal material: fluorine rubber Tooth type: PT tooth Specifications 1. Model: SAIJ80X937-20SFTCH 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 36, Nozzle caliber: PT3/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ80-R1 TPU material P-SAIJ80N-R1 NBR Material P-SAIJ80-R2 Fluorine rubber material ， Installation accessories :F-SI80LB Axial mounting F-SI80FA Flange connecting plate F-SAI80TC Middle Trunnion Bracket F-SI80FTC Front cover trunnion bracket F-SI63TCM1 trunnion mount F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$834.15

View options
View options

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ100X687-75STCTCM1H

Specifications: Double-axis compound stroke adjustable type Bore: 100mm Piston rod material: medium carbon steel Travel: 687mm Adjusting stroke: 75mm Magnet: with magnet Fixed type: TCM1 Seal material: fluorine rubber Tooth type: PT tooth Specifications 1. Model: SAIJ100X687-75STCTCM1H 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 36, Nozzle caliber: PT1/2 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel Type of sealing ring :P-SAIJ100-R1 TPU material P-SAIJ100N-R1 NBR Material P-SAIJ100-R2 Fluorine rubber material ， Installation accessories :F-SI100LB Axial mounting F-SI100FA Flange connecting plate F-SAI100TC Middle Trunnion Bracket F-SI100FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552 (original ISO6431) standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$999.81

View options
View options

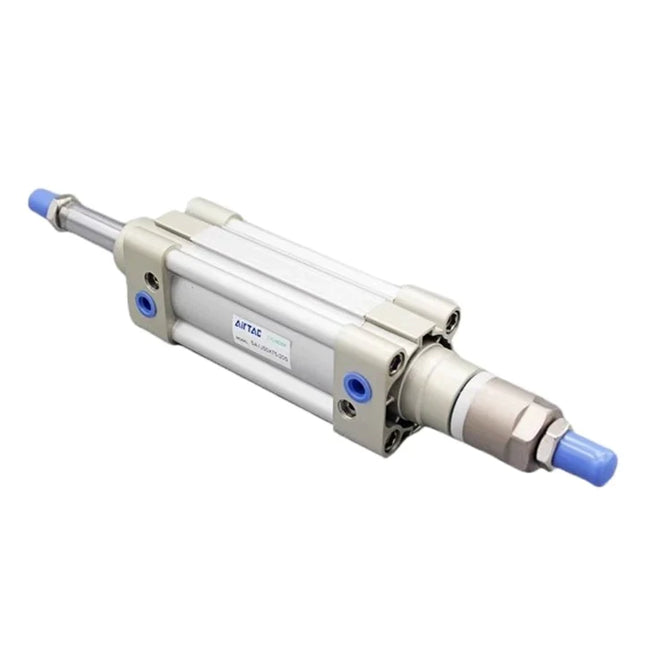

Airtac SAI Series: Double Axis Compound Stroke Adjustable Cylinder - SAIJ100BX262-75TCTCM2
