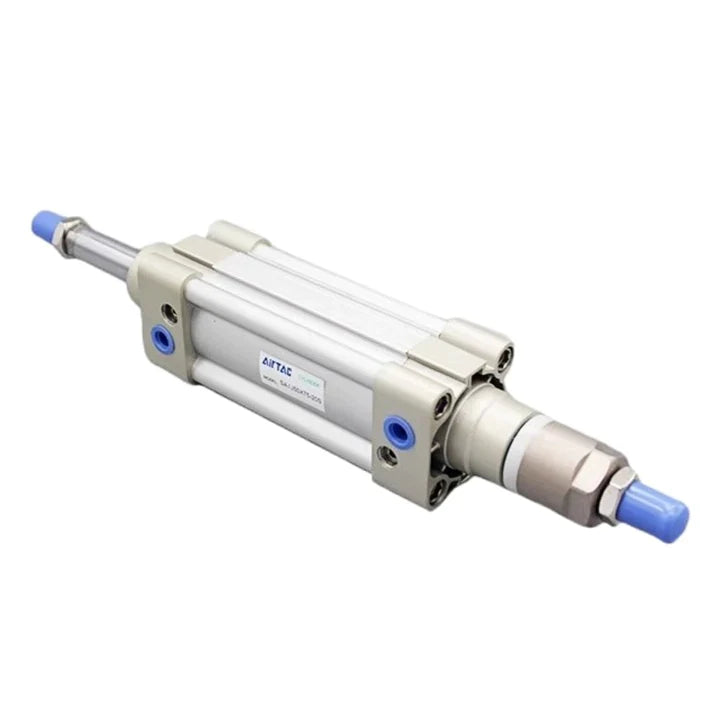

Specifications: Double-axis compound stroke adjustable type Bore: 32mm Piston rod material: SUS304 Stroke: 996mm Adjusting stroke: 75mm Magnet: with magnet Fixed type: none Seal material: fluorine rubber Tooth type: G tooth
Specifications
1. Model: SAIJ32BX996-75SHG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/8
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE
Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel
Type of sealing ring :P-SAIJ32-R1 TPU material P-SAIJ32N-R1 NBR Material P-SAIJ32-R2 Fluorine rubber material ， Installation accessories :F-SI32LB Axial mounting F-SI32FA Flange connecting plate F-SAI32TC Middle Trunnion Bracket F-SI32FTC Front cover trunnion bracket F-SI32TCM1 trunnion mount F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint
Click to download Airtac product catalog
Product Features
1.ISO15552 (original ISO6431) standard cylinder.
2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick.
4. The cylinder buffer adjustment is stable.
5. Various specifications of the cylinder and cylinder mounting accessories are available.
