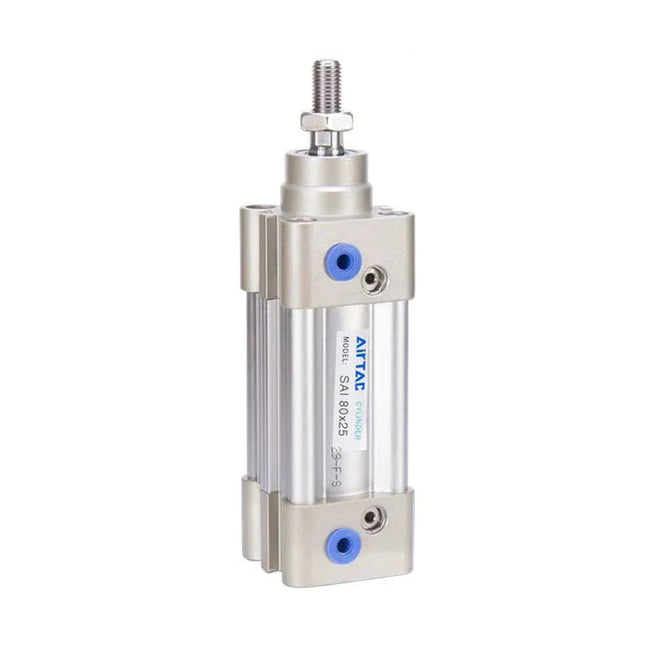

SAI Series ISO15552 Standard Cylinder
Product Features
- ISO15552 (Original ISO6431) standard cylinder.
- The piston seal adopts a heterogeneous two-way seal structure. It is compact in size and has an oil storage function.
- "米" (star/cross) shaped aluminum tube, no tie rod, has good corrosion resistance. With sensor mounting grooves on the outside, sensor installation is convenient.
- Cylinder buffer adjustment is smooth.
- Various specifications of cylinder and mounting accessories are available for customers to choose from.
Specifications
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
|---|---|---|---|---|---|---|---|---|---|
| Action | Double Acting | ||||||||
| Fluid | Air (Filtered 40μm or better) | ||||||||
| Mounting (SAI) | Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2 | ||||||||
| Mounting (others) | Basic, FA, LB, TC, FTC, TCM1, TCM2 (For SAID, SAIJ) | ||||||||
| Operating Pressure | 0.15~1.0MPa (22~145psi) (1.5~10.0bar) | ||||||||
| Proof Pressure | 1.5MPa (215psi) (15bar) | ||||||||
| Temperature | -20~70°C | ||||||||
| Speed Range | 30~800 mm/s | 30~500 mm/s | |||||||
| Stroke Tolerance |
0~250: +1.0/0 251~1000: +1.5/0 1001~1500: +2.0/0 |
||||||||
| Cushion Type | Adjustable Cushion | ||||||||
| Cushion Stroke | 27mm | 30mm | 36mm | 40mm | 50mm | ||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 | ||||
Note: [1] PT thread and G thread are available.
Standard Stroke
| Bore Size (mm) | Standard Stroke (mm) | Max Stroke | Allowable Stroke |
|---|---|---|---|
| 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 1000 | 1800 |
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 1800 |
| 50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 1800 |
| 63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 |
| 125 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 1800 | 160 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 200 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
Note:
1. For bores 40-160, strokes 600, 700, 800 are also standard.
2. Please contact the company for other special strokes.
2. Please contact the company for other special strokes.
Product Ordering Code
| No. | Item | Code | Description |
|---|---|---|---|
| 1 | Model | SAI | Standard Double Acting |
| SAID | Double Shaft Double Acting | ||

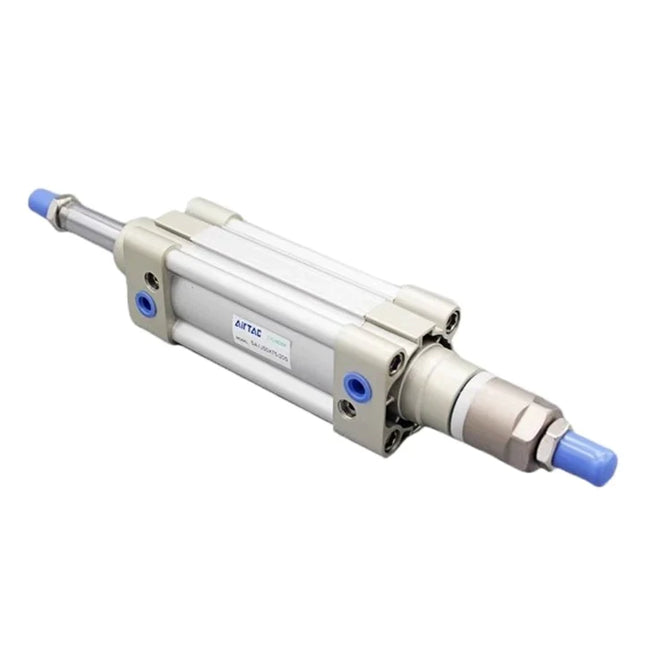

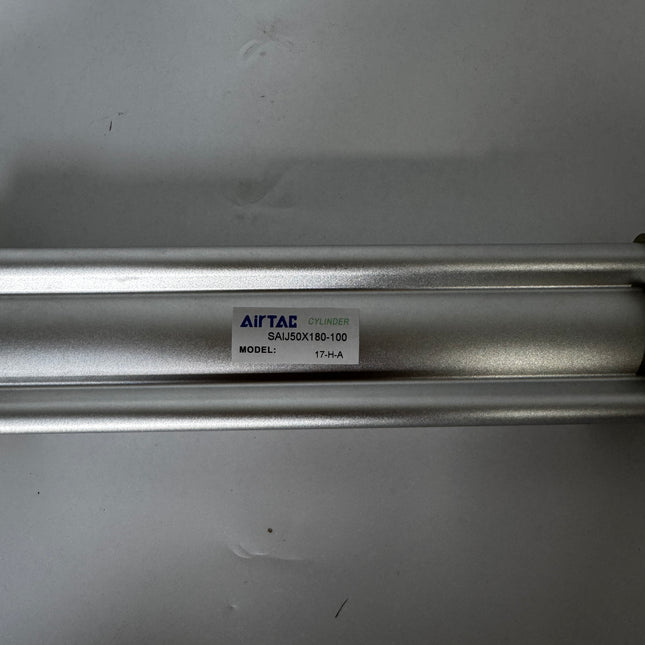

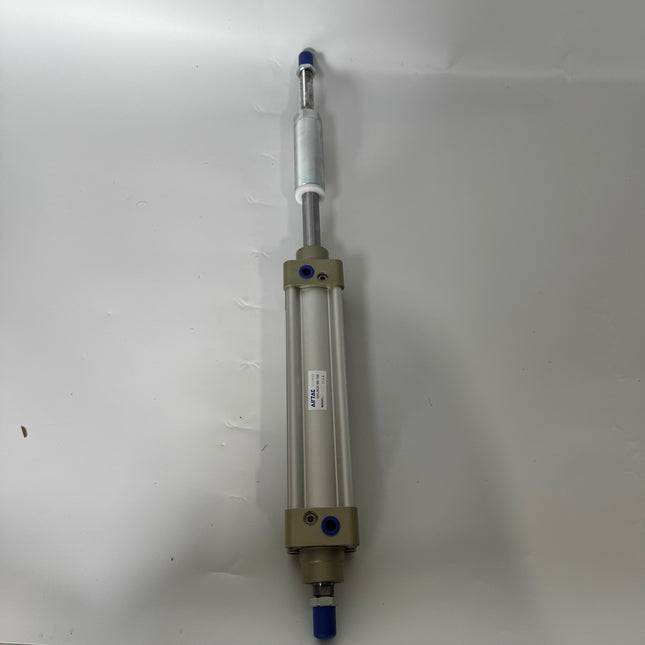

| SAIJ | Double Shaft Adjustable Stroke | ||
| 2 | Bore Size | 32~200 | 32, 40, 50, 63, 80, 100, 125, 160, 200 |
| 3 | Rod Material | Blank | Carbon Steel |
| A | SUS420J2 Stainless Steel | ||
| B | SUS304 Stainless Steel | ||
| 4 | Stroke | - | Refer to Stroke Table |
| 5 | Adjustable Stroke | 10~100 | 10, 20, 30, 40, 50, 75, 100 (Only for SAIJ) |
| 6 | Magnet | Blank | No Magnet |
| S | With Magnet | ||
| 7 | Mounting | Blank | Standard (No bracket) |
| LB, FA, FB, CA, CB, CR, TC, FTC | Mounting accessories (See catalog) |
Notes:
1. CR mounting is used with CB.
2. FTC and TC mountings are used with TCM1, TCM2.
1. CR mounting is used with CB.
2. FTC and TC mountings are used with TCM1, TCM2.
