Flame Resistant Tube & Accessories

UWS98A Series Tube / AQC Tube Cutter / AG Blow Gun

Product Features
Tube Specifications
Ordering Code

UWS98A Series (Flame Resistant Tube) Features

Composite Structure: Advanced dual-layer design featuring a hard 98A Polyurethane (PU) inner tube for reliable fluid transmission.
Spark Protection: The outer layer is jacketed with a special flame-resistant sheath that shields the inner tubing from welding sparks, slag, and intense heat.
Safety Compliance: The outer flame-resistant sheath rigorously complies with UL94V0 flammability standards.
Chemical Resistance: Provides strong insulation properties and excellent resistance to oil, aqueous solutions, ozone, and UV rays.
High Flexibility: Maintains excellent elasticity, making it easy to route and install in robotic welding cells and dynamic automated environments.

UWS98A Series Specifications

General Specs:
• Inner Tube Color: Black
• Operating Temperature Range: -40 ~ 70°C

Model	Tube Size (O.D. x I.D. mm)	Cover Color	Pressure @ 23°C (Operating / Burst)	Min. Bending Radius (mm)	Roll Length (m)
UWS98A6040	Φ6.0 x Φ4.0	Red / Black	10.0 bar / 30.0 bar	20	50 / 100 / 200
UWS98A8050	Φ8.0 x Φ5.0	Red / Black	11.0 bar / 33.0 bar	30	50 / 100
UWS98A1065	Φ10.0 x Φ6.5	Blue / White	10.0 bar / 30.0 bar	35	50 / 100
UWS98A1280	Φ12.0 x Φ8.0	Yellow / Green	9.0 bar / 27.0 bar	40	50 / 100

Product Ordering Codes

1. UWS98A Series (Flame Resistant Tube)

Example: UWS98A - 80 50 100M Y

No.	Item	Options & Description
1	Model	UWS98A: Flame Resistant Tube
2	O.D. Code	060: Φ6.0mm \| 080: Φ8.0mm \| 100: Φ10.0mm \| 120: Φ12.0mm
3	I.D. Code	040: Φ4.0mm \| 050: Φ5.0mm \| 065: Φ6.5mm \| 080: Φ8.0mm
4	Length Code	200M: 200m/Roll \| 100M: 100m/Roll \| 50M: 50m/Roll
5	Color Code	RD: Red BK: Black BU: Blue WH: White Y: Yellow GN: Green

Note: Other customized sizes of flame resistant tubes are available upon request. Please specify requirements when ordering.

2. AQC Series (Tube Cutter)

No.	Item	Description
1	Model	AQC: Premium Tube Cutter
2	Color Code	BL: Blue

3. AG Series (Air Blow Gun)

No.	Item	Description
1	Model	AG: Standard Air Gun AGL: Long Nozzle Air Gun
2	Color Code	B: Blue \| R: Red

Show previous products

View options

Airtac UWS98A series: flame retardant tube - UWS98A-6040100MY

Model: flame retardant tube Outer diameter: ø6.0mm Inner diameter: ø4.0mm Length: 100m/roll Color: Yellow Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$250.71

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-10065100MRD

Model: flame retardant tube Outer diameter: ø10.0mm Inner diameter: ø6.5mm Length: 100m/roll Color: Red Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$538.65

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-6040200MRD

Model: flame retardant tube Outer diameter: ø6.0mm Inner diameter: ø4.0mm Length: 200m/volume Color: Red Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$501.54

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-6040100MGN

Model: flame retardant tube Outer diameter: ø6.0mm Inner diameter: ø4.0mm Length: 100m/roll Color: Green Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$250.71

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-6040200MWH

Model: flame retardant tube Outer diameter: ø6.0mm Inner diameter: ø4.0mm Length: 200m/volume Color: White Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$501.54

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-6040200MY

Model: flame retardant tube Outer diameter: ø6.0mm Inner diameter: ø4.0mm Length: 200m/volume Color: Yellow Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$501.54

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-805050MY

Model: flame retardant tube Outer diameter: ø8.0mm Inner diameter: ø5.0mm Length: 50m/roll Color: Yellow Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$196.57

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-604050MY

Model: flame retardant tube Outer diameter: ø6.0mm Inner diameter: ø4.0mm Length: 50m/roll Color: Yellow Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$125.29

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-604050MBU

Model: flame retardant tube Outer diameter: ø6.0mm Inner diameter: ø4.0mm Length: 50m/roll Color: Blue Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$125.29

View options
View options

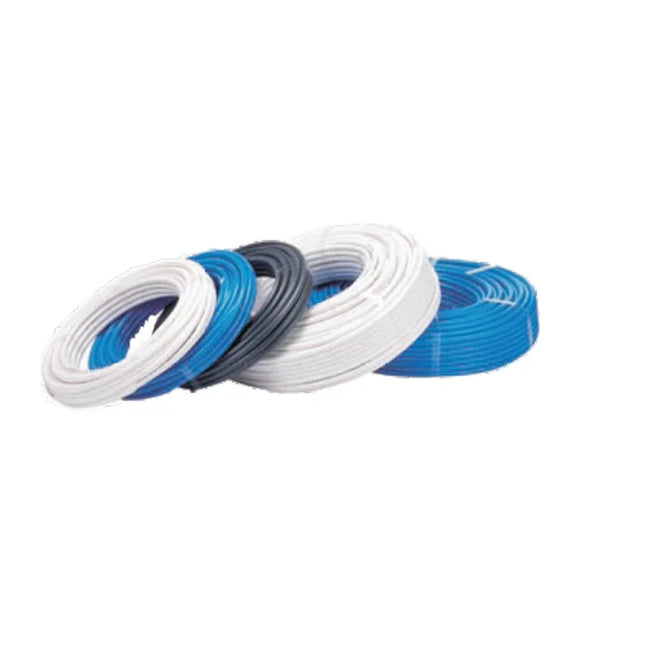

Airtac UWS98A series: flame retardant tube - UWS98A-6040200MBK

Model: flame retardant tube Outer diameter: ø6.0mm Inner diameter: ø4.0mm Length: 200m/volume Color: Black Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$501.54

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-12080100MGN

Model: flame retardant tube Outer diameter: ø12.0mm Inner diameter: ø8.0mm Length: 100m/roll Color: Green Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$718.20

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-1208050MWH

Model: flame retardant tube Outer diameter: ø12.0mm Inner diameter: ø8.0mm Length: 50m/roll Color: White Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$359.10

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-604050MGN

Model: flame retardant tube Outer diameter: ø6.0mm Inner diameter: ø4.0mm Length: 50m/roll Color: Green Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$125.29

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-12080100MBK

Model: flame retardant tube Outer diameter: ø12.0mm Inner diameter: ø8.0mm Length: 100m/roll Color: Black Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$718.20

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-1208050MBK

Model: flame retardant tube Outer diameter: ø12.0mm Inner diameter: ø8.0mm Length: 50m/roll Color: Black Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$359.10

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-805050MBU

Model: flame retardant tube Outer diameter: ø8.0mm Inner diameter: ø5.0mm Length: 50m/roll Color: Blue Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$196.57

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-8050100MY

Model: flame retardant tube Outer diameter: ø8.0mm Inner diameter: ø5.0mm Length: 100m/roll Color: Yellow Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$393.28

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-12080100MWH

Model: flame retardant tube Outer diameter: ø12.0mm Inner diameter: ø8.0mm Length: 100m/roll Color: White Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$718.20

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-10065100MBU

Model: flame retardant tube Outer diameter: ø10.0mm Inner diameter: ø6.5mm Length: 100m/roll Color: Blue Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$538.65

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-1208050MY

Model: flame retardant tube Outer diameter: ø12.0mm Inner diameter: ø8.0mm Length: 50m/roll Color: Yellow Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$359.10

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-1208050MBU

Model: flame retardant tube Outer diameter: ø12.0mm Inner diameter: ø8.0mm Length: 50m/roll Color: Blue Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$359.10

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-8050100MGN

Model: flame retardant tube Outer diameter: ø8.0mm Inner diameter: ø5.0mm Length: 100m/roll Color: Green Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$393.28

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-805050MGN

Model: flame retardant tube Outer diameter: ø8.0mm Inner diameter: ø5.0mm Length: 50m/roll Color: Green Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$196.57

View options
View options

Airtac UWS98A series: flame retardant tube - UWS98A-1006550MBU

Model: flame retardant tube Outer diameter: ø10.0mm Inner diameter: ø6.5mm Length: 50m/roll Color: Blue Click to download Airtac product catalog Product Features 1. Flame retardant composite pipe, the pipe adopts PU material with hardness of 98A. 2. The outer layer is coated with a special flame retardant conduit to protect the pipe and prevent sparks from splashing during welding. 3. The outer flame retardant conduit conforms to UL94VO standard. Provides superior insulation against grease, water solutions, ozone, hot air and UV rays. 4. strong elasticity, suitable for great temperature range, welding area of high temperature environment.

Read more less

$269.33

View options
