Flame Resistant Tube / Tube Cutter / Air Blow Gun

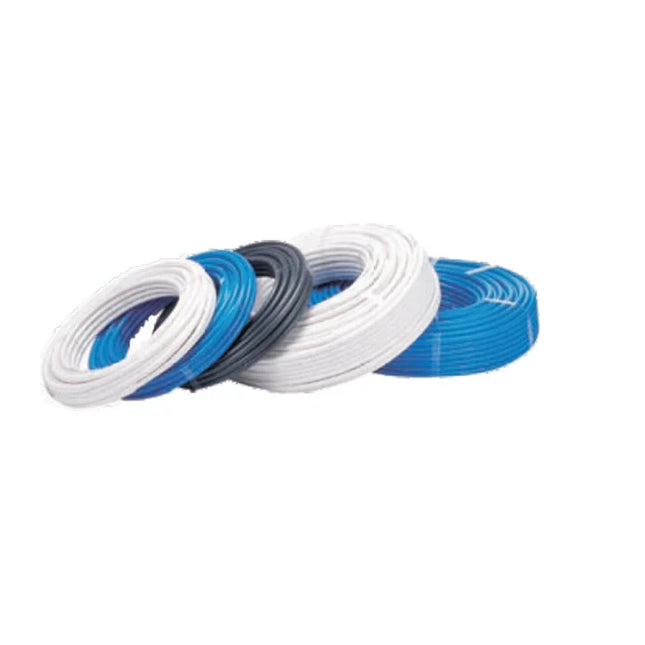

UWS98A Series (Flame Resistant Tube) Features
- Flame-resistant composite tube; the inner tube adopts hard 98A PU material.
- The outer layer is covered with a special flame-resistant sheath, which protects the tube material and prevents damage from welding sparks.
- The outer flame-resistant sheath complies with UL94V0 standards. It provides strong insulation properties and resistance to oil, water solutions, ozone, heat, and UV rays.
- High elasticity, suitable for use in a wide temperature range and welding environments.
Specifications (UWS98A Series)
| Model | Inner Tube O.D. (mm) | Inner Tube I.D. (mm) | Tube Color | Cover Color | Operating Pressure 23°C (bar) | Burst Pressure 23°C (bar) | Min. Bending Radius (mm) | Length per Roll (m) | Operating Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| UWS98A6040 | 6.0 | 4.0 | Black | Red Black |
10.0 | 30.0 | 20 | 50 \ 100 \ 200 | -40 ~ 70 |
| UWS98A8050 | 8.0 | 5.0 | 11.0 | 33.0 | 30 | 50 \ 100 | |||
| UWS98A1065 | 10.0 | 6.5 | Blue White |
10.0 | 30.0 | 35 | 50 \ 100 | ||
| UWS98A1280 | 12.0 | 8.0 | Yellow Green |
9.0 | 27.0 | 40 | 50 \ 100 |
Product Ordering Code
1. UWS98A Series (Flame Resistant Tube)
Example: UWS98A - 80 50 100M Y
| No. | Item | Description |
|---|---|---|
| 1 | Model | UWS98A: Flame Resistant Tube |
| 2 | O.D. Code | 060: Φ6.0mm 080: Φ8.0mm 100: Φ10.0mm 120: Φ12.0mm |
| 3 | I.D. Code | 040: Φ4.0mm 050: Φ5.0mm 065: Φ6.5mm 080: Φ8.0mm |
| 4 | Length Code [Note] | 200M: 200m/Roll 100M: 100m/Roll 50M: 50m/Roll |
| 5 | Color Code | RD: Red BK: Black BU: Blue WH: White Y: Yellow GN: Green |
[Note] Other sizes of flame resistant tubes are available; please specify when ordering.

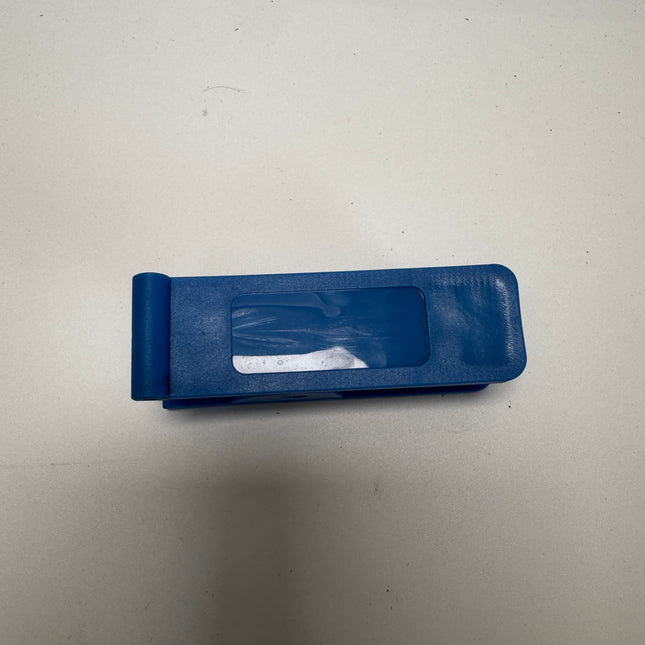

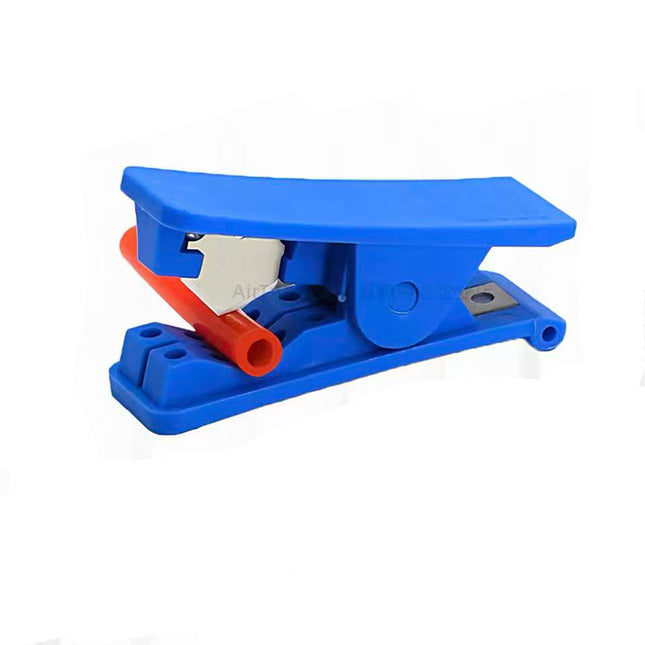

2. AQC Series (Tube Cutter)
| No. | Item | Description |
|---|---|---|
| 1 | Model | AQC: Tube Cutter |
| 2 | Color Code | BL: Blue |

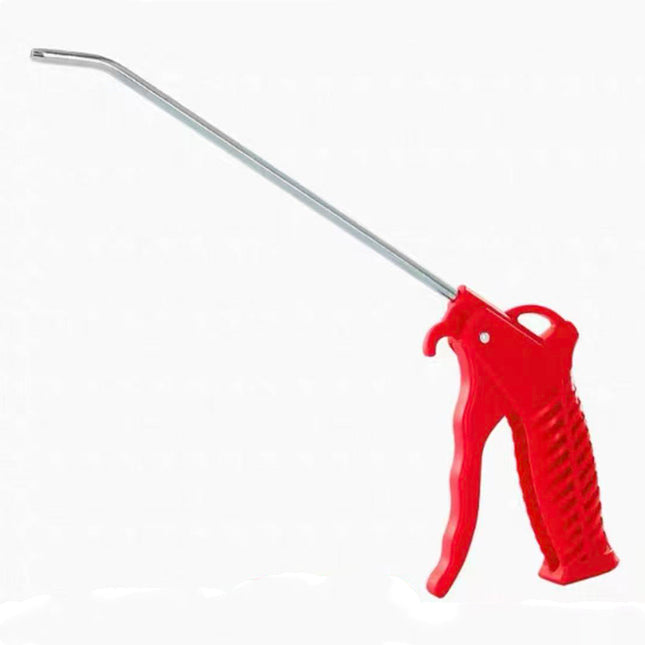

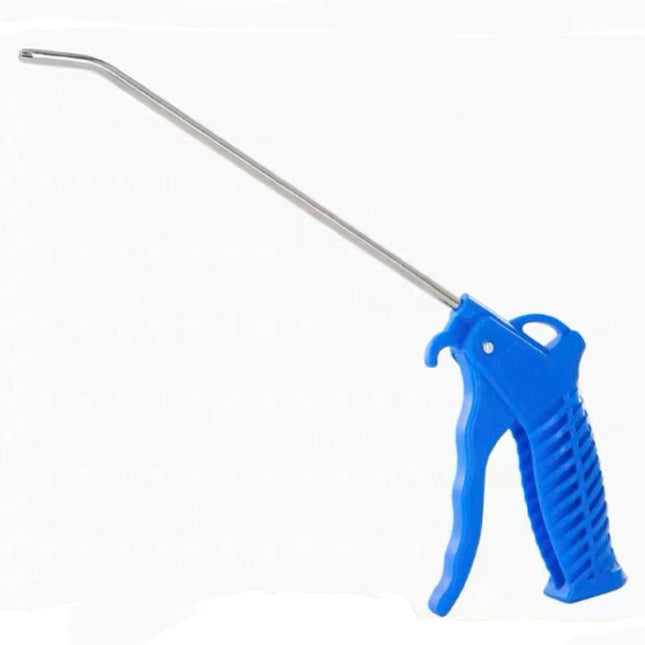

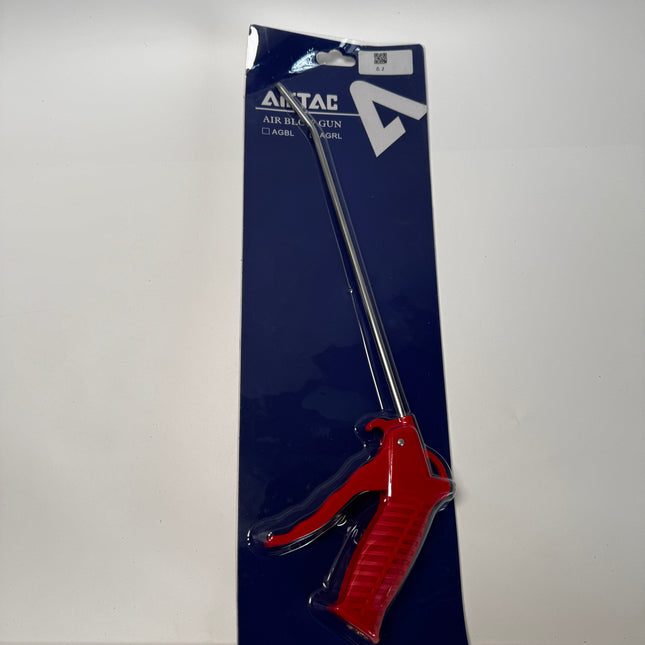

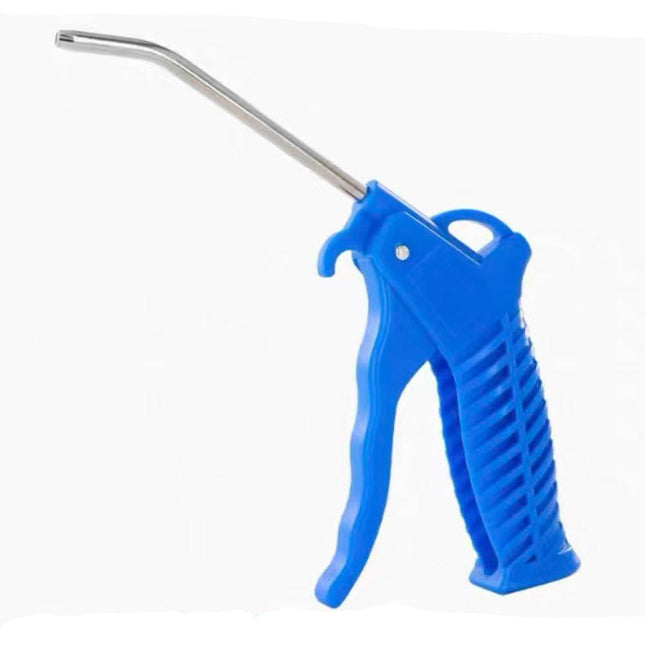

3. AG Series (Air Blow Gun)
| No. | Item | Description |
|---|---|---|
| 1 | Model |
AG: Air Gun AGL: Long Nozzle Air Gun |
| 2 | Color Code | B: Blue R: Red |
