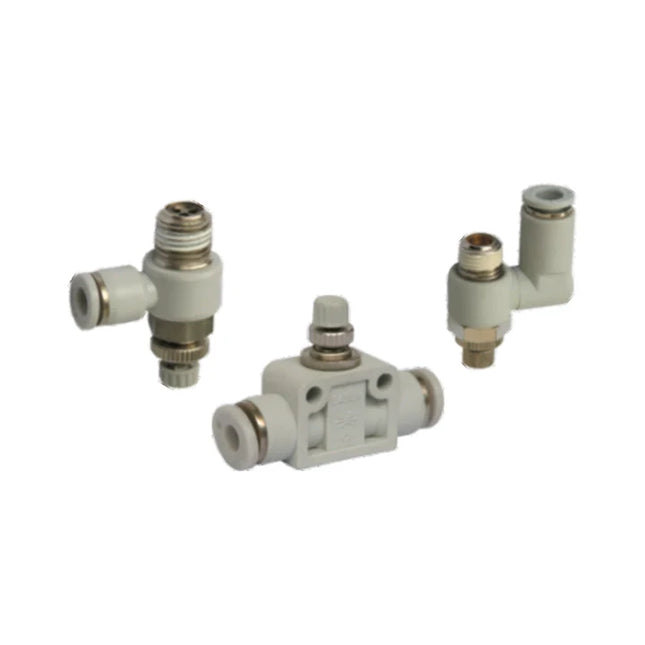

Speed Controller Series

One-way Flow Control Valve | In-line & L-Type (Elbow)

Product Features
Specifications
Dimensions & Models
Ordering Code

Product Features

Precise Control: Accurately controls the compressed air flow rate to adjust the actuation speed of pneumatic cylinders smoothly and effectively.
Diverse Configurations: Available in a wide variety of body shapes including L-Shape (Elbow), In-line (Tube-to-Tube), Universal (Swivel), and Bulkhead panel mount configurations to fit any piping layout.
Dual Control Methods: Offers both Meter-out (Exhaust Throttle, standard for most double-acting cylinders) and Meter-in (Intake Throttle) options for specialized applications.
Compact Design: Extremely small and lightweight footprint, making it highly suitable for installation directly on miniature cylinders or in confined mechanical spaces.
Safety Retention: The adjustment needle is specially designed with a retention mechanism to prevent it from accidentally blowing out, even when turned to the fully open position under pressure.

Technical Specifications

Operating Fluid	Compressed Air
Operating Pressure Range	0 ~ 1.02 MPa (0 ~ 145 psi)
Proof Pressure	1.53 MPa (218 psi)
Ambient & Fluid Temperature	-5 ~ 60°C (No Freezing)
Applicable Tubing Material	Nylon or Polyurethane (PU) Tube

Model Matrix by Type

ASA Series (In-line / Tube-to-Tube)

Model	ASA4	ASA6	ASA8	ASA10	ASA12
Applicable Tube O.D.	Φ4	Φ6	Φ8	Φ10	Φ12

APA & APAM Series (Compact & Bulkhead)

Type	Model Series	Tube Φ6	Tube Φ8	Tube Φ10
Compact In-line	APA	APA6	APA8	APA10
Bulkhead (Panel)	APAM	APAM6	APAM8	APAM10
Bulkhead (Panel)	Mounting Thread	M12×1	M12×1	M18×1

AJSS Series (Universal / Swivel)

Thread (PT)	Tube Φ6	Tube Φ8	Tube Φ10	Tube Φ12
1/8"	AJSS6-01	AJSS8-01	-	-
1/4"	AJSS6-02	AJSS8-02	AJSS10-02	AJSS12-02
3/8"	-	-	AJSS10-03	AJSS12-03

ASL Series (L-Type / Elbow)

For Meter-in models, append "B" to the end of the model name (e.g., ASL8-02B).

Thread	Tube Φ4	Tube Φ6	Tube Φ8	Tube Φ10	Tube Φ12
M3 x 0.5	ASL4-M3	ASL6-M3	-	-	-
M5 x 0.8	ASL4-M5	ASL6-M5	-	-	-
PT 1/8"	ASL4-01	ASL6-01	ASL8-01	ASL10-01	-
PT 1/4"	ASL4-02	ASL6-02	ASL8-02	ASL10-02	ASL12-02
PT 3/8"	-	ASL6-03	ASL8-03	ASL10-03	ASL12-03
PT 1/2"	-	ASL6-04	ASL8-04	ASL10-04	ASL12-04

Product Ordering Code Parsing

Example: ASL 8 - 02 B

No.	Item	Options & Description
1	Model Series	ASA: In-line Type (Tube-to-Tube) ASL: L-Type (Elbow / Thread-to-Tube) AJSS: Universal Type (Swivel Body) APA: Compact In-line Type APAM: Bulkhead Type (Panel Mount)
2	Tube O.D.	4: Φ4mm \| 6: Φ6mm \| 8: Φ8mm 10: Φ10mm \| 12: Φ12mm
3	Thread Size (For ASL, AJSS only)	M3: M3 x 0.5 \| M5: M5 x 0.8 01: PT 1/8" \| 02: PT 1/4" 03: PT 3/8" \| 04: PT 1/2"
4	Control Method	Blank: Meter-out (Exhaust Throttle - Standard for cylinder speed control) B: Meter-in (Intake Throttle - Used for specific applications like single-acting cylinders)

Show previous products

View options

Airtac APAM series: bulkhead tube-to-tube one-way speed controller - APAM6

Specifications: AirTAC APAM6 is a bulkhead tube-to-tube one-way speed controller. 6 mm × 2 tube connection(s); M12×1; mounting feature, separate from the fluid connection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning APAM Bulkhead tube-to-tube one-way speed controller 6 Tube outside diameter 6 mm No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Bulkhead tube-to-tube one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 6 mm × 2 tube connection(s) Bulkhead mounting thread M M12×1; mounting feature, separate from the fluid connection These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The M dimension is the bulkhead mounting thread. It does not identify the air-port thread, and it is not the tubing inside diameter. Panel thickness and tightening torque are not supplied on this page. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 18 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$11.10

View options
View options

Airtac APA series: tube-to-tube one-way speed controller - APA10

Specifications: AirTAC APA10 is a tube-to-tube one-way speed controller. 10 mm × 2 tube connection(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning APA Tube-to-tube one-way speed controller 10 Tube outside diameter 10 mm No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Tube-to-tube one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 10 mm × 2 tube connection(s) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 42 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$12.33

View options
View options

Airtac APA series: tube-to-tube one-way speed controller - APA8

Specifications: AirTAC APA8 is a tube-to-tube one-way speed controller. 8 mm × 2 tube connection(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning APA Tube-to-tube one-way speed controller 8 Tube outside diameter 8 mm No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Tube-to-tube one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 8 mm × 2 tube connection(s) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 24 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$10.55

View options
View options

Airtac APA series: tube-to-tube one-way speed controller - APA6

Specifications: AirTAC APA6 is a tube-to-tube one-way speed controller. 6 mm × 2 tube connection(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning APA Tube-to-tube one-way speed controller 6 Tube outside diameter 6 mm No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Tube-to-tube one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 6 mm × 2 tube connection(s) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 18 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$9.32

View options
View options

Airtac AJSS series: universal one-way speed controller - AJSS12-03

Specifications: AirTAC AJSS12-03 is a universal one-way speed controller. 12 mm × 1 tube connection(s); PT 3/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning AJSS Universal one-way speed controller 12 Tube outside diameter 12 mm 03 Fluid-port thread PT 3/8 No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Universal one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 12 mm × 1 tube connection(s) Male fluid-port thread PT 3/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 69 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$13.43

View options
View options

Airtac AJSS series: universal one-way speed controller - AJSS12-02

Specifications: AirTAC AJSS12-02 is a universal one-way speed controller. 12 mm × 1 tube connection(s); PT 1/4 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning AJSS Universal one-way speed controller 12 Tube outside diameter 12 mm 02 Fluid-port thread PT 1/4 No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Universal one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 12 mm × 1 tube connection(s) Male fluid-port thread PT 1/4 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 69 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$13.43

View options
View options

Airtac AJSS series: universal one-way speed controller - AJSS10-03

Specifications: AirTAC AJSS10-03 is a universal one-way speed controller. 10 mm × 1 tube connection(s); PT 3/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning AJSS Universal one-way speed controller 10 Tube outside diameter 10 mm 03 Fluid-port thread PT 3/8 No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Universal one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 10 mm × 1 tube connection(s) Male fluid-port thread PT 3/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 66 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$12.33

View options
View options

Airtac AJSS series: universal one-way speed controller - AJSS10-02

Specifications: AirTAC AJSS10-02 is a universal one-way speed controller. 10 mm × 1 tube connection(s); PT 1/4 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning AJSS Universal one-way speed controller 10 Tube outside diameter 10 mm 02 Fluid-port thread PT 1/4 No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Universal one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 10 mm × 1 tube connection(s) Male fluid-port thread PT 1/4 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 37 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$12.33

View options
View options

Airtac AJSS series: universal one-way speed controller - AJSS8-02

Specifications: AirTAC AJSS8-02 is a universal one-way speed controller. 8 mm × 1 tube connection(s); PT 1/4 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning AJSS Universal one-way speed controller 8 Tube outside diameter 8 mm 02 Fluid-port thread PT 1/4 No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Universal one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 8 mm × 1 tube connection(s) Male fluid-port thread PT 1/4 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 40 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$9.32

View options
View options

Airtac AJSS series: universal one-way speed controller - AJSS8-01

Specifications: AirTAC AJSS8-01 is a universal one-way speed controller. 8 mm × 1 tube connection(s); PT 1/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning AJSS Universal one-way speed controller 8 Tube outside diameter 8 mm 01 Fluid-port thread PT 1/8 No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Universal one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 8 mm × 1 tube connection(s) Male fluid-port thread PT 1/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 20 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$9.32

View options
View options

Airtac AJSS series: universal one-way speed controller - AJSS6-02

Specifications: AirTAC AJSS6-02 is a universal one-way speed controller. 6 mm × 1 tube connection(s); PT 1/4 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning AJSS Universal one-way speed controller 6 Tube outside diameter 6 mm 02 Fluid-port thread PT 1/4 No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Universal one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 6 mm × 1 tube connection(s) Male fluid-port thread PT 1/4 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 35 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$9.32

View options
View options

Airtac AJSS series: universal one-way speed controller - AJSS6-01

Specifications: AirTAC AJSS6-01 is a universal one-way speed controller. 6 mm × 1 tube connection(s); PT 1/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning AJSS Universal one-way speed controller 6 Tube outside diameter 6 mm 01 Fluid-port thread PT 1/8 No B suffix Meter-out (exhaust throttling) Technical specifications Parameter Details Series / form Universal one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-out: exhaust throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 6 mm × 1 tube connection(s) Male fluid-port thread PT 1/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 19 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$9.32

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL12-04B

Specifications: AirTAC ASL12-04B is an elbow one-way speed controller. 12 mm × 1 tube connection(s); PT 1/2 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 12 Tube outside diameter 12 mm 04 Fluid-port thread PT 1/2 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 12 mm × 1 tube connection(s) Male fluid-port thread PT 1/2 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 100 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$11.65

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL12-03B

Specifications: AirTAC ASL12-03B is an elbow one-way speed controller. 12 mm × 1 tube connection(s); PT 3/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 12 Tube outside diameter 12 mm 03 Fluid-port thread PT 3/8 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 12 mm × 1 tube connection(s) Male fluid-port thread PT 3/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 64 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$8.77

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL12-02B

Specifications: AirTAC ASL12-02B is an elbow one-way speed controller. 12 mm × 1 tube connection(s); PT 1/4 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 12 Tube outside diameter 12 mm 02 Fluid-port thread PT 1/4 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 12 mm × 1 tube connection(s) Male fluid-port thread PT 1/4 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 64 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$7.54

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL10-03B

Specifications: AirTAC ASL10-03B is an elbow one-way speed controller. 10 mm × 1 tube connection(s); PT 3/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 10 Tube outside diameter 10 mm 03 Fluid-port thread PT 3/8 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 10 mm × 1 tube connection(s) Male fluid-port thread PT 3/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 62 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$8.77

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL10-02B

Specifications: AirTAC ASL10-02B is an elbow one-way speed controller. 10 mm × 1 tube connection(s); PT 1/4 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 10 Tube outside diameter 10 mm 02 Fluid-port thread PT 1/4 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 10 mm × 1 tube connection(s) Male fluid-port thread PT 1/4 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 35 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$6.44

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL10-01B

Specifications: AirTAC ASL10-01B is an elbow one-way speed controller. 10 mm × 1 tube connection(s); PT 1/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 10 Tube outside diameter 10 mm 01 Fluid-port thread PT 1/8 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 10 mm × 1 tube connection(s) Male fluid-port thread PT 1/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 35 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$5.21

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL8-04B

Specifications: AirTAC ASL8-04B is an elbow one-way speed controller. 8 mm × 1 tube connection(s); PT 1/2 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 8 Tube outside diameter 8 mm 04 Fluid-port thread PT 1/2 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 8 mm × 1 tube connection(s) Male fluid-port thread PT 1/2 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 97 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$11.10

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL8-03B

Specifications: AirTAC ASL8-03B is an elbow one-way speed controller. 8 mm × 1 tube connection(s); PT 3/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 8 Tube outside diameter 8 mm 03 Fluid-port thread PT 3/8 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 8 mm × 1 tube connection(s) Male fluid-port thread PT 3/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 60 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$8.77

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL8-02B

Specifications: AirTAC ASL8-02B is an elbow one-way speed controller. 8 mm × 1 tube connection(s); PT 1/4 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 8 Tube outside diameter 8 mm 02 Fluid-port thread PT 1/4 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 8 mm × 1 tube connection(s) Male fluid-port thread PT 1/4 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 33 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$5.75

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL8-01B

Specifications: AirTAC ASL8-01B is an elbow one-way speed controller. 8 mm × 1 tube connection(s); PT 1/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 8 Tube outside diameter 8 mm 01 Fluid-port thread PT 1/8 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 8 mm × 1 tube connection(s) Male fluid-port thread PT 1/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 18 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$5.21

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL6-04B

Specifications: AirTAC ASL6-04B is an elbow one-way speed controller. 6 mm × 1 tube connection(s); PT 1/2 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 6 Tube outside diameter 6 mm 04 Fluid-port thread PT 1/2 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 6 mm × 1 tube connection(s) Male fluid-port thread PT 1/2 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 60 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$11.10

View options
View options

Airtac ASL series: elbow one-way speed controller - ASL6-03B

Specifications: AirTAC ASL6-03B is an elbow one-way speed controller. 6 mm × 1 tube connection(s); PT 3/8 (catalogue PT designation). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model code explained Code Meaning ASL Elbow one-way speed controller 6 Tube outside diameter 6 mm 03 Fluid-port thread PT 3/8 B Meter-in (inlet throttling) Technical specifications Parameter Details Series / form Elbow one-way speed controller Working medium Air Operating pressure 0–1.02 MPa (0–145 psi), as printed Proof pressure 1.53 MPa (218 psi), as printed Operating temperature −5 to 60 °C Applicable tubing Nylon or polyurethane (PU), at the specified outside diameter Control direction Meter-in: inlet throttling Connections and drawing dimensions Parameter Details Tube outside diameter ØD 6 mm × 1 tube connection(s) Male fluid-port thread PT 3/8 (catalogue PT designation) These are the dimensions actually tabulated for this model in the supplied catalogue. The page does not provide numerical overall length, height, wrench size, installation clearance, or a dimensioned internal section. Those values have not been inferred from the photograph. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Function and application The one-way throttling circuit combines adjustable restriction in the selected direction with reverse flow. Select the current meter-in or meter-out version according to the circuit; the linked page does not give a rated flow curve or adjustment-turn data. The supplied material does not name a dedicated compatible valve, cylinder or machine series for this fitting. Applicability is defined by the listed connections and the confirmed service conditions; no series-wide interchangeability is implied. Construction and materials The source shows the external form and connection arrangement but does not publish a numbered internal component list or material grades for this family. The appearance of a part in the photograph is not used to assign a metal, plastic or seal specification. Series selection reference The following family forms are listed in the same supplied PDF. Their connection matrices and options are separate; this list is not a compatibility declaration. Series Published form ASA In-line one-way speed controller ASL Elbow one-way speed controller AJSS Universal one-way speed controller APA Tube-to-tube one-way speed controller APAM Bulkhead tube-to-tube one-way speed controller Reference weight Estimated product weight: 60 g. This is a reference estimate, not an official AirTAC net weight or a measured product weight. Packaging is excluded; it is not the packed shipping weight. Source details Product information: linked legacy catalogue PDF page 1, printed page 78. Only the connection dimensions and characteristics printed for this family are represented as product data. The separate modern-series mass reference is used only for the labelled weight estimate.

Read more less

$8.77

View options

You have seen 48 out of 75 products
