Speed Controller (One-way Flow Control Valve)
Product Features
- Precise Control: Controls the air flow rate to adjust the speed of pneumatic cylinders effectively.
- Diverse Types: Available in L-Shape (Elbow), In-line (Tube-to-Tube), Universal (Swivel), and Bulkhead configurations.
- Control Methods: Offers both Meter-out (Exhaust Throttle) for stable speed control and Meter-in (Intake Throttle) options.
- Compact Design: Small and lightweight, suitable for installation in confined spaces.
- Needle Retention: Designed to prevent the adjustment needle from falling out even when fully opened.
Specifications
| Item | Description |
|---|---|
| Operating Fluid | Air |
| Operating Pressure Range | 0 ~ 1.02 MPa (0 ~ 145 psi) |
| Proof Pressure | 1.53 MPa (218 psi) |
| Ambient & Fluid Temperature | -5 ~ 60°C (No Freezing) |
| Applicable Tubing | Nylon or Polyurethane (PU) Tube |
Product Ordering Code
Example: ASL 8-02 B
1. Ordering Key
| No. | Item | Options / Description |
|---|---|---|
| 1 | Model |
ASA: In-line Type (Tube-to-Tube) ASL: L-Type (Elbow) AJSS: Universal Type (Swivel) APA: Compact In-line Type APAM: Bulkhead Type (Panel Mount) |
| 2 | Tube O.D. |
4: Φ4mm 6: Φ6mm 8: Φ8mm 10: Φ10mm 12: Φ12mm |
| 3 | Thread Size |
M3: M3x0.5 M5: M5x0.8 01: PT 1/8" 02: PT 1/4" 03: PT 3/8" 04: PT 1/2" |
| 4 | Control Method |
Blank: Meter-out (Exhaust Throttle) [Standard] B: Meter-in (Intake Throttle) |
2. Model List & Dimensions
ASA Series (In-line / Tube-to-Tube)
| Model | ASA4 | ASA6 | ASA8 | ASA10 | ASA12 |
|---|---|---|---|---|---|
| Tube O.D. | Φ4 | Φ6 | Φ8 | Φ10 | Φ12 |

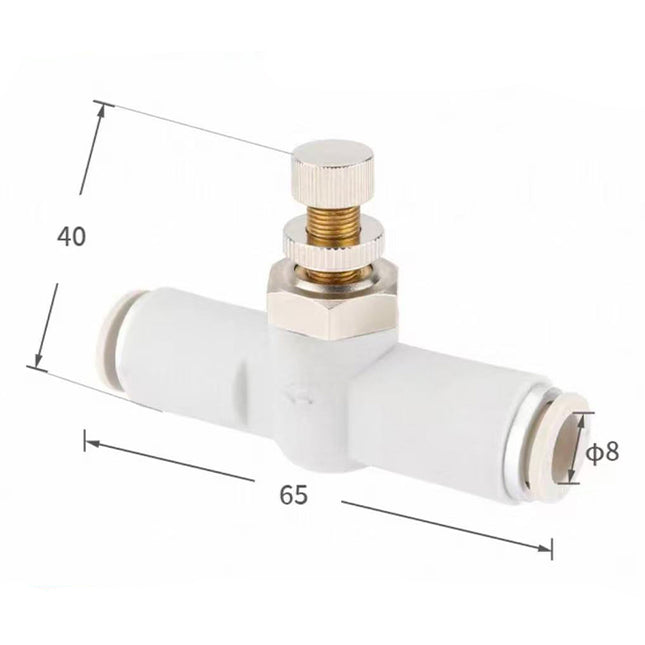

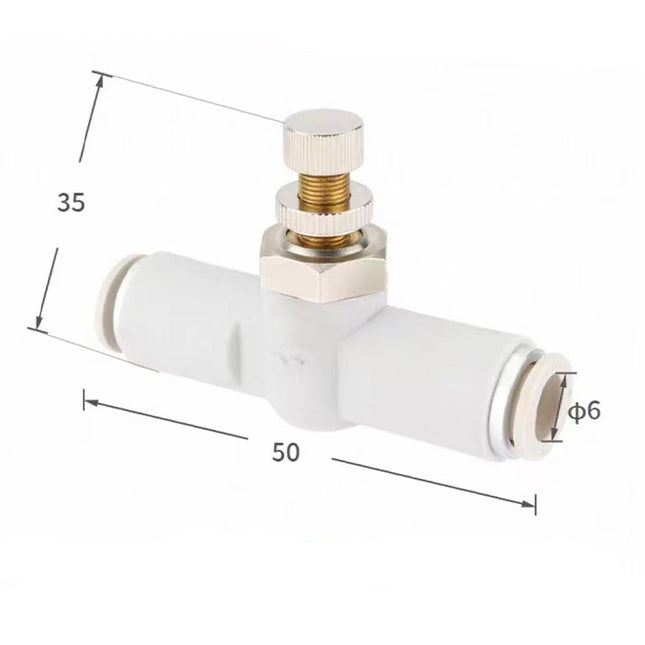

APA Series (Compact In-line)
| Model | APA6 | APA8 | APA10 |
|---|---|---|---|
| Tube O.D. | Φ6 | Φ8 | Φ10 |

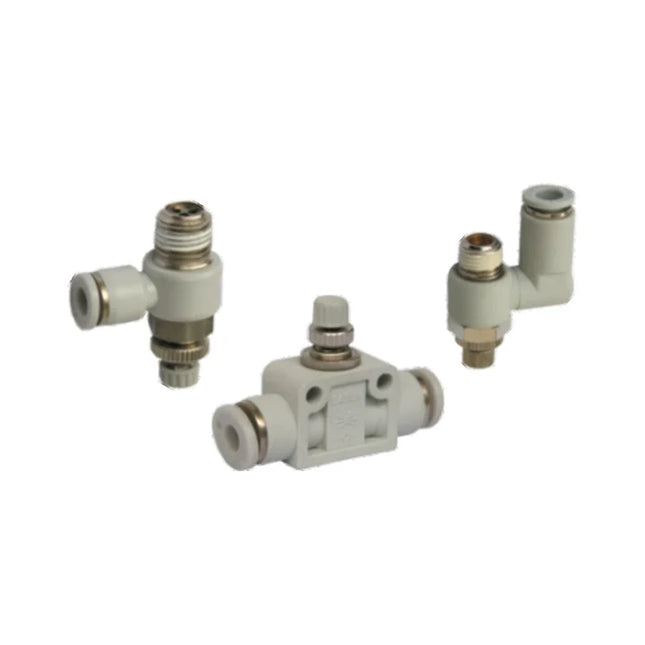

APAM Series (Bulkhead / Panel Mount)
| Model | APAM6 | APAM8 | APAM10 |
|---|---|---|---|
| Tube O.D. | Φ6 | Φ8 | Φ10 |
| Mounting Thread | M12×1 | M12×1 | M18×1 |
AJSS Series (Universal / Swivel)
| Thread (PT) | Tube Φ6 | Tube Φ8 | Tube Φ10 | Tube Φ12 |
|---|---|---|---|---|
| 1/8 | AJSS6-01 | AJSS8-01 | - | - |
| 1/4 | AJSS6-02 | AJSS8-02 | AJSS10-02 | AJSS12-02 |
| 3/8 | - | - | AJSS10-03 | AJSS12-03 |

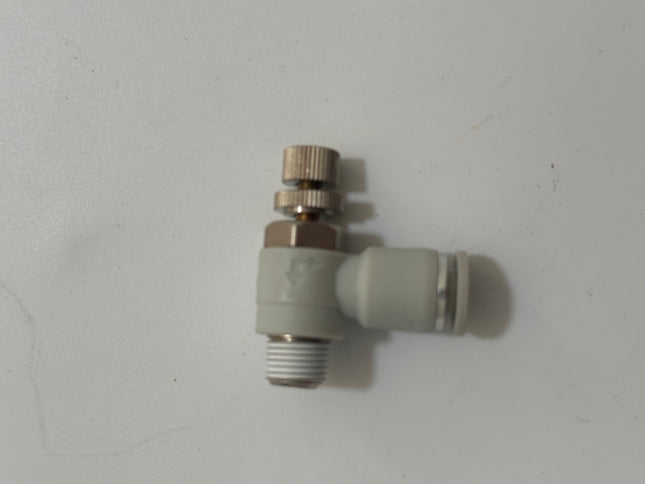

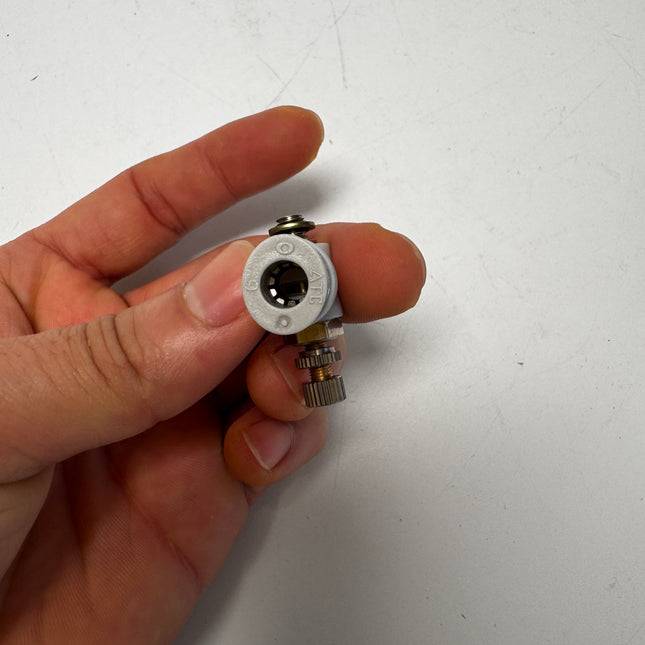

ASL Series (L-Type Meter-out / Exhaust Throttle)
| Thread | Tube Φ4 | Tube Φ6 | Tube Φ8 | Tube Φ10 | Tube Φ12 |
|---|---|---|---|---|---|
| M3 | ASL4-M3 | ASL6-M3 | - | - | - |
| M5 | ASL4-M5 | ASL6-M5 | - | - | - |
| 1/8 | ASL4-01 | ASL6-01 | ASL8-01 | ASL10-01 | - |
| 1/4 | ASL4-02 | ASL6-02 | ASL8-02 | ASL10-02 | ASL12-02 |
| 3/8 | - | ASL6-03 | ASL8-03 | ASL10-03 | ASL12-03 |
| 1/2 | - | ASL6-04 | ASL8-04 | ASL10-04 | ASL12-04 |
ASLB Series (L-Type Meter-in / Intake Throttle)
| Thread | Tube Φ4 | Tube Φ6 | Tube Φ8 | Tube Φ10 | Tube Φ12 |
|---|---|---|---|---|---|
| M3 | ASL4-M3B | ASL6-M3B | - | - | - |
| M5 | ASL4-M5B | ASL6-M5B | - | - | - |
| 1/8 | ASL4-01B | ASL6-01B | ASL8-01B | ASL10-01B | - |
| 1/4 | ASL4-02B | ASL6-02B | ASL8-02B | ASL10-02B | ASL12-02B |
| 3/8 | - | ASL6-03B | ASL8-03B | ASL10-03B | ASL12-03B |
| 1/2 | - | ASL6-04B | ASL8-04B | ASL10-04B | ASL12-04B |
