PB / PBR Series Pen Cylinder

•

  View options

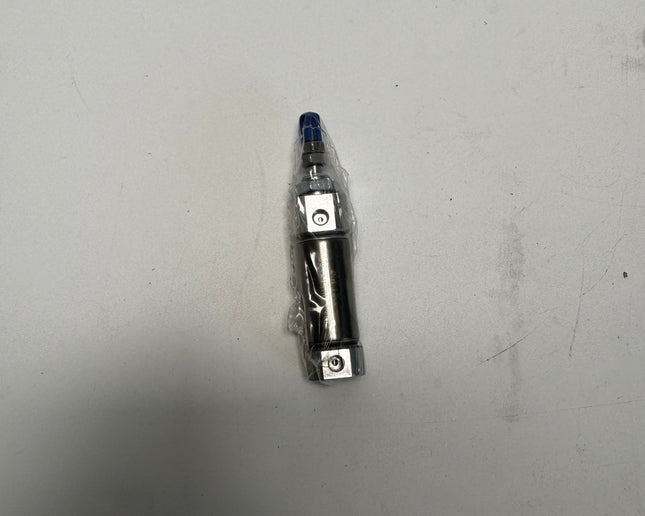

  Airtac PB series: double-acting pen cylinder - PB16X10U

  Specifications: PB16X10U — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 10 mm stroke. M5 × 0.8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X10 Stroke: 10 mm No S code Nonmagnetic piston U flat rear cover with radial air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X10U Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 10 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 10 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 86 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. This PB16X10U has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Weight Reference 51 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $27.98

  View options

•

  View options

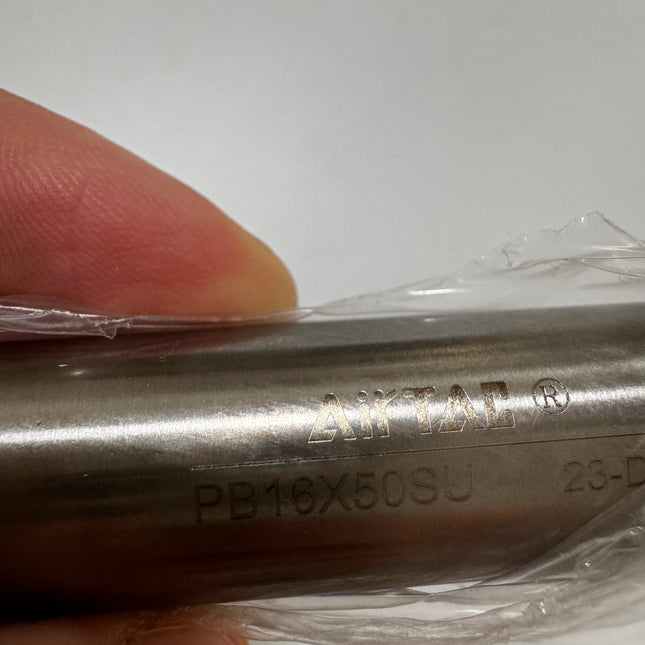

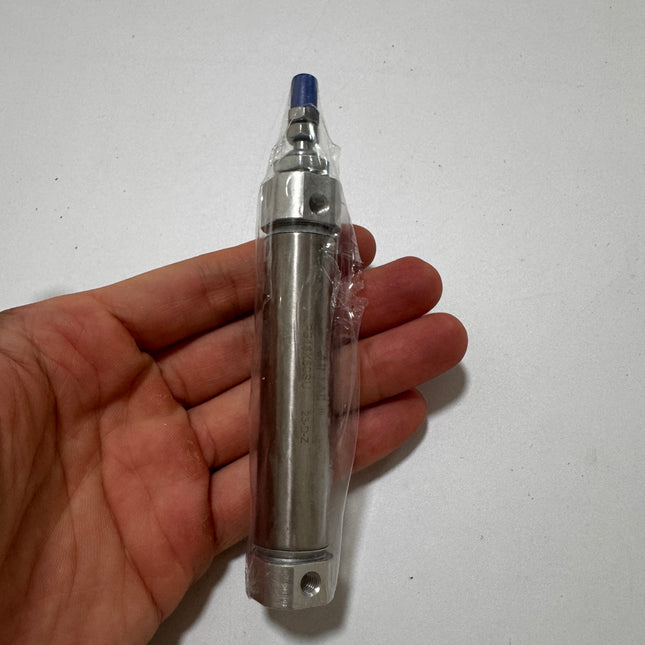

  Airtac PB series: double-acting pen cylinder - PB16X50SU

  Specifications: PB16X50SU — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 50 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X50 Stroke: 50 mm S Magnetic piston U flat rear cover with radial air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X50SU Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 50 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 50 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 126 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 69 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $33.24

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB6X40R

  Specifications: PB6X40R — AirTAC PB pen cylinder, double acting, single rod, 6 mm bore and 40 mm stroke. M5 × 0.8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 6 Cylinder bore: 6 mm X40 Stroke: 40 mm No S code Nonmagnetic piston R axial rear air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB6X40R Product type pen cylinder Operation double acting, single rod Bore 6 mm Stroke 40 mm Piston-rod diameter 3 mm Rod-end thread M3 × 0.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Ordering and Fit Checks The PB6 accessory table prints F-M3X040F, while its rod end is M3 × 0.5. That conflicting floating-joint code is not recommended as a verified fit; confirm its thread before purchase. Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 6 mm bore, 40 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 77.5 mm B — body dimension in the drawing 10 mm R — outside-body dimension in the drawing 14 mm M — body mounting thread M6 × 1 EA 15 mm Overall length from the printed formula 117.5 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB6LB F-PB6LB: foot bracket for PB series, 6 mm bore. Optional; not implied by this model code. F-PB6FA F-PB6FA: front flange for PB series, 6 mm bore. Optional; not implied by this model code. F-PB6I F-PB6I: rod-end eye joint for PB series, 6 mm bore. Optional; not implied by this model code. F-PB6Y F-PB6Y: rod-end fork joint for PB series, 6 mm bore. Optional; not implied by this model code. This PB6X40R has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Weight Reference 21 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 14.1 N; retraction 10.6 N, using bore 6 mm and rod diameter 3 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 6 mm bore the general catalog lists effective area 0.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $18.11

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB4X20

  Specifications: PB4X20 — AirTAC PB pen cylinder, double acting, single rod, 4 mm bore and 20 mm stroke. tube connection (catalog drawing shows Ø3.4 connection end) port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 4 Cylinder bore: 4 mm X20 Stroke: 20 mm No S code Nonmagnetic piston R axial rear air port No thread suffix Tube connection; no pipe-thread suffix Technical Specifications Parameter Details Model PB4X20 Product type pen cylinder Operation double acting, single rod Bore 4 mm Stroke 20 mm Piston-rod diameter 2 mm Rod-end thread M2 × 0.4 Working medium Air filtered to 40 µm or finer Operating pressure 0.2–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–500 mm/s Port tube connection (catalog drawing shows Ø3.4 connection end) Cushioning No cushioning Magnetic piston Not included; no S code Stroke tolerance +0.5 / 0 mm Rear cover axial rear air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. For the 4 mm cylinder, align the load directly with the rod. Side loading can bend the small rod or damage its end thread; the single-acting version is not intended to carry a load on its return stroke. External and Mounting Dimensions The following symbols refer to the PB drawing for 4 mm bore, 20 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 50 mm B — body dimension in the drawing 8 mm R — outside-body dimension in the drawing 10 mm M — body mounting thread M4 × 0.7 EA 6 mm Overall length from the printed formula 70 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors The 4 mm PB/PSB catalog row does not list the larger-bore mounting brackets, rod-end joints or magnetic sensors. Weight Reference 13.5 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 6.3 N; retraction 4.7 N, using bore 4 mm and rod diameter 2 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube Bronze Front/rear covers and outer cover Brass Nuts Carbon steel Series Ordering Reference Standard strokes listed for this bore and operating variant: 5, 10, 15, 20 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used.

  Read more less

  $16.03

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB12X75U

  Specifications: PB12X75U — AirTAC PB pen cylinder, double acting, single rod, 12 mm bore and 75 mm stroke. M5 × 0.8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 12 Cylinder bore: 12 mm X75 Stroke: 75 mm No S code Nonmagnetic piston U flat rear cover with radial air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB12X75U Product type pen cylinder Operation double acting, single rod Bore 12 mm Stroke 75 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 12 mm bore, 75 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 74 mm AB 28 mm AC 46 mm B — body dimension in the drawing 15 mm R — outside-body dimension in the drawing 17 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 149 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 12 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 12 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 12 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 12 mm bore. Optional; not implied by this model code. F-PB12CJ F-PB12CJ: foot-seat pivot bracket for PB series, 12 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 12 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 12 mm bore. Optional; not implied by this model code. This PB12X75U has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Weight Reference 62 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 56.5 N; retraction 46.7 N, using bore 12 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 12 mm bore the general catalog lists effective area 0.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $26.63

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB10X100SU

  Specifications: PB10X100SU — AirTAC PB pen cylinder, double acting, single rod, 10 mm bore and 100 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 10 Cylinder bore: 10 mm X100 Stroke: 100 mm S Magnetic piston U flat rear cover with radial air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB10X100SU Product type pen cylinder Operation double acting, single rod Bore 10 mm Stroke 100 mm Piston-rod diameter 4 mm Rod-end thread M4 × 0.7 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 10 mm bore, 100 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 74 mm AB 28 mm AC 46 mm B — body dimension in the drawing 12 mm R — outside-body dimension in the drawing 14 mm M — body mounting thread M8 × 1 EA 15 mm Overall length from the printed formula 174 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB10LB F-PB10LB: foot bracket for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10FA F-PB10FA: front flange for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10I F-PB10I: rod-end eye joint for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10Y F-PB10Y: rod-end fork joint for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10CJ F-PB10CJ: foot-seat pivot bracket for PB series, 10 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M4X070F F-M4X070F: floating joint for PB series, 10 mm bore. Optional; not implied by this model code. F-M4X070U F-M4X070U: spherical rod-end joint for PB series, 10 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 10 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS10. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 47 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 39.2 N; retraction 33.0 N, using bore 10 mm and rod diameter 4 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 10 mm bore the general catalog lists effective area 0.2 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $25.48

  View options

•

  View options

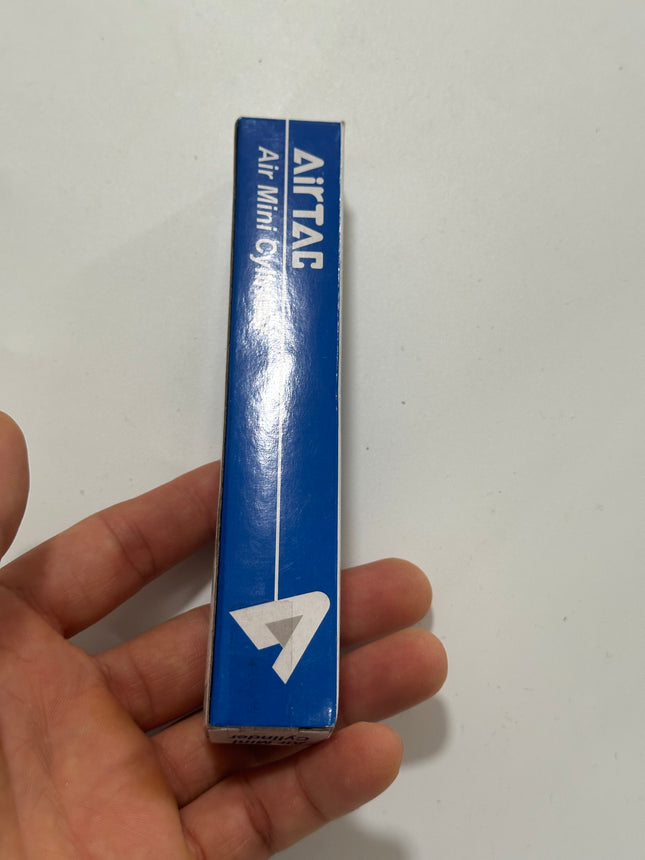

  Airtac PB series: double-acting pen cylinder - PB10X10SR

  Specifications: PB10X10SR — AirTAC PB pen cylinder, double acting, single rod, 10 mm bore and 10 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 10 Cylinder bore: 10 mm X10 Stroke: 10 mm S Magnetic piston R axial rear air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB10X10SR Product type pen cylinder Operation double acting, single rod Bore 10 mm Stroke 10 mm Piston-rod diameter 4 mm Rod-end thread M4 × 0.7 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 10 mm bore, 10 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 74 mm AB 28 mm AC 46 mm B — body dimension in the drawing 12 mm R — outside-body dimension in the drawing 14 mm M — body mounting thread M8 × 1 EA 15 mm Overall length from the printed formula 84 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB10LB F-PB10LB: foot bracket for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10FA F-PB10FA: front flange for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10I F-PB10I: rod-end eye joint for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10Y F-PB10Y: rod-end fork joint for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10CJ F-PB10CJ: foot-seat pivot bracket for PB series, 10 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M4X070F F-M4X070F: floating joint for PB series, 10 mm bore. Optional; not implied by this model code. F-M4X070U F-M4X070U: spherical rod-end joint for PB series, 10 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 10 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS10. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 25 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 39.2 N; retraction 33.0 N, using bore 10 mm and rod diameter 4 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 10 mm bore the general catalog lists effective area 0.2 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $20.33

  View options

•

  View options

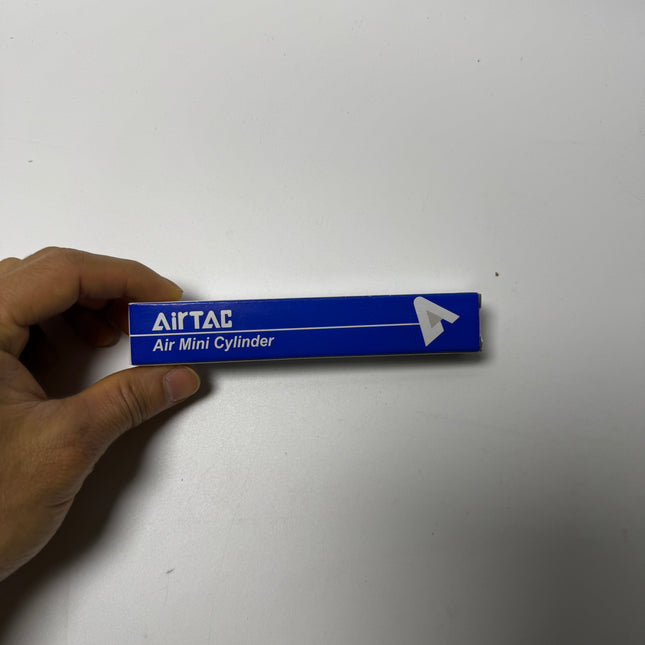

  Airtac PB series: double-acting pen cylinder - PB10X50SU

  Specifications: PB10X50SU — AirTAC PB pen cylinder, double acting, single rod, 10 mm bore and 50 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 10 Cylinder bore: 10 mm X50 Stroke: 50 mm S Magnetic piston U flat rear cover with radial air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB10X50SU Product type pen cylinder Operation double acting, single rod Bore 10 mm Stroke 50 mm Piston-rod diameter 4 mm Rod-end thread M4 × 0.7 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 10 mm bore, 50 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 74 mm AB 28 mm AC 46 mm B — body dimension in the drawing 12 mm R — outside-body dimension in the drawing 14 mm M — body mounting thread M8 × 1 EA 15 mm Overall length from the printed formula 124 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB10LB F-PB10LB: foot bracket for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10FA F-PB10FA: front flange for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10I F-PB10I: rod-end eye joint for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10Y F-PB10Y: rod-end fork joint for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10CJ F-PB10CJ: foot-seat pivot bracket for PB series, 10 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M4X070F F-M4X070F: floating joint for PB series, 10 mm bore. Optional; not implied by this model code. F-M4X070U F-M4X070U: spherical rod-end joint for PB series, 10 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 10 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS10. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 35 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 39.2 N; retraction 33.0 N, using bore 10 mm and rod diameter 4 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 10 mm bore the general catalog lists effective area 0.2 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $22.52

  View options

•

  View options

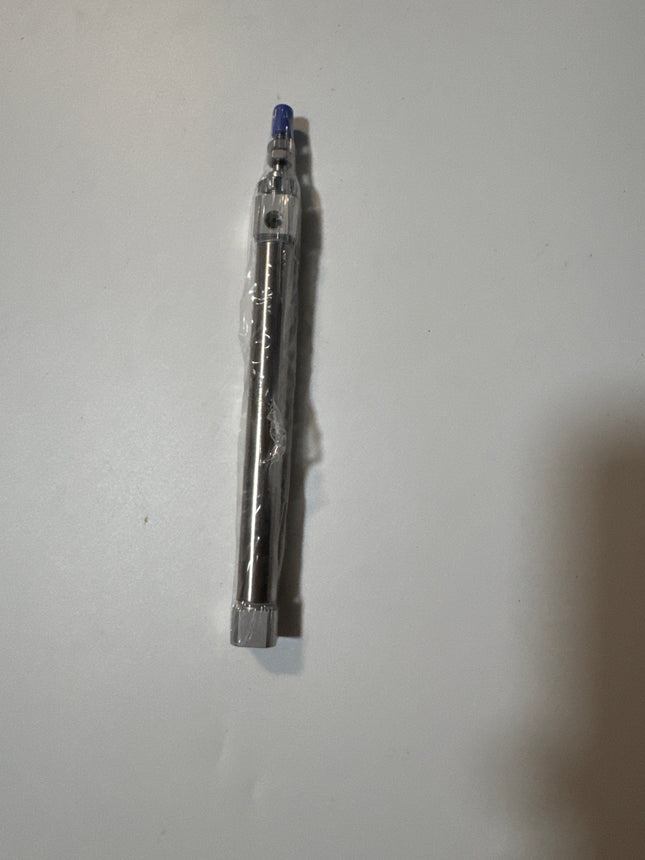

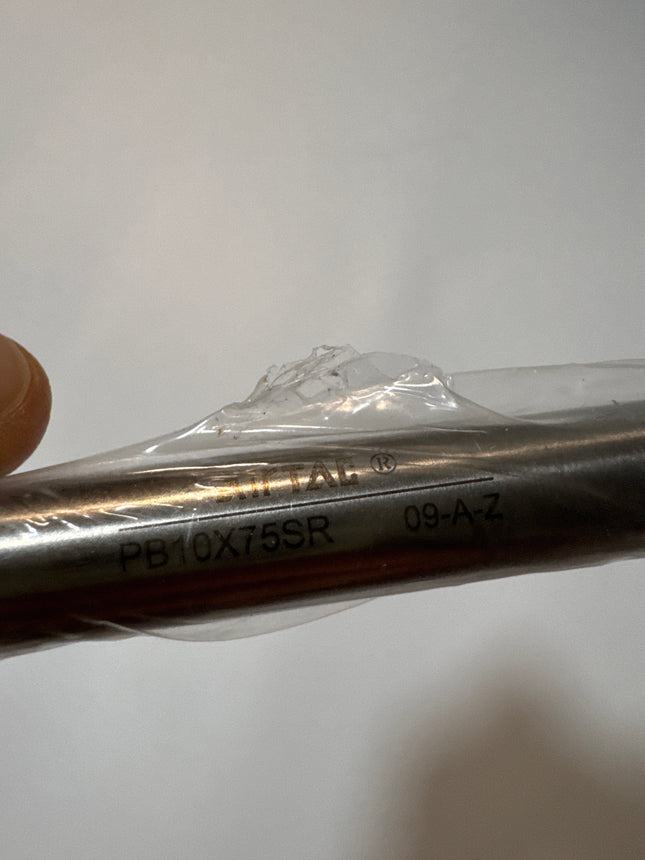

  Airtac PB series: double-acting pen cylinder - PB10X75SR

  Specifications: PB10X75SR — AirTAC PB pen cylinder, double acting, single rod, 10 mm bore and 75 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 10 Cylinder bore: 10 mm X75 Stroke: 75 mm S Magnetic piston R axial rear air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB10X75SR Product type pen cylinder Operation double acting, single rod Bore 10 mm Stroke 75 mm Piston-rod diameter 4 mm Rod-end thread M4 × 0.7 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 10 mm bore, 75 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 74 mm AB 28 mm AC 46 mm B — body dimension in the drawing 12 mm R — outside-body dimension in the drawing 14 mm M — body mounting thread M8 × 1 EA 15 mm Overall length from the printed formula 149 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB10LB F-PB10LB: foot bracket for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10FA F-PB10FA: front flange for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10I F-PB10I: rod-end eye joint for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10Y F-PB10Y: rod-end fork joint for PB series, 10 mm bore. Optional; not implied by this model code. F-PB10CJ F-PB10CJ: foot-seat pivot bracket for PB series, 10 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M4X070F F-M4X070F: floating joint for PB series, 10 mm bore. Optional; not implied by this model code. F-M4X070U F-M4X070U: spherical rod-end joint for PB series, 10 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 10 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS10. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 41 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 39.2 N; retraction 33.0 N, using bore 10 mm and rod diameter 4 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 10 mm bore the general catalog lists effective area 0.2 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $24.00

  View options

•

  View options

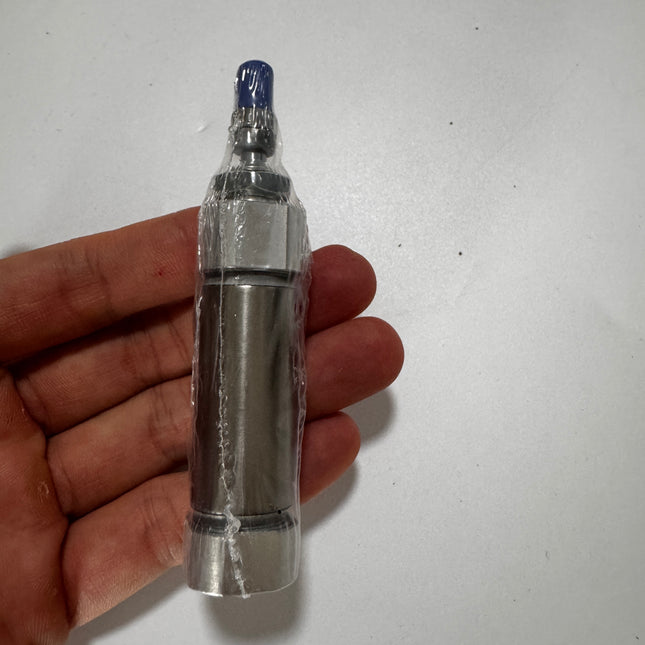

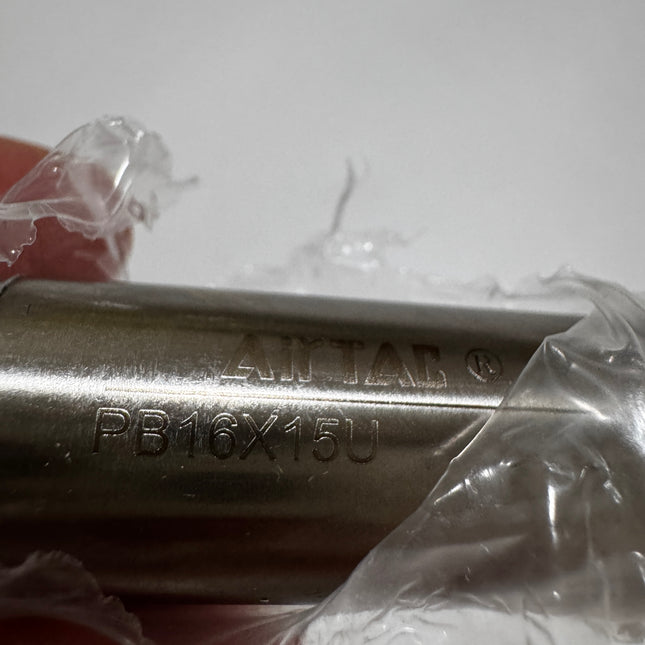

  Airtac PB series: double-acting pen cylinder - PB16X15U

  Specifications: PB16X15U — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 15 mm stroke. M5 × 0.8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X15 Stroke: 15 mm No S code Nonmagnetic piston U flat rear cover with radial air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X15U Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 15 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 15 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 91 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. This PB16X15U has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Weight Reference 53 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $28.33

  View options

•

  View options

  Airtac PB series: double action type cylinder - PB10X180SU

  Specifications: pen cylinder (double action type) Bore: 10mm Stroke: 180mm Magnet: with magnet Rear cover type: radial air intake type Fixed type: no installation accessories Specifications 1. Model: PB10X180SU 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~0.7MPa(22~100psi)(1.5~7.0bar), Guaranteed pressure resistance: 1.2MPa(175psi)(12bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:50~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: M5X0.8 6. The sensor can be optional: DMSG,CMSG Internal structure and main parts material: 1. Hexagon nut: carbon steel/2. Piston rod: SUS304/3. Hexagon nut: carbon steel/4. Outer cover: brass (ø4), aluminum alloy (other)/5. Bushing: wear-resistant material/6. Front cover O Order: NBR/7. Front cover: brass (ø4), aluminum alloy (other)/8. Cylinder: Bronze (ø4),SUS304 (others)/9. Anti-collision pad (ring):TPU/10. Piston Oring: NBR/11. Wear pad (ring): wear-resistant material/12. Anti-collision pad (ring):TPU/13. Back cover: Brass (ø4), aluminum alloy (other)/14. Piston: aluminum alloy Installation accessories :F-PB10LB Axial mounting F-PB10FA Flange connecting plate F-PB10CJ CJ Foot Type ， Piston rod end joint :F-PB10I I Connector F-PB10Y Y connector F-M4X070F Floating joint F-M4X070U fisheye joint Click to download Airtac product catalog Product Features 1. Implement JIS standard. 2. It is a miniature cylinder with compact structure, small size and light weight. 3. Piston rod guide high precision, no additional lubrication. 4.PB4 and PB6 can only be pre-installed. PB10 PB12 and PB16 with front and rear flexibility. 5. The piston rod adopts stainless steel cylinder, so that the cylinder can adapt to the general corrosive working environment. 6. There are a variety of specifications of the cylinder and accessories for your choice of installation. 7. Small cylinder diameter, rapid response, suitable for high frequency working environment.

  Read more less

  $33.18

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X300SRCJ

  Specifications: PB16X300SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 300 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X300 Stroke: 300 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X300SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 300 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 300 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 376 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 235.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $62.34

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X15SRCJ

  Specifications: PB16X15SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 15 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X15 Stroke: 15 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X15SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 15 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 15 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 91 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 107.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $38.63

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X100SRLB

  Specifications: PB16X100SRLB — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 100 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X100 Stroke: 100 mm S Magnetic piston R axial rear air port LB foot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X100SRLB Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 100 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model LB — foot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 100 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 176 mm Drawing length relation A + stroke LB mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details A 33 mm BB 42 mm CC 14 mm D 25 mm F 9 mm G 5.5 mm I 2.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 148 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected LB mount adds an approximate 56 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $41.84

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X10SRCJ

  Specifications: PB16X10SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 10 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X10 Stroke: 10 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X10SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 10 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 10 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 86 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 105.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $38.28

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X60SRCJ

  Specifications: PB16X60SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 60 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X60 Stroke: 60 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X60SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 60 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 60 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 136 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 127.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $42.47

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X80SRCJ

  Specifications: PB16X80SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 80 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X80 Stroke: 80 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X80SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 80 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 80 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 156 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 136.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $44.06

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X200SRCJ

  Specifications: PB16X200SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 200 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X200 Stroke: 200 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X200SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 200 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 200 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 276 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 190.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $53.81

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X40SRCJ

  Specifications: PB16X40SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 40 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X40 Stroke: 40 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X40SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 40 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 40 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 116 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 118.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $40.88

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X250SRLB

  Specifications: PB16X250SRLB — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 250 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X250 Stroke: 250 mm S Magnetic piston R axial rear air port LB foot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X250SRLB Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 250 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model LB — foot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 250 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 326 mm Drawing length relation A + stroke LB mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details A 33 mm BB 42 mm CC 14 mm D 25 mm F 9 mm G 5.5 mm I 2.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 215 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected LB mount adds an approximate 56 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $54.42

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X250SRCJ

  Specifications: PB16X250SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 250 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X250 Stroke: 250 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X250SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 250 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 250 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 326 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 212.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $57.84

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X150SRCJ

  Specifications: PB16X150SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 150 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X150 Stroke: 150 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X150SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 150 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 150 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 226 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 167.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $49.43

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X50SRCJ

  Specifications: PB16X50SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 50 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X50 Stroke: 50 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X50SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 50 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 50 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 126 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 123.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $41.48

  View options

•

  View options

  Airtac PB series: double-acting pen cylinder - PB16X30SRCJ

  Specifications: PB16X30SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 30 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X30 Stroke: 30 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X30SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 30 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 30 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 106 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 114.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $39.89

  View options

Show more products
