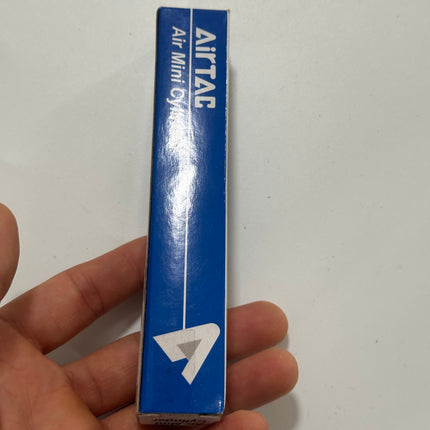

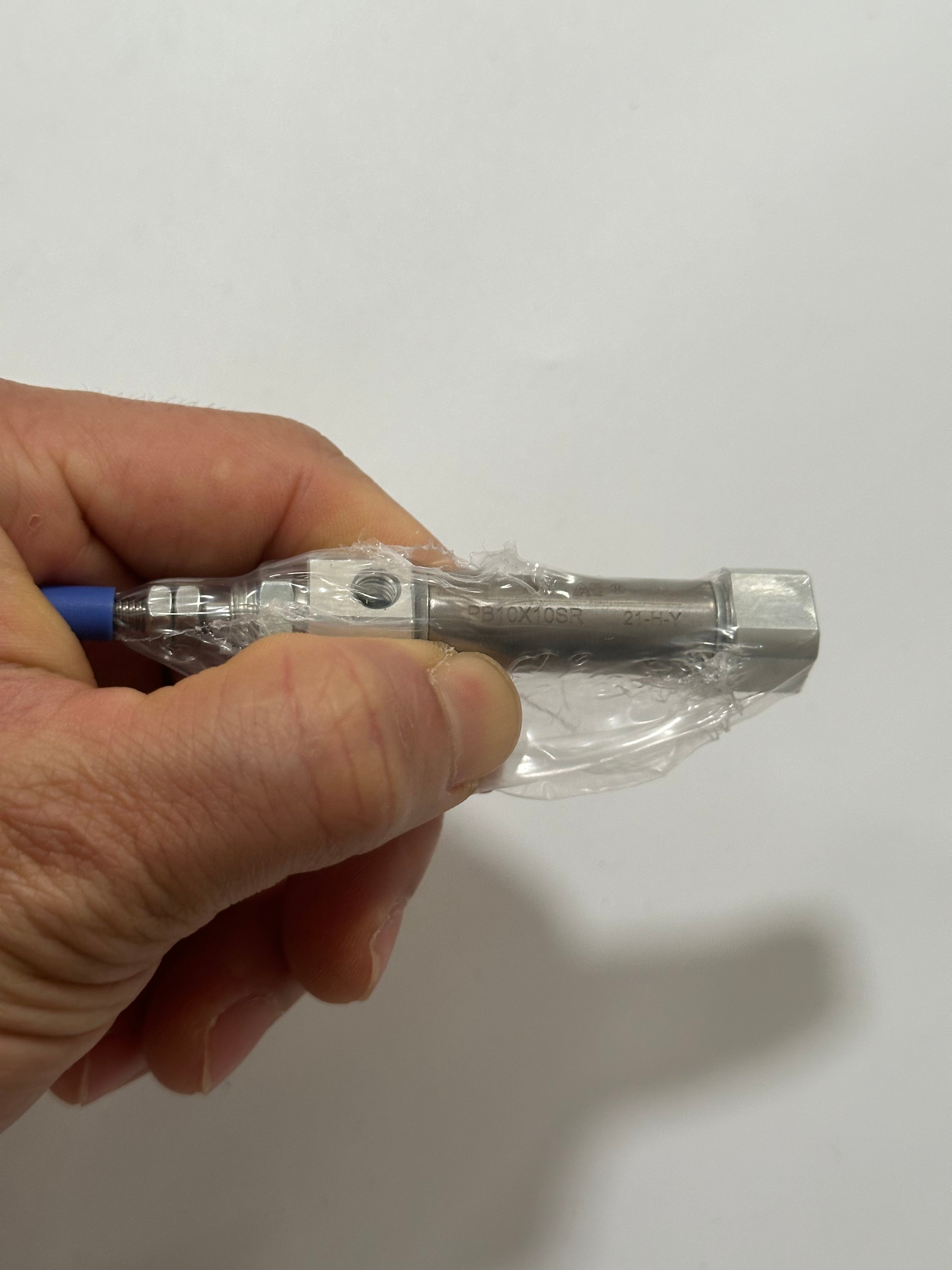

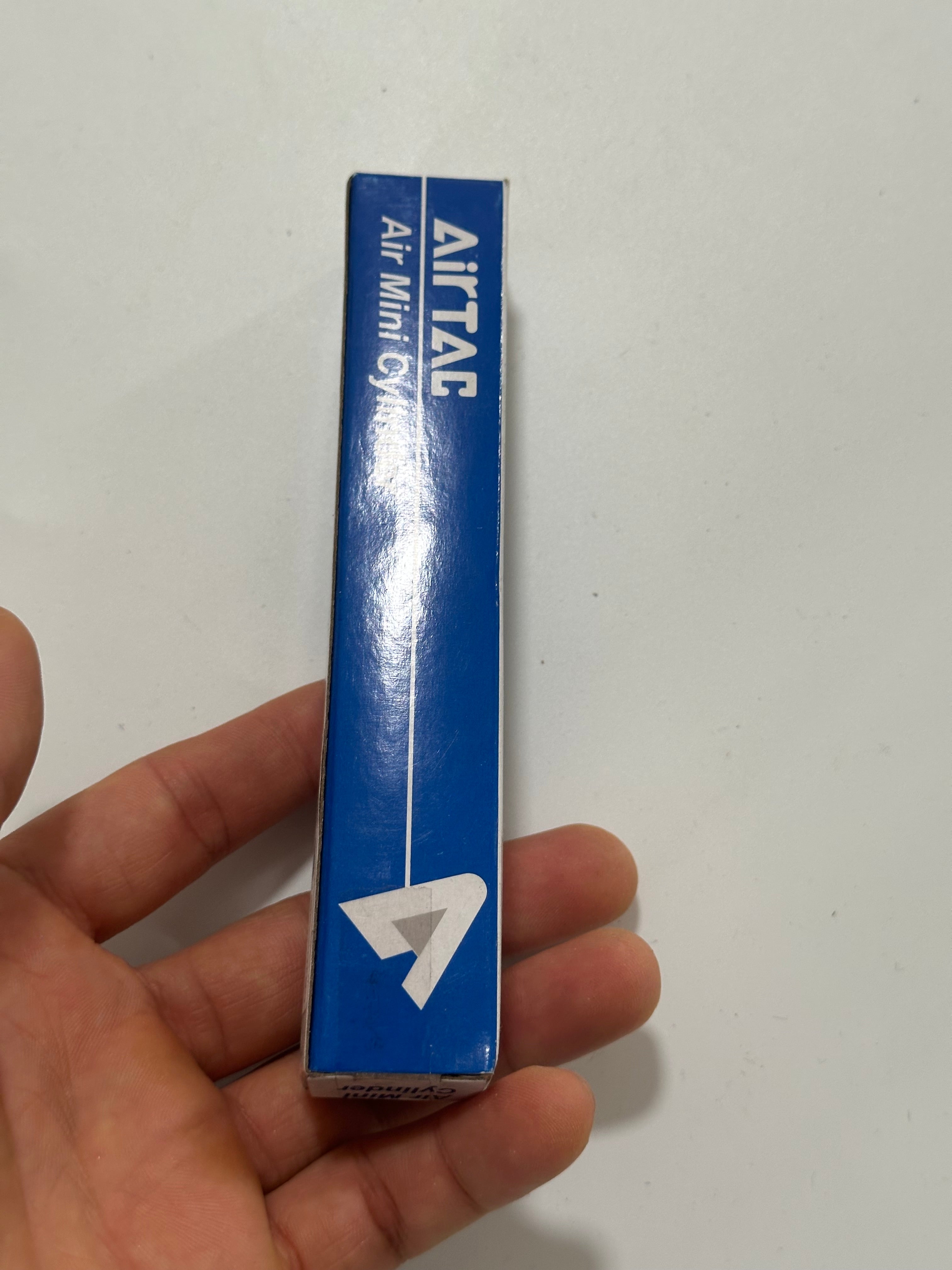

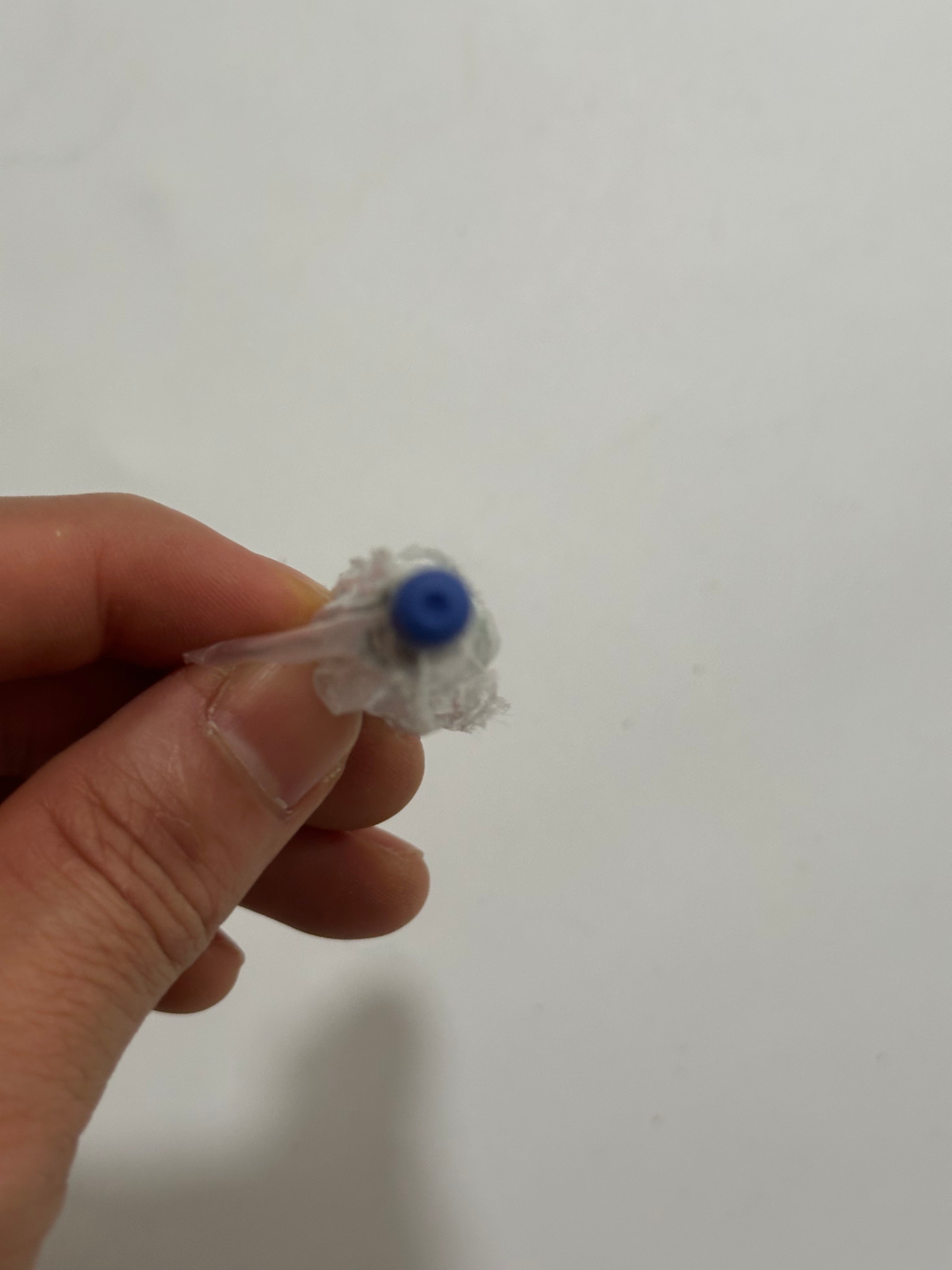

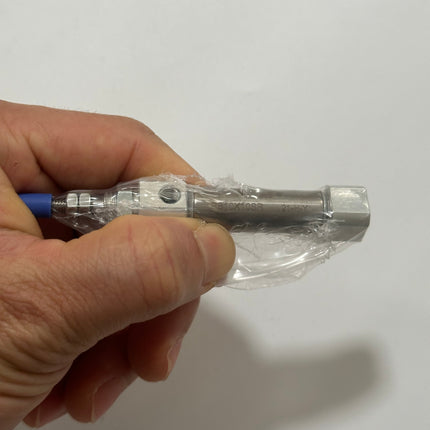

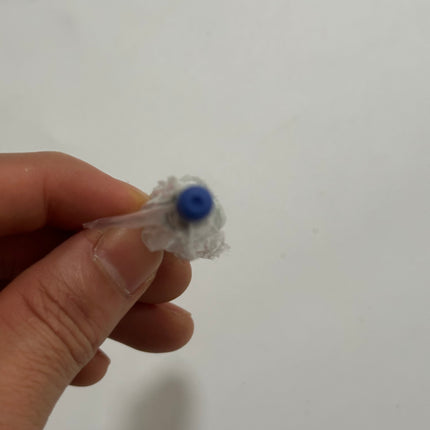

Airtac PB series: double-acting pen cylinder - PB10X10SR

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Photos are for reference only. Not all models have pictures.

Description

Specifications: PB10X10SR — AirTAC PB pen cylinder, double acting, single rod, 10 mm bore and 10 mm stroke. M5 × 0.8 port; magnetic piston.

Product Catalog

Download Airtac Product Catalog (PDF)

Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)

Download PB / PBR Accessory Selection and Mounting Drawings (PDF)

Download 2022 mounting brackets (PDF)

Download 2022 rod-end joints and sensor mounts (PDF)

Download 2022 cylinder installation and weight tables (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code	Meaning
PB	pen cylinder; double acting, single rod
10	Cylinder bore: 10 mm
X10	Stroke: 10 mm
S	Magnetic piston
R	axial rear air port
No thread suffix	Metric port as listed; no pipe-thread suffix

Technical Specifications

Parameter	Details
Model	PB10X10SR
Product type	pen cylinder
Operation	double acting, single rod
Bore	10 mm
Stroke	10 mm
Piston-rod diameter	4 mm
Rod-end thread	M4 × 0.7
Working medium	Air filtered to 40 µm or finer
Operating pressure	0.15–0.7 MPa
Proof pressure	1.2 MPa
Operating temperature	−20 to +70 °C
Piston speed	50–800 mm/s
Port	M5 × 0.8
Cushioning	Bumper
Magnetic piston	Included (S)
Stroke tolerance	+1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm

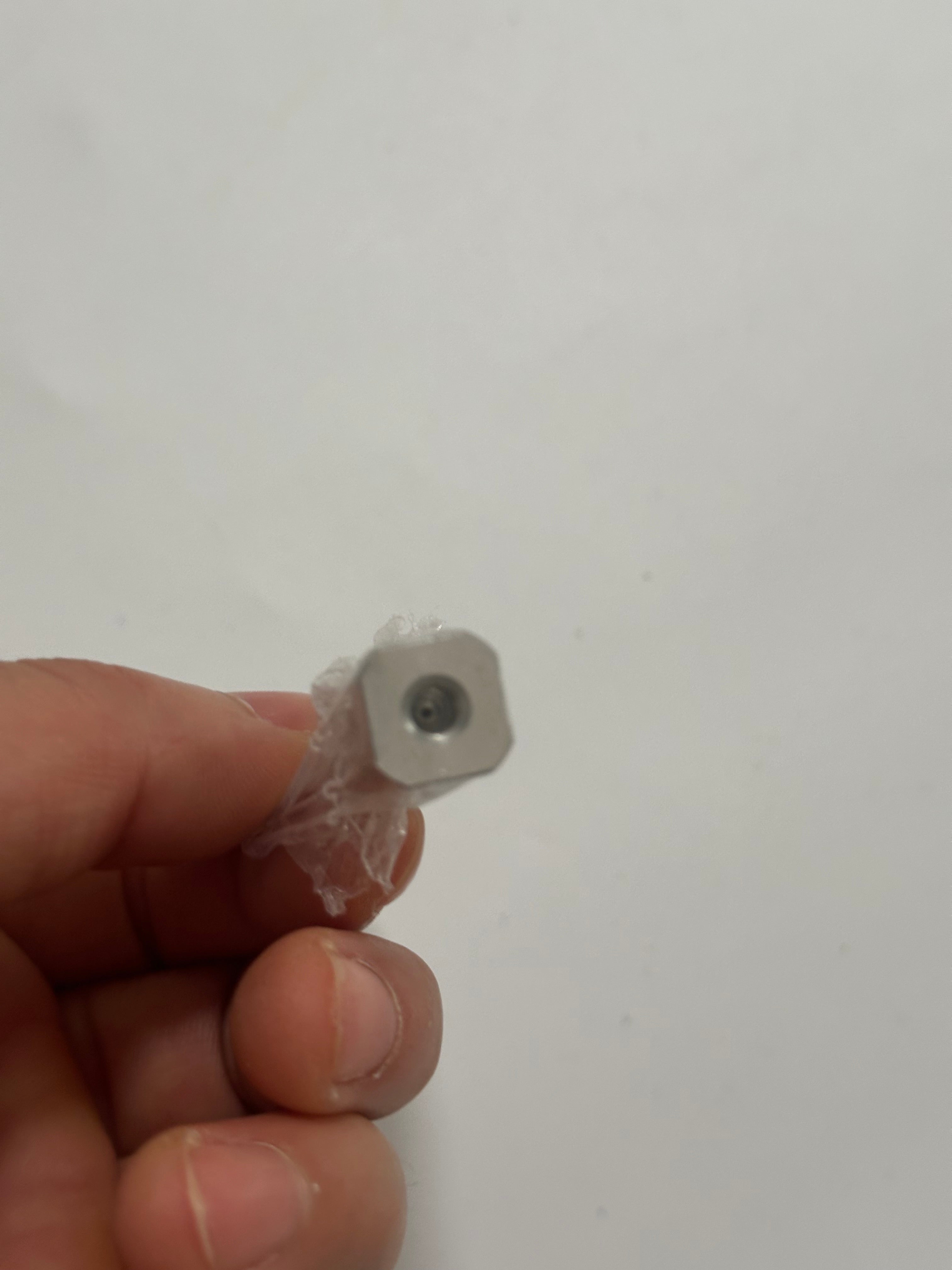

Rear cover	axial rear air port

Features and Operation

Alternating the supply and exhaust at the two cylinder ports drives extension and retraction.
The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis.

External and Mounting Dimensions

The following symbols refer to the PB drawing for 10 mm bore, 10 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height.

Parameter	Details
A — base length before the stroke term	74 mm
AB	28 mm
AC	46 mm
B — body dimension in the drawing	12 mm
R — outside-body dimension in the drawing	14 mm
M — body mounting thread	M8 × 1
EA	15 mm
Overall length from the printed formula	84 mm
Drawing length relation	A + stroke

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Compatible Accessories and Sensors

Accessory code	Purpose and compatibility
F-PB10LB	F-PB10LB: foot bracket for PB series, 10 mm bore. Optional; not implied by this model code.
F-PB10FA	F-PB10FA: front flange for PB series, 10 mm bore. Optional; not implied by this model code.
F-PB10I	F-PB10I: rod-end eye joint for PB series, 10 mm bore. Optional; not implied by this model code.
F-PB10Y	F-PB10Y: rod-end fork joint for PB series, 10 mm bore. Optional; not implied by this model code.
F-PB10CJ	F-PB10CJ: foot-seat pivot bracket for PB series, 10 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint.
F-M4X070F	F-M4X070F: floating joint for PB series, 10 mm bore. Optional; not implied by this model code.
F-M4X070U	F-M4X070U: spherical rod-end joint for PB series, 10 mm bore. Optional; not implied by this model code.

For this magnetic PB cylinder with 10 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS10. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code.

Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles.

Weight Reference

25 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. Catalog weights and estimates are for reference only; actual product weight prevails.

Force Reference

Calculated theoretical force at 0.5 MPa: extension 39.2 N; retraction 33.0 N, using bore 10 mm and rod diameter 4 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load.

Internal Components and Materials

Component	Catalog material
Piston rod	SUS304 stainless steel
Tube	SUS304; 4 mm bore uses bronze
Covers and outer cover	Aluminum alloy; 4 mm bore uses brass
Piston	Aluminum alloy
Nuts	Carbon steel
O-rings	NBR
Bumper	TPU
Guide bush and wear ring	Wear-resistant material

Series Ordering Reference

Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 mm. These are alternative order selections; they are not additional travel available from the current cylinder.

Selection, Installation and Use

Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism.
Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder.
Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod.
Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit.
Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication.
Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used.

Circuit-selection reference at a theoretical 500 mm/s: for 10 mm bore the general catalog lists effective area 0.2 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.
