PB / PBR Series Pen Cylinder

PB / PBR Series Pen Cylinder

  • Product Features
  • Specifications
  • Product Ordering Code
  • Stroke Specifications

Product Features

PB Series (Standard)

  • JIS Standard: Implementation of JIS standards.
  • Compact: Mini pencil-type cylinder, compact structure, small size, and lightweight.
  • Stainless Steel: The barrel is made of stainless steel with high corrosion resistance.
  • Mounting: PB4 and PB6 normally use front cover mounting; PB10-PB16 can be mounted via front or rear covers. Various accessories available.
  • Performance: Small bore size with fast response, suitable for high-frequency working environments.

PBR Series (Non-rotating)

  • JIS Standard: Implementation of JIS standards.
  • Non-rotating: High precision of piston rod guidance; the guide bearing requires no additional lubrication.
  • Installation: Front cover comes with self-contained mounting screws for direct installation without nuts.
  • Material: Stainless steel barrel allows for adaptability to general corrosive working environments.

Specifications

1. PB Series (Standard)

Bore Size (mm) 4 6 10 12 16
Action Type Double Acting, Single Acting (Push) Double Acting, Single Acting (Push/Pull)
Fluid Air (Filtered 40μm)
Pressure (Double) 0.2 ~ 0.7 MPa (28~100 psi) 0.15 ~ 0.7 MPa (22~100 psi)
Speed 50 ~ 500 mm/s 50 ~ 800 mm/s
Port Size Tube Type M5 x 0.8

2. PBR Series (Non-rotating)

Bore Size (mm) 6 8 10 12 16
Action Type Double Acting, Single Acting (Push/Pull)
Fluid Air (Filtered 40μm)
Pressure (Double) 0.15 ~ 0.7 MPa (22~100 psi)
Speed 50 ~ 800 mm/s
Port Size M5 x 0.8

Product Ordering Code

1. PB Series Ordering

Example: PB 10 x 30 S CB

No. Item Options / Description
1 Model PB: Double Acting
PSB: Single Acting (Push)
PTB: Single Acting (Pull)
PBD: Double Shaft
PBJ: Adjustable Stroke
2 Bore 4, 6, 10, 12, 16 mm
3 Stroke Refer to "Stroke Specifications" tab
4 Magnet Blank: No Magnet
S: With Magnet
5 Tail/Back Cover Blank: Standard (No mounting)
CB: Double Ear Type (Φ10-16)
U: Flat Tail (Φ10-16)
R: Axial Air Inlet (Φ6-16)
6 Mounting Blank: No accessory
FA: Front Flange
LB: Axial Foot
CJ: CJ Floating Joint

2. PBR Series Ordering

Example: PBR 16 x 30 S U

No. Item Options / Description
1 Model PBR: Double Acting
PSBR: Single Acting (Push)
PTBR: Single Acting (Pull)
2 Bore 6, 8, 10, 12, 16 mm
3 Stroke Refer to "Stroke Specifications" tab
4 Magnet Blank: No Magnet
S: With Magnet
5 Tail/Back Cover Blank: Standard
U: Radial Air Inlet (Φ8-16)
R: Axial Air Inlet (Φ6-16)

Stroke Specifications

1. PB Series Standard Strokes

Model Bore (mm) Standard Strokes (mm) Max Stroke
PB
(Double Acting)		 4 5, 10, 15, 20 20
6 10, 15, 20, 25, 30, 40, 50, 60 60
10, 12 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 200
16 10, 15, 20, 25... (Same as above) ...200, 250, 300 300
PBD / PBJ
(Double Shaft)		 6 5, 10, 15, 20, 25, 30, 40, 50 50
10 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100 100
12, 16 10, 15, 20, 25... (up to) ...150, 160, 175, 200 200
PSB / PTB
(Single Acting)		 4 5, 10, 15, 20 -
6 5, 10, 15, 20, 25, 30, 40, 50, 60 -
10, 12 5, 10, 15, 20, 25, 30, 40, 50, 60 -
16 5, 10, 15, 20, 25, 30, 40, 50, 60 -

2. PBR Series Standard Strokes

Model Bore (mm) Standard Strokes (mm) Max Stroke
PBR
(Double Acting)		 6 10, 15, 20, 25, 30, 40, 50, 60 60
8 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150 150
10 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 200
12 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 200
16 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 300
PSBR / PTBR
(Single Acting)		 6 5, 10, 15, 20, 25, 30, 40, 50, 60 -
8 5, 10, 15, 20, 25, 30, 40, 50, 60 -
10 5, 10, 15, 20, 25, 30, 40, 50, 60 -
12 5, 10, 15, 20, 25, 30, 40, 50, 60, 75 -
16 5, 10, 15, 20, 25, 30, 40, 50, 60, 75, 100 -

Show previous products

  • Airtac PB series: double action type cylinder - PB16X160SRCJ

    View options

    Airtac PB series: double-acting pen cylinder - PB16X160SRCJ

    Specifications: PB16X160SRCJ — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 160 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X160 Stroke: 160 mm S Magnetic piston R axial rear air port CJ foot-seat pivot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X160SRCJ Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 160 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model CJ — foot-seat pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 160 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 236 mm Drawing length relation A + stroke CJ mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 28 mm D 48 mm E 5.5 mm H 25 mm I 16 mm J 2.5 mm K 20.4 mm L 38 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 172.9 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected CJ mount adds an approximate 53.9 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

    Read more

    $50.61

    View options

  • Airtac PB series: double action type cylinder - PB16X50SRLB

    View options

    Airtac PB series: double-acting pen cylinder - PB16X50SRLB

    Specifications: PB16X50SRLB — AirTAC PB pen cylinder, double acting, single rod, 16 mm bore and 50 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download PB / PBR Accessory Selection and Mounting Drawings (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PB pen cylinder; double acting, single rod 16 Cylinder bore: 16 mm X50 Stroke: 50 mm S Magnetic piston R axial rear air port LB foot bracket No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model PB16X50SRLB Product type pen cylinder Operation double acting, single rod Bore 16 mm Stroke 50 mm Piston-rod diameter 5 mm Rod-end thread M5 × 0.8 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–0.7 MPa Proof pressure 1.2 MPa Operating temperature −20 to +70 °C Piston speed 50–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover axial rear air port Mounting code in this model LB — foot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the PB drawing for 16 mm bore, 50 mm stroke and R rear cover in the 2022 cylinder catalog, printed page 86. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 76 mm AB 28 mm AC 48 mm B — body dimension in the drawing 18 mm R — outside-body dimension in the drawing 20 mm M — body mounting thread M10 × 1 EA 15 mm Overall length from the printed formula 126 mm Drawing length relation A + stroke LB mounting reference from printed page 91; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details A 33 mm BB 42 mm CC 14 mm D 25 mm F 9 mm G 5.5 mm I 2.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-PB12LB F-PB12LB: foot bracket for PB series, 16 mm bore. Matches the mounting code selected in this model. F-PB12FA F-PB12FA: front flange for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12I F-PB12I: rod-end eye joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB12Y F-PB12Y: rod-end fork joint for PB series, 16 mm bore. Optional; not implied by this model code. F-PB16CJ F-PB16CJ: foot-seat pivot bracket for PB series, 16 mm bore. Optional; not implied by this model code. Requires the matching I joint; the catalog CJ kit includes the pin and I joint. F-M5X080F F-M5X080F: floating joint for PB series, 16 mm bore. Optional; not implied by this model code. F-M5X080U F-M5X080U: spherical rod-end joint for PB series, 16 mm bore. Optional; not implied by this model code. For this magnetic PB cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 126 g — estimated configuration weight. The table does not quantify the magnetic option separately; this value uses the corresponding body reference. The selected LB mount adds an approximate 56 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 90.7 N, using bore 16 mm and rod diameter 5 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod SUS304 stainless steel Tube SUS304; 4 mm bore uses bronze Covers and outer cover Aluminum alloy; 4 mm bore uses brass Piston Aluminum alloy Nuts Carbon steel O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

    Read more

    $37.92

    View options

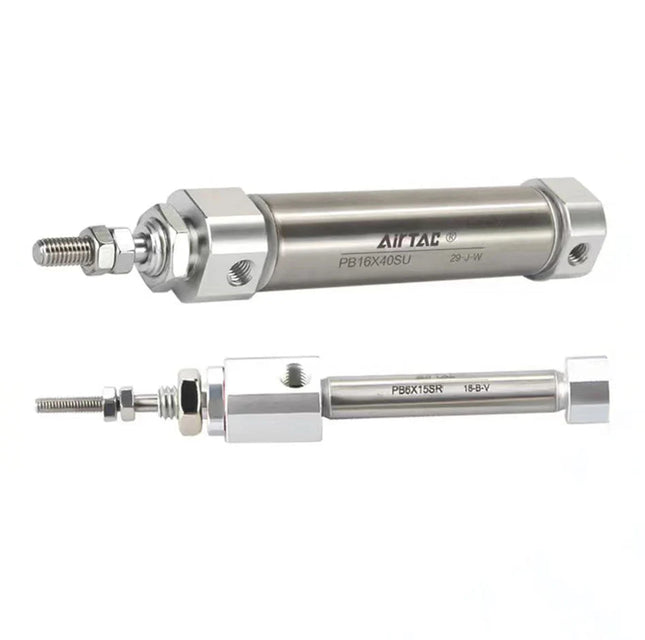

  • Airtac PB series: double action type cylinder - PB16X100SRCJ
