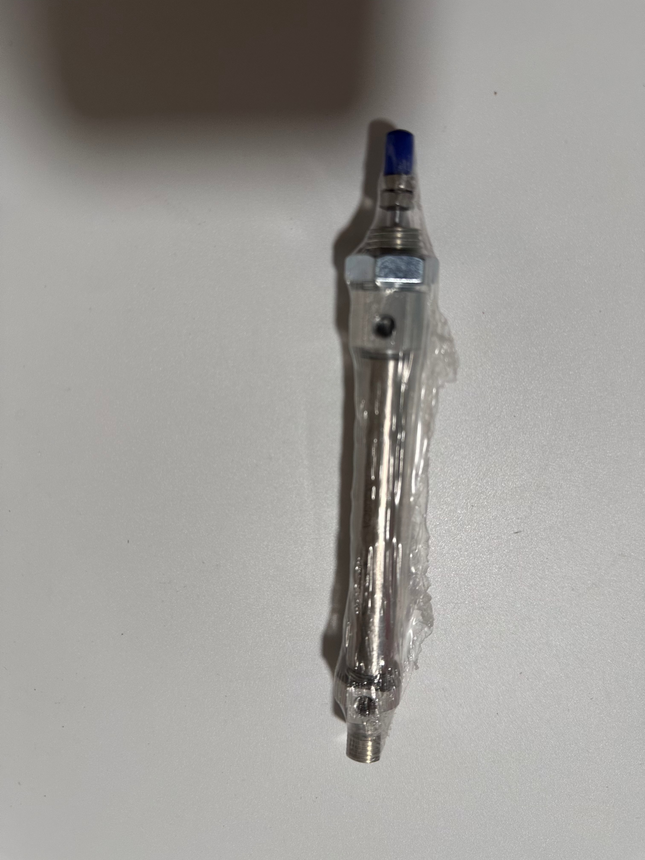

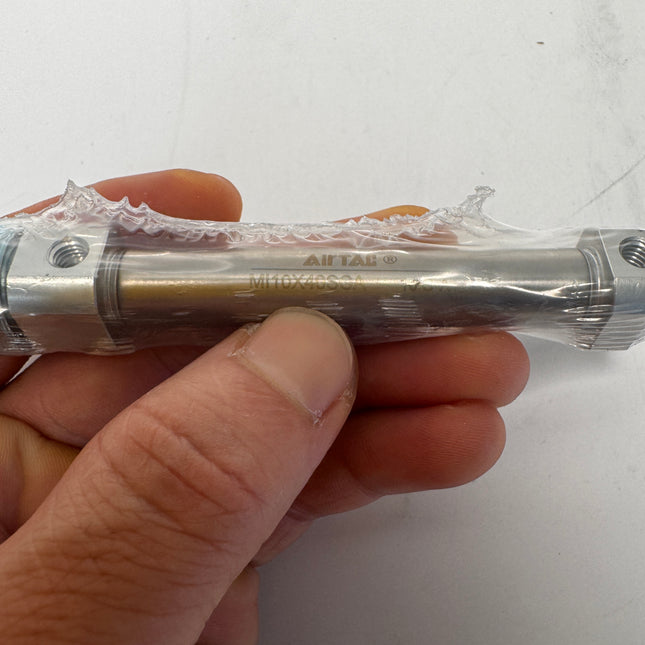

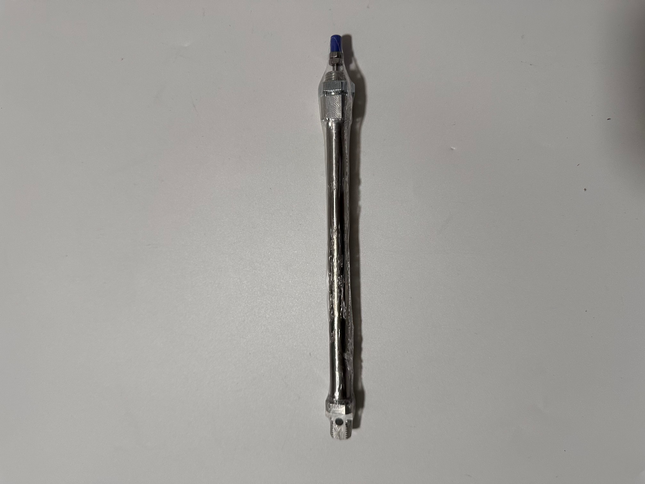

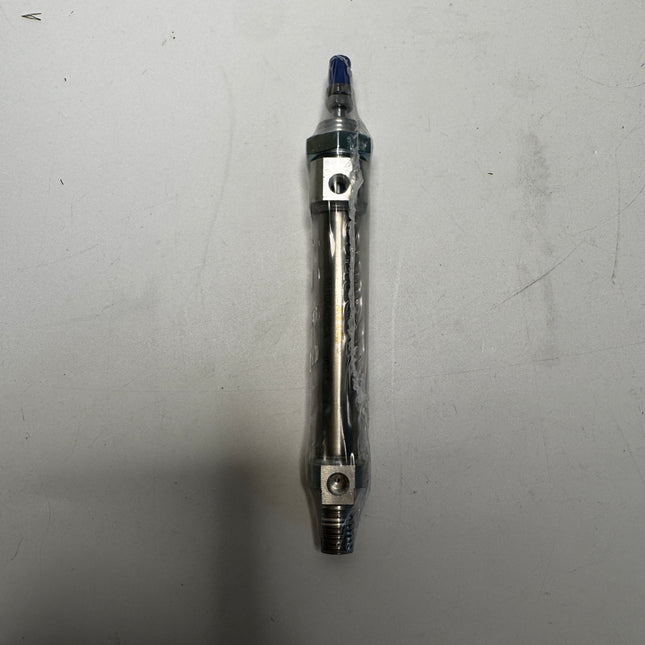

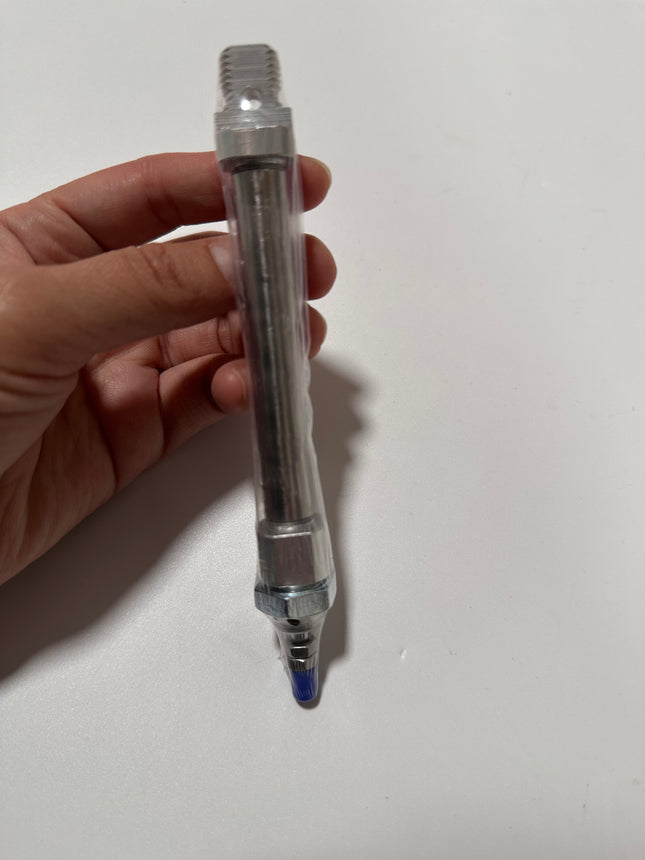

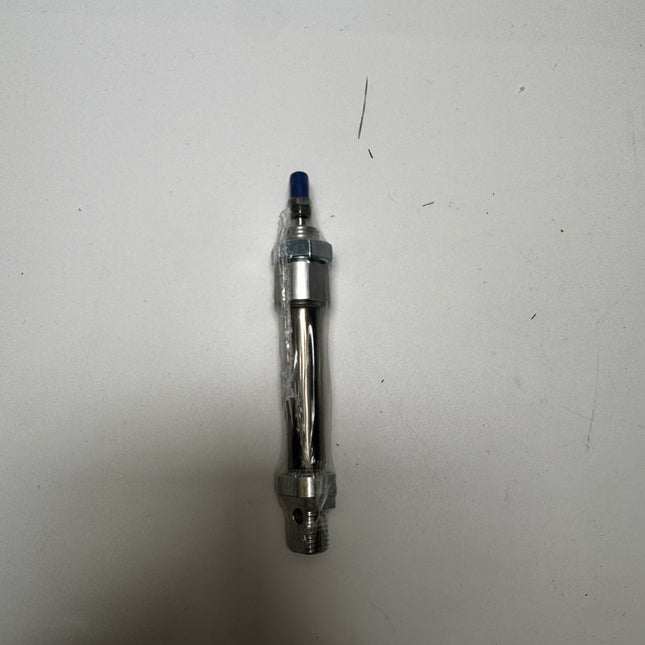

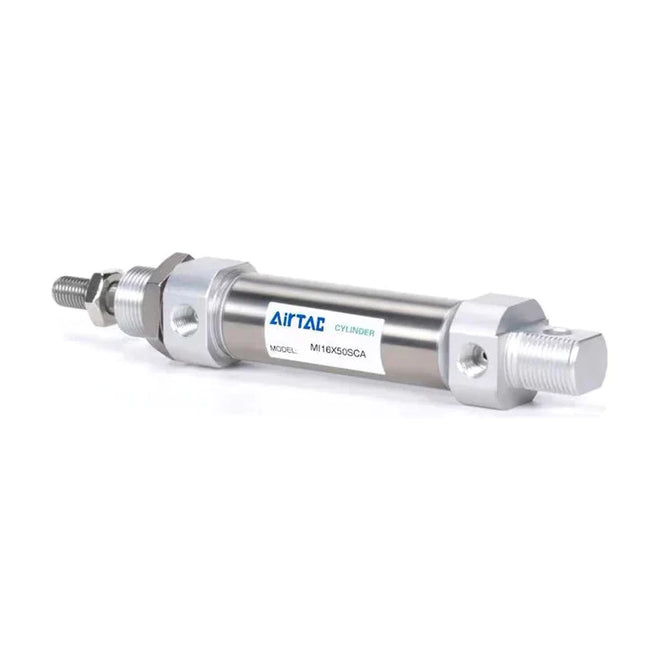

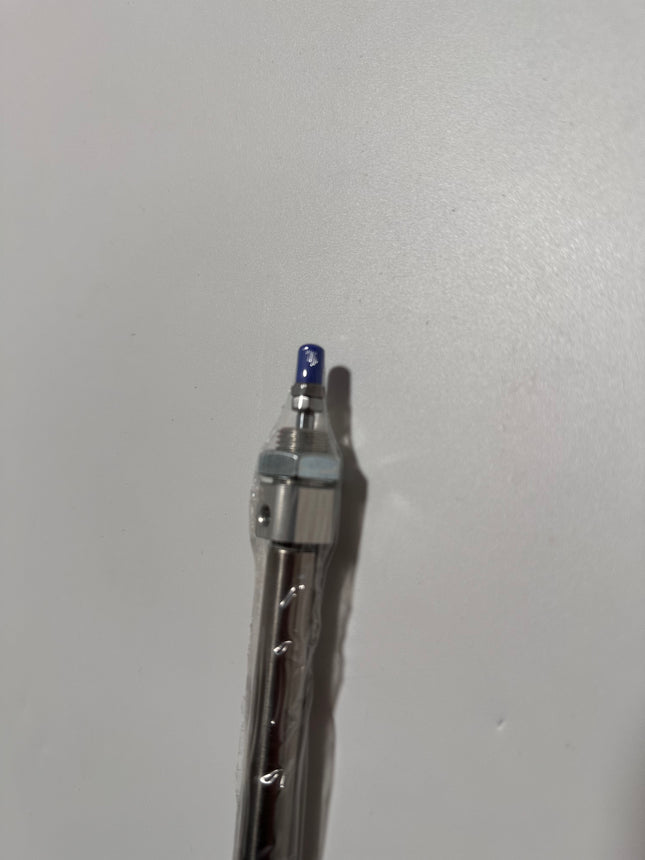

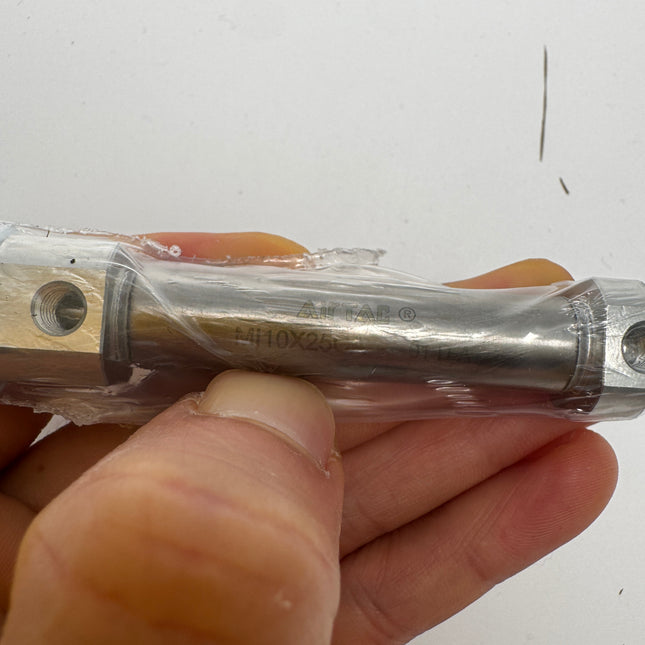

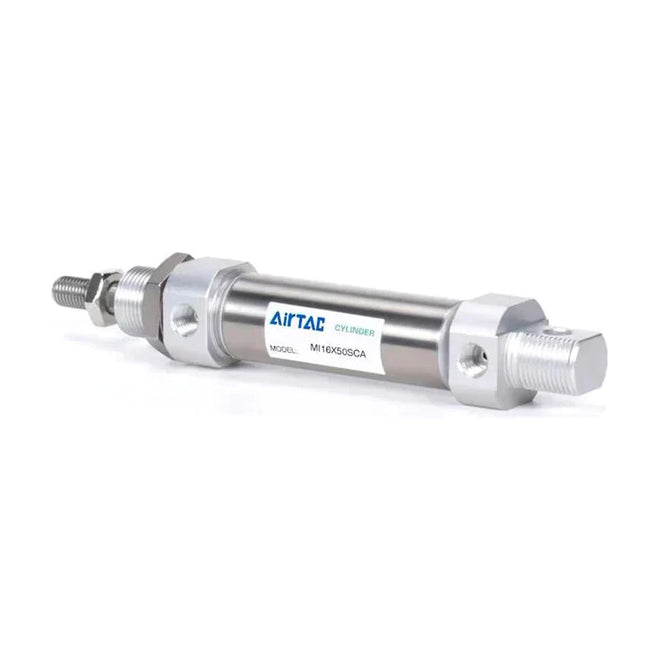

MI Series Stainless Steel Mini Cylinder
ISO6432 Standard | Corrosion Resistant | Round Body
Product Features
- ISO Standard Compliant: Fully conforms to the ISO6432 standard (for Bore sizes Φ8 ~ Φ25), ensuring global interchangeability and ease of replacement.
- Corrosion Resistance: Manufactured with a high-grade stainless steel barrel and piston rod, making the cylinder highly adaptable to general corrosive working environments.
- Reliable Structure: The front/rear end caps and the stainless steel body adopt a precision riveted roll-package structure, providing an exceptionally secure and leak-free connection.

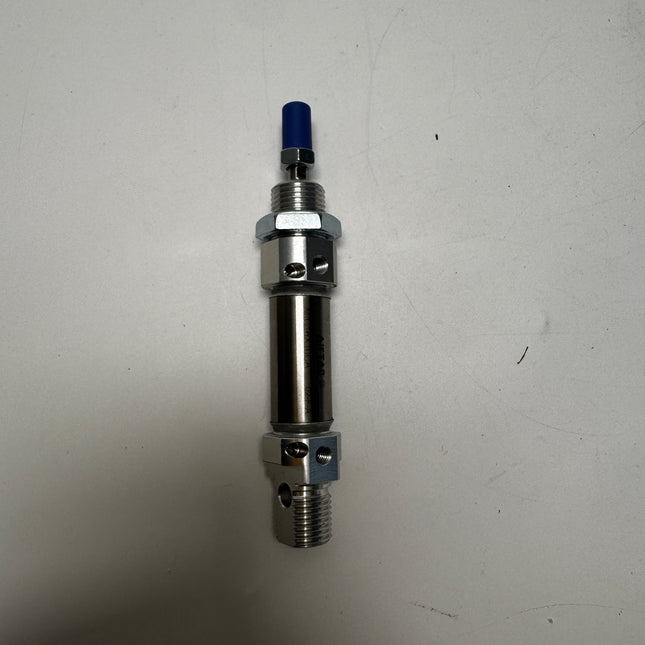

- Effective Cushioning: Front and rear caps are equipped with fixed rubber bumpers to reduce piston impact and noise. For demanding high-speed applications, the MIC series offers adjustable air cushioning.
- Versatile Mounting: A wide variety of back cover tail types (Pivot, Flat, Round, Axial) and dedicated mounting accessories are available for simple and flexible installation.
Technical Specifications
General Specifications
| Operating Fluid | Air (Filtered by 40μm filter element or better) |
| Action Types | Double Acting / Single Acting (Push) / Single Acting (Pull) |
| Operating Pressure (Double Acting) | 0.15 ~ 1.0 MPa (22 ~ 145 psi) (1.5 ~ 10.0 bar) |
| Operating Pressure (Single Acting) | 0.2 ~ 1.0 MPa (28 ~ 145 psi) (2.0 ~ 10.0 bar) |
| Proof Pressure | 1.5 MPa (215 psi) (15 bar) |
| Operating Temperature Range | -20 ~ 70°C (No freezing) |
| Piston Speed (Double Acting) | 30 ~ 800 mm/s |
| Piston Speed (Single Acting) | 50 ~ 800 mm/s |
| Stroke Tolerance (mm) | Stroke ≤ 150: +1.0 / 0 | Stroke > 150: +1.5 / 0 |
| Cushion Type |
MIC Series: Adjustable Air Cushion Other Series: Fixed Rubber Bumper |
Bore Specific Parameters
| Bore Size (mm) | 8 | 10 | 12 | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|---|---|---|
| Port Size [Note] | M5 x 0.8 | PT 1/8" | PT 1/4" | |||||
[Note] PT threads are standard. G and NPT thread types are available upon request.
Stroke Specifications
| Series Model | Bore (mm) | Standard Stroke (mm) | Max. Stroke |
|---|---|---|---|
| MI MIC |
8 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150 | 150 |
| 10 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 | 200 | |
| 12 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250 | 250 | |
| 16 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 500 | |
| 20, 25, 32, 40 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 500 | |
| MID, MIJ MICD, MICJ |
8, 10 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100 | 100 |
| 12 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200 | 200 | |
| 16, 20, 25, 32, 40 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300... (Up to 500 for Bore 32/40) | 300~500 | |
| MSI MTI |
8, 10, 12 | 10, 15, 20, 25, 30, 40, 50 | - |
| 16, 20, 25, 32, 40 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150 | - |
Note: Please contact the factory for other special or non-standard strokes.
Product Ordering Code
Example: MIJ 10 X 40 - 30 S U G
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code |

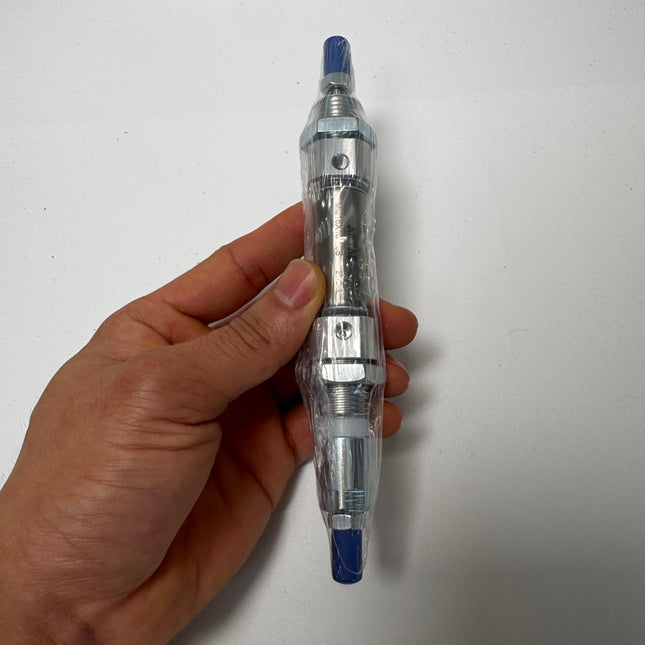

MI: Standard Mini Cylinder (Double Acting) MIC: Mini Cylinder (Double Acting, Adjustable Cushion) MSI: Single Acting Push (Air extends, Spring return) MTI: Single Acting Pull (Air retracts, Spring extend) MID: Double Shaft (Double Acting) MIJ: Double Shaft (Adjustable Stroke) MICD: Double Shaft (Adjustable Cushion) MICJ: Double Shaft (Adj. Stroke + Adj. Cushion) |
| 2 | Bore Size |
MI, MSI, MTI, MID, MIJ: 8, 10, 12, 16, 20, 25, 32, 40 mm MIC, MICD, MICJ: 16, 20, 25, 32, 40 mm |
| 3 | Stroke | Refer to the Stroke Range table (e.g., 40) |
| 4 | Adjustable Stroke |
Blank: None (Standard) 10, 20, 30, 40, 50... : Adjustable Range in mm *Only applicable for MIJ / MICJ models. |
| 5 | Magnet Code |
Blank: No Magnet S: With Built-in Magnet |
| 6 | Back Cover (Tail Type) |
CA: Pivot Type (Bore 8~25) U: Flat Tail, Radial Inlet (Bore 8~40) R: Axial Inlet Type (Bore 16~40) CM: Round Tail (Bore 16~40) Blank: No Code (For MID, MIJ, etc.) |
| 7 | Mounting Accessories |
Blank: No Accessory FA: Front Flange | SDB: Rear Hinge (Pivot) LB: Axial Foot | TC: Center Trunnion |
| 8 | Thread Type |
Blank: PT Thread G: G Thread |
