Description

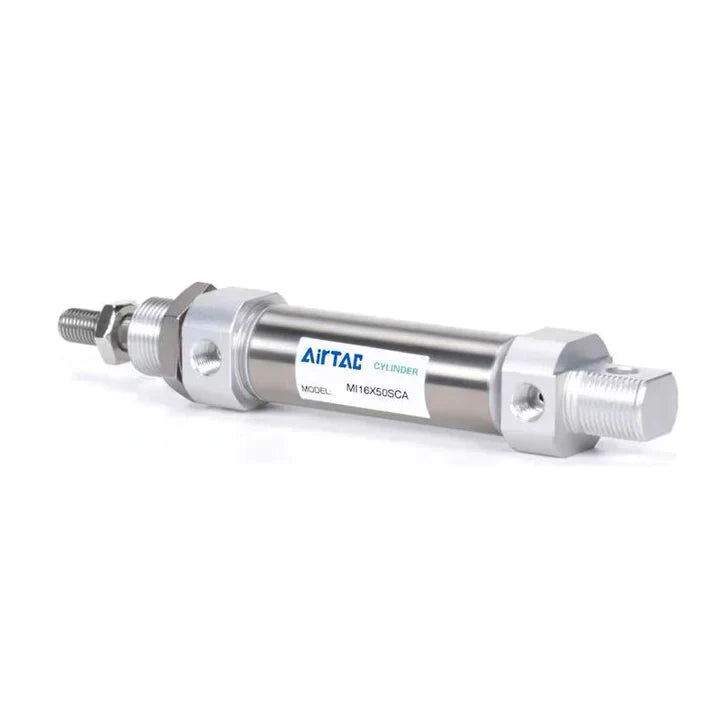

Specifications: Mini cylinder (compound type) Cylinder diameter: 40mm Stroke: 100mm Magnet: with magnet Rear cover type: garden tail type Fixed type: middle trunnion bracket Tooth type: G tooth
Specifications
1. Model: MI40X100SCMTCG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5
5. Buffer type: anti-collision pad, nozzle caliber: PT1/4
6. The sensor can be optional: DMSG,CMSG
Internal structure and main parts material: 1. Piston rod: SUS304/2. Hexagon nut: carbon steel/3. Front cover O Order: NBR/4. Hexagon nut: carbon steel/5. Bushing: wear-resistant material/6. Front cover: aluminum alloy/7. Cylinder: SUS304/8. Anti-collision pad: TPU/9. Piston/10. Piston O: NBR/11. Wear pad: wear resistant material/12. Hexagon nut: carbon steel/13. Rear cover: Aluminum alloy
Installation accessories :F-MI40LB Axial mounting F-MI40SDB Rear Hinge Mount F-MI40TC Middle Trunnion Bracket ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint
Click to download Airtac product catalog
Product Features
1. Conform to ISO6432 standard (cylinder diameter 8mm-25mm).
2. The front and rear covers are equipped with fixed anti-collision pads to reduce the reversing impact of the cylinder.
3. A variety of rear cover forms, make the cylinder installation more convenient.
4. The front and rear covers and the stainless steel cylinder body adopt riveted roller package structure, and the connection is reliable.
5. Stainless steel piston rod and cylinder body, so that the cylinder can adapt to the general corrosive working environment.
6. Various specifications of the cylinder and cylinder mounting accessories are available.
