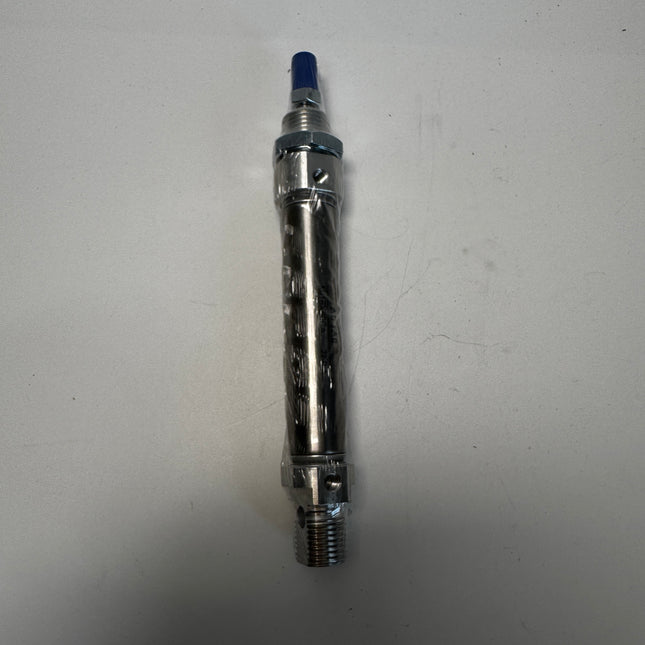

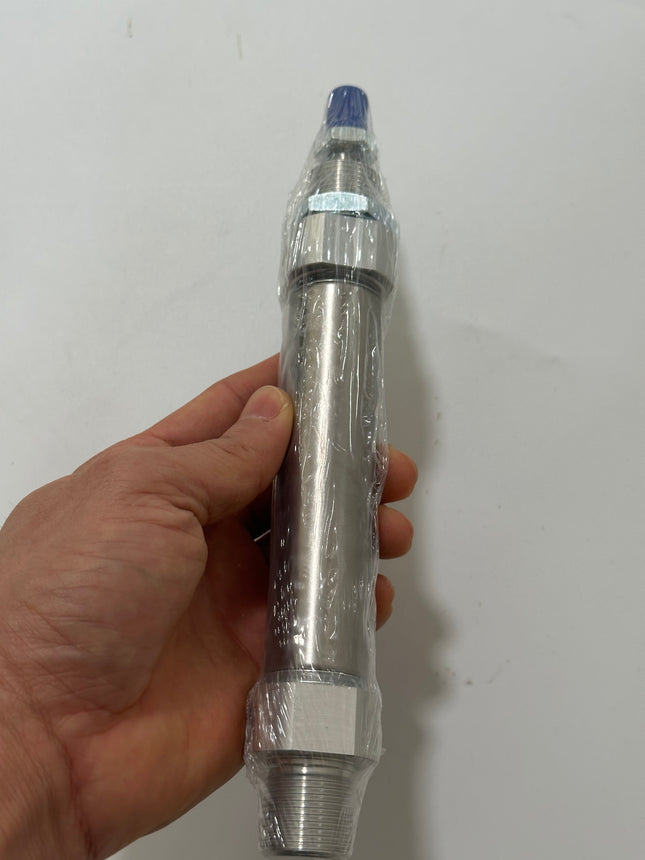

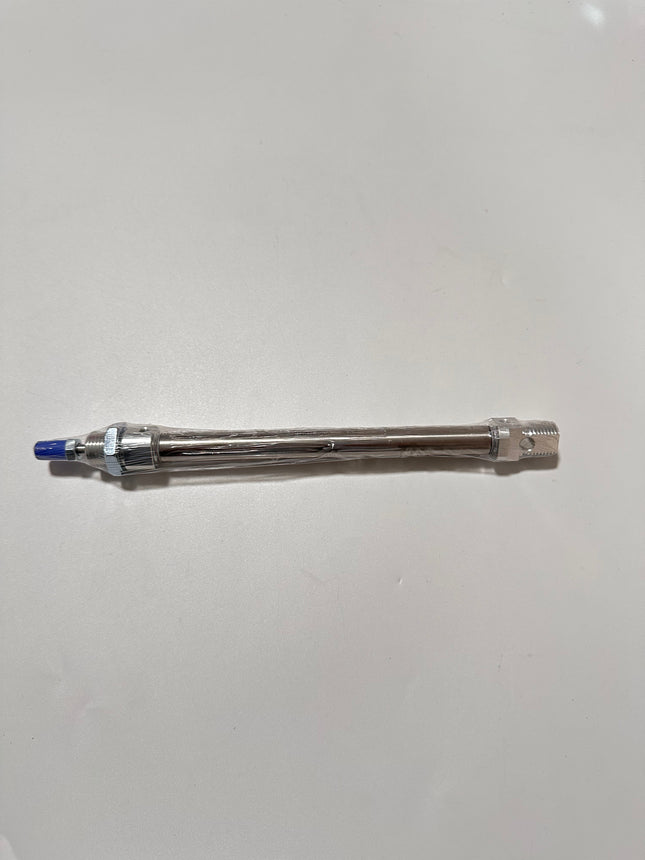

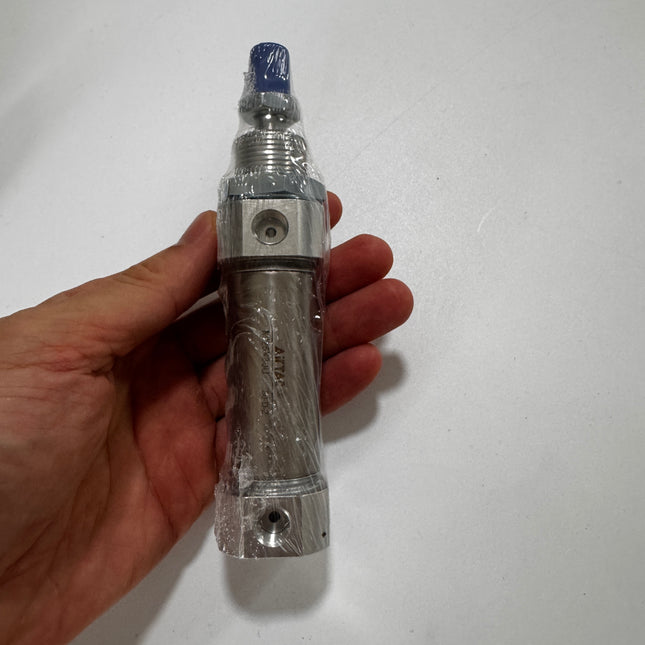

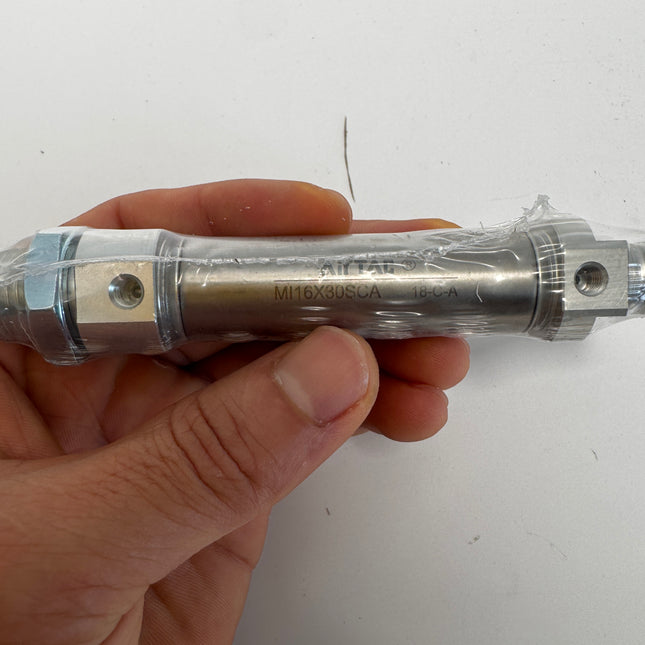

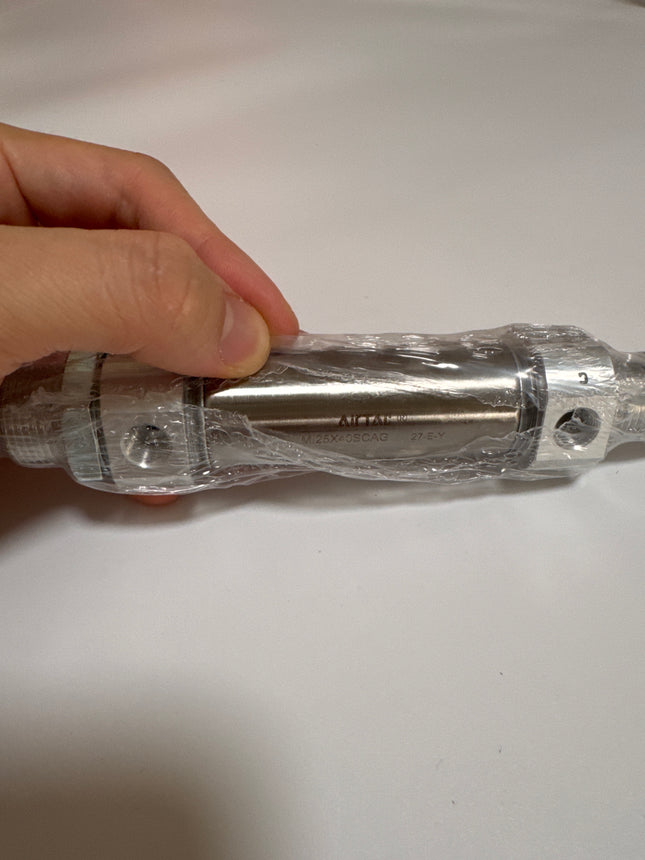

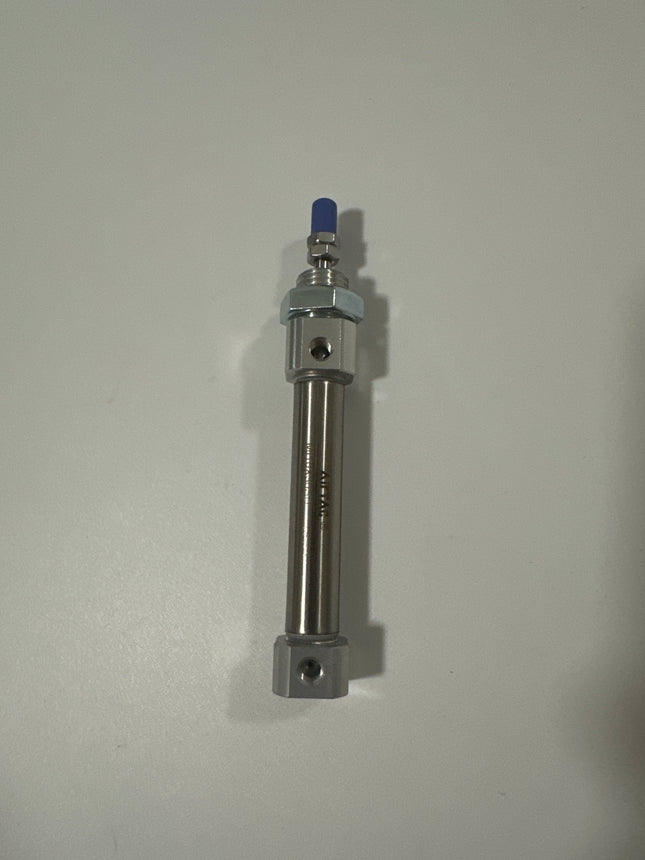

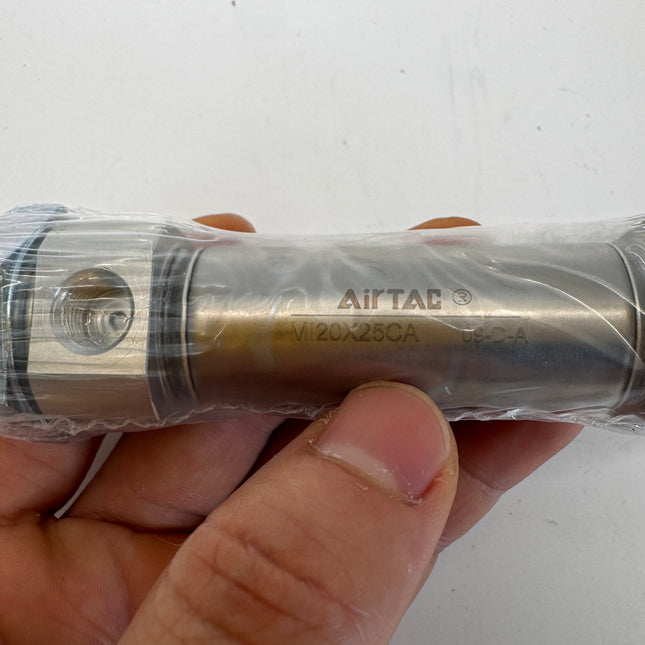

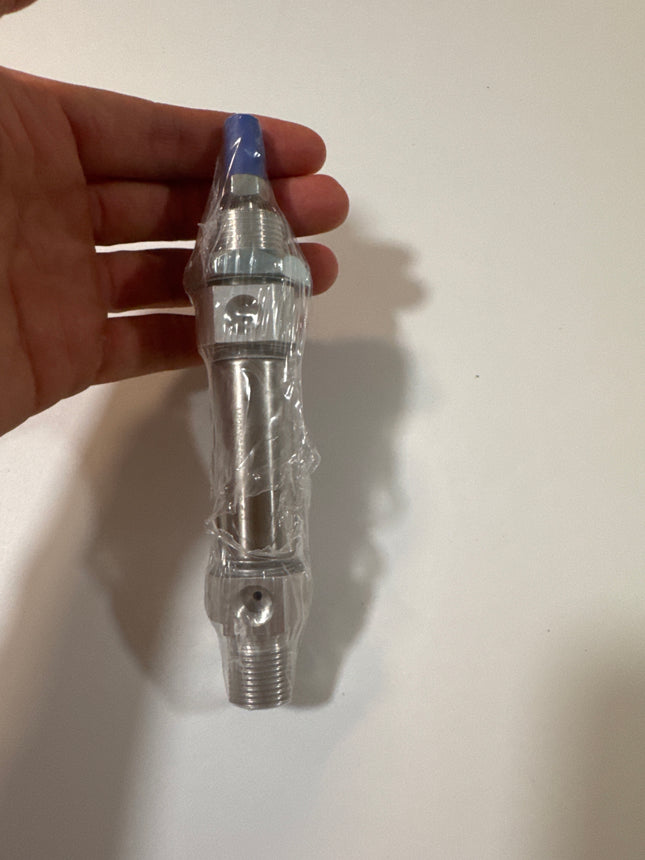

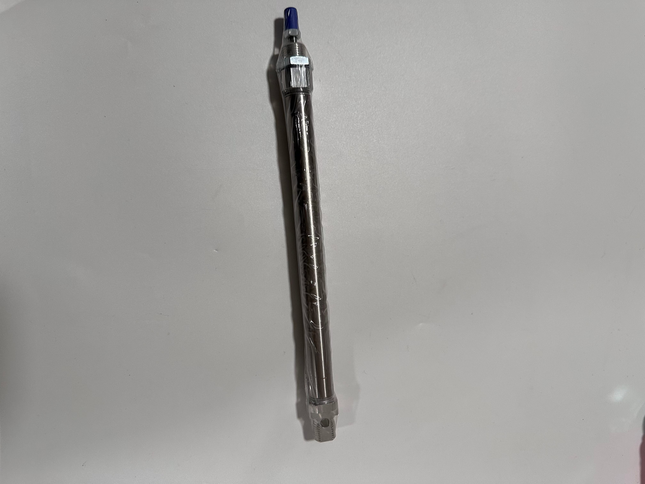

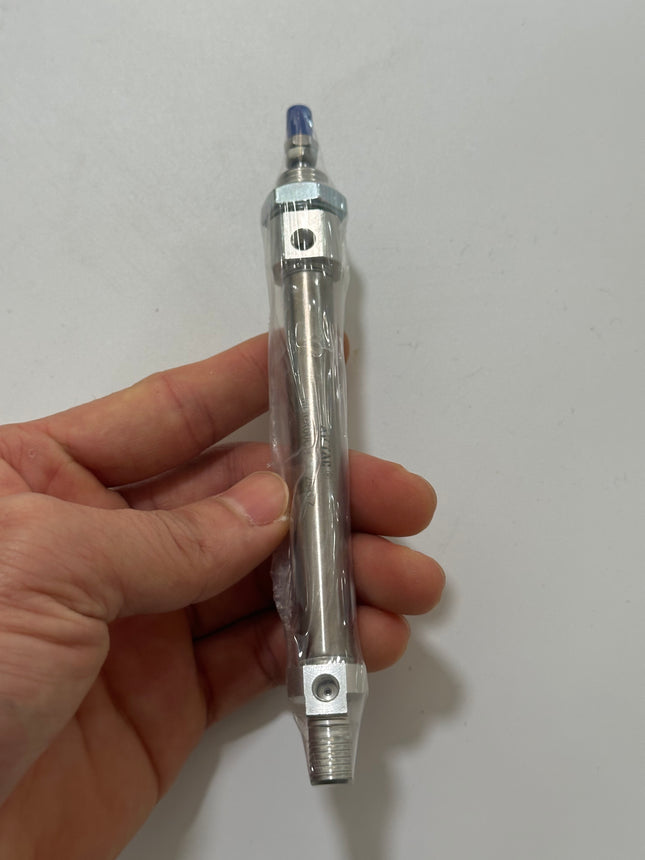

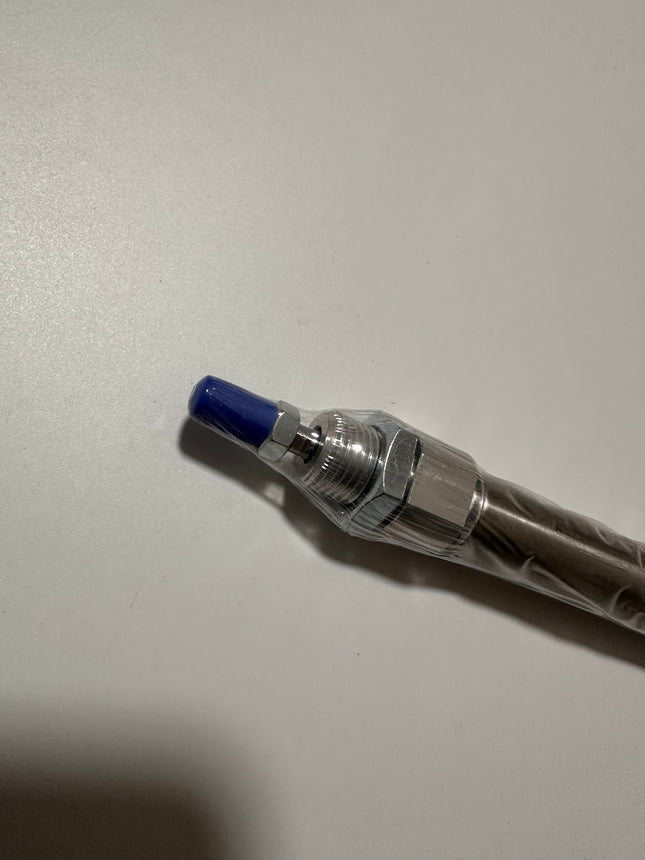

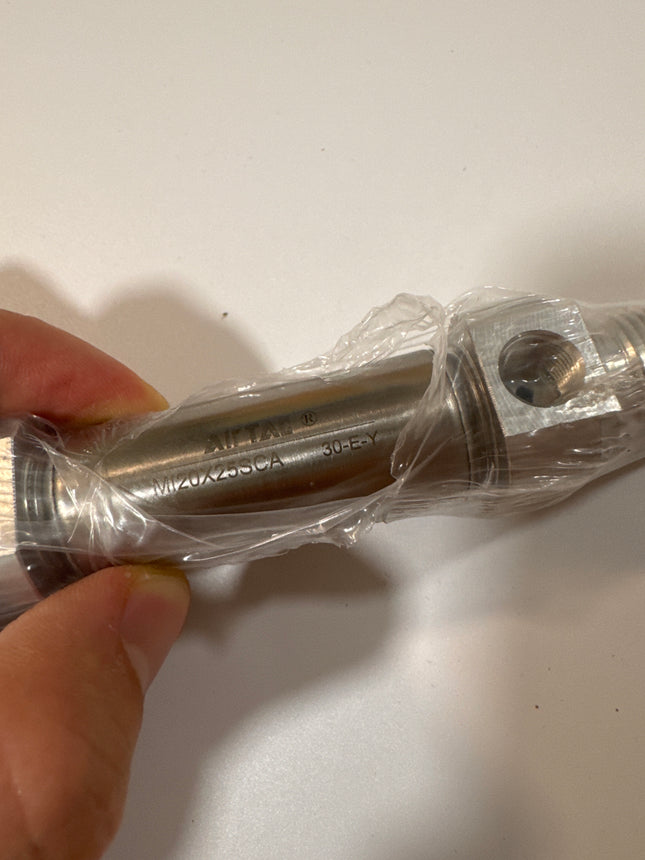

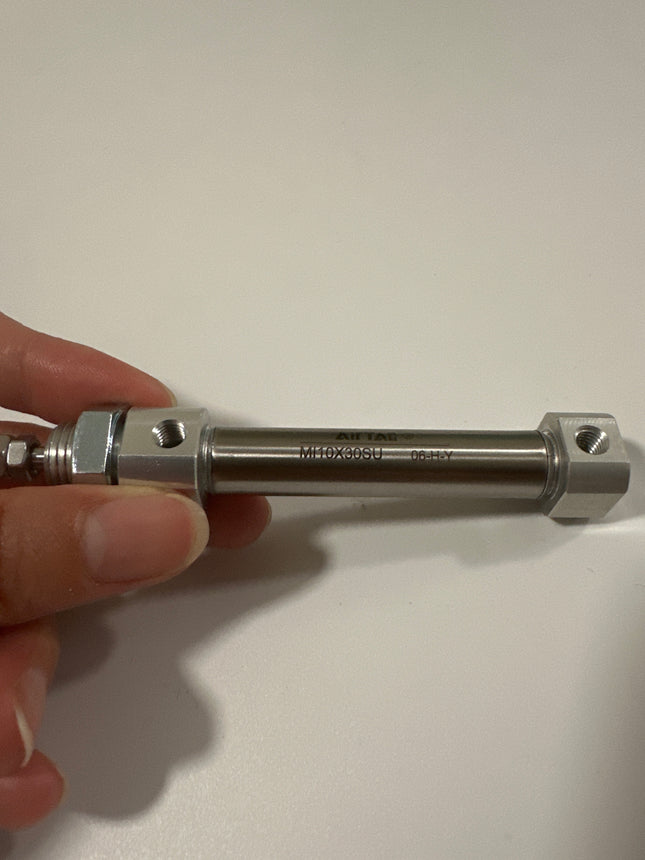

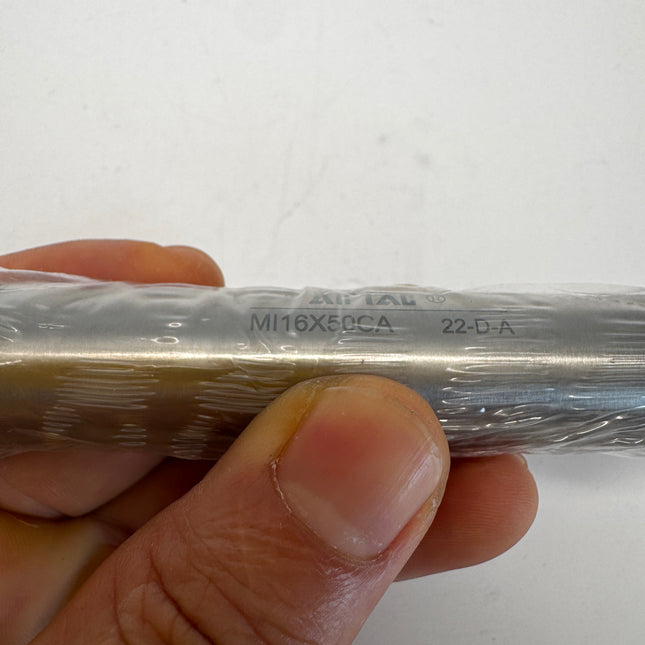

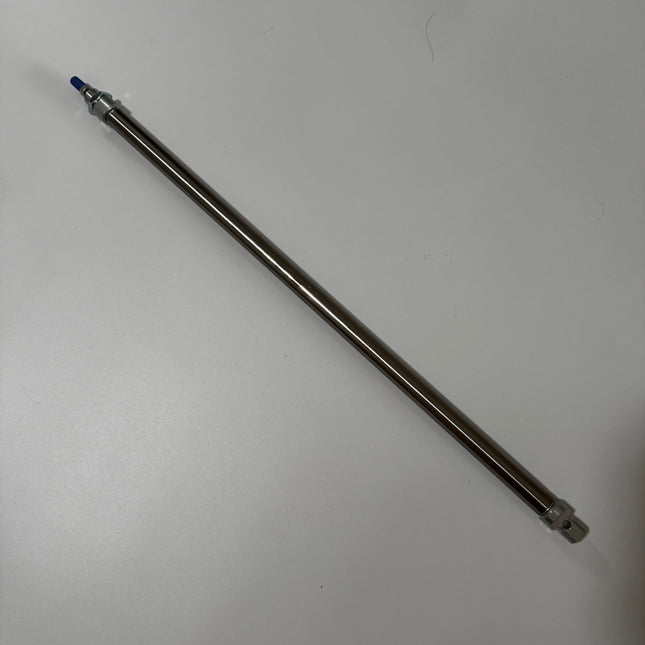

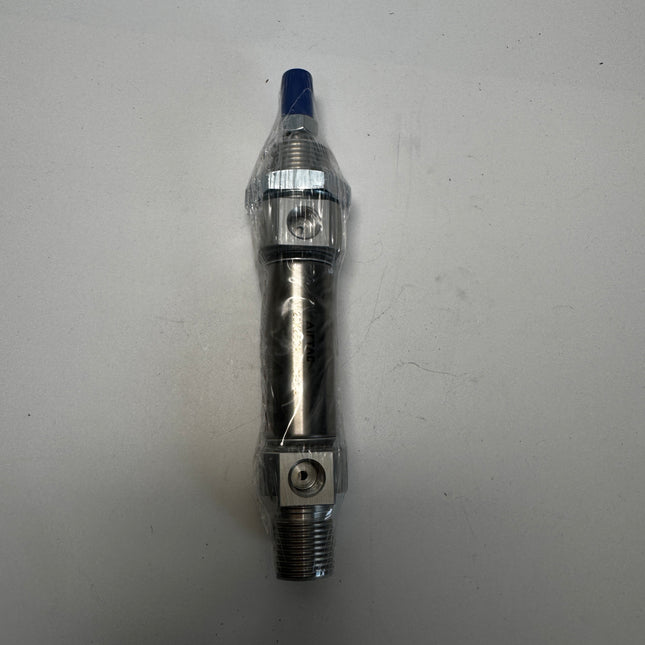

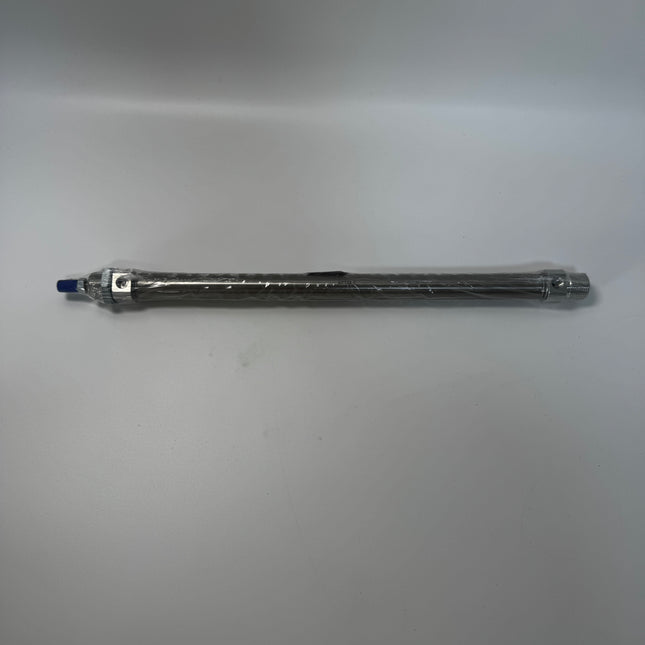

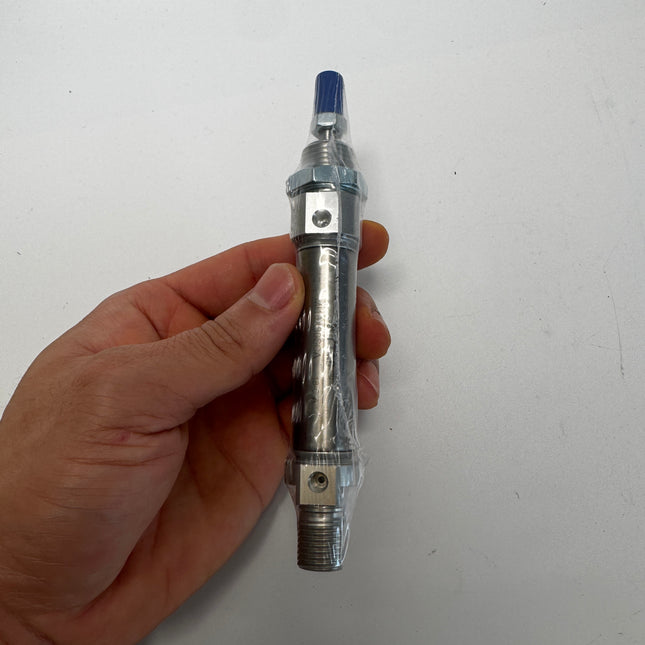

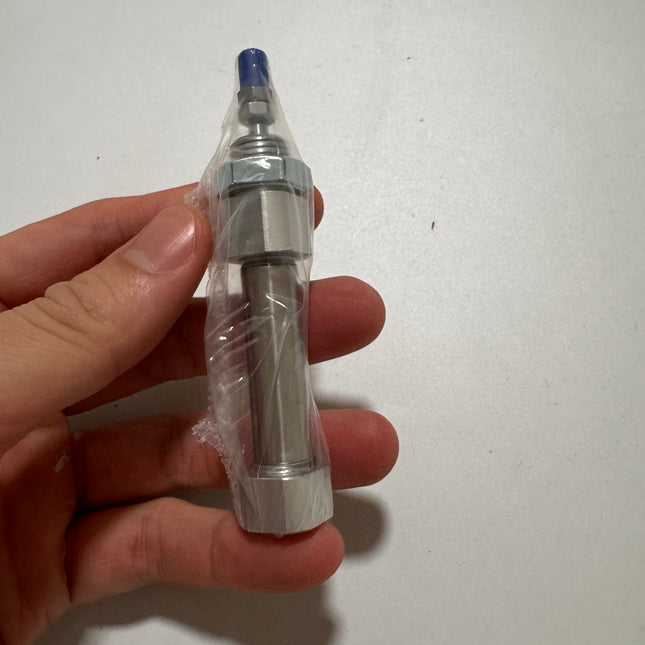

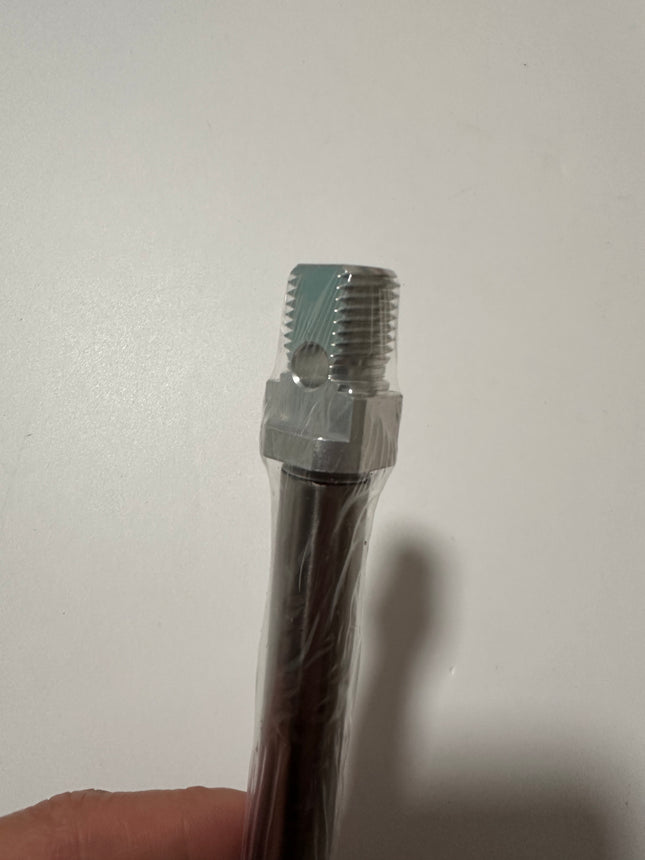

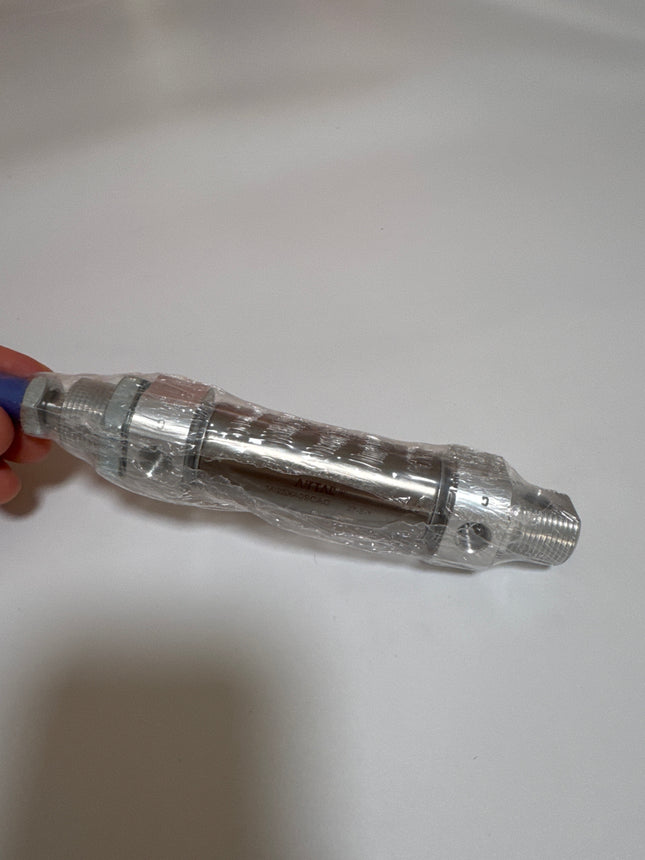

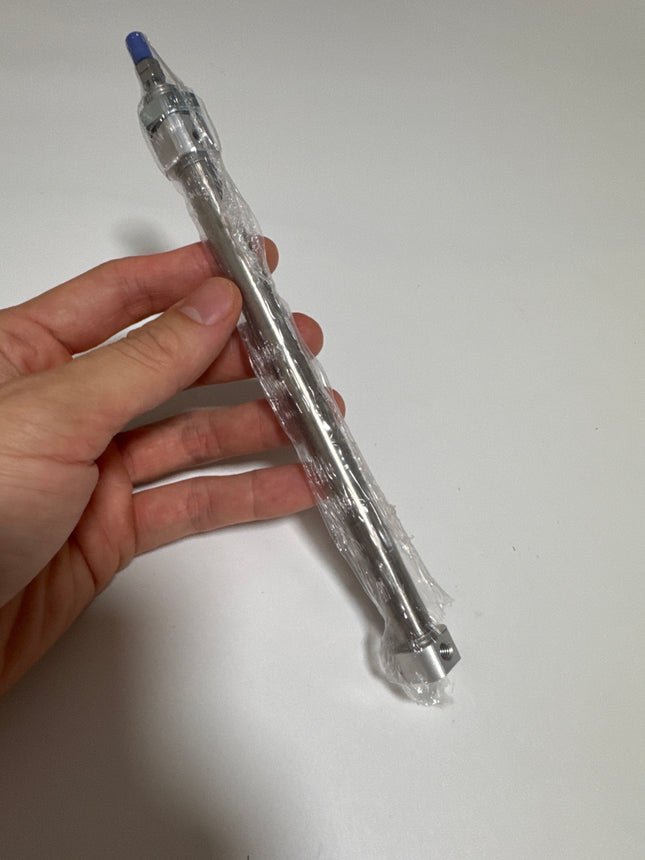

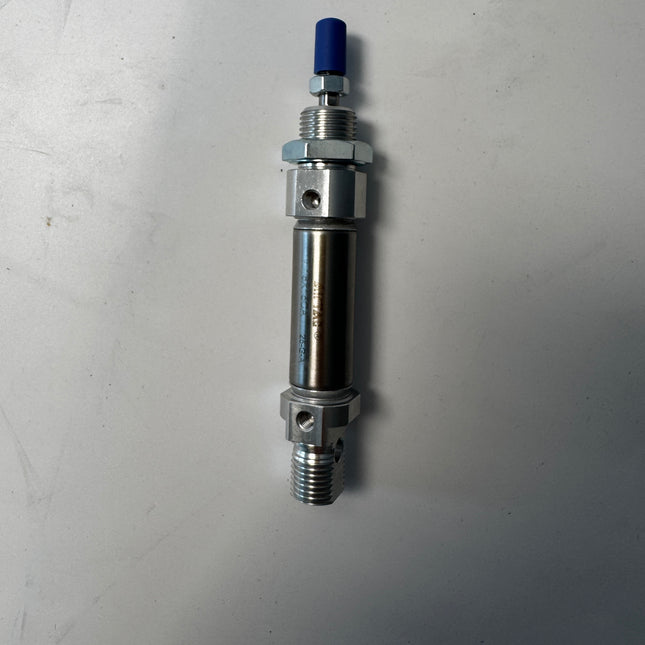

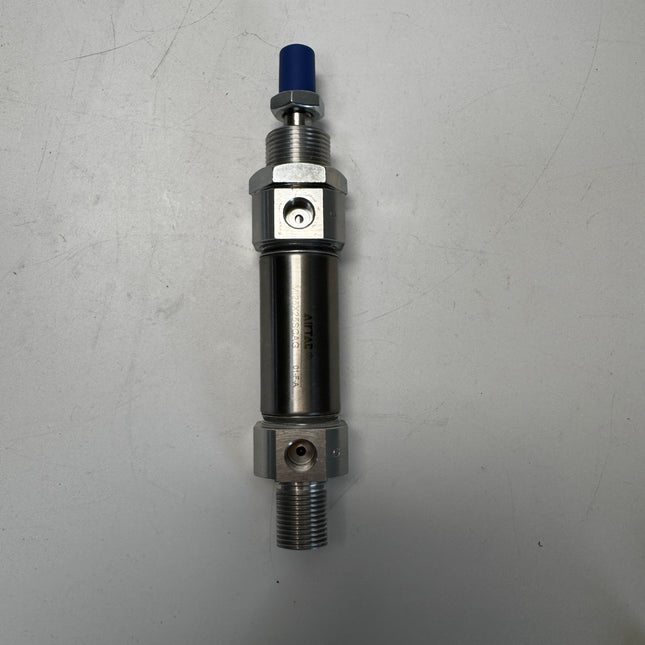

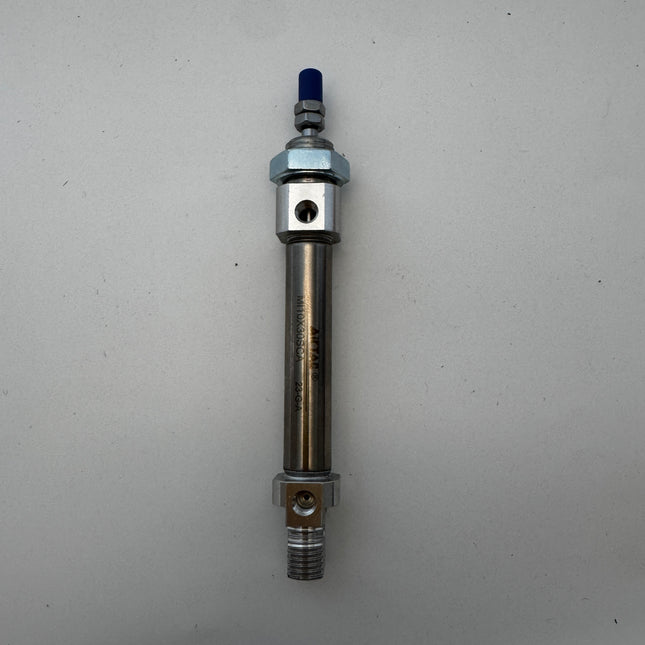

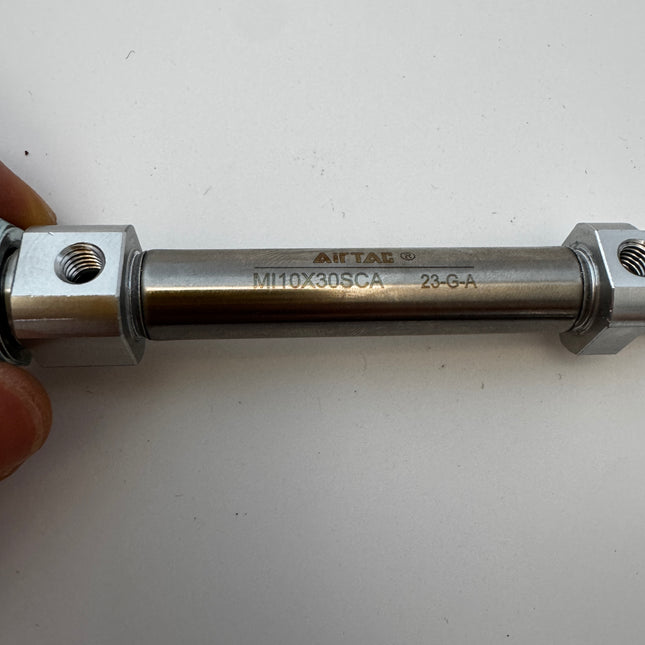

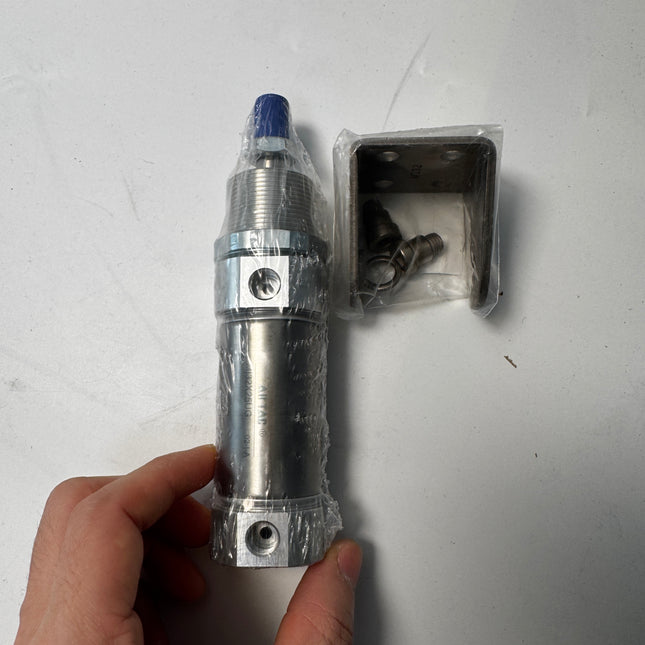

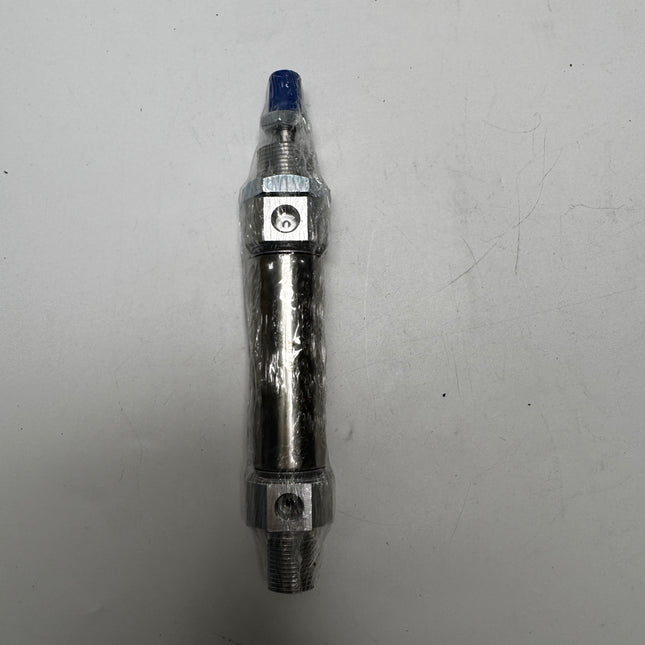

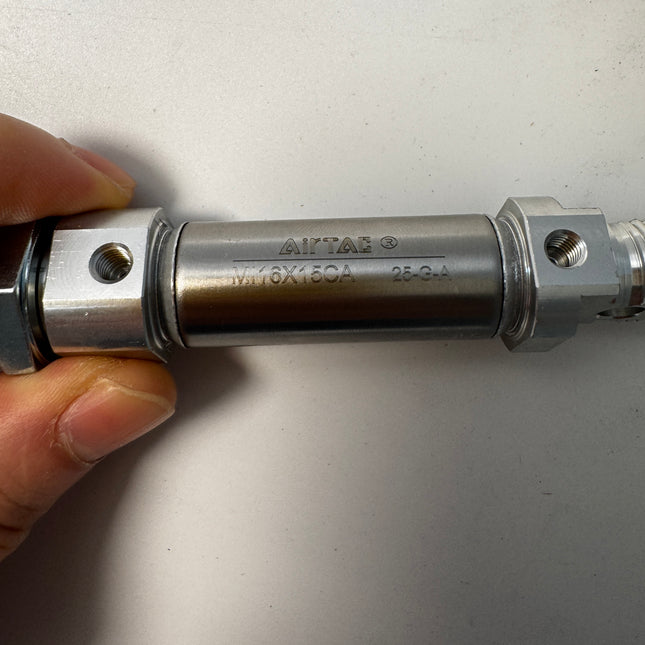

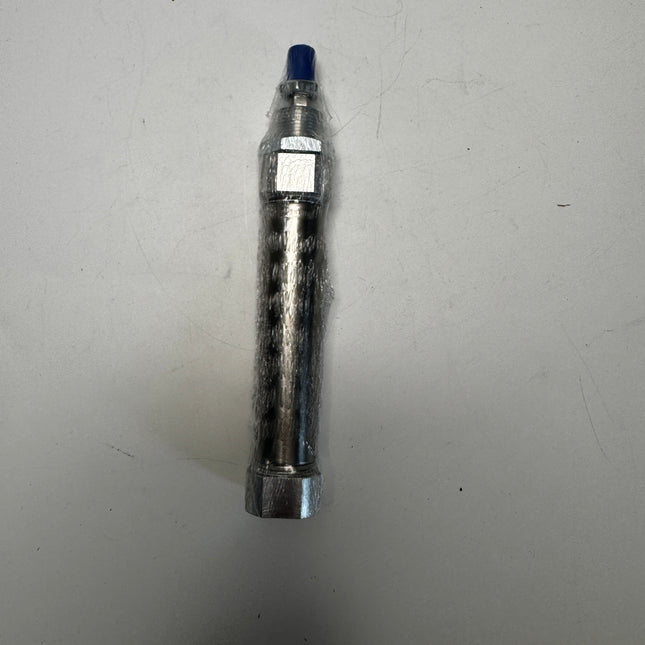

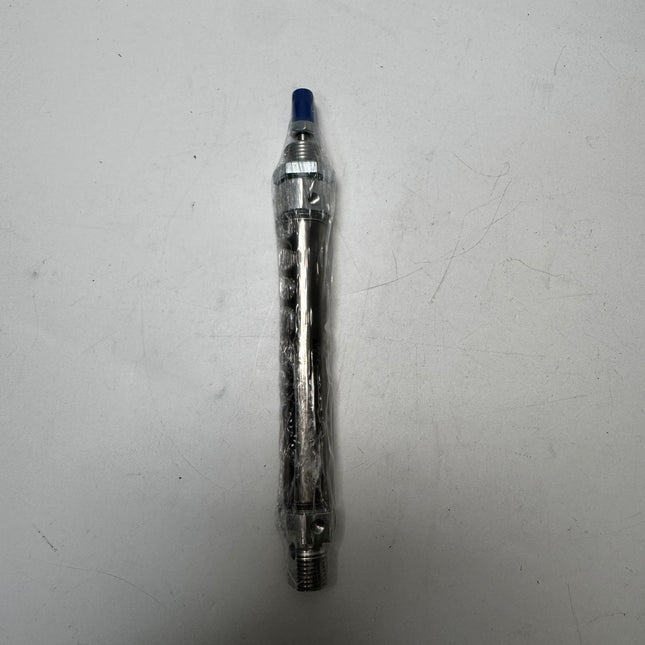

Stainless Steel Mini Cylinder — MI Series (ISO6432)
Product Features
- ISO Standard: Conforms to ISO6432 standard (Φ8~Φ25).
- Cushioning: Front and rear caps are equipped with fixed rubber bumpers to reduce cylinder impact; adjustable air cushion is available for MIC series.
- Versatile Mounting: Various back cover types allow for easy and flexible installation.
- Reliable Structure: The front/rear caps and stainless steel body adopt a riveted roll package structure for a reliable connection.
- Corrosion Resistance: Stainless steel piston rod and cylinder body make the cylinder adaptable to general corrosive working environments.
- Variety: Multiple specifications and mounting accessories are available for customer selection.
Specifications
| Bore Size (mm) | 8 | 10 | 12 | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|---|---|---|
| Acting Type | Double Acting, Single Acting Push, Single Acting Pull | |||||||
| Fluid | Air (filtered 40μm or better) | |||||||
| Pressure (Double Acting) | 0.15~1.0 MPa (22~145 psi) (1.5~10.0 bar) | |||||||
| Pressure (Single Acting) | 0.2~1.0 MPa (28~145 psi) (2.0~10.0 bar) | |||||||
| Proof Pressure | 1.5 MPa (215 psi) (15 bar) | |||||||
| Temperature °C | -20 ~ 70 | |||||||
| Speed (Double Acting) | 30 ~ 800 mm/s | |||||||
| Speed (Single Acting) | 50 ~ 800 mm/s | |||||||
| Stroke Tolerance | 0~150: +1.0/0 | >150: +1.5/0 | |||||||
| Cushion Type | MIC Series: Adjustable Cushion | Others: Rubber Bumper | |||||||
| Port Size [Note 1] | M5 x 0.8 | PT1/8 | PT1/4 | |||||
Note:
[1] PT thread and G thread are available options.
[1] PT thread and G thread are available options.
Stroke Specifications
| Model | Bore (mm) | Standard Stroke (mm) | Max. Stroke | Allowable Stroke |
|---|---|---|---|---|
| MI | 8 | 10 15 20 25 30 40 50 60 75 80 100 125 150 | 150 | 200 |
| 10 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | 200 | |
| 12 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 | 250 | 500 | |
| MI MIC |
16 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 600 |
| 20, 25 32, 40 |
10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 | |
| MID MIJ |
8 | 10 15 20 25 30 40 50 60 75 80 100 | 100 | - |
| 10 | 10 15 20 25 30 40 50 60 75 80 100 | 100 | - | |
| 12 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | - | |
| 16, 20 25 |
10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | - | |
| MICD MICJ |
32 40 |
10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | - |
| MSI MTI |
8, 10, 12 | 10 15 20 25 30 40 50 | - | - |
| 16 | 10 15 20 25 30 40 50 60 75 80 100 | - | - | |
| 20, 25 32, 40 |
10 15 20 25 30 40 50 60 75 80 100 125 150 | - | - |
Note: Please contact the company for other special strokes.

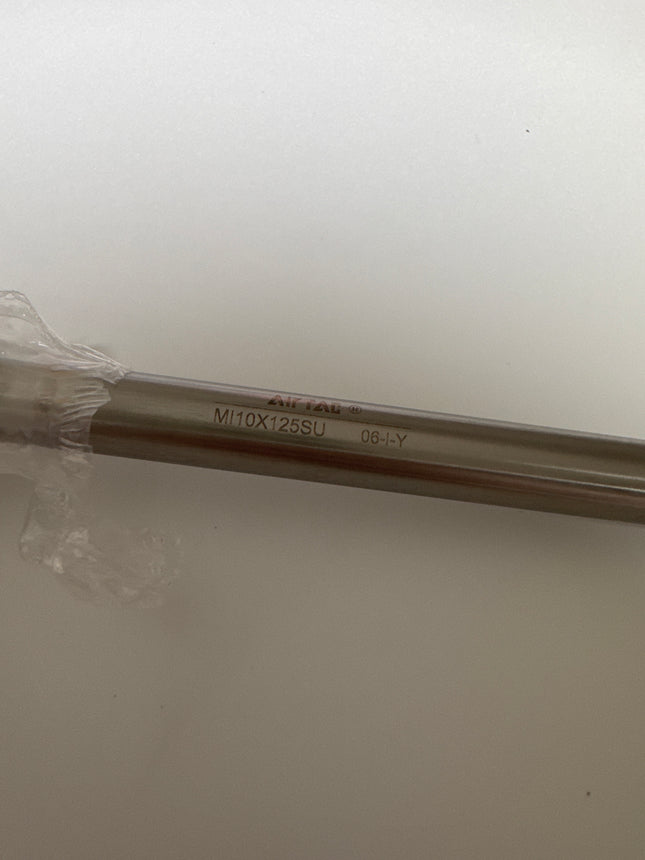

Product Ordering Code
Example: MIJ 10 x 40 - 30 S
| No. | Category | Description / Options |
|---|---|---|
| ① | Model Code |
MI: Mini Cylinder (Double Acting) MIC: Mini Cylinder (Double Acting Adj. Cushion) MSI: Mini Cylinder (Single Acting Push) MTI: Mini Cylinder (Single Acting Pull) MID: Mini Cylinder (Double Shaft Double Acting) MICD: Double Shaft Adj. Cushion MIJ: Double Shaft Adj. Stroke MICJ: Double Shaft Adj. Stroke Adj. Cushion |
| ② | Bore Size |
MI, MSI, MTI, MID, MIJ: 8, 10, 12, 16, 20, 25, 32, 40 MIC, MICD, MICJ: 16, 20, 25, 32, 40 |
| ③ | Stroke | Refer to Stroke table |
| ④ | Adj. Stroke |
Blank: None (Standard) 10, 20, 30, 40, 50, 75, 100: Adjustable Range (For MIJ/MICJ only) |
| ⑤ | Magnet Code |
Blank: No Magnet S: With Magnet |
| ⑥ | Back Cover |
See "Back Cover Availability" table below for details. (Only available for MI, MSI, MTI, MIC series) |
| ⑦ | Mounting [Note 2] |
Blank: No Accessory FA: Front Flange SDB: Rear Hinge (Pivot) LB: Axial Foot TC: Center Trunnion |
| ⑧ | Thread |
Blank: PT Thread G: G Thread |
Back Cover (Tail Type) Availability
| Model | Tail Type Description | Applicable Bore (mm) |
|---|---|---|
| MI, MSI, MTI | CA: Pivot Type | 8 ~ 25 |
| U: Flat Tail (Radial Inlet) | 8 ~ 40 | |
| R: Axial Inlet Type | 16 ~ 40 | |
| CM: Round Tail | 16 ~ 40 | |
| MIC | CA: Pivot Type | 16 ~ 25 |
| U: Flat Tail (Radial Inlet) | 16 ~ 40 | |
| CM: Round Tail | 16 ~ 40 | |
| Others | No Code (Blank) | |
Note 1: Single Acting Push: Air extends, Spring return. Single Acting Pull: Air retracts, Spring extend.
