Description

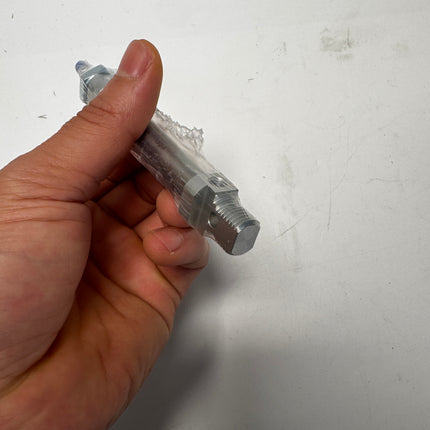

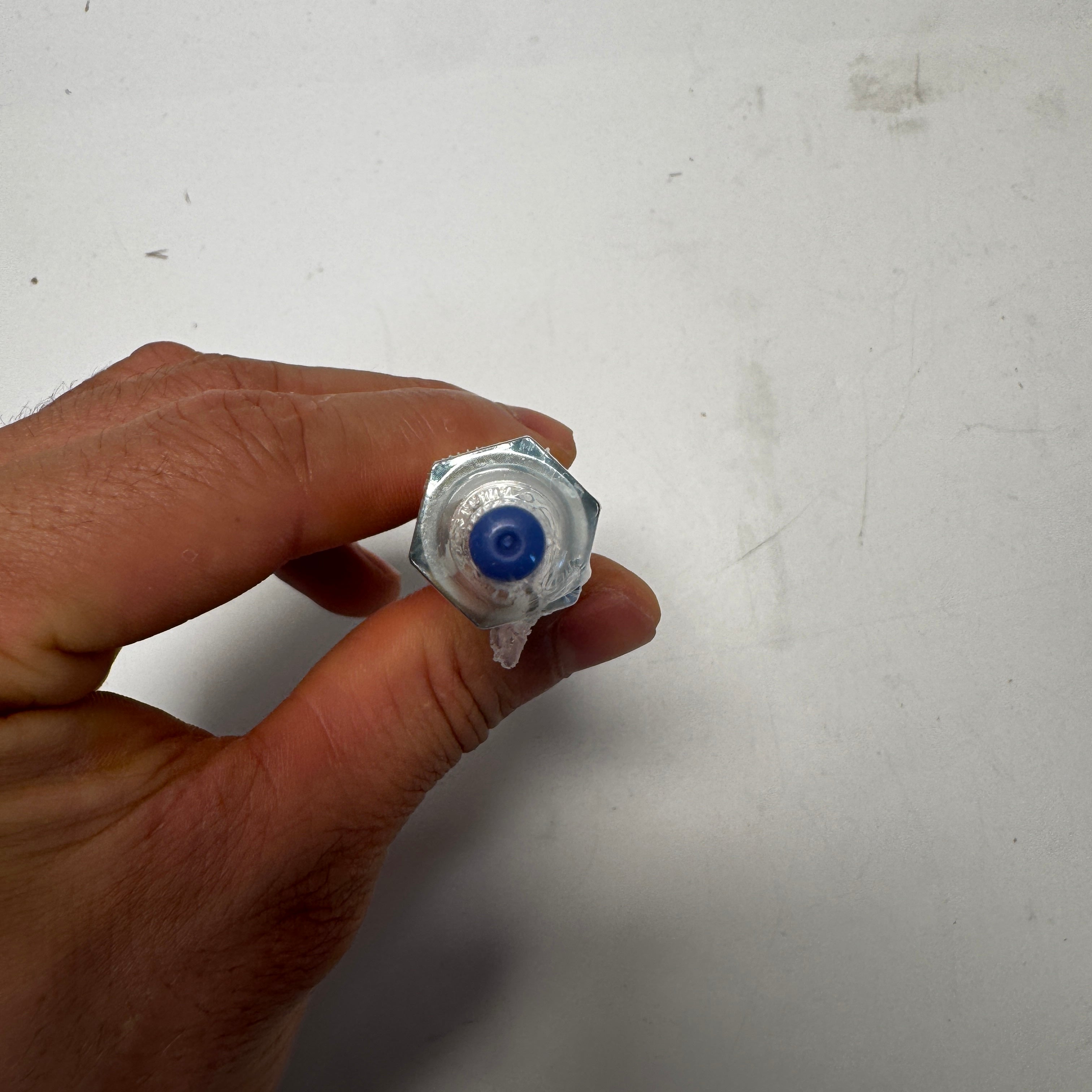

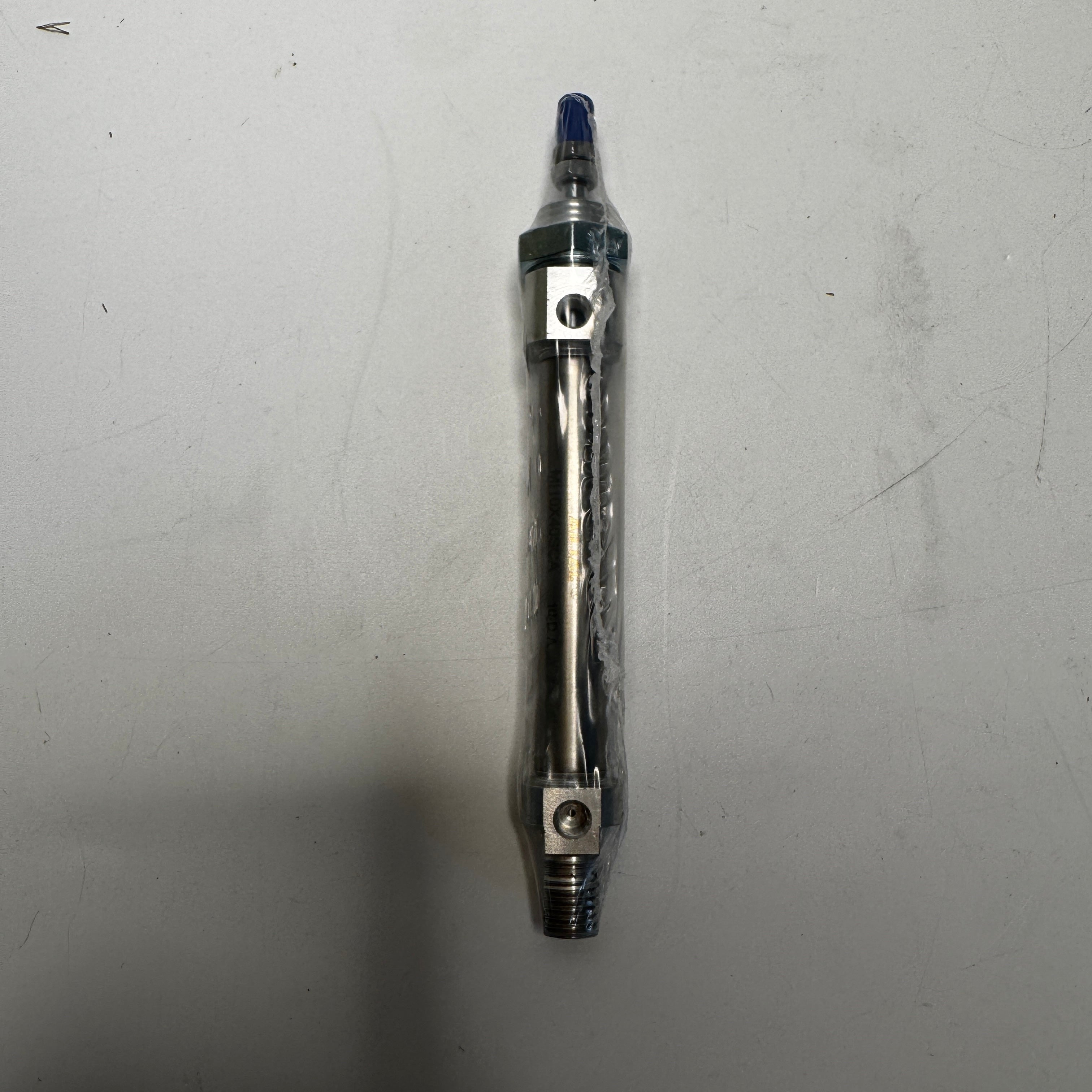

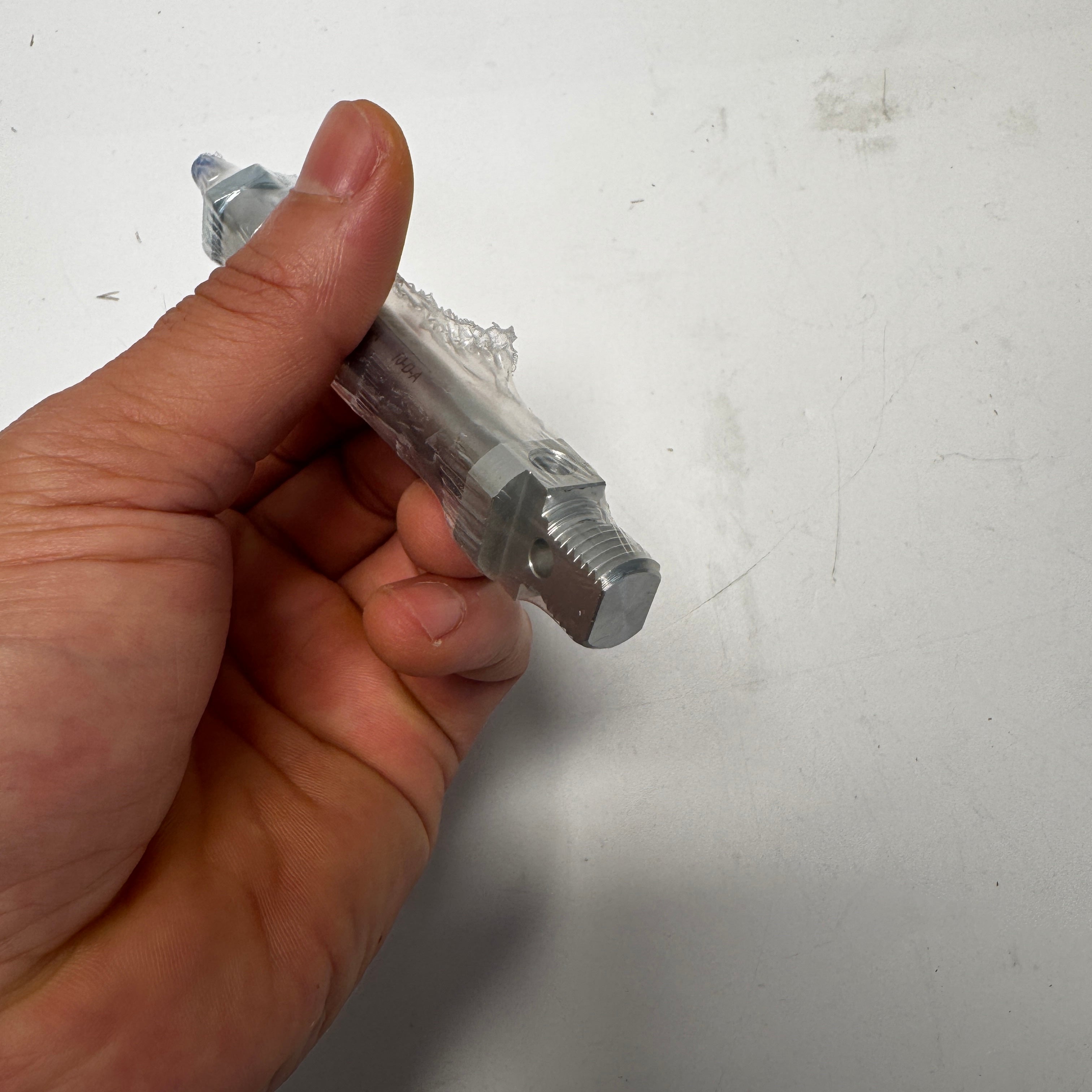

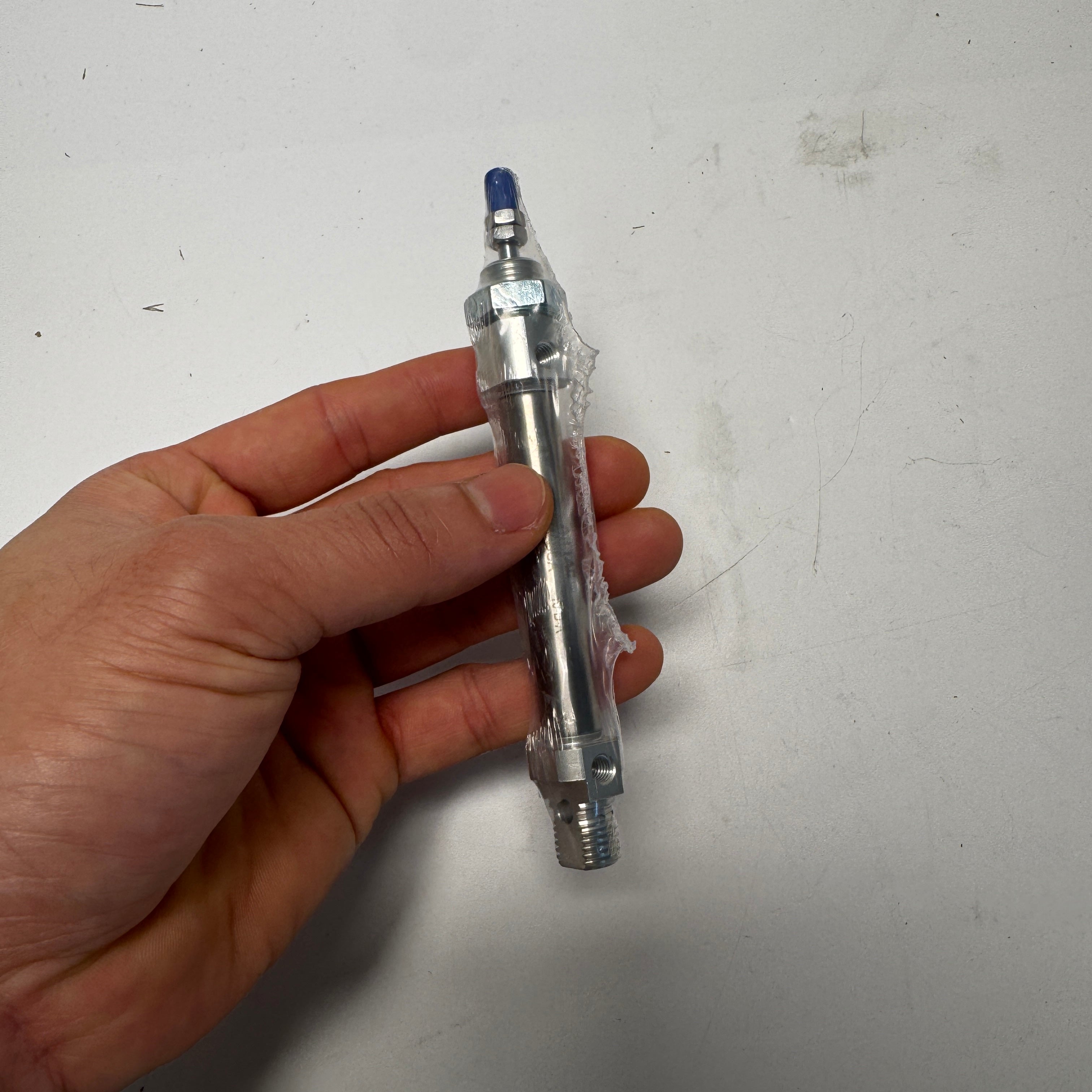

Specifications: Mini cylinder (compound type) Bore: 10mm Stroke: 40mm Magnet: with magnet Rear cover type: swing tail type Fixed type: no installation accessories Tooth type: M5X0.8
Specifications

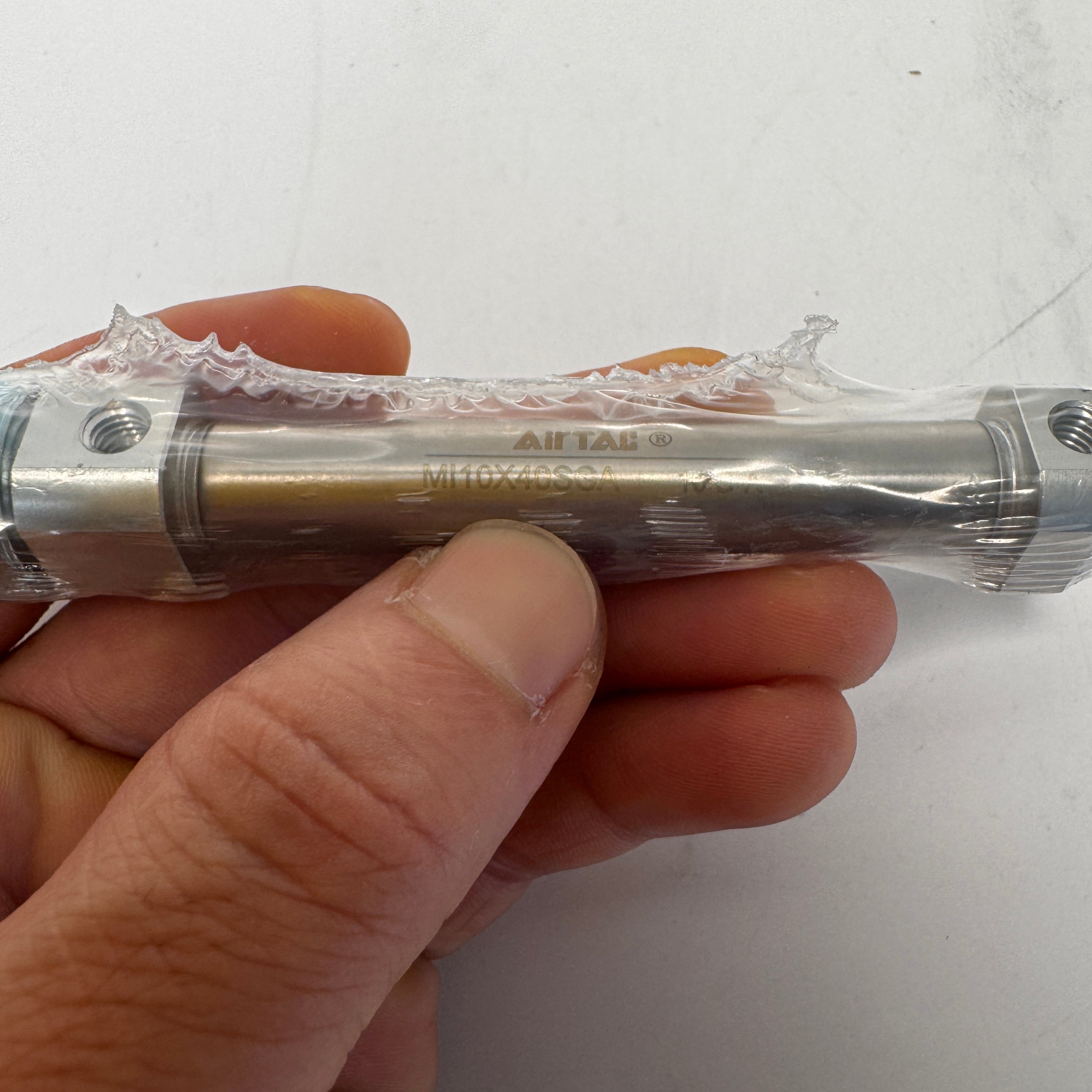

1. Model: MI10X40SCA
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5
5. Buffer type: anti-collision pad, nozzle caliber: M5X0.8
6. The sensor can be optional: DMSG,CMSG
Internal structure and main parts material: 1. Piston rod: SUS304/2. Hexagon nut: carbon steel/3. Front cover O Order: NBR/4. Hexagon nut: carbon steel/5. Bushing: wear-resistant material/6. Front cover: aluminum alloy/7. Cylinder: SUS304/8. Anti-collision pad: TPU/9. Piston/10. Piston O: NBR/11. Wear pad: wear resistant material/12. Hexagon nut: carbon steel/13. Rear cover: Aluminum alloy
Installation accessories :F-MI10LB Axial mounting F-MI8FA Flange connecting plate F-MI8SDB Rear Hinge Mount F-MI10TC Middle Trunnion Bracket ， Piston rod end joint :F-M4X070I I Connector F-M4X070Y Y connector F-M4X070F Floating joint F-M4X070U fisheye joint
Click to download Airtac product catalog
Product Features
1. Conform to ISO6432 standard (cylinder diameter 8mm-25mm).
2. The front and rear covers are equipped with fixed anti-collision pads to reduce the reversing impact of the cylinder.
3. A variety of rear cover forms, make the cylinder installation more convenient.
4. The front and rear covers and the stainless steel cylinder body adopt riveted roller package structure, and the connection is reliable.
5. Stainless steel piston rod and cylinder body, so that the cylinder can adapt to the general corrosive working environment.
6. Various specifications of the cylinder and cylinder mounting accessories are available.
