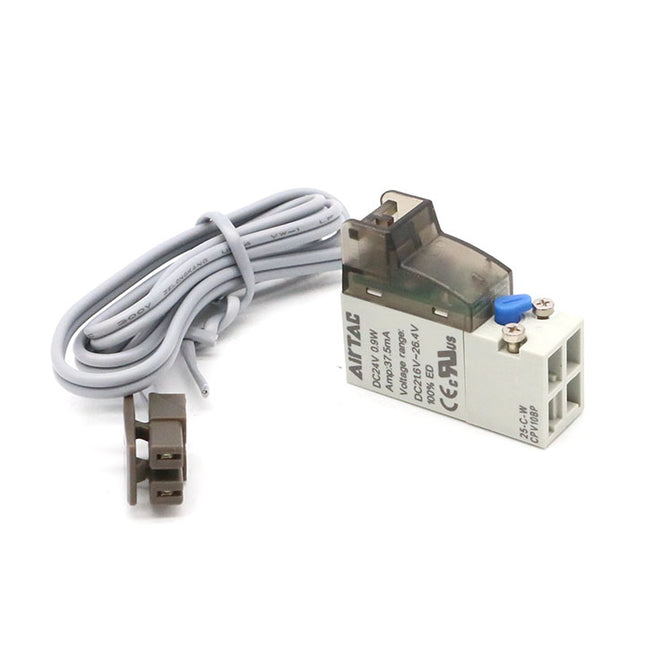

CPSV15 Series Micro Solenoid Valve
3/2 Way Direct Acting Solenoid Valve
Product Features
- High Efficiency: Engineered for extremely low power consumption while maintaining a high operating frequency, ideal for rapid-cycling automation.
- High Protection: Meets IP65 protection class standards, ensuring reliable operation even in dusty or lightly sprayed environments.
- Versatile Voltage: Designed to accommodate a wide variety of power systems with multiple voltage specifications available: DC24V, DC12V, AC220V, AC110V, and AC24V.
- Connection Options: Provides excellent installation flexibility. Plug-in, Out-lead (Wire lead), M8 Connector, and DIN Terminal connection types are available for selection to match any wiring setup.
Mechanical Specifications
| Model | CPSV15 |
|---|---|
| Fluid | Air (Filtered through 40μm element) |
| Acting Type | Direct Acting |
| Orifice Size | Φ 0.65 mm |
| Effective Area |
P → A: 0.32mm² (Cv=0.019) A → R: 0.43mm² (Cv=0.025) |
| Valve Type | 3 Port 2 Position (3/2 Way) |
| Operating Pressure Range | 0 ~ 0.8 MPa (0 ~ 114 psi) |
| Proof Pressure | 1.2 MPa (175 psi) |
| Temperature Range | -10 ~ 50°C |
| Response Time | On < 10ms ; Off < 10ms |
| Weight (Varies by electrical entry) |
Plug-in: 22g | Out-lead: 27g M8 Connector: 31g | DIN Terminal: 36g |
Electrical Specifications
| Standard Voltage |
AC: 220V, 110V, 24V DC: 24V, 12V |
|---|---|
| Voltage Tolerance |
DC: ±10% AC: +15% ~ -10% |
| Power Consumption |
DC: 1.2 W AC: 2.0 VA |
| Protection Class | IP65 |
| Heat Insulation Class | F Class |
| Electrical Entry Options | Plug-in, Out-lead (Wire), M8 Connector, DIN Terminal |
Product Ordering Code
Example: CPSV I 15 B - 050
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code | CPSV: Micro Solenoid Valve |
| 2 | Connection Type |
Blank: Plug-in Type I: Out-lead Type (Wire) D: DIN Terminal M: M8 Connector |
| 3 | Series | 15: 15 Series |
| 4 | Standard Voltage |
A: AC 220V | C: AC 110V | E: AC 24V B: DC 24V | F: DC 12V |
| 5 | Wire Length |
050: 0.5m (Standard) 200: 2.0m |
Notes:
1. The standard wire length for Out-lead (I) and M8 connector (M) types is 0.5m.
2. Each valve includes two M2.5 cross-head mounting screws.
