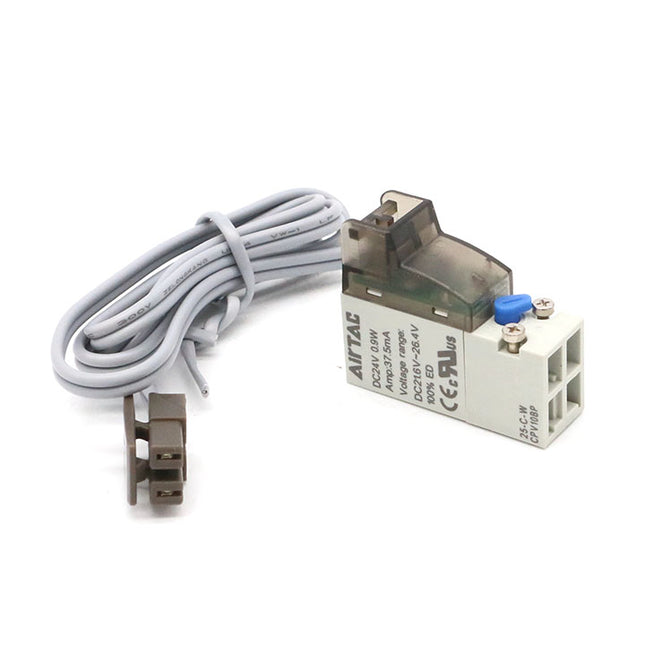

CPSV15 Series Micro Solenoid Valve (3/2 Way)
Product Features
- High Efficiency: Low power consumption and high operating frequency.
- High Protection: IP Protection Class: IP65.
- Versatile Voltage: Multiple voltage specifications available: DC24V, DC12V, AC220V, AC110V, AC24V.
- Connection Options: Plug-in, Out-lead (Wire lead), M8 Connector, and DIN Terminal types are available for selection.
Mechanical Specifications
| Model | CPSV15 |
|---|---|
| Fluid | Air (Filtered 40μm) |
| Acting Type | Direct Acting |
| Orifice Size | Φ 0.65 mm |
| Effective Area |
P→A: 0.32mm² (Cv=0.019) A→R: 0.43mm² (Cv=0.025) |
| Valve Type | 3 Port 2 Position (3/2 Way) |
| Operating Pressure | 0 ~ 0.8 MPa (0 ~ 114 psi) |
| Proof Pressure | 1.2 MPa (175 psi) |
| Temperature | -10 ~ 50°C |
| Response Time | On < 10ms; Off < 10ms |
| Weight |
Plug-in: 22g | Out-lead: 27g M8 Connector: 31g | DIN: 36g |
Electrical Specifications
| Item | Parameters |
|---|---|
| Standard Voltage |
AC: 220V, 110V, 24V DC: 24V, 12V |
| Voltage Tolerance |
DC: ±10% AC: +15% ~ -10% |
| Power Consumption |
DC: 1.2 W AC: 2.0 VA |
| Protection Class | IP65 |
| Heat Insulation Class | F Class |
| Electrical Entry | Plug-in, Out-lead (Wire), M8 Connector, DIN Terminal |
Product Ordering Code
Example: CPSV 15 B - 050
Ordering Key
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code | CPSV: CPSV Series Micro Solenoid Valve |
| 2 | Connection Type |
Blank: Plug-in Type (插接式) I: Out-lead Type (出线式) D: DIN Terminal (DIN插座式) M: M8 Connector (M8出线式) |
| 3 | Series | 15: 15 Series |
| 4 | Standard Voltage |
B: DC 24V F: DC 12V A: AC 220V C: AC 110V E: AC 24V |
| 5 | Wire Length |
050: 0.5m (Standard) 200: 2.0m |
Note:
1. Standard wire length for Out-lead and M8 connector types is 0.5m.
2. Includes two M2.5 cross-head screws.
