Valve Product Information

Valve

Product Features
Specifications
Product Ordering Code

Product Features

Direct-acting two-position, two-way solenoid valve with sensitive and fast direction change.
Compact, small, lightweight, and easy to assemble and disassemble.
The valve body is made of brass; the coil has a heat resistance classification of Grade B. The standard seal material is VITON, which is suitable for various working media.
The valve body is made of brass; the coil has a heat resistance classification of Grade B. The seal material is NBR, featuring low cost and a wide application range. The maximum operating pressure is 0.05MPa.

Specifications

Model	2V025-06	2V025-08	2V130-10	2V130-15	2V250-20	2V250-25
Working Medium	Air, Water, Oil
Action Type	Direct Acting		Pilot Operated
Initial State	Normally Closed
Orifice Diameter (Φmm)	2.5	2.5	13.0	13.0	25.0	25.0
Cv Value	0.23	0.25	6.20	6.20	13.00	13.00
Port Size [Note 1]	PT1/8	PT1/4	PT3/8	PT1/2	PT3/4	PT1
Operating Fluid Viscosity	20CST or less
Operating Pressure Range	0–1.0MPa (0–145psi)		0.05–1.0MPa (7–145psi)
Proof Pressure	1.5MPa (215psi)
Body Material	Brass (Surface Pickling)		Brass
Seal Material	VITON		NBR
Break Time	0.05s or less

Note 1: G and NPT thread types are available.

Product Ordering Code

Position	Description	Options & Values
1	Model Code	2V: 2/2 Way Solenoid Valve
2	Nominal Diameter	025: Φ2.5mm 130: Φ13mm 250: Φ25mm
3	Port Size	06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1"
4	Coil Voltage	A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V
5	Connection Type	Blank: DIN connector type I: Lead wire type [Note 1]
6	Thread Code	Blank: PT thread G: G thread T: NPT thread

Note 1: The standard length for the lead wire type is 0.5m.

Show previous products

View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015AT

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: NPT tooth Specifications 1. Model: 2V13015AT 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015BG

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: G tooth Specifications 1. Model: 2V13015BG 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015BI

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: outlet type Tooth type: PT tooth Specifications 1. Model: 2V13015BI 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015BIG

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: outlet type Tooth type: G tooth Specifications 1. Model: 2V13015BIG 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015BIT

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: outlet type Tooth type: NPT tooth Specifications 1. Model: 2V13015BIT 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

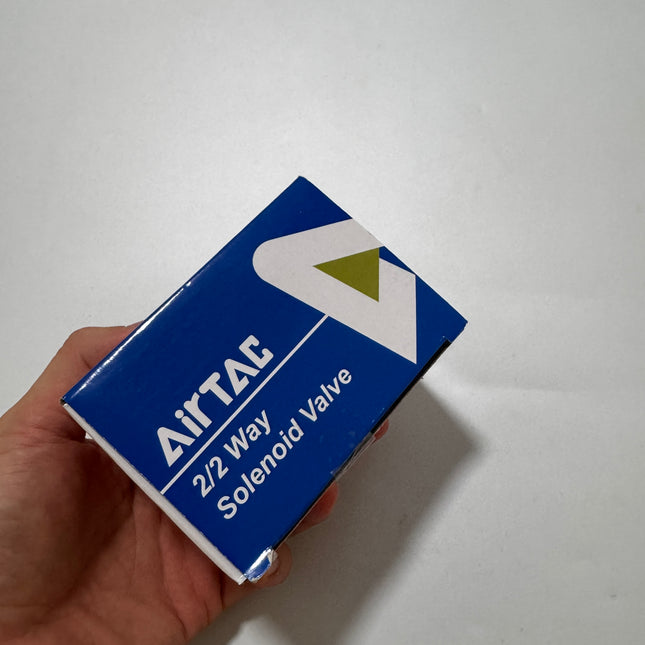

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015BT

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: NPT tooth Specifications 1. Model: 2V13015BT 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015CG

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: G tooth Specifications 1. Model: 2V13015CG 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015CI

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: PT tooth Specifications 1. Model: 2V13015CI 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015CIT

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: NPT tooth Specifications 1. Model: 2V13015CIT 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015CT

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: NPT tooth Specifications 1. Model: 2V13015CT 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015E

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: PT tooth Specifications 1. Model: 2V13015E 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015EI

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: PT tooth Specifications 1. Model: 2V13015EI 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015EIG

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: G tooth Specifications 1. Model: 2V13015EIG 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015FG

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: G tooth Specifications 1. Model: 2V13015FG 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015FI

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: PT tooth Specifications 1. Model: 2V13015FI 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015FIT

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: NPT tooth Specifications 1. Model: 2V13015FIT 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V130-15: 2 Way Solenoid Valve - 2V13015FT

Specifications: 2 port two position solenoid valve Nominal diameter: ø13mm Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Specifications 1. Model: 2V13015FT 2. Working medium: air, water, oil, actuation mode: internal pilot type, initial state: normally closed type 3. Flow hole diameter (ømm):13.0,Cv value: 6.20, nozzle diameter: PT1/2, fluid viscosity: below 20CST 4. Use pressure range: 0.05~1.0MPa(7 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: brass, seal material: NBR, excitation time: 0.05 seconds 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V130 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$78.03

View options
View options

Airtac 2V250-20: 2 Way Solenoid Valve - 2V25020A

Specifications: 2 port two position solenoid valve Nominal diameter: ø25mm Nozzle caliber: 3/4" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: PT tooth Specifications 1. Model: 2V25020A 2. Working medium: air, water, oil, actuation mode: direct-acting, initial state: normally closed type 3. Circulation aperture (ømm):25.0,Cv value: 13.00, nozzle diameter: PT3/4, fluid viscosity: below 20CST 4. Use pressure range: 0~0.1MPa(0 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: copper (surface nickel plating treatment), seal material: VITON, excitation time: 0.05 seconds or less 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V250 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$121.50

View options
View options

Airtac 2V250-20: 2 Way Solenoid Valve - 2V25020AG

Specifications: 2 port two position solenoid valve Nominal diameter: ø25mm Nozzle caliber: 3/4" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: G tooth Specifications 1. Model: 2V25020AG 2. Working medium: air, water, oil, actuation mode: direct-acting, initial state: normally closed type 3. Circulation aperture (ømm):25.0,Cv value: 13.00, nozzle diameter: PT3/4, fluid viscosity: below 20CST 4. Use pressure range: 0~0.1MPa(0 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: copper (surface nickel plating treatment), seal material: VITON, excitation time: 0.05 seconds or less 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V250 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$121.50

View options
View options

Airtac 2V250-20: 2 Way Solenoid Valve - 2V25020AI

Specifications: 2 port two position solenoid valve Nominal diameter: ø25mm Nozzle caliber: 3/4" Coil voltage: AC220V Power connection mode: outlet type Tooth type: PT tooth Specifications 1. Model: 2V25020AI 2. Working medium: air, water, oil, actuation mode: direct-acting, initial state: normally closed type 3. Circulation aperture (ømm):25.0,Cv value: 13.00, nozzle diameter: PT3/4, fluid viscosity: below 20CST 4. Use pressure range: 0~0.1MPa(0 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: copper (surface nickel plating treatment), seal material: VITON, excitation time: 0.05 seconds or less 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V250 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$121.50

View options
View options

Airtac 2V250-20: 2 Way Solenoid Valve - 2V25020AIG

Specifications: 2 port two position solenoid valve Nominal diameter: ø25mm Nozzle caliber: 3/4" Coil voltage: AC220V Power connection mode: outlet type Tooth type: G tooth Specifications 1. Model: 2V25020AIG 2. Working medium: air, water, oil, actuation mode: direct-acting, initial state: normally closed type 3. Circulation aperture (ømm):25.0,Cv value: 13.00, nozzle diameter: PT3/4, fluid viscosity: below 20CST 4. Use pressure range: 0~0.1MPa(0 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: copper (surface nickel plating treatment), seal material: VITON, excitation time: 0.05 seconds or less 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V250 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$121.50

View options
View options

Airtac 2V250-20: 2 Way Solenoid Valve - 2V25020AIT

Specifications: 2 port two position solenoid valve Nominal diameter: ø25mm Nozzle caliber: 3/4" Coil voltage: AC220V Power connection mode: outlet type Tooth type: NPT tooth Specifications 1. Model: 2V25020AIT 2. Working medium: air, water, oil, actuation mode: direct-acting, initial state: normally closed type 3. Circulation aperture (ømm):25.0,Cv value: 13.00, nozzle diameter: PT3/4, fluid viscosity: below 20CST 4. Use pressure range: 0~0.1MPa(0 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: copper (surface nickel plating treatment), seal material: VITON, excitation time: 0.05 seconds or less 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V250 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$121.50

View options
View options

Airtac 2V250-20: 2 Way Solenoid Valve - 2V25020AT

Specifications: 2 port two position solenoid valve Nominal diameter: ø25mm Nozzle caliber: 3/4" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: NPT tooth Specifications 1. Model: 2V25020AT 2. Working medium: air, water, oil, actuation mode: direct-acting, initial state: normally closed type 3. Circulation aperture (ømm):25.0,Cv value: 13.00, nozzle diameter: PT3/4, fluid viscosity: below 20CST 4. Use pressure range: 0~0.1MPa(0 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: copper (surface nickel plating treatment), seal material: VITON, excitation time: 0.05 seconds or less 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V250 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$121.50

View options
View options

Airtac 2V250-20: 2 Way Solenoid Valve - 2V25020B

Specifications: 2 port two position solenoid valve Nominal diameter: ø25mm Nozzle caliber: 3/4" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: PT tooth Specifications 1. Model: 2V25020B 2. Working medium: air, water, oil, actuation mode: direct-acting, initial state: normally closed type 3. Circulation aperture (ømm):25.0,Cv value: 13.00, nozzle diameter: PT3/4, fluid viscosity: below 20CST 4. Use pressure range: 0~0.1MPa(0 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi) 5. Body material: copper (surface nickel plating treatment), seal material: VITON, excitation time: 0.05 seconds or less 6. Take over the tooth type G teeth, NPT teeth optional Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology solenoid valve diaphragm :2V250 Diaphragm Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction. 2. Small and compact structure. 3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media. The Airtac 2V series valves are a functional replacement for the SMC VXP series.

Read more less

$121.50

View options
