Description
Specifications: 2 port two position solenoid valve Nominal diameter: ø25mm Nozzle caliber: 3/4" Coil voltage: AC220V Power connection mode: outlet type Tooth type: PT tooth
Specifications
1. Model: 2V25020AI
2. Working medium: air, water, oil, actuation mode: direct-acting, initial state: normally closed type
3. Circulation aperture (ømm):25.0,Cv value: 13.00, nozzle diameter: PT3/4, fluid viscosity: below 20CST
4. Use pressure range: 0~0.1MPa(0 ~ 145psi), guaranteed pressure resistance: 1.5MPa(215psi)
5. Body material: copper (surface nickel plating treatment), seal material: VITON, excitation time: 0.05 seconds or less
6. Take over the tooth type G teeth, NPT teeth optional
Internal structure: 1. terminal/2. Terminal gasket/3. retaining nut/4. Coil/5. Movable iron combination/6. Body cover plate/7. Diaphragm combination/8. Ontology
solenoid valve diaphragm :2V250 Diaphragm
Click to download Airtac product catalog
Product Features

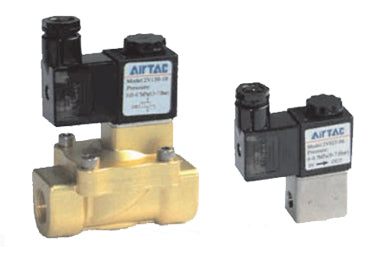

1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction.
2. Small and compact structure.
3. The valve body is made of heat-resistant brass, and the coil conforms to Class B classification. Seals with fluorine rubber (VITON), suitable for a variety of working media.
The Airtac 2V series valves are a functional replacement for the SMC VXP series.
