Valve Product Information

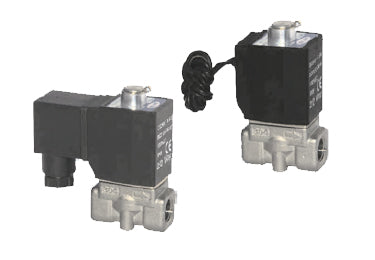

Valve

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

  • Direct-acting, normally open type with zero pressure start, agile and fast.
  • Wide operating pressure range, available in standard (X) and high-pressure (H) models.
  • The valve body is made of SUS304 stainless steel, featuring a small size, light weight, and easy installation.
  • The standard seal material is FPM-F (Viton), suitable for a variety of working media such as air, water, and oil.
  • The coil protection class is IP65, with electrical connection options of direct lead wire or DIN connector.

Specifications

Model No. Port Size [Note 1] Orifice Dia. (mm) Cv Value Effective Area (mm²) Weight (g) [Note 2] Max. Operating Pressure Max. Proof Pressure
MPa psi MPa psi
2KSX030 -06 PT1/8 1.5 0.10 1.8 305 2.0 300 3.0 450
-08 PT1/4 295
2KSH030 -06 PT1/8 2.0 0.18 3.0 305 1.5 220
-08 PT1/4 295
2KS030 -06 PT1/8 3.0 0.33 6.0 305 0.7 100
-08 PT1/4 295
2KSL030 -06 PT1/8 4.0 0.55 10.0 305 0.4 60
-08 PT1/4 295
2KSX050 -10 PT3/8 3.0 0.34 6.1 610 2.0 300
-15 PT1/2 600
2KSH050 -10 PT3/8 4.0 0.55 10.0 610 1.5 220
-15 PT1/2 600
2KS050 -10 PT3/8 5.0 0.83 15.0 610 0.7 100
-15 PT1/2 600
2KSL050 -10 PT3/8 7.0 1.40 25.0 610 0.4 60
-15 PT1/2 600
Note 1: G, NPT threads are available.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2KS030 series is 10g lighter, and for the 2KS050 series, it is 20g lighter.

Product Ordering Code

Position Description Options & Values
1 Model Code
  • 2KS: 2/2 Way Direct Acting Normally Open Solenoid Valve
2 Pressure Type
  • X: Standard Pressure
  • H: High Pressure
  • L: Large Flow
3 Series Code
  • 030: 030 Series
  • 050: 050 Series
4 Port Size
  • 06: 1/8"
  • 08: 1/4"
  • 10: 3/8"
  • 15: 1/2"
5 Coil Voltage
  • A: AC220V
  • B: AC110V
  • C: AC24V
  • D: DC24V
  • F: DC12V
6 Connection Type
  • Blank: DIN connector type
  • I: Lead wire type [Note 1]
7 Thread Code
  • Blank: PT thread
  • G: G thread
  • T: NPT thread
Note 1: The standard length for the lead wire type is 0.5m.
  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BI

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BI



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC24V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BIG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BIG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC24V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BIT

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BIT



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC24V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BT

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050BT



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050C

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050C



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CI

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CI



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CIG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CIG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CIT

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CIT



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CT

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050CT



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050E

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050E



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050EG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050EG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050EI

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050EI



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050EIG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050EIG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050EIT

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050EIT



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050ET

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050ET



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050F

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050F



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FI

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FI



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FIG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FIG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FIT

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FIT



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FT

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050FT



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS030-06: 2 Way Solenoid Valve - 2KS03006A Airtac 2KS030-06: 2 Way Solenoid Valve - 2KS03006A

    Airtac 2KS030-06: 2 Way Solenoid Valve - 2KS03006A



    Specifications: 2 port two-position normally open solenoid valve Pressure conditions: Standard Series: 030 series Nozzle caliber: 1/8" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. The valve body material is SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KS valve series is a functional alternative to the SMC VX2 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $54.95
