665 products

Valve Product Information

Valve

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

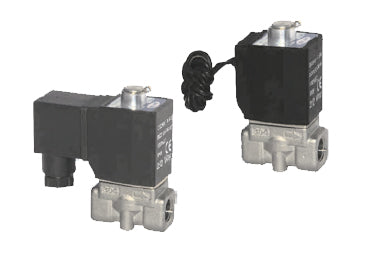

  • Direct-acting, normally open type with zero pressure start, agile and fast.
  • Wide operating pressure range, available in standard (X) and high-pressure (H) models.
  • The valve body is made of SUS304 stainless steel, featuring a small size, light weight, and easy installation.
  • The standard seal material is FPM-F (Viton), suitable for a variety of working media such as air, water, and oil.
  • The coil protection class is IP65, with electrical connection options of direct lead wire or DIN connector.

Specifications

Model No. Port Size [Note 1] Orifice Dia. (mm) Cv Value Effective Area (mm²) Weight (g) [Note 2] Max. Operating Pressure Max. Proof Pressure
MPa psi MPa psi
2KSX030 -06 PT1/8 1.5 0.10 1.8 305 2.0 300 3.0 450
-08 PT1/4 295
2KSH030 -06 PT1/8 2.0 0.18 3.0 305 1.5 220
-08 PT1/4 295
2KS030 -06 PT1/8 3.0 0.33 6.0 305 0.7 100
-08 PT1/4 295
2KSL030 -06 PT1/8 4.0 0.55 10.0 305 0.4 60
-08 PT1/4 295
2KSX050 -10 PT3/8 3.0 0.34 6.1 610 2.0 300
-15 PT1/2 600
2KSH050 -10 PT3/8 4.0 0.55 10.0 610 1.5 220
-15 PT1/2 600
2KS050 -10 PT3/8 5.0 0.83 15.0 610 0.7 100
-15 PT1/2 600
2KSL050 -10 PT3/8 7.0 1.40 25.0 610 0.4 60
-15 PT1/2 600
Note 1: G, NPT threads are available.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2KS030 series is 10g lighter, and for the 2KS050 series, it is 20g lighter.

Product Ordering Code

Position Description Options & Values
1 Model Code
  • 2KS: 2/2 Way Direct Acting Normally Open Solenoid Valve
2 Pressure Type
  • X: Standard Pressure
  • H: High Pressure
  • L: Large Flow
3 Series Code
  • 030: 030 Series
  • 050: 050 Series
4 Port Size
  • 06: 1/8"
  • 08: 1/4"
  • 10: 3/8"
  • 15: 1/2"
5 Coil Voltage
  • A: AC220V
  • B: AC110V
  • C: AC24V
  • D: DC24V
  • F: DC12V
6 Connection Type
  • Blank: DIN connector type
  • I: Lead wire type [Note 1]
7 Thread Code
  • Blank: PT thread
  • G: G thread
  • T: NPT thread
Note 1: The standard length for the lead wire type is 0.5m.
  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CG

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CG



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $382.32

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CI

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CI



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $383.54

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CIG

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CIG



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $383.54

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CIT

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CIT



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $383.54

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CT

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040CT



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $382.32

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040E

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040E



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $382.32

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040EG

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040EG



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $382.32

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040EI

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040EI



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $383.54

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040EIG

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040EIG



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $383.54

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040EIT

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040EIT



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $383.54

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040ET

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040ET



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $382.32

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040F

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040F



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $382.32

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FG

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FG



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $382.32

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FI

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FI



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $383.54

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FIG

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FIG



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $383.54

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FIT

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FIT



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $383.54

  • Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FT

    Airtac 2KS400-40: 2 Way Solenoid Valve - 2KS40040FT



    Specifications: 2 port two pilot normally open solenoid valve Nominal drift diameter: ø40mm Nozzle caliber: 1 1/2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $382.32

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050A

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050A



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AI

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AI



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC220V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AIG

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AIG



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC220V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AIT

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AIT



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC220V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $496.40

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AT

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050AT



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18

  • Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050B

    Airtac 2KS500-50: 2 Way Solenoid Valve - 2KS50050B



    Specifications: 2 port two pilot normally open solenoid valve Nominal diameter: ø50mm Nozzle caliber: 2" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally open two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. The valve body is made of SUS304, the coil heat resistance grade is B, and the standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2KS150-500 valve series is a functional alternative to the SMC VXD21-23 series. The Airtac 2KS series has been updated to the Airtac 2KSA series.



    $495.18
