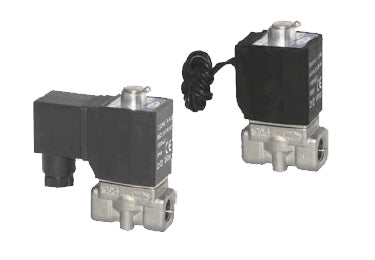

Valve Product Information

Valve

Product Features
Specifications
Product Ordering Code

Product Features

Direct-acting, normally open type with zero pressure start, agile and fast.
Wide operating pressure range, available in standard (X) and high-pressure (H) models.
The valve body is made of SUS304 stainless steel, featuring a small size, light weight, and easy installation.
The standard seal material is FPM-F (Viton), suitable for a variety of working media such as air, water, and oil.
The coil protection class is IP65, with electrical connection options of direct lead wire or DIN connector.

Specifications

Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	Max. Operating Pressure		Max. Proof Pressure
Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	MPa	psi	MPa	psi
2KSX030	-06 PT1/8	1.5	0.10	1.8	305	2.0	300	3.0	450
2KSX030	-08 PT1/4	1.5	0.10	1.8	295	2.0	300
2KSH030	-06 PT1/8	2.0	0.18	3.0	305	1.5	220
2KSH030	-08 PT1/4	2.0	0.18	3.0	295	1.5	220
2KS030	-06 PT1/8	3.0	0.33	6.0	305	0.7	100
2KS030	-08 PT1/4	3.0	0.33	6.0	295	0.7	100
2KSL030	-06 PT1/8	4.0	0.55	10.0	305	0.4	60
2KSL030	-08 PT1/4	4.0	0.55	10.0	295	0.4	60
2KSX050	-10 PT3/8	3.0	0.34	6.1	610	2.0	300
2KSX050	-15 PT1/2	3.0	0.34	6.1	600	2.0	300
2KSH050	-10 PT3/8	4.0	0.55	10.0	610	1.5	220
2KSH050	-15 PT1/2	4.0	0.55	10.0	600	1.5	220
2KS050	-10 PT3/8	5.0	0.83	15.0	610	0.7	100
2KS050	-15 PT1/2	5.0	0.83	15.0	600	0.7	100
2KSL050	-10 PT3/8	7.0	1.40	25.0	610	0.4	60
2KSL050	-15 PT1/2	7.0	1.40	25.0	600	0.4	60

Note 1: G, NPT threads are available.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2KS030 series is 10g lighter, and for the 2KS050 series, it is 20g lighter.

Product Ordering Code

Position	Description	Options & Values
1	Model Code	2KS: 2/2 Way Direct Acting Normally Open Solenoid Valve
2	Pressure Type	X: Standard Pressure H: High Pressure L: Large Flow
3	Series Code	030: 030 Series 050: 050 Series
4	Port Size	06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2"
5	Coil Voltage	A: AC220V B: AC110V C: AC24V D: DC24V F: DC12V
6	Connection Type	Blank: DIN connector type I: Lead wire type [Note 1]
7	Thread Code	Blank: PT thread G: G thread T: NPT thread

Note 1: The standard length for the lead wire type is 0.5m.
