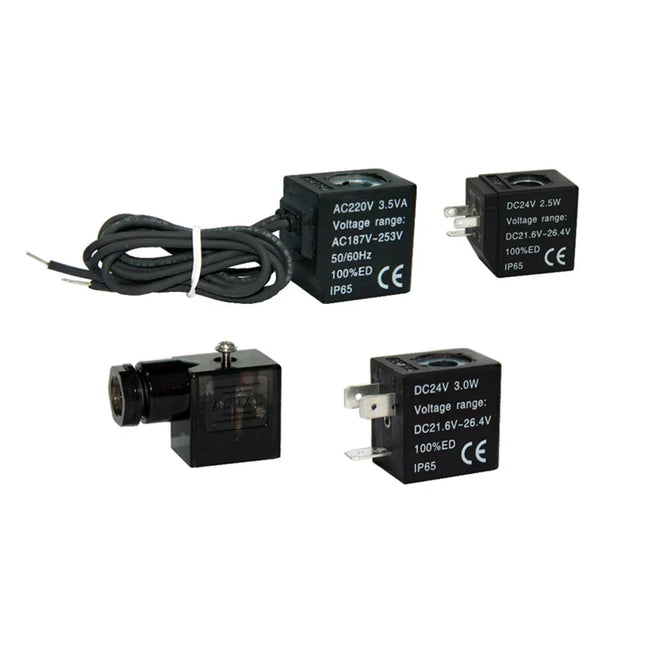

AIRTAC 080 & 092 Series Solenoid Coils
Wiring Notice
For DC coils with terminals, please note the polarity of the indicator light when wiring. Connect "1" to the positive pole and "2" to the negative pole. If connected incorrectly, the indicator light will not illuminate, but the coil will still operate.
Wiring Diagram Illustration (DC Coil with Terminal):
Wiring Diagram Illustration (DC Coil with Terminal):
- Terminal Pin "1" to Positive (+)
- Terminal Pin "2" to Negative (-)
Product Ordering Code
Example Code: CD A080 A
| 1. Coil Category | 2. Coil Inner Diameter | 3. Standard Voltage |
|---|---|---|
| CD: DIN Socket Type Coil | A080: Coil Spec (Φ8.0mm) | A: AC220V |
| CL: Lead Wire Type Coil | A092: Coil Spec (Φ9.0mm) | B: DC24V |
| C: AC110V | ||
| E: AC24V | ||
| F: DC12V |
080 Series Technical Specifications (Φ8.0mm)
| Product Series | Coil Model | Electrical Type | Coil Internal Wiring Diagram | Terminal Model | Terminal Internal Wiring Diagram | Note |
|---|---|---|---|---|---|---|
| 3V100 Series, 4V100 Series, 4M100 Series | CDA080 Terminal Type | AC | - | PL1515T-P1/P2 | - | Applicable to CDA080 AC/DC Coils |
| CDA080 Terminal Type | DC | - | PL1515T-P3 | - | ||
| CLA080 Lead Wire Type | AC | - | — | — | — | |
| CLA080 Lead Wire Type | DC | - | — | — | — |
092 Series Technical Specifications (Φ9.0mm)
| Product Series | Coil Model | Electrical Type | Coil Internal Wiring Diagram | Terminal Model | Terminal Internal Wiring Diagram | Note |
|---|---|---|---|---|---|---|
| 3V1/200/300 Series, 4V200-400 Series, 4M200-300 Series, ESV Series, 6V Series | CDA092 Terminal Type | AC | - | 4V210-005-P1/P2 | - | Applicable to CDA092 AC/DC Coils |
| CDA092 Terminal Type | DC | - | 4V210-005-P3 | - | ||
| CLA092 Lead Wire Type | AC | - | — | — | — | |
| CLA092 Lead Wire Type | DC | - | — | — | — |
