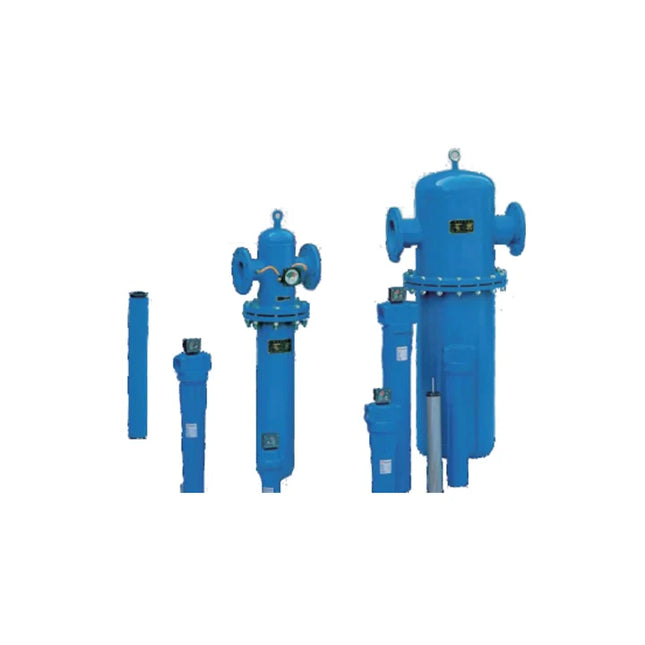

XF Series Main Line Filter

High Flow Capacity | Premium Air Purification
  • Product Features
  • Specifications & Grades
  • Ordering Code

Product Features

  • High Flow Efficiency: Engineered with a large internal flow passage design that significantly minimizes pressure drop, saving energy costs.
  • Durable Construction: Housings are constructed from high-quality die-cast aluminum alloy (smaller models) or robust carbon steel (larger flange models).
  • Corrosion Resistance: The exterior and interior surfaces are treated with a specialized epoxy resin powder coating for enhanced durability and resistance against harsh industrial environments.
  • Monitoring & Maintenance: Can be equipped with a differential pressure indicator to accurately determine the optimal time for filter element replacement. A liquid level indicator allows easy observation to prevent downstream water contamination.
  • Reliable Drainage: Comes standard with a highly reliable internal automatic drainage device, with optional external auto or electronic drains available.

Technical Specifications

1. Model & Flow Capacity Data

Filter Model Nominal Flow (Nm³/min) Port Size Element Model Element Qty Housing Construction
XF [ ] - 16 1.0 1/2" E [ ] - 16 1 Integrated Aluminum Alloy
XF [ ] - 20 1.72 1" E [ ] - 20 1
XF [ ] - 24 2.9 1-1/2" E [ ] - 24 1
XF [ ] - 28 4.9 1-1/2" E [ ] - 28 1
XF [ ] - 32 7.2 1-1/2" E [ ] - 32 1
XF [ ] - 36 10.7 1-1/2" E [ ] - 36 1
XF [ ] - 40 14.0 2" E [ ] - 40 1 Aluminum Alloy Head, Q235 Steel Tube
XF [ ] - 44 17.7 DN65 E [ ] - 44 1 Flange Type (Steel Body)
XF [ ] - 48 22.0 DN80 E [ ] - 48 1
XF [ ] - 56 36.0 DN100 E [ ] - 44 2
XF [ ] - 60 54.0 DN100 E [ ] - 44 3
XF [ ] - 64 72.0 DN100 E [ ] - 44 4
XF [ ] - 68 90.0 DN125 E [ ] - 44 5
XF [ ] - 70 108.0 DN125 E [ ] - 44 6
XF [ ] - 72 126.0 DN150 E [ ] - 44 7
... (Up to XF80) Up to 252.0 DN150 E [ ] - 44 14
Note: The " [ ] " in the model code represents the Filter Grade (9, 7, 5, 3, 1).

2. Filter Grades & Air Quality Performance

Grade Description Max. Particle Size (μm) Max. Residual Oil (ppm) Initial Pressure Drop (Dry / Wet)
XF 9 Separator / Primary Filter 3 5 0.07 bar / 0.11 bar
XF 7 Main Line Filter 1 1 0.07 bar / 0.14 bar
XF 5 High Eff. Oil Removal Filter 0.01 0.01 0.07 bar / 0.21 bar
XF 3 Ultra High Eff. Oil Removal Filter 0.01 0.001 0.14 bar / 0.42 bar
XF 1 Activated Carbon Filter (Odor) 0.01 0.001 0.07 bar / N/A

Product Ordering Code

Example: XF 9 - 16 - I
No. Item Options & Description
1 Model Series XF: Main Line Filter Series
2 Filter Grade 9: 3μm Separator/Filter
7: 1μm Main Line Filter
5: 0.01μm High Efficiency Oil Removal
3: 0.01μm Ultra High Efficiency Oil Removal
1: Activated Carbon Odor Removal
3 Port Size Code 16: 1/2" (1 Nm³/min)  |  20: 1" (1.72 Nm³/min)
24: 1-1/2" (2.9 Nm³/min)  |  40: 2" (14 Nm³/min)
44: DN65 (17.7 Nm³/min)  |  48: DN80 (22 Nm³/min)
56: DN100 (36 Nm³/min)
(Refer to Specifications table for the full list of flange models)
4 Function / Accessory Code I: Internal Auto Drain (Standard)
AD: External Auto Drain
ED: External Electronic Drain
L: Liquid Level Indicator
G: Direct Differential Pressure Gauge
TG: Pipeline Differential Pressure Gauge
Pressure Correction: The nominal flow rates are based on an operating pressure of 7 kgf/cm² (0.7 MPa). If the actual operating pressure differs, please multiply the nominal flow rate by the corresponding pressure correction factor found in the engineering manual.
  • Airtac XF series: main pipe filter - XF1-80-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-80-TG

    Specifications: XF1-80-TG — activated-carbon oil-vapor and odor removal filter, size 80, with pipeline differential-pressure gauge and 14 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 80 Size 80; nominal flow 252 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 252 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 14 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 780 mm B 1130 mm C 1460 mm D 550 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 189761 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=550 mm and B=1130 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-76-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-76-TG

    Specifications: XF1-76-TG — activated-carbon oil-vapor and odor removal filter, size 76, with pipeline differential-pressure gauge and 11 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 76 Size 76; nominal flow 198 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 198 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 11 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 780 mm B 1070 mm C 1400 mm D 550 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 182062 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=550 mm and B=1070 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-75-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-75-TG

    Specifications: XF1-75-TG — activated-carbon oil-vapor and odor removal filter, size 75, with pipeline differential-pressure gauge and 10 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 75 Size 75; nominal flow 180 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 180 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 10 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 780 mm B 1070 mm C 1400 mm D 500 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 161627 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=500 mm and B=1070 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-74-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-74-TG

    Specifications: XF1-74-TG — activated-carbon oil-vapor and odor removal filter, size 74, with pipeline differential-pressure gauge and 9 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 74 Size 74; nominal flow 162 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 162 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 9 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 780 mm B 1070 mm C 1400 mm D 500 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 161627 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=500 mm and B=1070 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-73-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-73-TG

    Specifications: XF1-73-TG — activated-carbon oil-vapor and odor removal filter, size 73, with pipeline differential-pressure gauge and 8 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 73 Size 73; nominal flow 144 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 144 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 8 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 700 mm B 1020 mm C 1350 mm D 450 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 136700 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=450 mm and B=1020 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-72-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-72-TG

    Specifications: XF1-72-TG — activated-carbon oil-vapor and odor removal filter, size 72, with pipeline differential-pressure gauge and 7 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 72 Size 72; nominal flow 126 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 126 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 7 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 630 mm B 1020 mm C 1350 mm D 400 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 118337 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=400 mm and B=1020 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-70-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-70-TG

    Specifications: XF1-70-TG — activated-carbon oil-vapor and odor removal filter, size 70, with pipeline differential-pressure gauge and 6 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 70 Size 70; nominal flow 108 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 108 Nm³/min Connection DN125 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 6 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 600 mm B 1070 mm C 1350 mm D 350 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 79858 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=350 mm and B=1070 mm; assumed steel density 7.85 g/cm³, 6 mm wall, two 8 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-68-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-68-TG

    Specifications: XF1-68-TG — activated-carbon oil-vapor and odor removal filter, size 68, with pipeline differential-pressure gauge and 5 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 68 Size 68; nominal flow 90 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 90 Nm³/min Connection DN125 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 5 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 600 mm B 990 mm C 1250 mm D 350 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 74972 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=350 mm and B=990 mm; assumed steel density 7.85 g/cm³, 6 mm wall, two 8 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-64-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-64-TG

    Specifications: XF1-64-TG — activated-carbon oil-vapor and odor removal filter, size 64, with pipeline differential-pressure gauge and 4 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 64 Size 64; nominal flow 72 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 72 Nm³/min Connection DN100 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 4 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 600 mm B 990 mm C 1250 mm D 350 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 74972 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=350 mm and B=990 mm; assumed steel density 7.85 g/cm³, 6 mm wall, two 8 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-60-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-60-TG

    Specifications: XF1-60-TG — activated-carbon oil-vapor and odor removal filter, size 60, with pipeline differential-pressure gauge and 3 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 60 Size 60; nominal flow 54 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 54 Nm³/min Connection DN100 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 3 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 500 mm B 950 mm C 1150 mm D 250 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 48558 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=250 mm and B=950 mm; assumed steel density 7.85 g/cm³, 6 mm wall, two 8 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-56-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-56-TG

    Specifications: XF1-56-TG — activated-carbon oil-vapor and odor removal filter, size 56, with pipeline differential-pressure gauge and 2 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 56 Size 56; nominal flow 36 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 36 Nm³/min Connection DN100 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 2 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 500 mm B 950 mm C 1150 mm D 250 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 48558 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=250 mm and B=950 mm; assumed steel density 7.85 g/cm³, 6 mm wall, two 8 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-48-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-48-TG

    Specifications: XF1-48-TG — activated-carbon oil-vapor and odor removal filter, size 48, with pipeline differential-pressure gauge and 1 × E1-48 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 48 Size 48; nominal flow 22 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 22 Nm³/min Connection DN80 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-48 Element quantity 1 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 336 mm B 940 mm C 1118 mm D 150 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 18243 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=150 mm and B=940 mm; assumed steel density 7.85 g/cm³, 4 mm wall, two 6 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-44-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-44-TG

    Specifications: XF1-44-TG — activated-carbon oil-vapor and odor removal filter, size 44, with pipeline differential-pressure gauge and 1 × E1-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 44 Size 44; nominal flow 17.7 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 17.7 Nm³/min Connection DN65 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-44 Element quantity 1 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 300 mm B 770 mm C 940 mm D 125 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Flow note: the size-code legend prints 17.2 Nm³/min, while the dimensional/flow table prints 17.7 Nm³/min for size 44. The value above follows the dimensional/flow table; confirm required rated capacity before final system sizing. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 12416 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=125 mm and B=770 mm; assumed steel density 7.85 g/cm³, 4 mm wall, two 6 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-40-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-40-TG

    Specifications: XF1-40-TG — activated-carbon oil-vapor and odor removal filter, size 40, with pipeline differential-pressure gauge and 1 × E1-40 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 40 Size 40; nominal flow 14 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 14 Nm³/min Connection 2 in threaded connection Housing construction Aluminium-alloy head with Q235 steel tube Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-40 Element quantity 1 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 148 mm B 639 mm C 685 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 7320 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate 148 mm diameter by 639 mm cylindrical envelope, assumed 3 mm Q235 steel tube wall at 7.85 g/cm³ and a total 10 mm aluminium end-section allowance at 2.7 g/cm³. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-36-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-36-TG

    Specifications: XF1-36-TG — activated-carbon oil-vapor and odor removal filter, size 36, with pipeline differential-pressure gauge and 1 × E1-36 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 36 Size 36; nominal flow 10.7 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 10.7 Nm³/min Connection 1-1/2 in threaded connection Housing construction Aluminium-alloy head with Q235 steel tube Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-36 Element quantity 1 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 148 mm B 639 mm C 685 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 7320 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate 148 mm diameter by 639 mm cylindrical envelope, assumed 3 mm Q235 steel tube wall at 7.85 g/cm³ and a total 10 mm aluminium end-section allowance at 2.7 g/cm³. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-32-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-32-TG

    Specifications: XF1-32-TG — activated-carbon oil-vapor and odor removal filter, size 32, with pipeline differential-pressure gauge and 1 × E1-32 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 32 Size 32; nominal flow 7.2 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 7.2 Nm³/min Connection 1-1/2 in threaded connection Housing construction Aluminium-alloy housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-32 Element quantity 1 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 138 mm B 585 mm C 624 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 2414 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate cylindrical envelope diameter 138 mm (using drawing A as a reference), body length 585 mm, assumed 3 mm aluminium wall and two 5 mm end sections, density 2.7 g/cm³. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-28-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-28-TG

    Specifications: XF1-28-TG — activated-carbon oil-vapor and odor removal filter, size 28, with pipeline differential-pressure gauge and 1 × E1-28 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 28 Size 28; nominal flow 4.9 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 4.9 Nm³/min Connection 1-1/2 in threaded connection Housing construction Aluminium-alloy housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-28 Element quantity 1 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 138 mm B 385 mm C 424 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 1726 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate cylindrical envelope diameter 138 mm (using drawing A as a reference), body length 385 mm, assumed 3 mm aluminium wall and two 5 mm end sections, density 2.7 g/cm³. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-24-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-24-TG

    Specifications: XF1-24-TG — activated-carbon oil-vapor and odor removal filter, size 24, with pipeline differential-pressure gauge and 1 × E1-24 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 24 Size 24; nominal flow 2.9 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 2.9 Nm³/min Connection 1-1/2 in threaded connection Housing construction Aluminium-alloy housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-24 Element quantity 1 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 138 mm B 385 mm C 424 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 1726 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate cylindrical envelope diameter 138 mm (using drawing A as a reference), body length 385 mm, assumed 3 mm aluminium wall and two 5 mm end sections, density 2.7 g/cm³. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-20-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-20-TG

    Specifications: XF1-20-TG — activated-carbon oil-vapor and odor removal filter, size 20, with pipeline differential-pressure gauge and 1 × E1-20 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 20 Size 20; nominal flow 1.72 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 1.72 Nm³/min Connection 1 in threaded connection Housing construction Aluminium-alloy housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-20 Element quantity 1 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 104 mm B 287 mm C 313 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 967 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate cylindrical envelope diameter 104 mm (using drawing A as a reference), body length 287 mm, assumed 3 mm aluminium wall and two 5 mm end sections, density 2.7 g/cm³. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF1-16-TG

    Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-16-TG

    Specifications: XF1-16-TG — activated-carbon oil-vapor and odor removal filter, size 16, with pipeline differential-pressure gauge and 1 × E1-16 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 1 Activated-carbon oil-vapor and odor removal filter 16 Size 16; nominal flow 1 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Activated-carbon oil-vapor and odor removal filter Nominal flow at reference pressure 1 Nm³/min Connection 1/2 in threaded connection Housing construction Aluminium-alloy housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.07 (unit not stated in the table) Oil-saturated pressure-drop value Not applicable in the table Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E1-16 Element quantity 1 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 104 mm B 217 mm C 243 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 787 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate cylindrical envelope diameter 104 mm (using drawing A as a reference), body length 217 mm, assumed 3 mm aluminium wall and two 5 mm end sections, density 2.7 g/cm³. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF3-80-TG

    Airtac XF3 series: ultra-high-efficiency oil coalescing filter - XF3-80-TG

    Specifications: XF3-80-TG — ultra-high-efficiency oil coalescing filter, size 80, with pipeline differential-pressure gauge and 14 × E3-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 3 Ultra-high-efficiency oil coalescing filter 80 Size 80; nominal flow 252 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Ultra-high-efficiency oil coalescing filter Nominal flow at reference pressure 252 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.14 (unit not stated in the table) Oil-saturated pressure-drop value 0.42 (unit not stated in the table) Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E3-44 Element quantity 14 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Maximum inlet liquid load in the grade application text 40 ppm w/w Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 780 mm B 1130 mm C 1460 mm D 550 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Removes 0.01 µm and larger particles and oil aerosols at the stated 99.999% efficiency. Use a grade 7 prefilter where inlet liquid loading is high. Typical positions are upstream of an adsorption dryer or downstream of a refrigerated dryer. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .01 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 189761 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=550 mm and B=1130 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF3-76-TG

    Airtac XF3 series: ultra-high-efficiency oil coalescing filter - XF3-76-TG

    Specifications: XF3-76-TG — ultra-high-efficiency oil coalescing filter, size 76, with pipeline differential-pressure gauge and 11 × E3-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 3 Ultra-high-efficiency oil coalescing filter 76 Size 76; nominal flow 198 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Ultra-high-efficiency oil coalescing filter Nominal flow at reference pressure 198 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.14 (unit not stated in the table) Oil-saturated pressure-drop value 0.42 (unit not stated in the table) Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E3-44 Element quantity 11 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Maximum inlet liquid load in the grade application text 40 ppm w/w Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 780 mm B 1070 mm C 1400 mm D 550 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Removes 0.01 µm and larger particles and oil aerosols at the stated 99.999% efficiency. Use a grade 7 prefilter where inlet liquid loading is high. Typical positions are upstream of an adsorption dryer or downstream of a refrigerated dryer. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .01 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 182062 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=550 mm and B=1070 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF3-75-TG

    Airtac XF3 series: ultra-high-efficiency oil coalescing filter - XF3-75-TG

    Specifications: XF3-75-TG — ultra-high-efficiency oil coalescing filter, size 75, with pipeline differential-pressure gauge and 10 × E3-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 3 Ultra-high-efficiency oil coalescing filter 75 Size 75; nominal flow 180 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Ultra-high-efficiency oil coalescing filter Nominal flow at reference pressure 180 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.14 (unit not stated in the table) Oil-saturated pressure-drop value 0.42 (unit not stated in the table) Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E3-44 Element quantity 10 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Maximum inlet liquid load in the grade application text 40 ppm w/w Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 780 mm B 1070 mm C 1400 mm D 500 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Removes 0.01 µm and larger particles and oil aerosols at the stated 99.999% efficiency. Use a grade 7 prefilter where inlet liquid loading is high. Typical positions are upstream of an adsorption dryer or downstream of a refrigerated dryer. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .01 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 161627 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=500 mm and B=1070 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74

  • Airtac XF series: main pipe filter - XF3-74-TG

    Airtac XF3 series: ultra-high-efficiency oil coalescing filter - XF3-74-TG

    Specifications: XF3-74-TG — ultra-high-efficiency oil coalescing filter, size 74, with pipeline differential-pressure gauge and 9 × E3-44 element(s). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning XF Compressed-air filter 3 Ultra-high-efficiency oil coalescing filter 74 Size 74; nominal flow 162 Nm³/min TG Pipeline differential-pressure gauge Technical Specifications Parameter Details Selected filtration grade Ultra-high-efficiency oil coalescing filter Nominal flow at reference pressure 162 Nm³/min Connection DN150 flanged connection Housing construction Steel flanged housing Particle-removal specification 0.01 µm Residual oil, air-quality table 0.001 ppm (mg/m³), as printed Dry pressure-drop value 0.14 (unit not stated in the table) Oil-saturated pressure-drop value 0.42 (unit not stated in the table) Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1 Element model E3-44 Element quantity 9 Selected accessory option Pipeline differential-pressure gauge Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating Maximum inlet liquid load in the grade application text 40 ppm w/w Features and Application Large internal passages reduce flow loss. Corrosion-resistant epoxy powder coating is listed for the housing. Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction. Drain and monitoring options aid condensate removal and element maintenance. Dimensions and Installation Parameter Details A 780 mm B 1070 mm C 1400 mm D 500 mm Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. Filter Selection and Pressure Correction Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating. Minimum inlet pressure Capacity factor 2 bar / kgf/cm² as printed 0.38 3 bar / kgf/cm² as printed 0.5 4 bar / kgf/cm² as printed 0.62 5 bar / kgf/cm² as printed 0.75 6 bar / kgf/cm² as printed 0.87 7 bar / kgf/cm² as printed 1 8 bar / kgf/cm² as printed 1.12 9 bar / kgf/cm² as printed 1.24 10 bar / kgf/cm² as printed 1.37 12 bar / kgf/cm² as printed 1.62 14 bar / kgf/cm² as printed 1.86 16 bar / kgf/cm² as printed 2.11 18 bar / kgf/cm² as printed 2.36 20 bar / kgf/cm² as printed 2.61 21 bar / kgf/cm² as printed 2.73 Application and Element Care Removes 0.01 µm and larger particles and oil aerosols at the stated 99.999% efficiency. Use a grade 7 prefilter where inlet liquid loading is high. Typical positions are upstream of an adsorption dryer or downstream of a refrigerated dryer. Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here. Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .01 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 161627 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Envelope reference D=500 mm and B=1070 mm; assumed steel density 7.85 g/cm³, 8 mm wall, two 10 mm end plates, plus a 20% flange/internal-component allowance. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

    $139.74
