Airtac XF1 series: activated-carbon oil-vapor and odor removal filter - XF1-28-TG

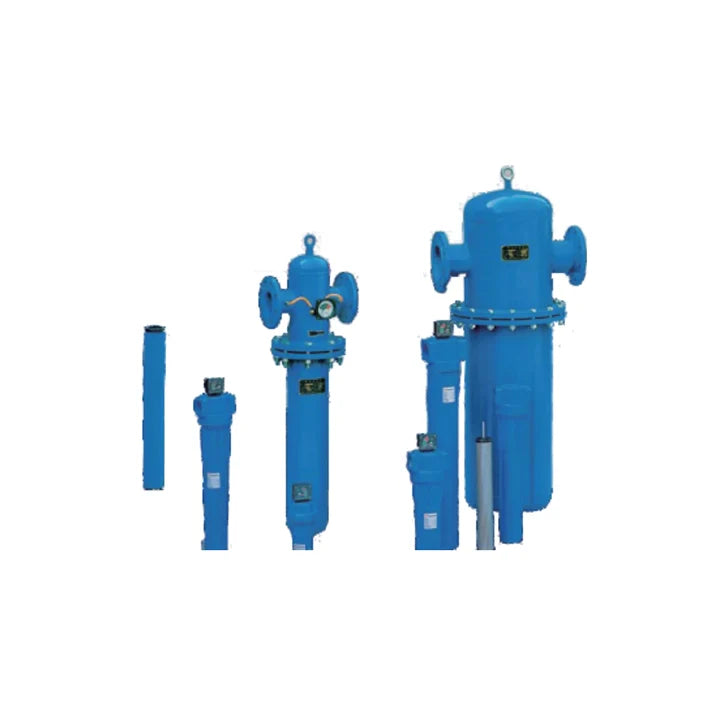

Photos are for reference only. Not all models have pictures.

Description

Specifications: XF1-28-TG — activated-carbon oil-vapor and odor removal filter, size 28, with pipeline differential-pressure gauge and 1 × E1-28 element(s).

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

This Ordering Code

Code Meaning
XF Compressed-air filter
1 Activated-carbon oil-vapor and odor removal filter
28 Size 28; nominal flow 4.9 Nm³/min
TG Pipeline differential-pressure gauge

Technical Specifications

Parameter Details
Selected filtration grade Activated-carbon oil-vapor and odor removal filter
Nominal flow at reference pressure 4.9 Nm³/min
Connection 1-1/2 in threaded connection
Housing construction Aluminium-alloy housing
Particle-removal specification 0.01 µm
Residual oil, air-quality table 0.001 ppm (mg/m³), as printed
Dry pressure-drop value 0.07 (unit not stated in the table)
Oil-saturated pressure-drop value Not applicable in the table
Catalog ISO 8573.1 classification Solid-particle class 1; total-oil class 1
Element model E1-28
Element quantity 1
Selected accessory option Pipeline differential-pressure gauge
Maximum working pressure / temperature No housing pressure or temperature rating is specified on these two pages; select the installed housing by its marked rating
Inlet condition No free liquid is allowed at the activated-carbon stage; install the stated upstream coalescing stages

Features and Application

  • Large internal passages reduce flow loss.
  • Corrosion-resistant epoxy powder coating is listed for the housing.
  • Threaded models show a flow-direction arrow; install all versions in the specified inlet-to-outlet direction.
  • Drain and monitoring options aid condensate removal and element maintenance.

Dimensions and Installation

Parameter Details
A 138 mm
B 385 mm
C 424 mm

Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product.

Filter Selection and Pressure Correction

Choose the filter by required air quality, flow and the lowest inlet pressure, rather than by pipe-connection size alone. Multiply the catalog nominal flow by the factor for the minimum inlet pressure. The pressure-factor table is a sizing aid and does not establish the housing maximum working-pressure rating.

Minimum inlet pressure Capacity factor
2 bar / kgf/cm² as printed 0.38
3 bar / kgf/cm² as printed 0.5
4 bar / kgf/cm² as printed 0.62
5 bar / kgf/cm² as printed 0.75
6 bar / kgf/cm² as printed 0.87
7 bar / kgf/cm² as printed 1
8 bar / kgf/cm² as printed 1.12
9 bar / kgf/cm² as printed 1.24
10 bar / kgf/cm² as printed 1.37
12 bar / kgf/cm² as printed 1.62
14 bar / kgf/cm² as printed 1.86
16 bar / kgf/cm² as printed 2.11
18 bar / kgf/cm² as printed 2.36
20 bar / kgf/cm² as printed 2.61
21 bar / kgf/cm² as printed 2.73

Application and Element Care

Activated carbon adsorbs oil vapor and odors. Fit grades 5 and 3 upstream to prevent liquid/oil-aerosol contamination. Applications mentioned include food, pharmaceutical and air-quality systems; the page does not certify a complete breathing-air installation.

Observe the pressure-difference indication and the specified replacement element for this housing. A drain, level indicator or differential-pressure gauge is identified by the selected option; it does not change the element grade. The catalog does not publish individual drain electrical ratings or gauge ranges here.

Oil-content note: the air-quality table lists 0.001 ppm (mg/m³), but the grade application text lists .003 ppm w/w. These printed statements use different values and notations; they are retained separately and must not be treated as a single guaranteed outlet specification.

The application paragraph also contains a 60 ppm w/w liquid-load line, but expressly prohibits liquid at this adsorption stage. Use the no-free-liquid requirement and the upstream coalescing stages; do not use that line as permission to feed liquid into the carbon element.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Estimated Weight

1726 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Approximate cylindrical envelope diameter 138 mm (using drawing A as a reference), body length 385 mm, assumed 3 mm aluminium wall and two 5 mm end sections, density 2.7 g/cm³. These assumed wall/end thicknesses are used only for mass estimation, not pressure-vessel design or manufacturing dimensions. Accessory-option mass is not separately published and is represented only by this approximate assembly estimate.

Product form

Specifications: XF1-28-TG — activated-carbon oil-vapor and odor removal filter, size 28, with pipeline differential-pressure gauge and 1 × E1-28 element(s).... Read more
