X-ZP / ZPT / ZPY / ZPX Series Vacuum Pads
Series Overview
- X-ZP Series: Standard vacuum pads (rubber part only). Available in Flat, Bellows, Ribbed, and Deep types.
- X-ZPT Series: Vertical entry vacuum pads with mounting adapters. Available with spring buffer (stroke) to handle height variations. Connections include threads or barb fittings.
- X-ZPY Series: Side/Swivel entry vacuum pads. The vacuum port is on the side, ideal for applications where vertical space is limited.
- X-ZPX Series: Heavy-duty vacuum pads. Designed for large diameters (40mm-125mm) and heavy loads, featuring robust mounting structures.
Pad Types & Materials
| Pad Type Code | Description | Features |
|---|---|---|
| U | Flat | Standard shape for flat surfaces. |
| B | Bellows | Accordion shape for uneven heights or fragile objects. |
| C | Flat with Ribs | Flat pad with internal ribs to prevent deformation. |
| D | Deep | Deep cup shape for curved objects. |
Material Specifications
| Material Code | Material | Color |
|---|---|---|
| N | NBR (Nitrile Rubber) | Black |
| S | Silicone Rubber | White / Translucent |
Ordering: X-ZPT (Vertical) / X-ZPY (Side)
X-ZPT 02 U N J 6 - B3 - A5
| No. | Item | Options / Description |
|---|---|---|
| ① | Model |
X-ZPT: Vertical Entry X-ZPY: Side/Swivel Entry |
| ② | Pad Dia. | 02(2mm) ~ 50(50mm) |
| ③ | Pad Type | U: Flat, B: Bellows, C: Ribbed, D: Deep |
| ④ | Material | N: NBR, S: Silicone |
| ⑤ | Appearance |
Blank: Without Buffer (Rigid) J: Round Type Buffer (With Spring) K: Hex Type Buffer (Non-rotating) |
| ⑥ | Stroke |
Blank: No Buffer 6: 6mm, 10: 10mm, 15: 15mm... up to 50mm |
| ⑦ | Connection |
Thread: B3(M3), B5(M5), B01(Rc1/8) Barb/Tube: U4/U6 (PU Tube), N4/N6 (Nylon Tube) |
| ⑧ | Mounting |
A5: M5x0.8, A6: M6x1.0, A8: M8x1.0, etc. (Varies by model size) |
Ordering: X-ZP (Pad Only)
X-ZP 10 U N - X19
| Item | Options |
|---|---|
| Model | X-ZP |
| Diameter | 02, 04, 06, 08, 10, 13, 16, 20, 25, 32, 40, 50 |
| Type | U, B, C, D |
| Accessory | Blank: Standard / X19: With Metal Ring (No filter) |

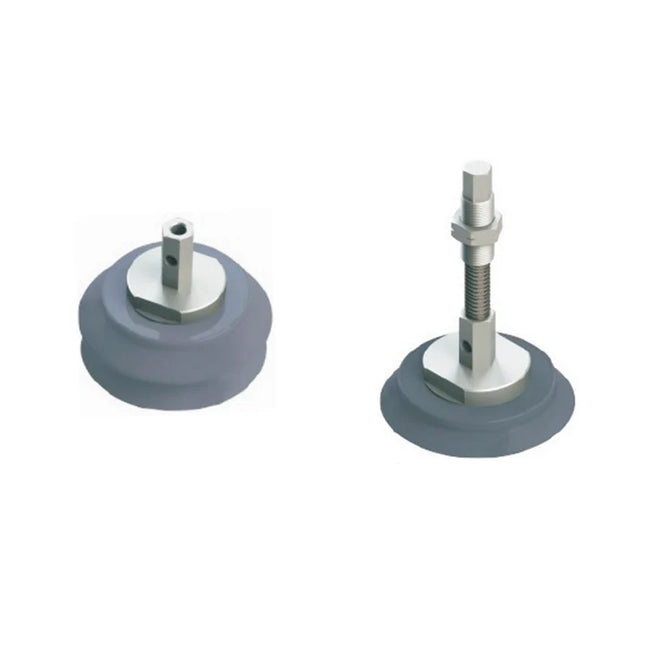

Ordering: X-ZPX (Heavy Duty)
X-ZPX 40 H B N J50 - B01 - A18
| No. | Item | Options / Description |
|---|---|---|
| ① | Model | X-ZPX: Heavy Duty Vacuum Pad |
| ② | Diameter | 40, 50, 63, 80, 100, 125 (mm) |
| ③ | Class | H: Heavy Duty |
| ④ | Type | Blank: Flat / B: Bellows |
| ⑤ | Material | N: NBR, S: Silicone |
| ⑥ | Stroke |
Blank: No Buffer J25/J50/J75/J100: Buffer Stroke (mm) |
| ⑦ | Vac. Port | B01: Rc1/8 |
| ⑧ | Mounting | A18 (M18x1.5), A22 (M22x1.5), etc. |
