X-KZL2 Series Multi-stage Vacuum Ejector

Specifications: X-KZL212PGNRL5V-04. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 P Port exhaust GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm Port-exhaust connection PT1 Port-exhaust center callout 25 mm GN vacuum detection port PT1/8 GN projection callout 7 mm GN/RL5 assembled width 107 mm RL5 switch projection callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212GNRL5V-04. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 (blank) — exhaust Built-in silencer GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm GN vacuum detection port PT1/8 GN projection callout 7 mm GN/RL5 assembled width 107 mm RL5 switch projection callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212PRL5V-04. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 P Port exhaust (blank) — pressure detection No separate vacuum detection port selected RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. The RL5 pressure switch is selected in this model, while GN is not selected as a separate detection-port option. The catalog illustrates the mounted RL5 assembly with GN; its illustrated GN mounting arrangement should not be assumed to establish a different port arrangement for this code. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm Port-exhaust connection PT1 Port-exhaust center callout 25 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212RL5V-04. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 (blank) — exhaust Built-in silencer (blank) — pressure detection No separate vacuum detection port selected RL5V Digital vacuum pressure switch, −100 to 0 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output PNP, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. The RL5 pressure switch is selected in this model, while GN is not selected as a separate detection-port option. The catalog illustrates the mounted RL5 assembly with GN; its illustrated GN mounting arrangement should not be assumed to establish a different port arrangement for this code. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

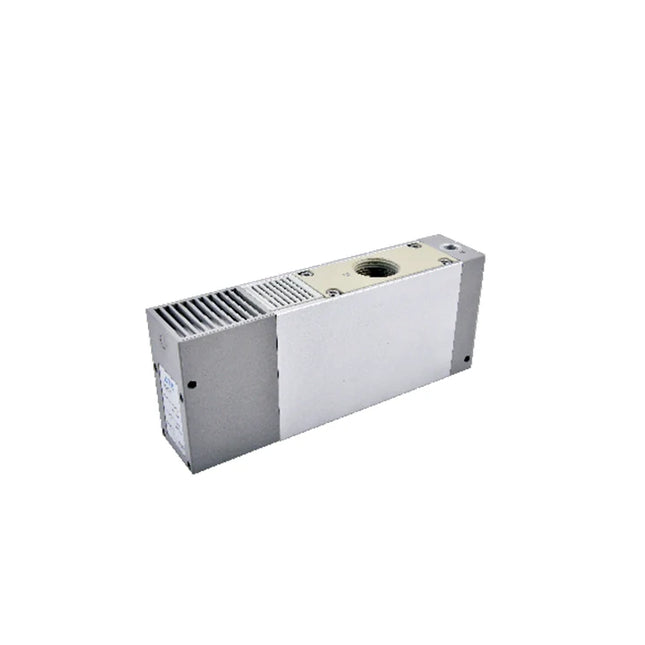

Specifications: X-KZL212PGNRL5V-02. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5V-02 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 P Port exhaust GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -02 NPN output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output NPN, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm Port-exhaust connection PT1 Port-exhaust center callout 25 mm GN vacuum detection port PT1/8 GN projection callout 7 mm GN/RL5 assembled width 107 mm RL5 switch projection callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212GNRL5V-02. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5V-02 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 (blank) — exhaust Built-in silencer GN PT1/8 vacuum detection port RL5V Digital vacuum pressure switch, −100 to 0 kPa -02 NPN output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output NPN, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm GN vacuum detection port PT1/8 GN projection callout 7 mm GN/RL5 assembled width 107 mm RL5 switch projection callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212PRL5V-02. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5V-02 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 P Port exhaust (blank) — pressure detection No separate vacuum detection port selected RL5V Digital vacuum pressure switch, −100 to 0 kPa -02 NPN output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Port exhaust Digital switch range −100 to 0 kPa Digital switch output NPN, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. The RL5 pressure switch is selected in this model, while GN is not selected as a separate detection-port option. The catalog illustrates the mounted RL5 assembly with GN; its illustrated GN mounting arrangement should not be assumed to establish a different port arrangement for this code. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm Port-exhaust connection PT1 Port-exhaust center callout 25 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212RL5V-02. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5V-02 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 (blank) — exhaust Built-in silencer (blank) — pressure detection No separate vacuum detection port selected RL5V Digital vacuum pressure switch, −100 to 0 kPa -02 NPN output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Internal silencer Digital switch range −100 to 0 kPa Digital switch output NPN, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. The RL5 pressure switch is selected in this model, while GN is not selected as a separate detection-port option. The catalog illustrates the mounted RL5 assembly with GN; its illustrated GN mounting arrangement should not be assumed to establish a different port arrangement for this code. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212PGNRL5C-04. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5C-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 P Port exhaust GN PT1/8 vacuum detection port RL5C Digital vacuum pressure switch, −100 to 100 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Port exhaust Digital switch range −100 to 100 kPa Digital switch output PNP, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm Port-exhaust connection PT1 Port-exhaust center callout 25 mm GN vacuum detection port PT1/8 GN projection callout 7 mm GN/RL5 assembled width 107 mm RL5 switch projection callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212GNRL5C-04. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5C-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 (blank) — exhaust Built-in silencer GN PT1/8 vacuum detection port RL5C Digital vacuum pressure switch, −100 to 100 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Internal silencer Digital switch range −100 to 100 kPa Digital switch output PNP, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm GN vacuum detection port PT1/8 GN projection callout 7 mm GN/RL5 assembled width 107 mm RL5 switch projection callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212PRL5C-04. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5C-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 P Port exhaust (blank) — pressure detection No separate vacuum detection port selected RL5C Digital vacuum pressure switch, −100 to 100 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Port exhaust Digital switch range −100 to 100 kPa Digital switch output PNP, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. The RL5 pressure switch is selected in this model, while GN is not selected as a separate detection-port option. The catalog illustrates the mounted RL5 assembly with GN; its illustrated GN mounting arrangement should not be assumed to establish a different port arrangement for this code. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm Port-exhaust connection PT1 Port-exhaust center callout 25 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212RL5C-04. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5C-04 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 (blank) — exhaust Built-in silencer (blank) — pressure detection No separate vacuum detection port selected RL5C Digital vacuum pressure switch, −100 to 100 kPa -04 PNP output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Internal silencer Digital switch range −100 to 100 kPa Digital switch output PNP, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. The RL5 pressure switch is selected in this model, while GN is not selected as a separate detection-port option. The catalog illustrates the mounted RL5 assembly with GN; its illustrated GN mounting arrangement should not be assumed to establish a different port arrangement for this code. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212PGNRL5C-02. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5C-02 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 P Port exhaust GN PT1/8 vacuum detection port RL5C Digital vacuum pressure switch, −100 to 100 kPa -02 NPN output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Port exhaust Digital switch range −100 to 100 kPa Digital switch output NPN, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm Port-exhaust connection PT1 Port-exhaust center callout 25 mm GN vacuum detection port PT1/8 GN projection callout 7 mm GN/RL5 assembled width 107 mm RL5 switch projection callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212GNRL5C-02. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5C-02 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 (blank) — exhaust Built-in silencer GN PT1/8 vacuum detection port RL5C Digital vacuum pressure switch, −100 to 100 kPa -02 NPN output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Internal silencer Digital switch range −100 to 100 kPa Digital switch output NPN, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm GN vacuum detection port PT1/8 GN projection callout 7 mm GN/RL5 assembled width 107 mm RL5 switch projection callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212PRL5C-02. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5C-02 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 P Port exhaust (blank) — pressure detection No separate vacuum detection port selected RL5C Digital vacuum pressure switch, −100 to 100 kPa -02 NPN output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Port exhaust Digital switch range −100 to 100 kPa Digital switch output NPN, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. The RL5 pressure switch is selected in this model, while GN is not selected as a separate detection-port option. The catalog illustrates the mounted RL5 assembly with GN; its illustrated GN mounting arrangement should not be assumed to establish a different port arrangement for this code. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm Port-exhaust connection PT1 Port-exhaust center callout 25 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less

Specifications: X-KZL212RL5C-02. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5C-02 digital pressure switch. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths 12 Nozzle diameter 1.2 mm × 2 (blank) — exhaust Built-in silencer (blank) — pressure detection No separate vacuum detection port selected RL5C Digital vacuum pressure switch, −100 to 100 kPa -02 NPN output, 2 m lead Technical Specifications Parameter Details Nozzle Ø1.2 mm × 2 Maximum vacuum flow 200 L/min Air consumption 126 L/min Maximum vacuum −84 kPa Maximum use pressure 0.7 MPa Supply operating range 0.2–0.5 MPa Standard supply pressure 0.4 MPa Operating temperature 5–50°C Valve package No inlet/release valve package selected Exhaust Internal silencer Digital switch range −100 to 100 kPa Digital switch output NPN, 2 m lead Construction and Installation Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow. Side or bottom mounting is shown. An internal silencer or port exhaust can be selected. The RL5 pressure switch is selected in this model, while GN is not selected as a separate detection-port option. The catalog illustrates the mounted RL5 assembly with GN; its illustrated GN mounting arrangement should not be assumed to establish a different port arrangement for this code. Performance Curves The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition. Dimensions and Mounting Parameter Details Standard body length 188 mm Body width 76 mm Body depth 40 mm Vacuum connection PT3/4 Air supply connection PT1/8 Vacuum-port position callout 125 mm Right-hand length callout 54 mm Mounting thread pattern 4 × M5, 8 mm deep Bottom mounting callouts 87 mm and 73 mm Bottom transverse callout 27 mm Through mounting holes 2 × Ø4.5 mm Through-hole longitudinal pitch 178.5 mm Height callout 75 mm Through-hole transverse pitch 68 mm Edge offsets 4.5 mm and 5 mm Lower hole position callout 24 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Parameter Details Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.

Read more less
