Airtac X-KZL series: multi-stage vacuum generator - X-KZL212RL5V-04

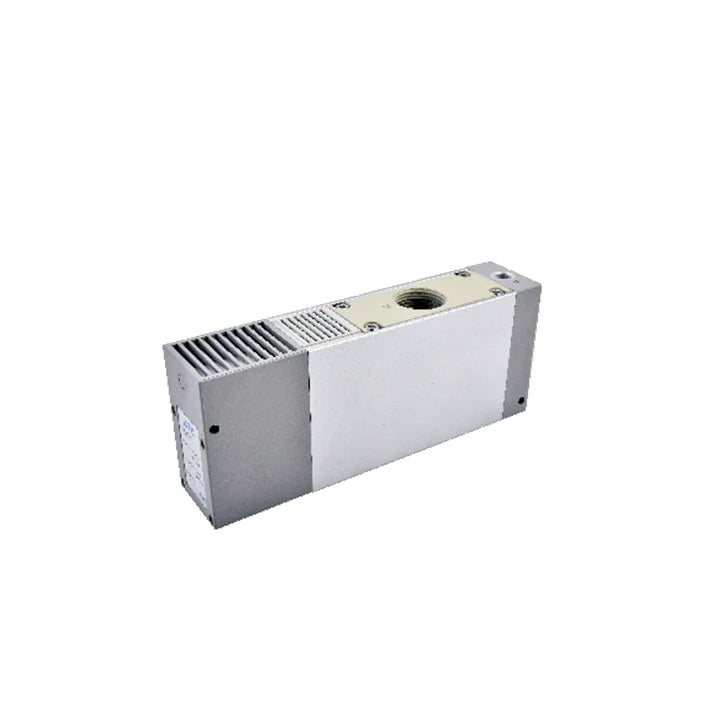

Photos are for reference only. Not all models have pictures.

Description

Specifications: X-KZL212RL5V-04. A dual-nozzle multi-stage vacuum generator with no inlet/release valve package, 200 L/min catalog maximum vacuum flow and an RL5V-04 digital pressure switch.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning for this model
X-KZL2 Multi-stage vacuum generator with two stacked nozzle paths
12 Nozzle diameter 1.2 mm × 2
(blank) — exhaust Built-in silencer
(blank) — pressure detection No separate vacuum detection port selected
RL5V Digital vacuum pressure switch, −100 to 0 kPa
-04 PNP output, 2 m lead

Technical Specifications

Parameter Details
Nozzle Ø1.2 mm × 2
Maximum vacuum flow 200 L/min
Air consumption 126 L/min
Maximum vacuum −84 kPa
Maximum use pressure 0.7 MPa
Supply operating range 0.2–0.5 MPa
Standard supply pressure 0.4 MPa
Operating temperature 5–50°C
Valve package No inlet/release valve package selected
Exhaust Internal silencer
Digital switch range −100 to 0 kPa
Digital switch output PNP, 2 m lead

Construction and Installation

  • Two vertically stacked three-stage nozzles provide the published 200 L/min maximum vacuum flow.
  • Side or bottom mounting is shown.
  • An internal silencer or port exhaust can be selected.

The RL5 pressure switch is selected in this model, while GN is not selected as a separate detection-port option. The catalog illustrates the mounted RL5 assembly with GN; its illustrated GN mounting arrangement should not be assumed to establish a different port arrangement for this code.

Performance Curves

The curves use 0.4 MPa supply. Vacuum magnitude is the horizontal axis in kPa. The flow chart spans 0–80 kPa with printed flow labels through 200 L/min; the evacuation chart spans 10–80 kPa with time labels through 3 s/L. Curves are reference data for the stated test condition.

Dimensions and Mounting

Parameter Details
Standard body length 188 mm
Body width 76 mm
Body depth 40 mm
Vacuum connection PT3/4
Air supply connection PT1/8
Vacuum-port position callout 125 mm
Right-hand length callout 54 mm
Mounting thread pattern 4 × M5, 8 mm deep
Bottom mounting callouts 87 mm and 73 mm
Bottom transverse callout 27 mm
Through mounting holes 2 × Ø4.5 mm
Through-hole longitudinal pitch 178.5 mm
Height callout 75 mm
Through-hole transverse pitch 68 mm
Edge offsets 4.5 mm and 5 mm
Lower hole position callout 24 mm

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Reference Weight

Parameter Details
Weight 420.8 g — estimated reference; not an AirTAC published or measured weight.
