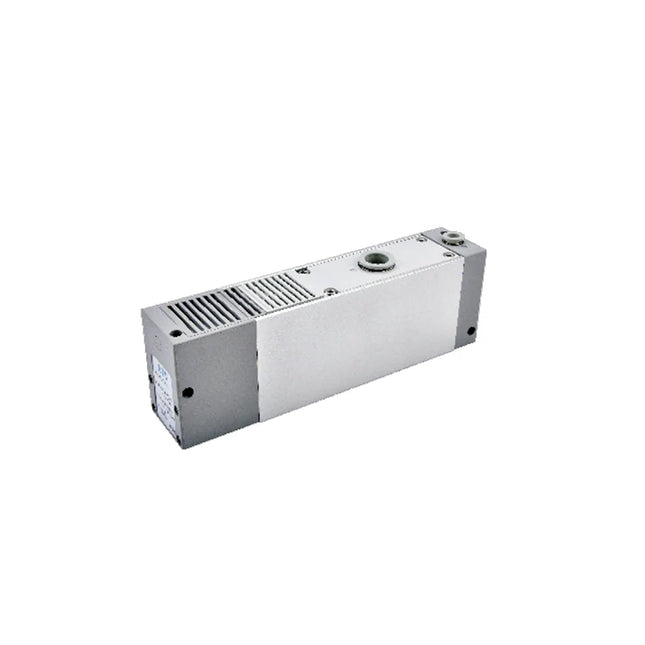

X-KZL1 Series Multi-stage Vacuum Ejector
Features
- High Efficiency: Uses a 3-stage diffuser design. Suction flow increases by 250% while air consumption is reduced by 20%.
- Optional Controls: Available with vacuum supply and vacuum release valves or pressure switches.
- Maintenance Friendly: Filter element can be easily replaced.
- Built-in Silencer: Includes a built-in vacuum filter and silencer.
- Flexible Mounting: Can be mounted from three directions: top, side, and bottom.
Vacuum Specifications
| Item | Data |
|---|---|
| Nozzle Diameter | Φ1.2 mm |
| Max Suction Flow | 100 l/min |
| Air Consumption | 63 l/min |
| Max Vacuum | -84 kPa |
| Max Operating Pressure | 0.7 MPa |
| Supply Pressure Range | 0.2 ~ 0.5 MPa |
| Standard Supply Pressure | 0.4 MPa |
| Operating Temperature | 5 ~ 50 °C |
Supply Valve & Release Valve Specifications
| Item | Specification |
|---|---|
| Valve Type | Internal Pilot Type N.C. (Normally Closed) |
| Operating Pressure Range | 0.2 ~ 0.5 MPa |
| Ambient/Fluid Temp | 5 ~ 50 °C |
| Response Time (0.5MPa) | 25ms or less |
| Max Operating Frequency | 5 Hz |
| Manual Operation | Non-locking Push Type; Push-Turn Locking Slotted Type |
| Pilot Exhaust Type | Individual Exhaust; Centralized Exhaust |
| Lubrication | Not Required |
| Mounting Orientation | Free |
| Shock/Vibration Resistance | 150 / 30 m/s² |
| Protection Structure | Dust-proof |
Ordering Code
X-KZL1 12 □ K1 B L Z □ GN RL5C
| No. | Item | Options / Description |
|---|---|---|
| ① | Model | X-KZL1: Multi-stage Vacuum Ejector |
| ② | Nozzle Dia. | 12: Φ1.2mm |
| ③ | Exhaust Spec |
Blank: Internal Silencer (Built-in) P: Port Exhaust |
| ④ | Exhaust Thread |
Blank: PT1/2 G: G1/2 T: NPT1/2 |
| ⑤ | Valve Combination |
K1: Supply Valve + Release Valve K2: Supply Valve Only |
| ⑥ | Rated Voltage |
A: AC220V B: DC24V C: AC110V/F: DC12V/V: DC6V/S: DC5V/R: DC3V |
| ⑦ | Electrical Entry |
G: Grommet (Lead wire 0.3m) L: L-Type Plug Connector (Lead wire 0.3m) |
| ⑧ | LED & Surge Suppressor |
Blank: No LED, with Surge Suppressor (DC) S: With Surge Suppressor (AC) Z: With LED & Surge Suppressor |
| ⑨ | Manual Operation |
Blank: Non-locking Push Type D: Push-Turn Locking Slotted Type |
| ⑩ | Vacuum Pressure Port |
Blank: No Port GN: PT1/8 Vacuum Pressure Detection Port |
| ⑪ | Pressure Switch |
RL5C: -100~100kPa (Vacuum Switch) RL5C-02: NPN Output (2m Cable) RL5C-04: PNP Output (2m Cable) RL5V: -100~0kPa (Vacuum Switch) RL5V-02: NPN Output (2m Cable) RL5V-04: PNP Output (2m Cable) |
