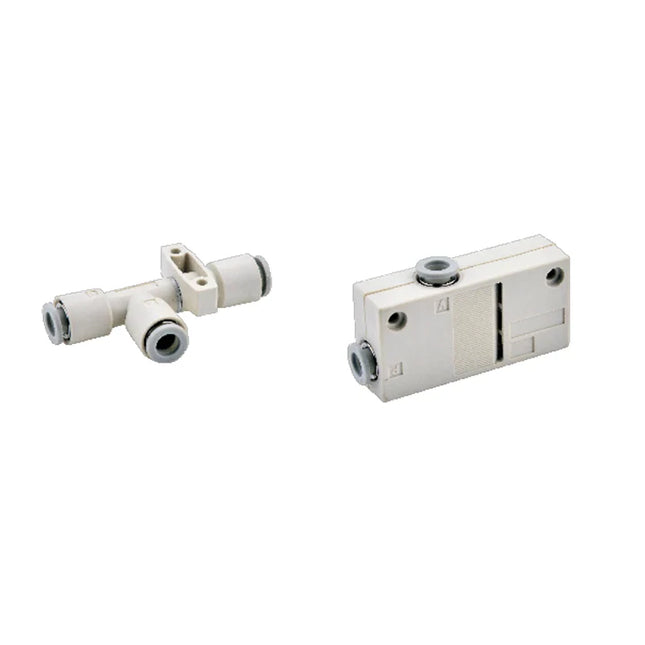

X-KZH Series Vacuum Ejector

Product Features
Specifications
Ordering Code

Features

Compact Design: Integrated structure allows for installation in confined spaces.
Two Body Types:
- Box Type (B): Built-in silencer for exhaust, suitable for standard environments.
- Direct Piping Type (D): Exhaust port can be piped away, suitable for clean rooms or where exhaust needs to be redirected.
Wide Range: Nozzle diameters available from 0.5mm to 2.0mm to suit various suction flow requirements.
Flexible Connection: Available with One-touch fittings (Metric) or Threaded connections (PT).

Performance Specifications (Supply Pressure: 0.45 MPa)

Model	Nozzle Dia. (mm)	Body Type	Max Vacuum (kPa)		Max Suction Flow (L/min)		Air Consumption (L/min)
Model	Nozzle Dia. (mm)	Body Type	S Type	L Type	S Type	L Type	S Type	L Type
X-KZH05B□	0.5	Box Type (Built-in Silencer)	-88	-48	5	9	13.5
X-KZH07B□	0.7				12	22	23.5
X-KZH10B□	1.0				24	34	46
X-KZH13B□	1.3				40	75	78
X-KZH05D□	0.5	Direct Piping (No Silencer)	-88	-48	7.5	9	13.5
X-KZH07D□	0.7				12	22	23.5
X-KZH10D□	1.0				24	34	46
X-KZH13D□	1.3				40	75	78
X-KZH15D□	1.5		-88	-53	60	80	97
X-KZH18D□	1.8				70	110	150
X-KZH20D□	2.0				85	140	185

S Type: High Vacuum Type | L Type: Large Flow Type

Ordering Code

X-KZH 10 B S 01 01 01

No.	Item	Options / Description
①	Model	X-KZH: Basic Vacuum Ejector
②	Nozzle Dia.	05 (0.5mm), 07 (0.7mm), 10 (1.0mm), 13 (1.3mm) 15 (1.5mm), 18 (1.8mm), 20 (2.0mm) [15/18/20 only for Type D]
③	Body Type	B: Box Type (Built-in Silencer) D: Direct Piping Type (No Silencer)
④	Max Vacuum	S: -88 kPa (High Vacuum) L: -48 kPa / -53 kPa (Large Flow)
⑤	Supply Port (SUP)	Tube: 06(Φ6), 08(Φ8), 10(Φ10), 12(Φ12) Thread: 01(PT1/8), 02(PT1/4), 03(PT3/8)
⑥	Vacuum Port (VAC)	Tube: 06(Φ6), 10(Φ10), 12(Φ12), 16(Φ16) Thread: 01(PT1/8), 02(PT1/4), 03(PT3/8), 04(PT1/2)
⑦	Exhaust Port (EXH) [Note 1]	Tube: 06(Φ6), 08(Φ8), 10(Φ10), 12(Φ12), 16(Φ16) Thread: 01(PT1/8), 02(PT1/4), 03(PT3/8), 04(PT1/2)

[Note 1] When Body Type is B (Box Type), this code is Blank (No exhaust port connection needed).
