Airtac X-KZH series: pneumatic vacuum generator - X-KZH10BL0101

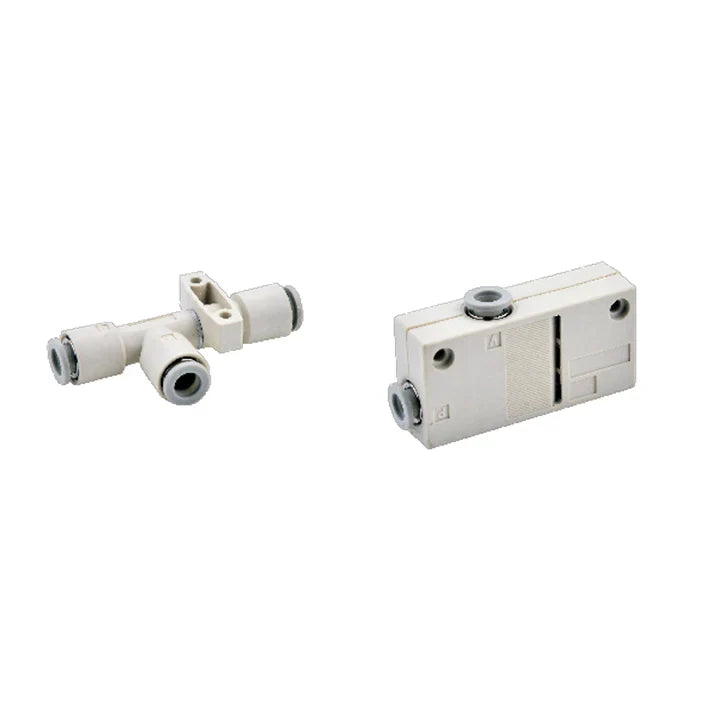

Photos are for reference only. Not all models have pictures.

Description

Specifications: X-KZH10BL0101. A 1 mm nozzle vacuum generator in a box body with an internal silencer, rated at -48 kPa maximum vacuum under the catalog test condition.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning for this model
X-KZH Basic vacuum generator
10 Nozzle Ø1 mm
B Box body with internal silencer
L High-flow type
01 SUP — air inlet: PT1/8
01 VAC — vacuum port: PT1/8

Technical Specifications

Parameter Details
Nozzle diameter 1 mm
Maximum vacuum -48 kPa
Maximum vacuum flow 34 L/min
Air consumption 46 L/min
Performance supply condition 0.45 MPa
Body Box type, integrated silencer
SUP — air inlet PT1/8
VAC — vacuum port PT1/8

Ordering and Connection Notes

  • B bodies contain a silencer and omit the EXH connection token. D bodies have an external exhaust connection and no silencer.
  • Sizes 05, 07, 10 and 13 have B and D configurations. Sizes 15, 18 and 20 are D configurations.
  • Threaded and push-in dimensional drawings have different geometry; the table above follows the connection format of this model.
  • The generic L ordering key is −48 kPa. The model-specific specification table lists −53 kPa for size 15, 18 and 20 L variants, which is the value used here.

Performance Curves

The printed curves cover X-KZH10S and X-KZH10L at 0.45 MPa. For 10S, the flow chart has vacuum magnitude 0–80 kPa and printed flow labels through 30 L/min; the evacuation chart has vacuum magnitude 10–70 kPa and time labels through 10 s/L. For 10L, flow axes are 0–45 kPa and through 50 L/min, and evacuation axes 10–45 kPa and through 2 s/L. Use these as illustrated reference curves, not a curve for every nozzle.

Dimensions and Mounting

Parameter Details
A 71 mm
B 18 mm
C 40 mm
D 5.8 mm
E 2 mm
F 3.2 mm
G 50 mm
H PT1/8
Q 33.5 mm
M PT1/8
K 5 mm
T 12 mm

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Reference Weight

Parameter Details
Weight 15.3 g — estimated reference; not an AirTAC published or measured weight.
