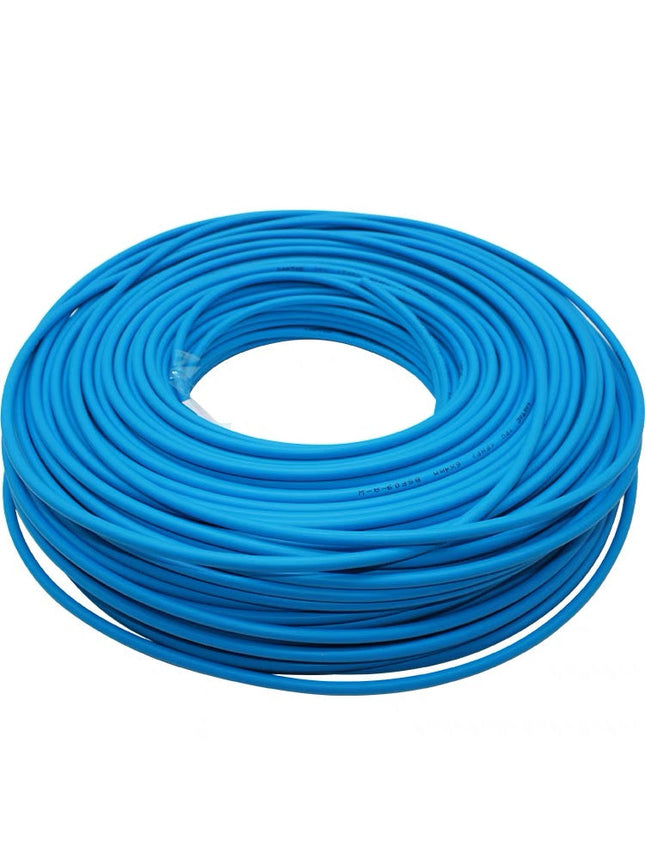

UN54D Series Tubing
Flame Retardant | High Elasticity | Hardness 54D±3
Product Features
- Flame Retardant: Specifically engineered as a single-layer air hose with built-in flame retardant properties, providing extra safety in environments with welding sparks or heat.
- High Elasticity & Flexibility: Features an extremely small minimum bending radius, allowing it to easily pass through tight, complex machine spaces without kinking.
- Durability: Offers excellent water resistance combined with good overall flexibility for dynamic motion applications.
- Strength: Superior wear resistance and high tensile strength ensure a long service life even under demanding conditions.
Technical Specifications
General Parameters
| Working Pressure (@ 23°C) | 1.0 MPa |
| Burst Pressure (@ 23°C) | 4.0 MPa |
| Working Temperature Range | -20 ~ 70°C (No freezing) |
| Standard Roll Length | 100 Meters / Roll |
Model Specific Dimensions
| Base Model Code | O.D. (mm) | I.D. (mm) | Wall Thickness (mm) | Min. Bending Radius (mm) | Weight (kg / 100m) |
|---|---|---|---|---|---|
| UN54D [ ] 060040 [ ][ ] | 6.0 | 4.0 | 1.00 | 12 | 1.93 |
| UN54D [ ] 080050 [ ][ ] | 8.0 | 5.0 | 1.50 | 18 | 3.66 |
| UN54D [ ] 100065 [ ][ ] | 10.0 | 6.5 | 1.75 | 20 | 5.44 |
| UN54D [ ] 120080 [ ][ ] | 12.0 | 8.0 | 2.00 | 20 | 7.56 |
Note: The " [ ] " in the base model code represent placeholders for the color code and length code. Please refer to the Ordering Code tab.
Product Ordering Code
Example: UN54D BU 080050 100M
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code | UN54D: Flame Retardant Tube (Hardness 54D±3) |
| 2 | Color Code |
BU: Blue | BK: Black | GN: Green WH: White | R: Red | Y: Yellow |
| 3 | Size Code (O.D. x I.D.) |
060040: Ø6.0mm x Ø4.0mm 080050: Ø8.0mm x Ø5.0mm 100065: Ø10.0mm x Ø6.5mm 120080: Ø12.0mm x Ø8.0mm |
| 4 | Length Code | 100M: 100 meters / roll |
