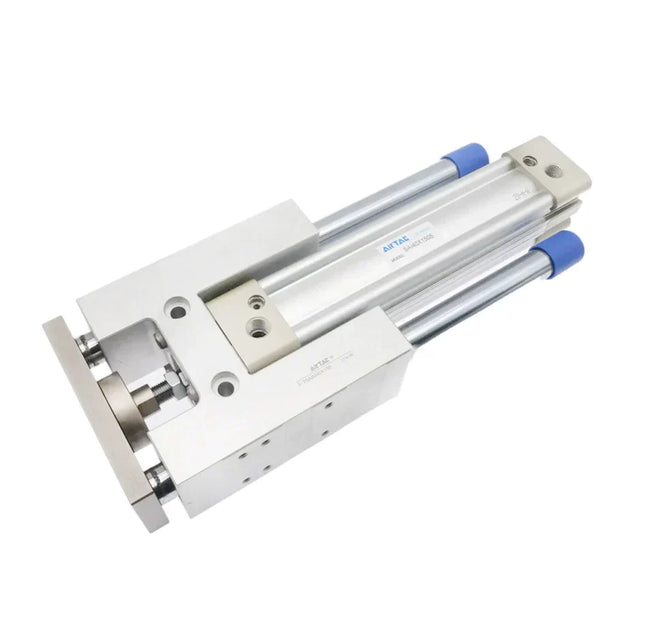

TSAI Series Guide Rod Cylinder
Product Features
- The guide rod cylinder is a new type of cylinder that combines a guide frame and a cylinder.
- Sliding Bearing (M): Suitable for lateral load actions such as cylinder braking, offering greater torque resistance.
- Linear Bearing (L): Suitable for pushing actions, or situations requiring high precision and high load bearing capacity; especially suitable for low friction motion.
- The special design of the guide frame body provides multi-directional mounting and fixation options.
- The guide frame cylinder buffer adjustment is smooth.
- Equipped with sensor fixing seats, the sensor installation position can be changed according to actual requirements.
Specifications
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|---|
| Action | Double Acting | |||||
| Fluid | Air (Filtered 40μm or better) | |||||
| Operating Pressure | 0.15~1.0MPa (22~145psi) (1.5~10.0bar) | |||||
| Proof Pressure | 1.5MPa (215psi) (15bar) | |||||
| Temperature | -20~70°C | |||||
| Speed Range | 30~500 mm/s | |||||
| Stroke Tolerance |
0~250: +1.0/0 >250: +1.5/0 |
|||||
| Cushion Type | Adjustable Cushion | |||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT3/8 | PT1/2 | ||
Note: [1] PT thread and G thread are available.
Standard Stroke
| Bore Size (mm) | Standard Stroke (mm) | Max Stroke |
|---|---|---|
| 32 | 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 | 500 |
| 40 | 500 | |
| 50 | 500 | |
| 63 | 500 | |
| 80 | 500 | |
| 100 | 500 |
Note: Please contact the company for other special strokes.
Product Ordering Code (Complete Unit)
| No. | Item | Code | Description |
|---|---|---|---|
| 1 | Model | TSAI | Guide Rod Cylinder |
| 2 | Bearing Type | M | Sliding Bearing (Bronze) |
| L | Linear Bearing | ||
| 3 | Bore Size | 32~100 | 32, 40, 50, 63, 80, 100 |
| 4 | Stroke | - | Refer to Stroke Table |
| 5 | Magnet | Blank | No Magnet |
| S | With Magnet [Note 1] | ||
| 6 | Thread Type | Blank | PT Thread |
| G | G Thread |
Ordering Notes:
1. When ordering "With Magnet" (Code S), the cylinder is equipped with 2 sets of sensor fixing seats.
2. Guide Frame Only: If you need to order the guide frame separately, use code F-TSAI + Bearing Type (M/L) + Bore + Stroke.
(e.g., F-TSAIM40X100).
3. Sensor Mounting Seats Mapping:
- F-TSAI32E: For Bore 32, 40
- F-TSAI50E: For Bore 50, 63
- F-TSAI80E: For Bore 80, 100
