SUS316 All Stainless Steel Fittings
High-Temperature & Corrosion Resistant Pneumatic Fittings
Product Features
- Premium Material: The main body, collet, and release sleeve are fully constructed from high-quality SUS316 stainless steel, offering superior structural strength and longevity.
- Exceptional Corrosion Resistance: Highly resistant to aggressive chemicals, making them perfectly suited for food processing, medical equipment, chemical plants, and marine environments.
- High Temp & Pressure Tolerant: Engineered to securely withstand significantly higher temperatures and operating pressures compared to standard plastic or brass fittings.
- Wide Fluid Compatibility: Designed for versatile use with compressed air, water, steam, and various chemical fluids compatible with SUS316 and FKM materials.
- Comprehensive Range: Available in a wide variety of configurations, including standard push-in, threaded, and compression styles to meet all complex piping requirements.
Technical Specifications
| Specification Item | Description / Parameters |
|---|---|
| Body & Collet Material | SUS316 Stainless Steel |
| Seal Material | FKM (Viton) Standard |
| Operating Fluid | Air, Water, Steam, Chemicals (must be compatible with SUS316 & FKM) |
| Operating Pressure | -100 kPa ~ 3.0 MPa (Maximum pressure depends on tubing material) |
| Proof Pressure | Check specific model rating (Generally high tolerance) |
| Ambient & Fluid Temp. | -20°C ~ 150°C (Unfrozen state) |
| Applicable Tubing | PU, Nylon, Teflon (FEP/PFA) |
Product Ordering & Model Guide
Series Prefix: X-S6 (Designates SUS316 Series)
1. Tube-to-Tube Series (Push-in)
Example: X-S6-PE 10 (Union Tee, 10mm OD)
| Model Code | Description | Tube O.D. I (mm) | Tube O.D. II (mm) [If Reducer] |
|---|---|---|---|
| PE | Union Tee |
4: Φ4mm 6: Φ6mm 8: Φ8mm 10: Φ10mm 12: Φ12mm 14: Φ14mm 16: Φ16mm |
(For Reducer Types Only) 4: Φ4mm 6: Φ6mm 8: Φ8mm 10: Φ10mm 12: Φ12mm 14: Φ14mm |
| PV | Union Elbow | ||
| PY | Union Y | ||
| PM | Bulkhead Union | ||
| PU | Union Straight | ||
| PP | Plug | ||
| PGJ | Plug-in Reducer | ||
| PEG | Reducer Tee | ||
| PWY | Reducer Y | ||
| PG | Union Reducer |

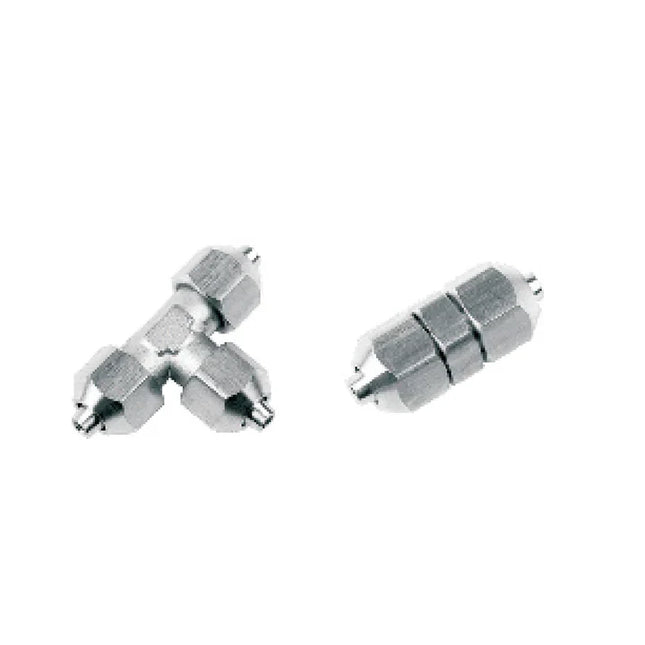

2. L Series (Compression / Nut Type)
Example: X-S6-LPL 10 X 8 02
| Model Code | Description | Tube O.D. (mm) | Thread Size |
|---|---|---|---|
| LPN | Cap / Nut |
4: Φ4mm 6: Φ6mm 8: Φ8mm 10: Φ10mm 12: Φ12mm |
Metric Thread: M5: M5 x 0.8 PT (R) Thread: 01: 1/8" 02: 1/4" 03: 3/8" 04: 1/2" |
| LPE | Union Tee | ||
| LPU | Union Straight | ||
| LPV | Union Elbow | ||
| LPL | Male Elbow | ||
| LPC | Male Connector | ||
| LPB | Male Branch Tee |

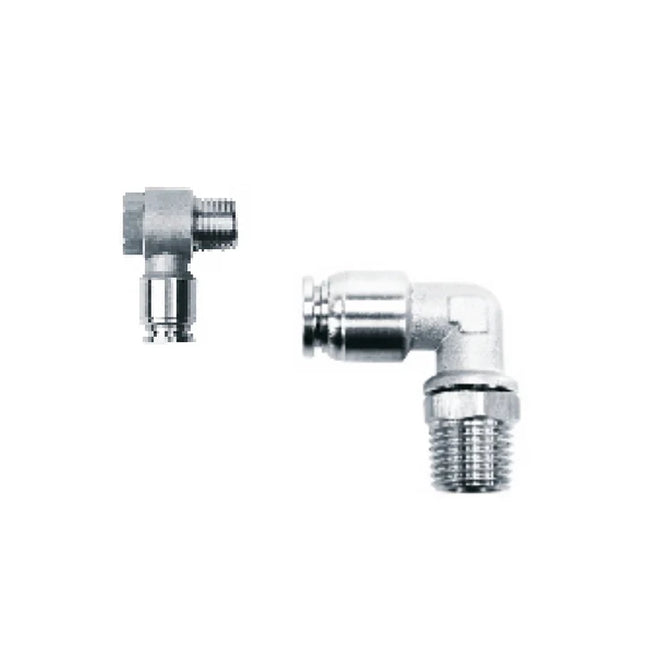

3. Threaded Push-in Series
Example: X-S6-PC 10 02
| Model Code | Description | Tube O.D. (mm) | Thread Size |
|---|---|---|---|
| PC | Male Connector |
4: Φ4mm 6: Φ6mm 8: Φ8mm 10: Φ10mm 12: Φ12mm 14: Φ14mm 16: Φ16mm |
Metric Thread: M5: M5 x 0.8 PT (R) Thread: 01: 1/8" 02: 1/4" 03: 3/8" 04: 1/2" |
| PCF | Female Connector | ||
| POC | Hex Socket Male Straight | ||
| PH | Male Elbow (Hex Body) | ||
| PL | Male Elbow (Swivel) | ||
| PEB | Male Branch Tee | ||
| PLF | Female Elbow | ||
| PSA | Speed Controller |
