Tube Fitting Product Information

Tube Fitting

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

  1. This series of connectors does not contain copper and is suitable for fluorine-free environments.
  2. With various types and models, it can be applied to various pneumatic piping systems.
  3. The flow performance is superior, and it can pass through the medium to carry the full flow rate of the inner diameter of the gas pipe.
  4. The connection is simple and convenient, and the connection part between the pipe and the pipe joint can be safely sealed and durable.

Specifications

Operating Pressure Range 0–10kgf/cm² (0–1.0MPa)
Negative Pressure -750mmHg (10Torr)
Proof Pressure 1.5MPa
Operating Temperature Range -20–70°C
Applicable Tubing Nylon tubing or PU tubing
Color Gray and Black

Product Ordering Code

Same Diameter Connector Type

Position Description Options & Values
1 Model Code
  • PM: Bulkhead Fitting
  • PLM: Bulkhead Elbow

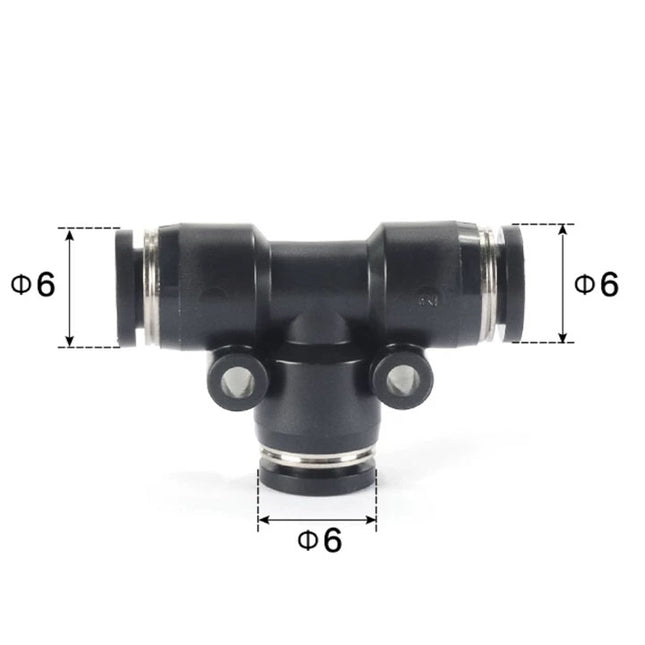

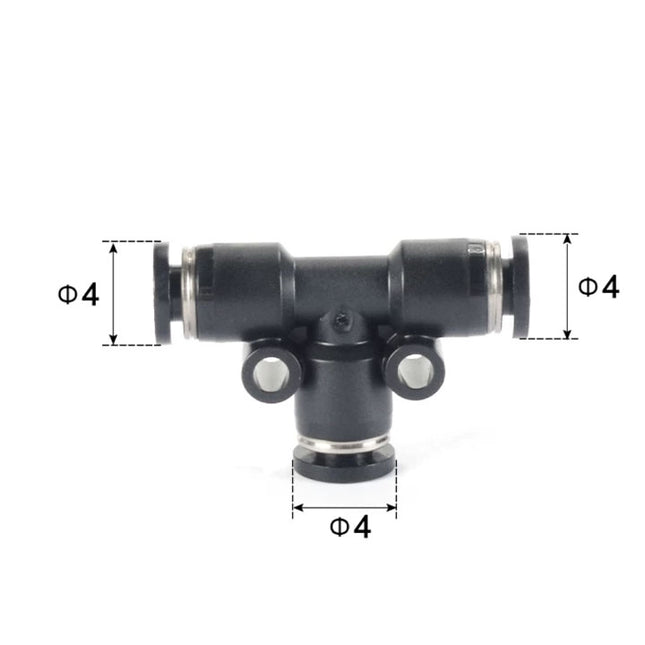

  • PE: T-Fitting

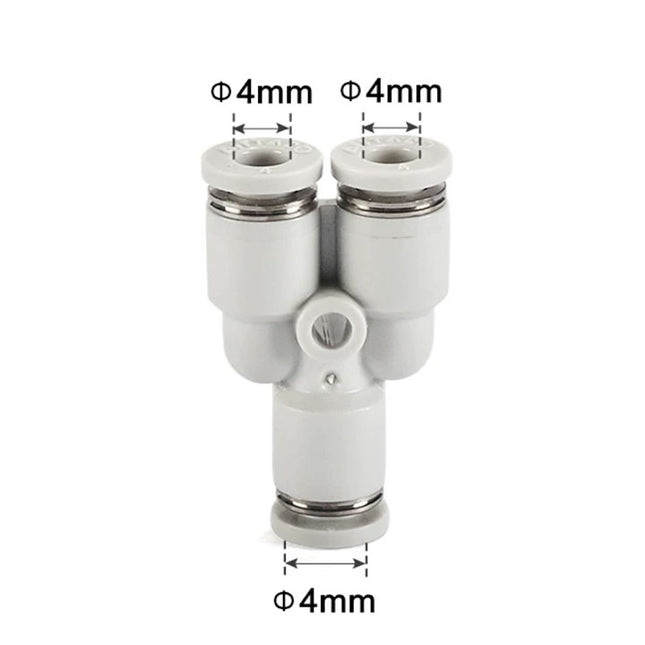

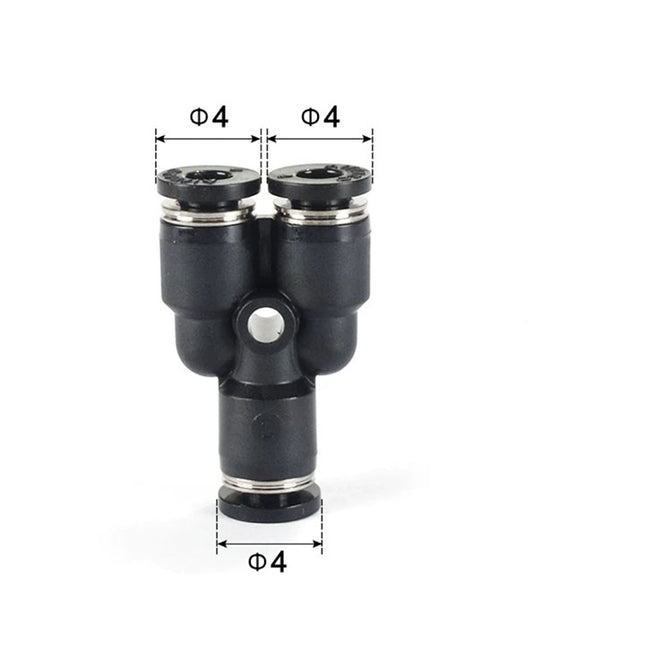

  • PY: Y-Junction

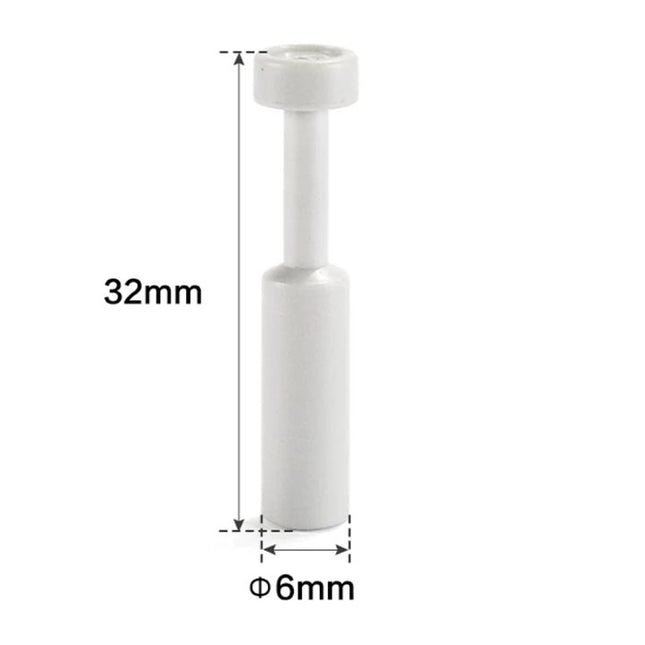

  • PP: Pipe Plug
  • PZ: Cross

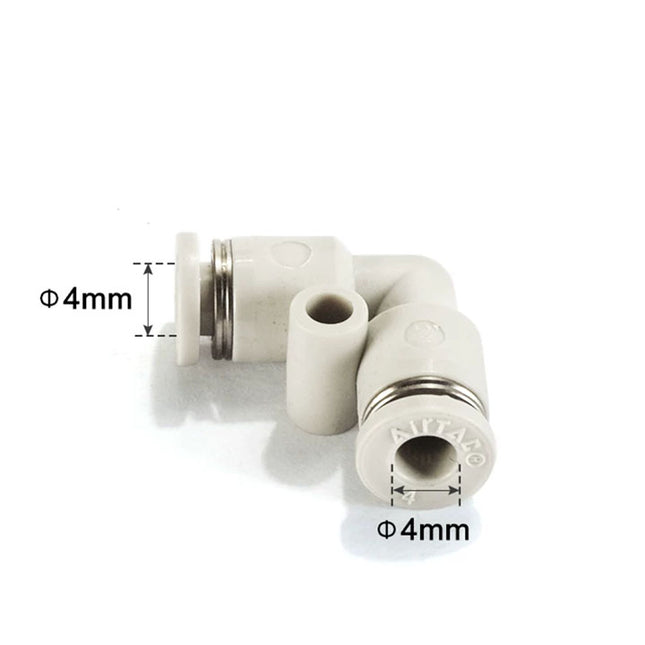

  • PV: L-type Union

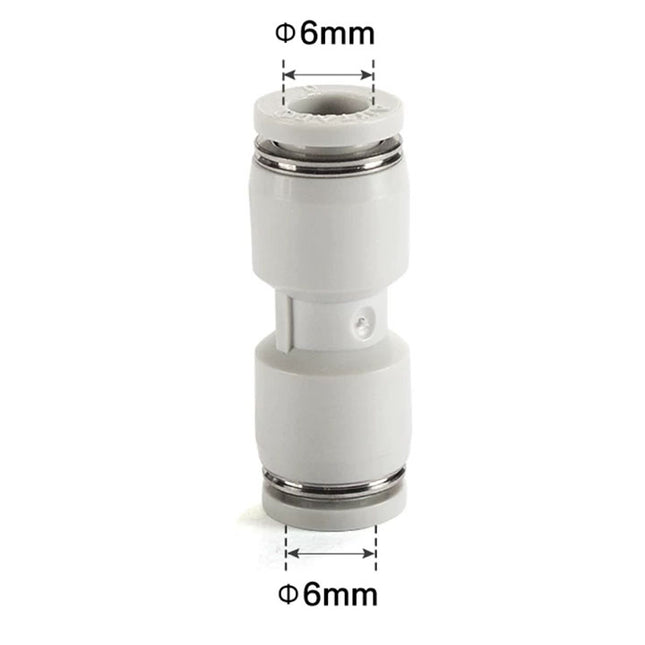

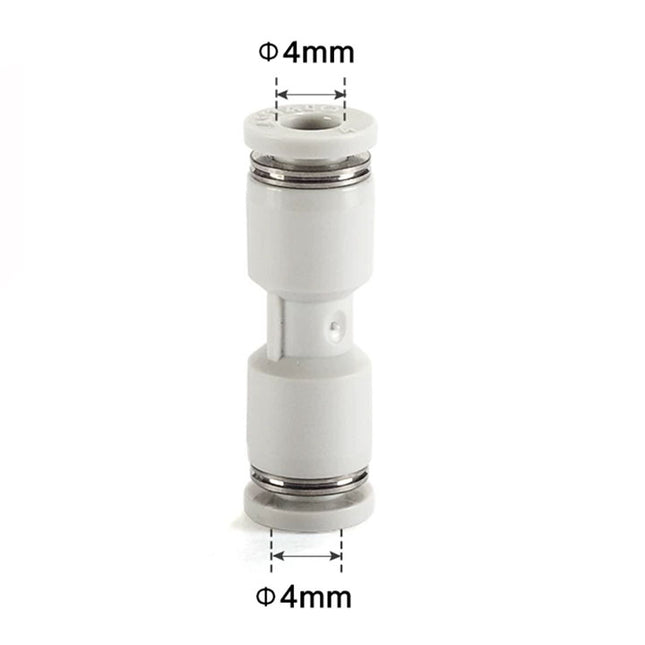

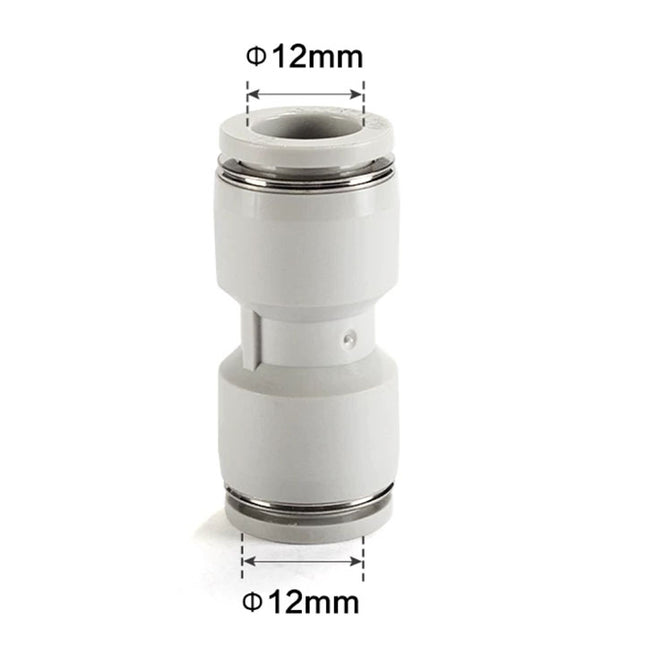

  • PU: Coupling
2 Tube OD
  • 4: ø4mm
  • 6: ø6mm
  • 8: ø8mm
  • 10: ø10mm
  • 12: ø12mm
3 Color Code
  • Blank: Gray (Port: Gray, Body: Varies by model)
  • D: Black (Port: Black, Body: Black)

Reducing Connector Type

Position Description Options & Values
1 Model Code
  • PG: Reducing Coupling
  • PEG: Reducing Tee
  • PEW: Reducing Outlet Tee
  • PYW: Reducing Wye
  • PZG: Reducing Cross
  • PGJ: Reducing Bulkhead Fitting
  • PKG: Reducing 5-Way
  • PHK: Swivel Reducing 5-Way
  • PHD: Swivel Reducing 6-Way
2 Tube OD Ⅰ
  • 4: ø4mm
  • 6: ø6mm
  • 8: ø8mm
  • 10: ø10mm
  • 12: ø12mm
3 Tube OD Ⅱ
  • 4: ø4mm
  • 6: ø6mm
  • 8: ø8mm
  • 10: ø10mm
4 Color Code
  • Blank: Gray (Port: Gray, Body: Gray)
  • D: Black (Port: Black, Body: Black)
  • Airtac PZ: Push Lock Fitting. Cross - PZ6D

    Airtac PZ series: union cross - PZ6D

    Specifications: PZ6D is an Airtac cross. Cross; Tube outside diameter: 6 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PZ Cross 6 Tube outside diameter: 6 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm A 39.5 mm ØP 12.5 mm K 16.5 mm ØJ 3.2 mm JB 8 mm JC 16 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 7.9 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PZ10, PZ12, PZ4, PZ6, PZ8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 4 push-in sockets for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 4 sockets in this T group receive 6 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PZ: Push Lock Fitting. Cross - PZ4D

    Airtac PZ series: union cross - PZ4D

    Specifications: PZ4D is an Airtac cross. Cross; Tube outside diameter: 4 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PZ Cross 4 Tube outside diameter: 4 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 4 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 4 mm A 34 mm ØP 9 mm K 14 mm ØJ 3.2 mm JB 6.5 mm JC 13 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 3.9 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PZ10, PZ12, PZ4, PZ6, PZ8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 4 push-in sockets for 4 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 4 × 2.5: UE95A040025100MBU,US98A040025100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 4 sockets in this T group receive 4 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PY: Push Lock Fitting. Union Y - PY12D

    Airtac PY series: union y fitting - PY12D

    Specifications: PY12D is an Airtac union y. Union Y; Tube outside diameter: 12 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PY Union Y 12 Tube outside diameter: 12 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 12 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 12 mm ØP 21 mm C 54.5 mm K 23 mm ØJ 4.3 mm JA 21 mm DC 20.5 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 21.2 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PY10, PY12, PY4, PY6, PY8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 3 push-in sockets for 12 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 3 sockets in this T group receive 12 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PY: Push Lock Fitting. Union Y - PY10D

    Airtac PY series: union y fitting - PY10D

    Specifications: PY10D is an Airtac union y. Union Y; Tube outside diameter: 10 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PY Union Y 10 Tube outside diameter: 10 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 10 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 10 mm ØP 18 mm C 48.5 mm K 21 mm ØJ 4.3 mm JA 19.5 mm DC 18 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 14 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PY10, PY12, PY4, PY6, PY8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 3 push-in sockets for 10 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 3 sockets in this T group receive 10 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

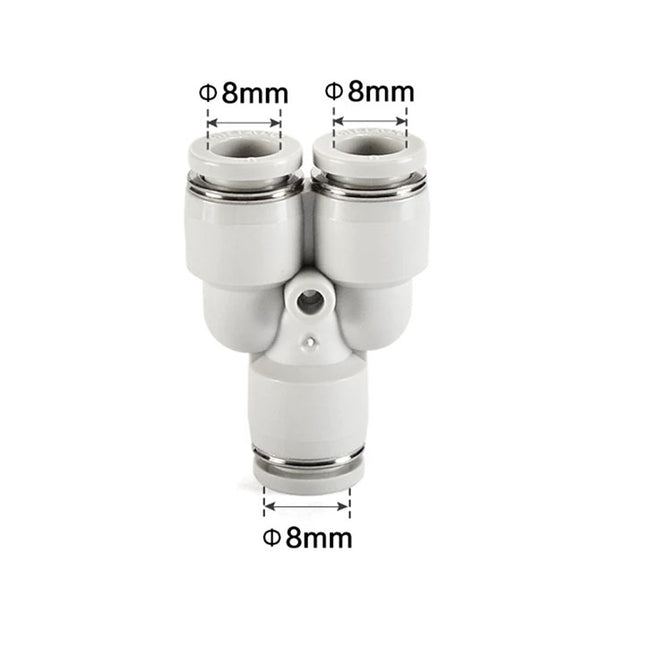

  • Airtac PY: Push Lock Fitting. Union Y - PY8D

    Airtac PY series: union y fitting - PY8D

    Specifications: PY8D is an Airtac union y. Union Y; Tube outside diameter: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PY Union Y 8 Tube outside diameter: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm ØP 15 mm C 42.5 mm K 18.5 mm ØJ 3.2 mm JA 17 mm DC 14.5 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 8.6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PY10, PY12, PY4, PY6, PY8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 3 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 3 sockets in this T group receive 8 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PY: Push Lock Fitting. Union Y - PY6D

    Airtac PY series: union y fitting - PY6D

    Specifications: PY6D is an Airtac union y. Union Y; Tube outside diameter: 6 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PY Union Y 6 Tube outside diameter: 6 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm ØP 12.5 mm C 37 mm K 16.5 mm ØJ 3.2 mm JA 15.5 mm DC 12 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PY10, PY12, PY4, PY6, PY8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 3 push-in sockets for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 3 sockets in this T group receive 6 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PLM: Push Lock Fitting. Bulkhead Male Elbow - PLM12D

    Airtac PLM series: bulkhead elbow - PLM12D

    Specifications: PLM12D is an Airtac bulkhead elbow. Bulkhead elbow; Tube outside diameter: 12 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PLM Bulkhead elbow 12 Tube outside diameter: 12 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 12 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Mounting thread M The M value in the dimension drawing is the bulkhead mounting thread. It is not an additional pipe-connection code. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 12 mm ØP 21 mm M M22×1 L 15.5 mm E 11 mm K 23 mm EA 29.5 mm EB 48 mm GA 6 mm G (across flats) 27 mm H (across flats) 24 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 34 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PLM10, PLM12, PLM4, PLM6, PLM8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 12 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. The M thread is for bulkhead mounting, not an additional pneumatic port. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. The bulkhead M thread, washer and nut are mounting features, not pneumatic connections. Check panel thickness, washer and nut seating, clearance and support without twisting the connected tubing. Both tube sockets require the exact OD shown for T; the mounting thread does not select a threaded pipe accessory. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PLM: Push Lock Fitting. Bulkhead Male Elbow - PLM8D

    Airtac PLM series: bulkhead elbow - PLM8D

    Specifications: PLM8D is an Airtac bulkhead elbow. Bulkhead elbow; Tube outside diameter: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PLM Bulkhead elbow 8 Tube outside diameter: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Mounting thread M The M value in the dimension drawing is the bulkhead mounting thread. It is not an additional pipe-connection code. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm ØP 15 mm M M16×1 L 13.5 mm E 9 mm K 18.5 mm EA 23 mm EB 39 mm GA 4 mm G (across flats) 19 mm H (across flats) 19 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 16.6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PLM10, PLM12, PLM4, PLM6, PLM8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. The M thread is for bulkhead mounting, not an additional pneumatic port. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. The bulkhead M thread, washer and nut are mounting features, not pneumatic connections. Check panel thickness, washer and nut seating, clearance and support without twisting the connected tubing. Both tube sockets require the exact OD shown for T; the mounting thread does not select a threaded pipe accessory. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PLM: Push Lock Fitting. Bulkhead Male Elbow - PLM6D

    Airtac PLM series: bulkhead elbow - PLM6D

    Specifications: PLM6D is an Airtac bulkhead elbow. Bulkhead elbow; Tube outside diameter: 6 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PLM Bulkhead elbow 6 Tube outside diameter: 6 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Mounting thread M The M value in the dimension drawing is the bulkhead mounting thread. It is not an additional pipe-connection code. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm ØP 12.5 mm M M14×1 L 12.5 mm E 8.5 mm K 17 mm EA 20 mm EB 35.5 mm GA 4 mm G (across flats) 17 mm H (across flats) 17 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 12.1 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PLM10, PLM12, PLM4, PLM6, PLM8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. The M thread is for bulkhead mounting, not an additional pneumatic port. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. The bulkhead M thread, washer and nut are mounting features, not pneumatic connections. Check panel thickness, washer and nut seating, clearance and support without twisting the connected tubing. Both tube sockets require the exact OD shown for T; the mounting thread does not select a threaded pipe accessory. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PLM: Push Lock Fitting. Bulkhead Male Elbow - PLM4D

    Airtac PLM series: bulkhead elbow - PLM4D

    Specifications: PLM4D is an Airtac bulkhead elbow. Bulkhead elbow; Tube outside diameter: 4 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PLM Bulkhead elbow 4 Tube outside diameter: 4 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 4 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Mounting thread M The M value in the dimension drawing is the bulkhead mounting thread. It is not an additional pipe-connection code. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 4 mm ØP 9 mm M M12×1 L 12 mm E 7.5 mm K 14 mm EA 17 mm EB 31 mm GA 4 mm G (across flats) 14 mm H (across flats) 14 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 7.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PLM10, PLM12, PLM4, PLM6, PLM8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 4 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. The M thread is for bulkhead mounting, not an additional pneumatic port. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 4 × 2.5: UE95A040025100MBU,US98A040025100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. The bulkhead M thread, washer and nut are mounting features, not pneumatic connections. Check panel thickness, washer and nut seating, clearance and support without twisting the connected tubing. Both tube sockets require the exact OD shown for T; the mounting thread does not select a threaded pipe accessory. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PV: Push Lock Fitting. Union Elbow - PV12D

    Airtac PV series: union elbow - PV12D

    Specifications: PV12D is an Airtac union elbow. Union elbow; Tube outside diameter: 12 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PV Union elbow 12 Tube outside diameter: 12 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 12 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 12 mm ØP 21 mm K 23 mm E 30 mm ØJ 4.3 mm JB 13 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 14.6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PV10, PV12, PV4, PV6, PV8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 12 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 2 sockets in this T group receive 12 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PV: Push Lock Fitting. Union Elbow - PV8D

    Airtac PV series: union elbow - PV8D

    Specifications: PV8D is an Airtac union elbow. Union elbow; Tube outside diameter: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PV Union elbow 8 Tube outside diameter: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm ØP 15 mm K 18.5 mm E 23 mm ØJ 4.3 mm JB 9.5 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PV10, PV12, PV4, PV6, PV8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 2 sockets in this T group receive 8 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PV: Push Lock Fitting. Union Elbow - PV6D

    Airtac PV series: union elbow - PV6D

    Specifications: PV6D is an Airtac union elbow. Union elbow; Tube outside diameter: 6 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PV Union elbow 6 Tube outside diameter: 6 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm ØP 12.5 mm K 16.5 mm E 20 mm ØJ 3.2 mm JB 8 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 4.2 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PV10, PV12, PV4, PV6, PV8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 2 sockets in this T group receive 6 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PP: Push Lock Fitting. Plug - PP12

    Airtac PP series: tube plug - PP12D

    Specifications: PP12D is an Airtac tube plug. Tube plug; Plug stem outside diameter: 12 mm; Black plug color. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PP Tube plug 12 Plug stem outside diameter: 12 mm D Black plug color Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Plug stem outside diameter: 12 mm; Black plug color Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation A plug form is provided for the corresponding fitting connection size; the dimensions distinguish the plug stem diameter from the head diameters. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 12 mm ØPA 13 mm ØPB 6 mm L 23 mm A 44 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 4.3 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PP10, PP12, PP4, PP6, PP8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections.

  • Airtac PP: Push Lock Fitting. Plug - PP8

    Airtac PP series: tube plug - PP8D

    Specifications: PP8D is an Airtac tube plug. Tube plug; Plug stem outside diameter: 8 mm; Black plug color. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PP Tube plug 8 Plug stem outside diameter: 8 mm D Black plug color Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Plug stem outside diameter: 8 mm; Black plug color Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation A plug form is provided for the corresponding fitting connection size; the dimensions distinguish the plug stem diameter from the head diameters. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm ØPA 9 mm ØPB 4 mm L 18 mm A 36 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 1.6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PP10, PP12, PP4, PP6, PP8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections.

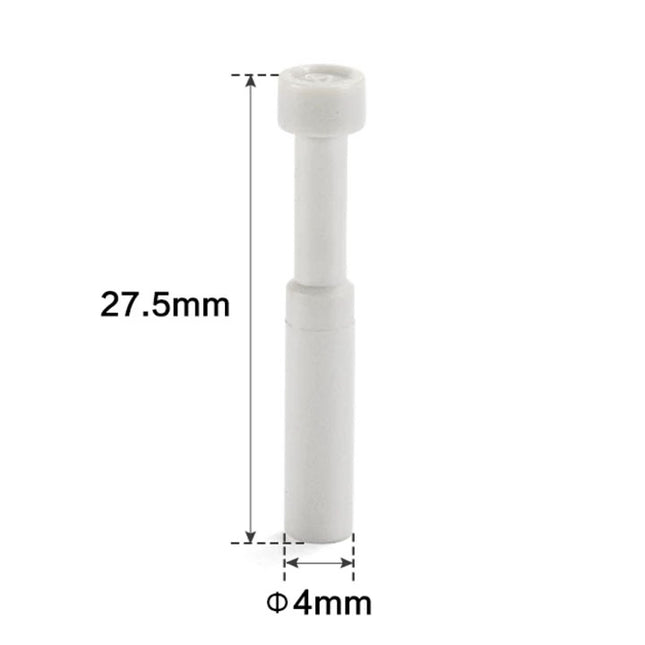

  • Airtac PP: Push Lock Fitting. Plug - PP4D

    Airtac PP series: tube plug - PP4D

    Specifications: PP4D is an Airtac tube plug. Tube plug; Plug stem outside diameter: 4 mm; Black plug color. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PP Tube plug 4 Plug stem outside diameter: 4 mm D Black plug color Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Plug stem outside diameter: 4 mm; Black plug color Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation A plug form is provided for the corresponding fitting connection size; the dimensions distinguish the plug stem diameter from the head diameters. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 4 mm ØPA 5 mm ØPB 3 mm L 15 mm A 27.5 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 0.7 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PP10, PP12, PP4, PP6, PP8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections.

  • Airtac PE: Push Lock Fitting. Union Tee - PE10D

    Airtac PE series: union tee - PE10D

    Specifications: PE10D is an Airtac union tee. Union tee; Tube outside diameter: 10 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PE Union tee 10 Tube outside diameter: 10 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 10 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 10 mm ØP 18 mm K 21 mm E 26.5 mm ØJ 4.3 mm JB 11 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 13.8 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PE10, PE12, PE4, PE6, PE8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 3 push-in sockets for 10 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 3 sockets in this T group receive 10 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PE: Push Lock Fitting. Union Tee - PE8D

    Airtac PE series: union tee - PE8D

    Specifications: PE8D is an Airtac union tee. Union tee; Tube outside diameter: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PE Union tee 8 Tube outside diameter: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm ØP 15 mm K 18.5 mm E 23 mm ØJ 4.3 mm JB 9.5 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 8.8 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PE10, PE12, PE4, PE6, PE8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 3 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 3 sockets in this T group receive 8 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PM: Push Lock Fitting. Bulkhead Union - PM10D

    Airtac PM series: bulkhead straight union - PM10D

    Specifications: PM10D is an Airtac bulkhead straight connector. Bulkhead straight connector; Tube outside diameter: 10 mm; Black release button. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PM Bulkhead straight connector 10 Tube outside diameter: 10 mm D Black release button Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 10 mm; Black release button Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Mounting thread M The M value in the dimension drawing is the bulkhead mounting thread. It is not an additional pipe-connection code. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 10 mm M M20×1 A 43 mm K 21 mm L 12.5 mm E 16 mm GA 5 mm G (across flats) 24 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 22.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PM10, PM12, PM4, PM6, PM8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 10 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. The M thread is for bulkhead mounting, not an additional pneumatic port. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. The bulkhead M thread, washer and nut are mounting features, not pneumatic connections. Check panel thickness, washer and nut seating, clearance and support without twisting the connected tubing. Both tube sockets require the exact OD shown for T; the mounting thread does not select a threaded pipe accessory. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PM: Push Lock Fitting. Bulkhead Union - PM6D

    Airtac PM series: bulkhead straight union - PM6D

    Specifications: PM6D is an Airtac bulkhead straight connector. Bulkhead straight connector; Tube outside diameter: 6 mm; Black release button. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PM Bulkhead straight connector 6 Tube outside diameter: 6 mm D Black release button Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 6 mm; Black release button Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Mounting thread M The M value in the dimension drawing is the bulkhead mounting thread. It is not an additional pipe-connection code. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 6 mm M M14×1 A 34 mm K 16.5 mm L 10.5 mm E 11 mm GA 4 mm G (across flats) 17 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 9.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PM10, PM12, PM4, PM6, PM8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. The M thread is for bulkhead mounting, not an additional pneumatic port. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. The bulkhead M thread, washer and nut are mounting features, not pneumatic connections. Check panel thickness, washer and nut seating, clearance and support without twisting the connected tubing. Both tube sockets require the exact OD shown for T; the mounting thread does not select a threaded pipe accessory. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PM: Push Lock Fitting. Bulkhead Union - PM4D

    Airtac PM series: bulkhead straight union - PM4D

    Specifications: PM4D is an Airtac bulkhead straight connector. Bulkhead straight connector; Tube outside diameter: 4 mm; Black release button. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PM Bulkhead straight connector 4 Tube outside diameter: 4 mm D Black release button Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 4 mm; Black release button Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Mounting thread M The M value in the dimension drawing is the bulkhead mounting thread. It is not an additional pipe-connection code. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 4 mm M M12×1 A 29 mm K 14 mm L 10 mm E 7 mm GA 4 mm G (across flats) 14 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 6.2 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PM10, PM12, PM4, PM6, PM8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 4 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. The M thread is for bulkhead mounting, not an additional pneumatic port. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 4 × 2.5: UE95A040025100MBU,US98A040025100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. The bulkhead M thread, washer and nut are mounting features, not pneumatic connections. Check panel thickness, washer and nut seating, clearance and support without twisting the connected tubing. Both tube sockets require the exact OD shown for T; the mounting thread does not select a threaded pipe accessory. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PE: Push Lock Fitting. Union Tee - PE12 PE12

    Airtac PE series: union tee - PE12

    Specifications: PE12 is an Airtac union tee. Union tee; Tube outside diameter: 12 mm; Gray release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PE Union tee 12 Tube outside diameter: 12 mm (blank color code) Gray release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 12 mm; Gray release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 12 mm ØP 21 mm K 23 mm E 30 mm ØJ 4.3 mm JB 13 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 21 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PE10, PE12, PE4, PE6, PE8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 3 push-in sockets for 12 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 3 sockets in this T group receive 12 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PEG: Push Lock Fitting. Different Diameter Tee - PEG10-8

    Airtac PEG series: reducing tee - PEG10-8

    Specifications: PEG10-8 is an Airtac different-diameter tee. Different-diameter tee; Tube outside diameter at port I: 10 mm; Tube outside diameter at port II: 8 mm; Gray release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PEG Different-diameter tee 10 Tube outside diameter at port I: 10 mm 8 Tube outside diameter at port II: 8 mm (blank color code) Gray release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 10 mm; Tube outside diameter at port II: 8 mm; Gray release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 10 mm ØDB 8 mm ØP 18 mm KA 21 mm KB 18.5 mm EA 25.5 mm EB 25.5 mm ØJ 4.3 mm JB 11 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266; printed weights retained without interpolation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 15.1 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PEG10-8, PEG12-10, PEG12-8, PEG6-4, PEG8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 2 push-in sockets for 10 mm OD tube; II = 1 push-in socket for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 8 × 5: UE95A080050100MBU,US98A080050100MBU I 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 2 port-I sockets for 10 mm OD tube and 1 port-II socket for 8 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm; II, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  • Airtac PEG: Push Lock Fitting. Different Diameter Tee - PEG12-10

    Airtac PEG series: reducing tee - PEG12-10

    Specifications: PEG12-10 is an Airtac different-diameter tee. Different-diameter tee; Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 10 mm; Gray release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PEG Different-diameter tee 12 Tube outside diameter at port I: 12 mm 10 Tube outside diameter at port II: 10 mm (blank color code) Gray release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 10 mm; Gray release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 12 mm ØDB 10 mm ØP 21 mm KA 23 mm KB 21 mm EA 29 mm EB 29 mm ØJ 4.3 mm JB 13 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266; printed weights retained without interpolation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 21.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PEG10-8, PEG12-10, PEG12-8, PEG6-4, PEG8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 2 push-in sockets for 12 mm OD tube; II = 1 push-in socket for 10 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 10 × 6.5: UE95A100065100MBU,US98A100065100MBU I 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 2 port-I sockets for 12 mm OD tube and 1 port-II socket for 10 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm; II, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.
