Tube Fitting

Show previous products

•

  View options

  Airtac PGJ series: plug-in reducer - PGJ10-6D

  Specifications: PGJ10-6D is an Airtac plug-in reducer. Plug-in reducer; Plug-in stem outside diameter: 10 mm; Receiving tube outside diameter: 6 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PGJ Plug-in reducer 10 Plug-in stem outside diameter: 10 mm 6 Receiving tube outside diameter: 6 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Plug-in stem outside diameter: 10 mm; Receiving tube outside diameter: 6 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Connection arrangement Port I is the male plug-in stem; port II receives tubing. Match the two diameters separately. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 10 mm ØDB 6 mm ØP 15 mm K 16.5 mm L 25 mm A 44 mm Source: Linked tube-to-tube fittings PDF page 4 printed page 267. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 4.1 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PGJ10-6, PGJ10-8, PGJ12-10, PGJ12-8, PGJ6-4, PGJ8-4, PGJ8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing II = 1 push-in socket for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Port I is the 10 mm rigid plug-in stem for a matching host socket; it does not receive tubing. Only port II receives the listed tube. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. On this plug-in reducer, port I is the 10 mm rigid stem and port II is the 6 mm tube-receiving socket. Insert the stem only into a compatible host push-in socket after confirming the specified stem fit and seating. Do not push flexible tube over the stem or treat port I as a tube socket; the listed tubes serve port II only. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are II, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

  Airtac PGJ series: plug-in reducer - PGJ8-6D

  Specifications: PGJ8-6D is an Airtac plug-in reducer. Plug-in reducer; Plug-in stem outside diameter: 8 mm; Receiving tube outside diameter: 6 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PGJ Plug-in reducer 8 Plug-in stem outside diameter: 8 mm 6 Receiving tube outside diameter: 6 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Plug-in stem outside diameter: 8 mm; Receiving tube outside diameter: 6 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Connection arrangement Port I is the male plug-in stem; port II receives tubing. Match the two diameters separately. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 8 mm ØDB 6 mm ØP 12.5 mm K 16.5 mm L 22 mm A 39.5 mm Source: Linked tube-to-tube fittings PDF page 4 printed page 267. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 3.2 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PGJ10-6, PGJ10-8, PGJ12-10, PGJ12-8, PGJ6-4, PGJ8-4, PGJ8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing II = 1 push-in socket for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Port I is the 8 mm rigid plug-in stem for a matching host socket; it does not receive tubing. Only port II receives the listed tube. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. On this plug-in reducer, port I is the 8 mm rigid stem and port II is the 6 mm tube-receiving socket. Insert the stem only into a compatible host push-in socket after confirming the specified stem fit and seating. Do not push flexible tube over the stem or treat port I as a tube socket; the listed tubes serve port II only. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are II, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

  Airtac PGJ series: plug-in reducer - PGJ8-4D

  Specifications: PGJ8-4D is an Airtac plug-in reducer. Plug-in reducer; Plug-in stem outside diameter: 8 mm; Receiving tube outside diameter: 4 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PGJ Plug-in reducer 8 Plug-in stem outside diameter: 8 mm 4 Receiving tube outside diameter: 4 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Plug-in stem outside diameter: 8 mm; Receiving tube outside diameter: 4 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Connection arrangement Port I is the male plug-in stem; port II receives tubing. Match the two diameters separately. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 8 mm ØDB 4 mm ØP 12.5 mm K 14 mm L 22 mm A 39 mm Source: Linked tube-to-tube fittings PDF page 4 printed page 267. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 2.6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PGJ10-6, PGJ10-8, PGJ12-10, PGJ12-8, PGJ6-4, PGJ8-4, PGJ8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing II = 1 push-in socket for 4 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Port I is the 8 mm rigid plug-in stem for a matching host socket; it does not receive tubing. Only port II receives the listed tube. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 4 × 2.5: UE95A040025100MBU,US98A040025100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. On this plug-in reducer, port I is the 8 mm rigid stem and port II is the 4 mm tube-receiving socket. Insert the stem only into a compatible host push-in socket after confirming the specified stem fit and seating. Do not push flexible tube over the stem or treat port I as a tube socket; the listed tubes serve port II only. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are II, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

  Airtac PGJ series: plug-in reducer - PGJ6-4D

  Specifications: PGJ6-4D is an Airtac plug-in reducer. Plug-in reducer; Plug-in stem outside diameter: 6 mm; Receiving tube outside diameter: 4 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PGJ Plug-in reducer 6 Plug-in stem outside diameter: 6 mm 4 Receiving tube outside diameter: 4 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Plug-in stem outside diameter: 6 mm; Receiving tube outside diameter: 4 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Connection arrangement Port I is the male plug-in stem; port II receives tubing. Match the two diameters separately. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 6 mm ØDB 4 mm ØP 9 mm K 14 mm L 21 mm A 35 mm Source: Linked tube-to-tube fittings PDF page 4 printed page 267. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 1.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PGJ10-6, PGJ10-8, PGJ12-10, PGJ12-8, PGJ6-4, PGJ8-4, PGJ8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing II = 1 push-in socket for 4 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Port I is the 6 mm rigid plug-in stem for a matching host socket; it does not receive tubing. Only port II receives the listed tube. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 4 × 2.5: UE95A040025100MBU,US98A040025100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. On this plug-in reducer, port I is the 6 mm rigid stem and port II is the 4 mm tube-receiving socket. Insert the stem only into a compatible host push-in socket after confirming the specified stem fit and seating. Do not push flexible tube over the stem or treat port I as a tube socket; the listed tubes serve port II only. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are II, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.10

  View options

•

  View options

  Airtac PYW series: reducing union y fitting - PYW12-10D

  Specifications: PYW12-10D is an Airtac different-diameter union y. Different-diameter union Y; Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 10 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PYW Different-diameter union Y 12 Tube outside diameter at port I: 12 mm 10 Tube outside diameter at port II: 10 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 10 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 12 mm ØDB 10 mm C 54.5 mm ØP 21 mm KA 23 mm KB 21 mm ØJ 4.3 mm JA 21 mm DC 20.5 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 21.7 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PYW10-8, PYW12-10, PYW12-8, PYW6-4, PYW8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 12 mm OD tube; II = 2 push-in sockets for 10 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 10 × 6.5: UE95A100065100MBU,US98A100065100MBU I 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 12 mm OD tube and 2 port-II sockets for 10 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm; II, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $4.11

  View options

•

  View options

  Airtac PYW series: reducing union y fitting - PYW12-8D

  Specifications: PYW12-8D is an Airtac different-diameter union y. Different-diameter union Y; Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PYW Different-diameter union Y 12 Tube outside diameter at port I: 12 mm 8 Tube outside diameter at port II: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 12 mm ØDB 8 mm C 54 mm ØP 21 mm KA 23 mm KB 18.5 mm ØJ 4.3 mm JA 20.5 mm DC 20.5 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 22.3 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PYW10-8, PYW12-10, PYW12-8, PYW6-4, PYW8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 12 mm OD tube; II = 2 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 8 × 5: UE95A080050100MBU,US98A080050100MBU I 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 12 mm OD tube and 2 port-II sockets for 8 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm; II, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $3.43

  View options

•

  View options

  Airtac PYW series: reducing union y fitting - PYW10-8D

  Specifications: PYW10-8D is an Airtac different-diameter union y. Different-diameter union Y; Tube outside diameter at port I: 10 mm; Tube outside diameter at port II: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PYW Different-diameter union Y 10 Tube outside diameter at port I: 10 mm 8 Tube outside diameter at port II: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 10 mm; Tube outside diameter at port II: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 10 mm ØDB 8 mm C 48.5 mm ØP 18 mm KA 21 mm KB 18.5 mm ØJ 4.3 mm JA 19 mm DC 18 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 14.1 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PYW10-8, PYW12-10, PYW12-8, PYW6-4, PYW8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 10 mm OD tube; II = 2 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 8 × 5: UE95A080050100MBU,US98A080050100MBU I 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 10 mm OD tube and 2 port-II sockets for 8 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm; II, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $3.43

  View options

•

  View options

  Airtac PYW series: reducing union y fitting - PYW8-6D

  Specifications: PYW8-6D is an Airtac different-diameter union y. Different-diameter union Y; Tube outside diameter at port I: 8 mm; Tube outside diameter at port II: 6 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PYW Different-diameter union Y 8 Tube outside diameter at port I: 8 mm 6 Tube outside diameter at port II: 6 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 8 mm; Tube outside diameter at port II: 6 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 8 mm ØDB 6 mm C 42 mm ØP 15 mm KA 18.5 mm KB 16.5 mm ØJ 3.2 mm JA 16.5 mm DC 14.5 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 9.1 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PYW10-8, PYW12-10, PYW12-8, PYW6-4, PYW8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 8 mm OD tube; II = 2 push-in sockets for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 6 × 4: UE95A060040100MBU,US98A060040100MBU I 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 8 mm OD tube and 2 port-II sockets for 6 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm; II, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.88

  View options

•

  View options

  Airtac PEW series: reducing union tee - PEW12-10D

  Specifications: PEW12-10D is an Airtac different-diameter union tee. Different-diameter union tee; Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 10 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PEW Different-diameter union tee 12 Tube outside diameter at port I: 12 mm 10 Tube outside diameter at port II: 10 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 10 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 12 mm ØDB 10 mm ØP 21 mm KA 23 mm KB 21 mm EA 29 mm EB 29 mm ØJ 4.3 mm JB 13 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266; printed weights retained without interpolation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 21.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PEW10-8, PEW12-10, PEW12-8, PEW6-4, PEW8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 12 mm OD tube; II = 2 push-in sockets for 10 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 10 × 6.5: UE95A100065100MBU,US98A100065100MBU I 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 12 mm OD tube and 2 port-II sockets for 10 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm; II, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $3.43

  View options

•

  View options

  Airtac PEW series: reducing union tee - PEW12-8D

  Specifications: PEW12-8D is an Airtac different-diameter union tee. Different-diameter union tee; Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog weight reference: the exact PEW12-8 row is 2.2 g in both the linked English table and the 2022 Chinese catalog. This published reference is retained without interpolation from other sizes. It is not a measured shipping weight; actual product weight governs. Model Code Explained Code Meaning PEW Different-diameter union tee 12 Tube outside diameter at port I: 12 mm 8 Tube outside diameter at port II: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 12 mm ØDB 8 mm ØP 21 mm KA 23 mm KB 18.5 mm EA 29 mm EB 28.5 mm ØJ 4.3 mm JB 13 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266; printed weights retained without interpolation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 2.2 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PEW10-8, PEW12-10, PEW12-8, PEW6-4, PEW8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 12 mm OD tube; II = 2 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 8 × 5: UE95A080050100MBU,US98A080050100MBU I 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 12 mm OD tube and 2 port-II sockets for 8 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm; II, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $3.43

  View options

•

  View options

  Airtac PEW series: reducing union tee - PEW10-8D

  Specifications: PEW10-8D is an Airtac different-diameter union tee. Different-diameter union tee; Tube outside diameter at port I: 10 mm; Tube outside diameter at port II: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PEW Different-diameter union tee 10 Tube outside diameter at port I: 10 mm 8 Tube outside diameter at port II: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 10 mm; Tube outside diameter at port II: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 10 mm ØDB 8 mm ØP 18 mm KA 21 mm KB 18.5 mm EA 25.5 mm EB 25.5 mm ØJ 4.3 mm JB 11 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266; printed weights retained without interpolation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 15.1 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PEW10-8, PEW12-10, PEW12-8, PEW6-4, PEW8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 10 mm OD tube; II = 2 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 8 × 5: UE95A080050100MBU,US98A080050100MBU I 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 10 mm OD tube and 2 port-II sockets for 8 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm; II, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.88

  View options

•

  View options

  Airtac PEW series: reducing union tee - PEW8-6D

  Specifications: PEW8-6D is an Airtac different-diameter union tee. Different-diameter union tee; Tube outside diameter at port I: 8 mm; Tube outside diameter at port II: 6 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog weight reference: the exact PEW8-6 row is 22.8 g in both the linked English table and the 2022 Chinese catalog. This published reference is retained without interpolation from other sizes. It is not a measured shipping weight; actual product weight governs. Model Code Explained Code Meaning PEW Different-diameter union tee 8 Tube outside diameter at port I: 8 mm 6 Tube outside diameter at port II: 6 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 8 mm; Tube outside diameter at port II: 6 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 8 mm ØDB 6 mm ØP 15 mm KA 18.5 mm KB 16.5 mm EA 22.5 mm EB 22 mm ØJ 4.3 mm JB 9.5 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266; printed weights retained without interpolation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 22.8 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PEW10-8, PEW12-10, PEW12-8, PEW6-4, PEW8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 8 mm OD tube; II = 2 push-in sockets for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 6 × 4: UE95A060040100MBU,US98A060040100MBU I 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 8 mm OD tube and 2 port-II sockets for 6 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm; II, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.33

  View options

•

  View options

  Airtac PEW series: reducing union tee - PEW6-4D

  Specifications: PEW6-4D is an Airtac different-diameter union tee. Different-diameter union tee; Tube outside diameter at port I: 6 mm; Tube outside diameter at port II: 4 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PEW Different-diameter union tee 6 Tube outside diameter at port I: 6 mm 4 Tube outside diameter at port II: 4 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 6 mm; Tube outside diameter at port II: 4 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 6 mm ØDB 4 mm ØP 12.5 mm KA 16.5 mm KB 14 mm EA 20 mm EB 19.5 mm ØJ 3.2 mm JB 8 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266; printed weights retained without interpolation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 7 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PEW10-8, PEW12-10, PEW12-8, PEW6-4, PEW8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 6 mm OD tube; II = 2 push-in sockets for 4 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 4 × 2.5: UE95A040025100MBU,US98A040025100MBU I 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 6 mm OD tube and 2 port-II sockets for 4 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm; II, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.33

  View options

•

  View options

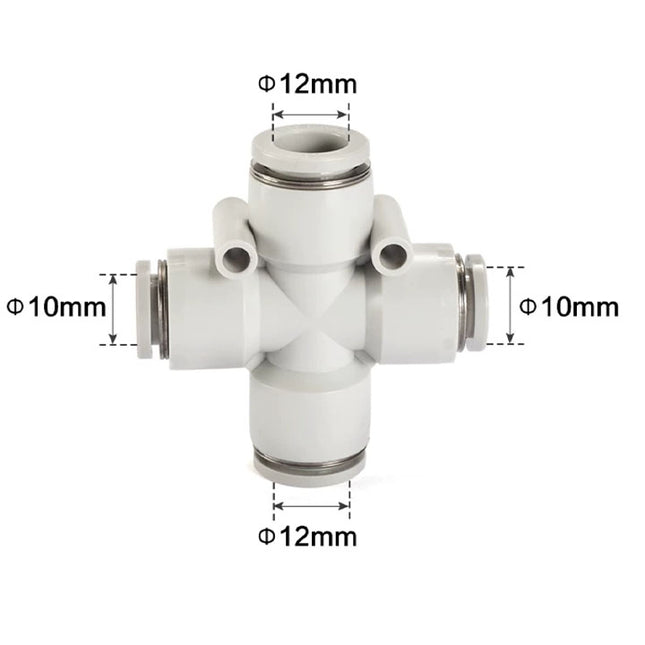

  Airtac PZG series: reducing union cross - PZG12-10D

  Specifications: PZG12-10D is an Airtac different-diameter cross. Different-diameter cross; Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 10 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PZG Different-diameter cross 12 Tube outside diameter at port I: 12 mm 10 Tube outside diameter at port II: 10 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 10 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 12 mm ØDB 10 mm A 59 mm C 59.5 mm ØP 21 mm KA 23 mm KB 21 mm ØJ 4.3 mm JB 13 mm JC 26 mm Source: Linked tube-to-tube fittings PDF page 4 printed page 267. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 29 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PZG10-8, PZG12-10, PZG6-4, PZG8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 2 push-in sockets for 12 mm OD tube; II = 2 push-in sockets for 10 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 10 × 6.5: UE95A100065100MBU,US98A100065100MBU I 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 2 port-I sockets for 12 mm OD tube and 2 port-II sockets for 10 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm; II, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $4.11

  View options

•

  View options

  Airtac PZG series: reducing union cross - PZG10-8D

  Specifications: PZG10-8D is an Airtac different-diameter cross. Different-diameter cross; Tube outside diameter at port I: 10 mm; Tube outside diameter at port II: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PZG Different-diameter cross 10 Tube outside diameter at port I: 10 mm 8 Tube outside diameter at port II: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 10 mm; Tube outside diameter at port II: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 10 mm ØDB 8 mm A 52 mm C 52.5 mm ØP 18 mm KA 21 mm KB 18.5 mm ØJ 4.3 mm JB 11 mm JC 22 mm Source: Linked tube-to-tube fittings PDF page 4 printed page 267. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 18.1 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PZG10-8, PZG12-10, PZG6-4, PZG8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 2 push-in sockets for 10 mm OD tube; II = 2 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 8 × 5: UE95A080050100MBU,US98A080050100MBU I 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 2 port-I sockets for 10 mm OD tube and 2 port-II sockets for 8 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm; II, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $3.43

  View options

•

  View options

  Airtac PZG series: reducing union cross - PZG8-6D

  Specifications: PZG8-6D is an Airtac different-diameter cross. Different-diameter cross; Tube outside diameter at port I: 8 mm; Tube outside diameter at port II: 6 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PZG Different-diameter cross 8 Tube outside diameter at port I: 8 mm 6 Tube outside diameter at port II: 6 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 8 mm; Tube outside diameter at port II: 6 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 8 mm ØDB 6 mm A 45 mm C 46 mm ØP 15 mm KA 18.5 mm KB 16.5 mm ØJ 4.3 mm JB 9.5 mm JC 19 mm Source: Linked tube-to-tube fittings PDF page 4 printed page 267. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 12 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PZG10-8, PZG12-10, PZG6-4, PZG8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 2 push-in sockets for 8 mm OD tube; II = 2 push-in sockets for 6 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 6 × 4: UE95A060040100MBU,US98A060040100MBU I 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 2 port-I sockets for 8 mm OD tube and 2 port-II sockets for 6 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm; II, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.88

  View options

•

  View options

  Airtac PZG series: reducing union cross - PZG6-4D

  Specifications: PZG6-4D is an Airtac different-diameter cross. Different-diameter cross; Tube outside diameter at port I: 6 mm; Tube outside diameter at port II: 4 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PZG Different-diameter cross 6 Tube outside diameter at port I: 6 mm 4 Tube outside diameter at port II: 4 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 6 mm; Tube outside diameter at port II: 4 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 6 mm ØDB 4 mm A 39 mm C 39.5 mm ØP 12.5 mm KA 16.5 mm KB 14 mm ØJ 3.2 mm JB 8 mm JC 16 mm Source: Linked tube-to-tube fittings PDF page 4 printed page 267. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 8.2 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PZG10-8, PZG12-10, PZG6-4, PZG8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 2 push-in sockets for 6 mm OD tube; II = 2 push-in sockets for 4 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 4 × 2.5: UE95A040025100MBU,US98A040025100MBU I 6 × 4: UE95A060040100MBU,US98A060040100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 2 port-I sockets for 6 mm OD tube and 2 port-II sockets for 4 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 6 mm OD × 4 mm ID: US98A 15 mm and UE95A 12 mm; II, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.88

  View options

•

  View options

  Airtac PG series: reducing straight union - PG12-8D

  Specifications: PG12-8D is an Airtac reducing straight union. Reducing straight union; Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PG Reducing straight union 12 Tube outside diameter at port I: 12 mm 8 Tube outside diameter at port II: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 12 mm; Tube outside diameter at port II: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 12 mm ØDB 8 mm ØPA 21 mm ØPB 18 mm KA 23 mm KB 18.5 mm A 46.5 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 10.3 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PG10-6, PG10-8, PG12-10, PG12-8, PG6-4, PG8-4, PG8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 12 mm OD tube; II = 1 push-in socket for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 8 × 5: UE95A080050100MBU,US98A080050100MBU I 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 12 mm OD tube and 1 port-II socket for 8 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm; II, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.33

  View options

•

  View options

  Airtac PG series: reducing straight union - PG8-4D

  Specifications: PG8-4D is an Airtac reducing straight union. Reducing straight union; Tube outside diameter at port I: 8 mm; Tube outside diameter at port II: 4 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PG Reducing straight union 8 Tube outside diameter at port I: 8 mm 4 Tube outside diameter at port II: 4 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter at port I: 8 mm; Tube outside diameter at port II: 4 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØDA 8 mm ØDB 4 mm ØPA 15 mm ØPB 12.5 mm KA 18.5 mm KB 14 mm A 37.5 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 4.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PG10-6, PG10-8, PG12-10, PG12-8, PG6-4, PG8-4, PG8-6. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing I = 1 push-in socket for 8 mm OD tube; II = 1 push-in socket for 4 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes II 4 × 2.5: UE95A040025100MBU,US98A040025100MBU I 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. This fitting has 1 port-I socket for 8 mm OD tube and 1 port-II socket for 4 mm OD tube. Follow the actual drawing for their positions. Keep the sizes distinct; a reducing branch is not a same-size port, and port labels do not prescribe a flow direction or system arrangement. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are I, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm; II, 4 mm OD × 2.5 mm ID: US98A 10 mm and UE95A 8 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

  Airtac PU series: straight union - PU10D

  Specifications: PU10D is an Airtac straight union. Straight union; Tube outside diameter: 10 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PU Straight union 10 Tube outside diameter: 10 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 10 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 10 mm ØP 18 mm K 21 mm A 43 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 8.1 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PU10, PU12, PU4, PU6, PU8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 10 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 2 sockets in this T group receive 10 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $2.33

  View options

•

  View options

  Airtac PU series: straight union - PU8D

  Specifications: PU8D is an Airtac straight union. Straight union; Tube outside diameter: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PU Straight union 8 Tube outside diameter: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm ØP 15 mm K 18.5 mm A 38.5 mm Source: Linked tube-to-tube fittings PDF page 2 printed page 265. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PU10, PU12, PU4, PU6, PU8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 2 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 2 sockets in this T group receive 8 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $1.64

  View options

•

  View options

  Airtac PZ series: union cross - PZ12D

  Specifications: PZ12D is an Airtac cross. Cross; Tube outside diameter: 12 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PZ Cross 12 Tube outside diameter: 12 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 12 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 12 mm A 59.5 mm ØP 21 mm K 23 mm ØJ 4.3 mm JB 13 mm JC 26 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 26.6 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PZ10, PZ12, PZ4, PZ6, PZ8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 4 push-in sockets for 12 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 12 × 8: UE95A120080100MBU,US98A120080100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 4 sockets in this T group receive 12 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 12 mm OD × 8 mm ID: US98A 35 mm and UE95A 30 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $4.66

  View options

•

  View options

  Airtac PZ series: union cross - PZ10D

  Specifications: PZ10D is an Airtac cross. Cross; Tube outside diameter: 10 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PZ Cross 10 Tube outside diameter: 10 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 10 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 10 mm A 52.5 mm ØP 18 mm K 21 mm ØJ 4.3 mm JB 11 mm JC 22 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 17.5 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PZ10, PZ12, PZ4, PZ6, PZ8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 4 push-in sockets for 10 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 10 × 6.5: UE95A100065100MBU,US98A100065100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 4 sockets in this T group receive 10 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 10 mm OD × 6.5 mm ID: US98A 25 mm and UE95A 20 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $3.43

  View options

•

  View options

  Airtac PZ series: union cross - PZ8D

  Specifications: PZ8D is an Airtac cross. Cross; Tube outside diameter: 8 mm; Black release button and body. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PZ Cross 8 Tube outside diameter: 8 mm D Black release button and body Technical Specifications Parameter Details Operating pressure 0–1.0 MPa Negative pressure −750 mmHg (10 Torr), as printed Proof pressure 1.5 MPa Ambient and fluid temperature −20 to 70 °C Applicable tubing Soft nylon or polyurethane; use the exact tube outside diameter specified for this model. Current tubing / connection configuration Tube outside diameter: 8 mm; Black release button and body Application General pneumatic tubing using the exact outside diameters and, where present, thread specifications shown above. The source does not assign these fittings to a particular valve series. Features and Operation The catalog provides multiple fitting shapes for pneumatic systems and describes flow capacity corresponding to the connected tubing inside diameter. One-touch tubing insertion and removal provide a convenient, retaining connection. External and Mounting Dimensions Dimensions retain the letter labels and separate views in the source drawing. Linear dimensions are in millimeters; pipe threads retain their stated standard and nominal size. Do not combine unrelated callouts into an overall size. Parameter Details ØD 8 mm A 46 mm ØP 15 mm K 18.5 mm ØJ 4.3 mm JB 9.5 mm JC 19 mm Source: Linked tube-to-tube fittings PDF page 3 printed page 266. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog reference weight: 11.1 g. This is a published reference, not a measured shipping weight; actual product weight governs. Internal Components PM bulkhead union cutaway in the tube-to-tube catalog. This is the published series construction reference; the PDF does not provide a separate internal material table for every other shape. Part / name Material 1 — Release button POM 2 — Guide Aluminum alloy 3 — Spring gasket Stainless steel 4 — Chuck POM 5 — O-ring NBR 6 — Body Aluminum alloy 7 — Rubber washer NBR 8 — Nut Aluminum alloy Series Ordering Options Gray (blank) or black (D) color selection is separate from the tube and thread size. Published base configurations for this shape: PZ10, PZ12, PZ4, PZ6, PZ8. Apply the color and material/style suffixes from the ordering code; these are options, not simultaneous connections. Optional Matching PU Tubing T = 4 push-in sockets for 8 mm OD tube. These labels identify socket groups, not flow direction or tube quantity. Match each physical socket separately; the tube codes are alternatives supplied as complete coils, not a count of lengths. Tube dimensions below are OD × ID in mm. These tubing options are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): UE polyurethane tube; US polyurethane tube. Use Size / complete codes T 8 × 5: UE95A080050100MBU,US98A080050100MBU The listed tubes are separately ordered standard-pressure PU examples for the assigned push-in sockets. Match the exact metric tube outside diameter at each socket; inch sizes are not substitutes. T, I and II identify the socket groups in the legend, not flow direction. Several same-size sockets do not mean that several coils are required. These are tubing options, not additional fittings, valves or internal repair parts. All 4 sockets in this T group receive 8 mm OD tube. Follow the fitting shape and physical socket positions; these equal-size openings do not impose a supply/outlet assignment or authorize an arbitrary new circuit connection. These selections cover positive-pressure pneumatic service only. The fitting is rated 0–1.0 MPa and its 1.5 MPa proof pressure is not a working rating. Its separately printed −750 mmHg (10 Torr) value does not establish vacuum or collapse resistance for these exact tubes or the complete assembled path. Do not infer liquid service, a guaranteed system flow or leak performance from dimensional fit alone. The listed US98A and UE95A tubes are rated 1.0 MPa at 23°C; apply the catalogue temperature-derating curve as temperature rises and obey every stricter fitting, tube and system limit. US98A has a −20–70°C component range and UE95A −40–70°C. With these −20–70°C fittings, the assembled path remains within −20–70°C or a narrower applicable range; the UE tube’s lower temperature limit does not extend the fitting rating. Do not assume 1 MPa is available throughout that range. Tube burst pressures and fitting proof pressure are not allowable continuous working pressures. US98A is polyester-based PU, Shore A98±2; UE95A is ether-based PU, Shore A95±2. Each complete code listed here specifies its own OD and ID, a 100 m coil (100M), and blue colour (BU). The fitting’s blank/D grey-or-black option is separate from tube colour. These verified examples are not a complete list of possible lengths, colours or tube constructions; confirm the exact complete code before ordering. The tube ID affects flow and downstream selection but is not an alternative way to select the push-in socket OD. Minimum bend radii for the listed tubes are T, 8 mm OD × 5 mm ID: US98A 20 mm and UE95A 17 mm. Keep bends clear of the socket and provide suitable support; do not kink, flatten or pull on the connected tube. Confirm insertion depth, retention and sealing on the actual fitting before use, and isolate and depressurize the circuit before removal. Confirm compatibility with the actual air contaminants, lubricant or additives and the seals, tube and downstream equipment. Avoid acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excessive heat as specified for the PU tubing. Suitable material labels and the fitting-series construction example do not guarantee every chemical environment or the complete material composition of every fitting shape. These catalogue-listed tube examples have no verified current-production, stock or delivery promise. Confirm current availability or a manufacturer-approved alternative with the same required dimensions and operating conditions. No other component is included merely because it appears beside a fitting in a drawing.

  Read more less

  $3.43

  View options
