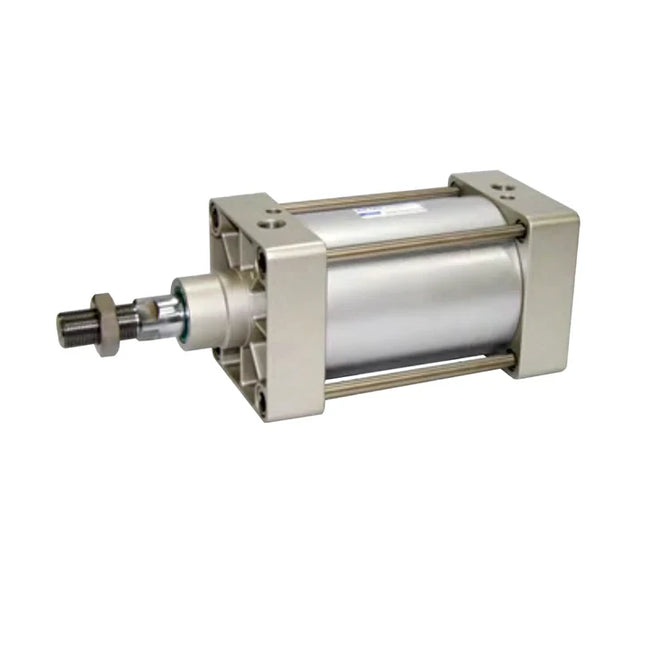

SG, SGC Series ISO15552 Standard Cylinder
Product Features
- ISO15552 (Original ISO6431) standard cylinder.
- The piston seal of the SG series adopts two Y-shape one-way seal structures, which have compensation function, long service life, and low start-up pressure. The SGC series piston seal adopts a special shaped two-way seal structure, with compact size and grease storage function.
- The SG series is a steel tube cylinder with strong impact resistance.
- The SGC series is an aluminum tube cylinder, and a magnetic ring can be selected. The SG series cannot be equipped with a magnetic ring.
- The cylinder buffer adjustment is smooth.
- Various specifications of cylinders and cylinder mounting accessories are available for customers to choose from.
- High-temperature resistant seal material is available to ensure the cylinder works normally at 150°C.
Specifications
| Bore Size (mm) | 125 | 160 | 200 | 250 |
|---|---|---|---|---|
| Action | Double Acting | |||
| Fluid | Air (Filtered 40μm or better) | |||
| Mounting Type |
SG/SGC: Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2 SGD/SGCD/SGJ/SGCJ: Basic, FA, LB, TC, FTC, TCM1, TCM2 |
|||
| Operating Pressure | 0.15~1.0MPa (22~145psi) (1.5~10.0bar) | |||
| Proof Pressure | 1.5MPa (215psi) (15bar) | |||
| Temperature | -20~70°C | |||
| Speed Range | 30~500 mm/s | |||
| Stroke Tolerance |
0-250: +1.0/0 251-1000: +1.5/0 1001-1500: +2.0/0 |
|||
| Cushion Type | Adjustable Cushion | |||
| Cushion Stroke | 40mm | 50mm | 60mm | |
| Port Size [Note 1] | PT1/2 | PT3/4 | PT1 | |
Note: [1] PT thread and G thread are available.
Standard Stroke
| Bore Size (mm) | Standard Stroke (mm) | Max Stroke | Allowable Stroke |
|---|---|---|---|
| 125 | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 1500 | 2000 |
| 160 | 1500 | 2000 | |
| 200 | 1500 | 2000 | |
| 250 | 1500 | 2000 |
Note: Please contact the company for other special strokes.
Product Ordering Code
| No. | Item | Code | Description |
|---|---|---|---|
| 1 | Model | SG / SGD / SGJ | SG: Standard (Steel Tube) SGD: Double Shaft (Steel Tube) SGJ: Double Shaft Adjustable (Steel Tube) |
| SGC / SGCD / SGCJ | SGC: Standard (Alum. Tube) SGCD: Double Shaft (Alum. Tube) SGCJ: Double Shaft Adjustable (Alum. Tube) |
||
| 2 | Bore Size | 125 / 160 / 200 / 250 | Cylinder Diameter (mm) |
| 3 | Stroke | - | Refer to Stroke Table |
| 4 | Adjustable Stroke | 10, 20... 100 | Applicable for SGJ/SGCJ series only. |
| 5 | Magnet | Blank | No Magnet (Standard for SG/SGC) |
| S | With Magnet (Only for SGC/SGCD/SGCJ series) | ||
| 6 | Mounting | Blank | Standard (No mounting bracket) |
| LB, FA, FB, CA, CB, CR, FTC, TC | Various mounting accessories (See catalog) | ||
| 7 | Seal Material | Blank | TPU (For 250 bore: NBR) |
| H | Viton (High Temperature) | ||
| N | NBR | ||
| 8 | Thread Type | Blank | PT Thread |
| G | G Thread |
Notes:
1. CR mounting is used with CB. FTC, TC mountings are used with TCM1, TCM2.
2. Bore size 250 cylinder does not have TPU seal material option.
