DMS Series Electronic Magnetic Sensor
Solid State | High Flex Cable | IP68 Waterproof Options
Product Overview & Features
Three Sensor Classifications
- General Type (A05-DMS) – Light Blue Body. Standard robust industrial use.
- Oil-resistant, Bend-resistant Type (A06-DMS) – Yellow Body.
- Waterproof Type – Yellow Body equipped with full IP68 Protection.
1. For Robotic Arm & Drag Chain Applications (A05-DMS)
- Equipped with a high-flex, bend-resistant cable, making it exceptionally suitable for robotic joints, drag chains, and continuous motion axes.
- High-flex cable material: Improves overall dynamic flexibility by approximately 20% compared to standard models.
- Structural Strength: Features an enhanced SR bend protection structure at the cable exit and a shock-resistant engineering plastic housing.
2. Oil-resistant & Waterproof Type (A06-DMS)
- Designed for harsh environments with high splashes of coolant, oil, or water droplets.
- Oil-resistant & bend-resistant cable: Retains high flexibility while resisting chemical degradation.
- Integrated Waterproof Design: Achieves a stringent IP68 protection rating, allowing reliable operation even in submerged or heavy wash-down areas.
Mounting Accessories
The DMSG model is highly adaptable and compatible with various cylinder profiles using dedicated mounting kits:
- F-MQ Series: Flexible clip-on type
- F-SC Series (SH): Slide-in screw mounting bracket
Design Note: To maximize lifespan, A05-DMS and A06-DMS cables should be installed with a minimum bending radius of 19mm.
Technical Specifications
| Parameter | 2-wire Type [Note 1] | NPN 3-wire Type | PNP 3-wire Type |
|---|---|---|---|
| Operating Voltage | 10V ~ 28V DC | 5V ~ 30V DC | 5V ~ 30V DC |
| Max Load Current | 2.5mA ~ 100mA | 30V / 200mA Max. | 30V / 200mA Max. |
| Max Load Capacity | 2.8W Max. | 6.0W Max. | 6.0W Max. |
| Internal Consumption Current | 3mA Max. | 5mA Max. | 5mA Max. |
| Residual Voltage (Internal) | 3.5V Max. | 0.7V Max. | 0.7V Max. |
| Leakage Current | 0.06mA Max. | 0.01mA Max. | 0.01mA Max. |
| Max Switching Frequency | 1000 Hz | ||
| Shock Resistance | 50G | ||
| Protective Circuit | Power reverse polarity protection, surge absorption protection | ||
| Operating Temperature | -10°C ~ 70°C | ||
| Protection Rating | General / Robotic Arm: IP64 | Waterproof / Oil-resistant: IP68 | |
| Standards & Certifications | CE Certified, RoHS Compliant | ||
[Note 1] The A05 and A06 machinery/high-flex models are available exclusively in the 2-wire configuration.
Product Ordering Code
Example: A05 - DMS G - N 020 - W
| No. | Item | Options & Description |
|---|---|---|
| 1 | Industry / Application |
Blank: General type A05: Robotic arm / drag chain industry A06: Oil-resistant, bend-resistant type |
| 2 | Series Code | DMS: Electronic (Solid State) Magnetic Sensor |
| 3 | Sensor Shape |

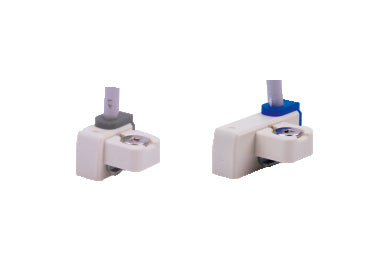

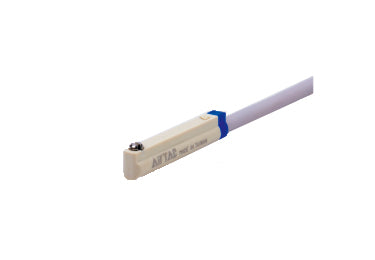

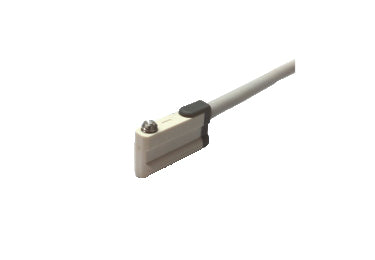

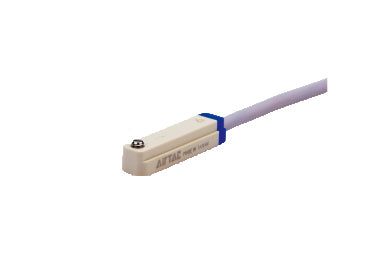

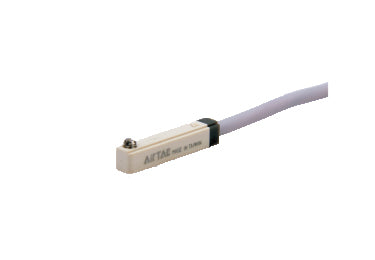

G / H / E / J * Note: J-shape is not available for the A06 model. |
| 4 | Output Type |
Blank: 2-wire type N: NPN 3-wire P: PNP 3-wire |
| 5 | Cable Type & Length |
Direct Cable: 020: 2m | 030: 3m | 050: 5m | 100: 10m Quick Connector (M8 / M12): M08: M8 male + 0.5m cable (Also M08010/1m, M08020/2m, M08030/3m) M12: M12 male + 0.5m cable (Also M12010/1m, M12020/2m, M12030/3m) |
| 6 | Special Feature |
Blank: General standard W: Waterproof IP68 ** Note: A06 models inherently possess waterproof functionality. |
Sensor Selection Guide (DMS, EMS, CMS Series)
Use the matrices below to identify the correct sensor shape and mounting accessory required for your specific cylinder series and bore size.
1. Direct Slot Mounting
| Sensor Shape Model | Compatible Cylinder Series & Bore Size |
|---|---|
| DMSG / CMSG / EMSG |
HFK / HFKL (Ø10~25) ACO / TACQ (Ø16~160) SDA (Ø10~100) TWQ / TCL / TCM (Ø12~100) QCK (Ø12~63) SAU / HFZ / HFY / HFP (Ø10~63) TR / STW (Ø10~63) MD / MKC (Ø16~40) AQK / BAK (Ø16~32) MCK (requires MCK40G bracket) |
2. Mounting with Brackets & Clamps
| Sensor Model | Mounting Method | Compatible Cylinder Series | Required Accessory Model |
|---|---|---|---|
| DMSG / CMSG | Aluminum Clamp Bracket | PB / PBR, MI / TMI, MF, MG, MA / MAC | MBL, MCK, TWK |
| Plastic Clip | Round body cylinders | 3Q, 4Q | |
| DMSG / CMSG | Tie-rod Clamp | Standard Tie-rod Cylinders (Ø32 ~ 250) | SC, SGC Kits |
3. External Slot & Plug-in Mounting
| Sensor Model | Mounting Style | Compatible Cylinder Series | Bore Size |
|---|---|---|---|
| DMSJ / CMSJ | External Slot | ACO/TACQ, SDA, TWQ, QCK, QDK, TN | Ø10 ~ 100 |
| TWH / TWM | Ø20 ~ 80 | ||
| DMSH / CMSH / EMSH | Plug-in Type | ACO/TACQ, TC, HFZ, HFY, HFP, HFR, HFC, HFT | Ø6 ~ 125 |
| QDK, HLQ, HLQH, HLS/HLSL, MU, HLH, MPG | Ø6 ~ 63 | ||
| HRQ, HFK, HLF, HGS, RMH, HFD | Ø2 ~ 100 | ||
| DMSE / CMSE | Slot-in Type | SE / BSE, SAI / TSAI, SAI, ACE, ACE / JSI | Ø32 ~ 200 |
