SE Series Standard Cylinder

ISO15552 Standard Cylinder - SE Series

Product Features
Specifications
Stroke
Product Ordering Code

Product Features

ISO15552, VDMA24562 standard certified.
Piston seal adopts two Y-shape one-way seal structure, which features compact dimensions and grease storage function.
Square aluminum tube, no tie rod, good corrosion resistance.
Cylinder buffer adjustment is smooth and steady.
Various specifications of cylinders and mounting accessories are available for customers to choose from.

Specifications

Bore Size (mm)	32	40	63	100	125
Action	Double Acting
Fluid	Air (filtered 40μm or better)
Mounting Type	SE: Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2 SED, SEJ: Basic, FA, LB, TC, FTC, TCM1, TCM2
Operating Pressure	0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure	1.5MPa (215psi) (15bar)
Temperature °C	-20~70
Speed range mm/s	30~800				30~500
Stroke Tolerance	0~250 +1.0/0, 251~1000 +1.5/0, 1001~1500 +2.0/0
Cushion Type	Adjustable Cushion
Port Size [Note 1]	PT1/8	PT1/4	PT3/8	PT1/2

Note:
[1] PT thread, G thread are optional. For sensors, please refer to the relevant catalog pages.

Stroke Specifications

Bore (mm)	Standard Stroke (mm)	Max. Stroke	Max. Allowable Stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	1800
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	1800
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800

Note: Please contact the company for other special strokes.

Product Ordering Code

Example: SE 80 x 50 S LB

No.	Category	Description / Code
①	Model	SE: Standard Double Acting SED: Double Shaft Double Acting SEJ: Adjustable Stroke Double Acting
②	Bore Size	32, 40, 50, 63, 80, 100, 125
③	Rod Material	Blank: Carbon Steel (Standard) A: SUS420J2 B: SUS304 C: SUS316
④	Stroke	Refer to Stroke table
⑤	Adjustable Stroke	Only for SEJ series (e.g., 10, 20, 30, 40, 50, 75, 100)
⑥	Magnet	Blank: No Magnet S: With Magnet
⑦	Mounting [Note 1]	Blank: Standard LB: Axial Foot FA: Front Flange FB: Rear Flange CA: Single Clevis CB: Double Clevis CR: Clevis with pin TC: Central Trunnion FTC: Front Trunnion
⑧	Seal Material	Blank: TPU (Standard) H: Viton (Heat resistant) N: NBR
⑨	Thread	Blank: PT Thread G: G Thread

Note 1: For details on accessories, please refer to pages P20~22. CR attachment is used with CB.

Show previous products

View options

Airtac SE Series: Double-axis Compound Stroke Adjustable Cylinder - SEJ32BX989-50SFTCTCM2H

Specifications: Double-axis compound stroke adjustable type Bore: 32mm Piston rod material: SUS304 Stroke: 989mm Adjusting stroke: 50mm Magnet: with magnet Fixed type: TCM2 Seal material: fluorine rubber Tooth type: PT tooth Specifications 1. Model: SEJ32BX989-50SFTCTCM2H 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SEJ32N-R1 TPU material P-SEJ32-R1 NBR Material P-SEJ32N-R2 Fluorine rubber material ， Installation accessories :F-SI32LB Axial mounting F-SI32FA Flange connecting plate F-SE32TC Middle Trunnion Bracket F-SI32FTC Front cover trunnion bracket F-SI32TCM1 trunnion mount F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552,VDMA24562 standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. Square aluminum tube, no pull rod, good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$419.24

View options
View options

Airtac SE Series: Double-axis Compound Stroke Adjustable Cylinder - SEJ32AX300-10

Specifications: Double-axis compound stroke adjustable type Bore: 32mm Piston rod material: SUS420J2 Stroke: 300mm Adjusting stroke: 10mm Magnet: no magnet Fixed type: none Seal material: TPU Tooth type: PT tooth Specifications 1. Model: SEJ32AX300-10 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0 5. Buffer type: adjustable buffer, buffer stroke: 27, Nozzle caliber: PT1/8 6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel Type of sealing ring :P-SEJ32N-R1 TPU material P-SEJ32-R1 NBR Material P-SEJ32N-R2 Fluorine rubber material ， Installation accessories :F-SI32LB Axial mounting F-SI32FA Flange connecting plate F-SE32TC Middle Trunnion Bracket F-SI32FTC Front cover trunnion bracket F-SI32TCM1 trunnion mount F-SI32TCM2 trunnion mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint Click to download Airtac product catalog Product Features 1.ISO15552,VDMA24562 standard cylinder. 2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function. 3. Square aluminum tube, no pull rod, good corrosion resistance. 4. The cylinder buffer adjustment is stable. 5. Various specifications of the cylinder and cylinder mounting accessories are available.

Read more less

$182.42

View options
View options

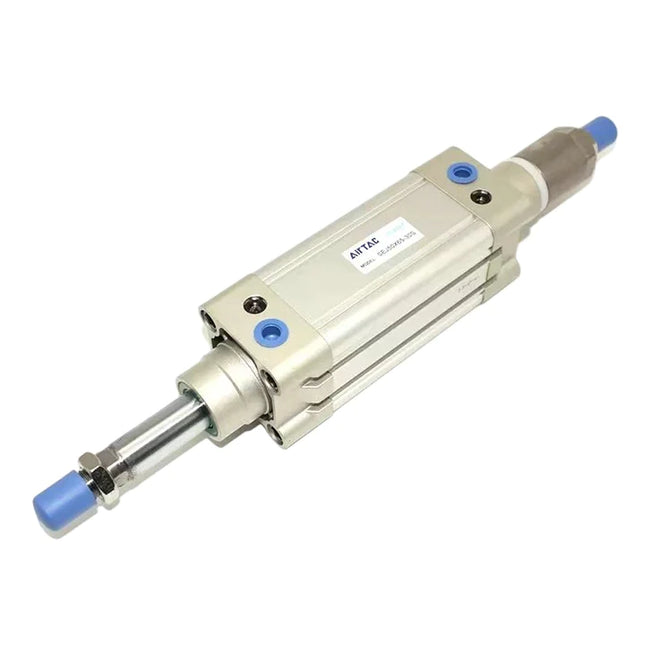

Airtac SE Series: Double-axis Compound Stroke Adjustable Cylinder - SEJ32AX400-10
