SDR Series Air Regulator

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20008L3T

  Specifications: SDR20008L3T is an Airtac 200-series compact pressure regulator with NPT 1/4 main ports. Its current configuration has 0.03–0.4 MPa adjustment, an included mounting bracket, an included bar-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 NPT 1/4 main connection L Low-pressure type; 0.03–0.4 MPa Blank — bracket Bracket included 3 Pressure gauge included; bar scale T NPT thread Technical Specifications Parameter Details Model SDR20008L3T Working medium Air Main port NPT 1/4 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. no separate mass correction is calculated for pressure type L, gauge 3, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Included with this model Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/4 female supply-air inlet on the left of the section; OUT = its NPT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBD male–female; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross. Use Size / complete codes IN,OUT (discontinued) male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/4 ↔ female NPT1/8: NBD1/8-1/41/2 × 1/3 in: NBKC1/2-1/3-1/41/4 × 5/32 in: NBKC1/4-5/32-1/43/8 × 1/4 in: NBKC3/8-1/4-1/45/16 × 1/5 in: NBKC5/16-1/5-1/41/2 in: NBPC1/2-1/4,NPLL1/2-1/41/4 in: NBPC1/4-1/4,NPH1/4-1/4,NPHW1/4-1/4,NPLL1/4-1/4,NPZB1/4-1/43/8 in: NBPC3/8-1/4,NPH3/8-1/4,NPHW3/8-1/4,NPLL3/8-1/4,NPZB3/8-1/45/16 in: NBPC5/16-1/4,NPH5/16-1/4,NPHW5/16-1/4,NPLL5/16-1/4,NPZB5/16-1/41/4 in; male RA NPT1/4 / female RB NPT1/4: NPHF1/4-1/43/8 in; male RA NPT1/4 / female RB NPT1/4: NPHF3/8-1/45/16 in; male RA NPT1/4 / female RB NPT1/4: NPHF5/16-1/4main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4 IN,OUT 1/2 in: NPC1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPL1/2-1/4,NPYB1/2-1/41/4 in: NPC1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPL1/4-1/4,NPYB1/4-1/43/8 in: NPC3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPL3/8-1/4,NPYB3/8-1/45/16 in: NPC5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPL5/16-1/4,NPYB5/16-1/4 These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.65

  View options

•

  View options

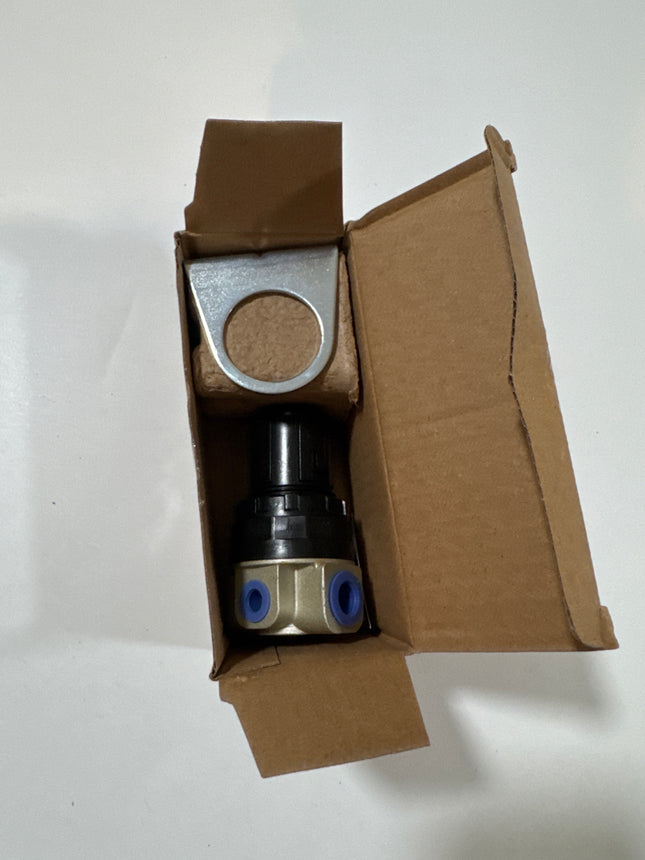

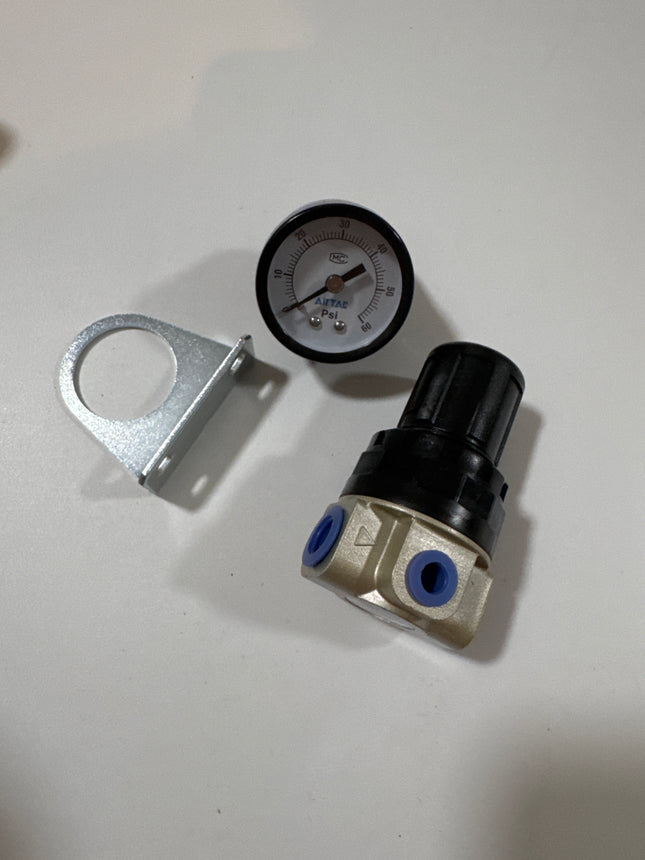

  Airtac SDR series: compact pressure regulator - SDR20008L2T

  Specifications: SDR20008L2T is an Airtac 200-series compact pressure regulator with NPT 1/4 main ports. Its current configuration has 0.03–0.4 MPa adjustment, an included mounting bracket, an included psi-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 NPT 1/4 main connection L Low-pressure type; 0.03–0.4 MPa Blank — bracket Bracket included 2 Pressure gauge included; psi scale T NPT thread Technical Specifications Parameter Details Model SDR20008L2T Working medium Air Main port NPT 1/4 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. no separate mass correction is calculated for pressure type L, gauge 2, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Included with this model Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/4 female supply-air inlet on the left of the section; OUT = its NPT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBD male–female; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross. Use Size / complete codes IN,OUT (discontinued) male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/4 ↔ female NPT1/8: NBD1/8-1/41/2 × 1/3 in: NBKC1/2-1/3-1/41/4 × 5/32 in: NBKC1/4-5/32-1/43/8 × 1/4 in: NBKC3/8-1/4-1/45/16 × 1/5 in: NBKC5/16-1/5-1/41/2 in: NBPC1/2-1/4,NPLL1/2-1/41/4 in: NBPC1/4-1/4,NPH1/4-1/4,NPHW1/4-1/4,NPLL1/4-1/4,NPZB1/4-1/43/8 in: NBPC3/8-1/4,NPH3/8-1/4,NPHW3/8-1/4,NPLL3/8-1/4,NPZB3/8-1/45/16 in: NBPC5/16-1/4,NPH5/16-1/4,NPHW5/16-1/4,NPLL5/16-1/4,NPZB5/16-1/41/4 in; male RA NPT1/4 / female RB NPT1/4: NPHF1/4-1/43/8 in; male RA NPT1/4 / female RB NPT1/4: NPHF3/8-1/45/16 in; male RA NPT1/4 / female RB NPT1/4: NPHF5/16-1/4main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4 IN,OUT 1/2 in: NPC1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPL1/2-1/4,NPYB1/2-1/41/4 in: NPC1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPL1/4-1/4,NPYB1/4-1/43/8 in: NPC3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPL3/8-1/4,NPYB3/8-1/45/16 in: NPC5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPL5/16-1/4,NPYB5/16-1/4 These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.65

  View options

•

  View options

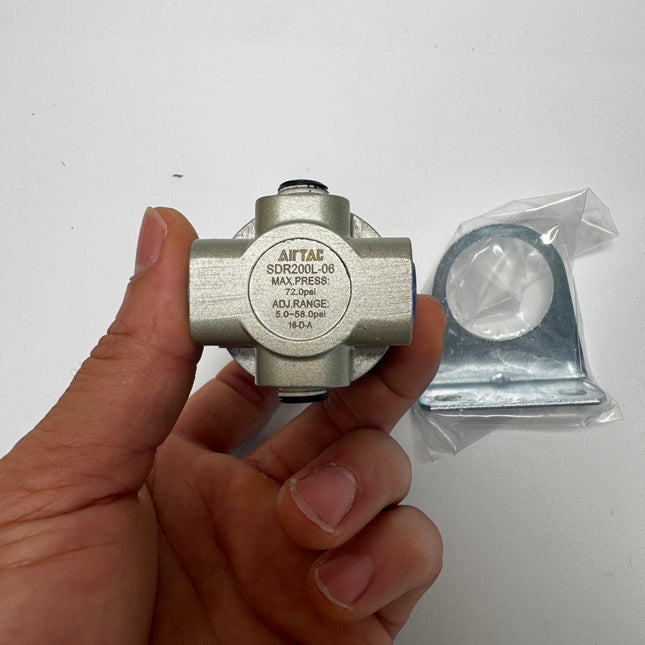

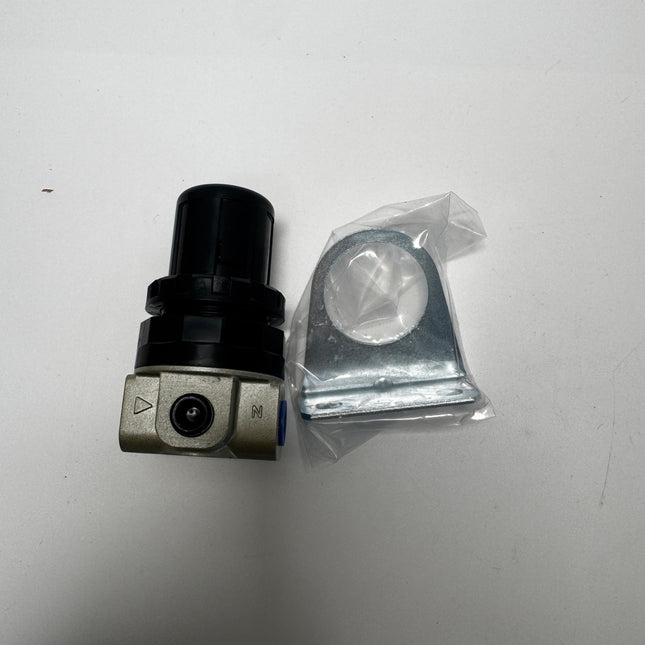

  Airtac SDR series: compact pressure regulator - SDR20006LNT

  Specifications: SDR20006LNT is an Airtac 200-series compact pressure regulator with NPT 1/8 main ports. Its current configuration has 0.03–0.4 MPa adjustment, an included mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 06 NPT 1/8 main connection L Low-pressure type; 0.03–0.4 MPa Blank — bracket Bracket included N Without pressure gauge T NPT thread Technical Specifications Parameter Details Model SDR20006LNT Working medium Air Main port NPT 1/8 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the current 06 port code shares the same-size 08 port reference; no separate mass correction is calculated for pressure type L, gauge N, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. For SDR20006, E is 24 mm in the 2022 Chinese catalog, printed page 244; the linked English edition prints 23 mm. The Chinese dimension is used here. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/8 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Included with this model Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/8 female supply-air inlet on the left of the section; OUT = its NPT1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross; NUE polyurethane tube. Use Size / complete codes IN,OUT (discontinued) male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/8 ↔ male NPT1/8: NBB1/8-1/8male NPT1/8 ↔ male NPT3/8: NBB1/8-3/81/4 × 5/32 in: NBKC1/4-5/32-1/85/16 × 1/5 in: NBKC5/16-1/5-1/85/32 × 3/32 in: NBKC5/32-3/32-1/81/4 in: NBPC1/4-1/8,NPH1/4-1/8,NPHW1/4-1/8,NPLL1/4-1/8,NPZB1/4-1/83/8 in: NBPC3/8-1/8,NPLL3/8-1/85/16 in: NBPC5/16-1/8,NPH5/16-1/8,NPHW5/16-1/8,NPLL5/16-1/8,NPZB5/16-1/85/32 in: NBPC5/32-1/8,NPH5/32-1/8,NPHW5/32-1/8,NPLL5/32-1/81/4 in; male RA NPT1/8 / female RB NPT1/8: NPHF1/4-1/85/16 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/16-1/85/32 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/32-1/8main 1/4 / branches 5/32 in: NPKD1/4-5/32-1/8 IN,OUT 1/4 in: NPC1/4-1/8,NPEB1/4-1/8,NPED1/4-1/8,NPL1/4-1/8,NPYB1/4-1/83/8 in: NPC3/8-1/8,NPEB3/8-1/8,NPED3/8-1/8,NPL3/8-1/8,NPYB3/8-1/85/16 in: NPC5/16-1/8,NPEB5/16-1/8,NPED5/16-1/8,NPL5/16-1/8,NPYB5/16-1/85/32 in: NPC5/32-1/8,NPEB5/32-1/8,NPED5/32-1/8,NPL5/32-1/8,NPYB5/32-1/85/32 × 3/32 in: NUE95A5/32X3/32-100BK,NUE95A5/32X3/32-100BR,NUE95A5/32X3/32-100BU,NUE95A5/32X3/32-100C,NUE95A5/32X3/32-100CB,NUE95A5/32X3/32-100CE,NUE95A5/32X3/32-100CG,NUE95A5/32X3/32-100CR,NUE95A5/32X3/32-100CY,NUE95A5/32X3/32-100GA,NUE95A5/32X3/32-100GE,NUE95A5/32X3/32-100GN,NUE95A5/32X3/32-100R,NUE95A5/32X3/32-100WH,NUE95A5/32X3/32-100Y,NUE95A5/32X3/32-250BK,NUE95A5/32X3/32-250BR,NUE95A5/32X3/32-250BU,NUE95A5/32X3/32-250C,NUE95A5/32X3/32-250CB,NUE95A5/32X3/32-250CE,NUE95A5/32X3/32-250CG,NUE95A5/32X3/32-250CR,NUE95A5/32X3/32-250CY,NUE95A5/32X3/32-250GA,NUE95A5/32X3/32-250GE,NUE95A5/32X3/32-250GN,NUE95A5/32X3/32-250R,NUE95A5/32X3/32-250WH,NUE95A5/32X3/32-250Y,NUE95A5/32X3/32-500BK,NUE95A5/32X3/32-500BR,NUE95A5/32X3/32-500BU,NUE95A5/32X3/32-500C,NUE95A5/32X3/32-500CB,NUE95A5/32X3/32-500CE,NUE95A5/32X3/32-500CG,NUE95A5/32X3/32-500CR,NUE95A5/32X3/32-500CY,NUE95A5/32X3/32-500GA,NUE95A5/32X3/32-500GE,NUE95A5/32X3/32-500GN,NUE95A5/32X3/32-500R,NUE95A5/32X3/32-500WH,NUE95A5/32X3/32-500Y These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. NBKC5/32-3/32-1/8 specifies 3/32 in ID in its dimension row, but the selection matrix differs. Confirm that ID with the supplier before selecting the tube. The listed NUE95A tubes serve IN and OUT only through a listed exact 5/32 in OD connection; they do not connect directly to an NPT thread. For NBKC5/32-3/32-1/8, the supplier must also confirm 3/32 in ID. Do not substitute 4 mm, 3.2 mm, 3 mm or 1/8 in OD tube. These tubes are assigned only to the main air lines. NUE95A5/32X3/32 is ether-based PU, Shore A95±2, with 5/32 in OD × 3/32 in ID and 1/32 in wall. Working pressure is 145 psi at 73°F; 363 psi is burst pressure, not a working rating. Temperature range: −40–158°F; minimum bend radius: 8 mm. Derate with increasing temperature and obey every stricter unit, fitting and tube limit. In NUE codes, 100/250/500 after the hyphen are coil lengths in feet, not metres. Colours: BU blue, BK black, GE orange, C clear, WH white, CB clear blue, R red, Y yellow, GA gray, GN green, BR brown, CR clear red, CG clear green, CY clear yellow, CE clear orange. Match the complete length-and-colour code. Current lifecycle and supply of these catalog-listed tubes are unverified; confirm the exact item or an approved replacement before ordering. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $17.54

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20008L3G

  Specifications: SDR20008L3G is an Airtac 200-series compact pressure regulator with G 1/4 main ports. Its current configuration has 0.03–0.4 MPa adjustment, an included mounting bracket, an included bar-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 G 1/4 main connection L Low-pressure type; 0.03–0.4 MPa Blank — bracket Bracket included 3 Pressure gauge included; bar scale G G thread Technical Specifications Parameter Details Model SDR20008L3G Working medium Air Main port G 1/4 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. no separate mass correction is calculated for pressure type L, gauge 3, thread G. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P G 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Included with this model Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s G1/4 female supply-air inlet on the left of the section; OUT = its G1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLL extended elbow; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male G1/4 ↔ male G1/8: GBB0102male G1/4 ↔ male G1/4: GBB0202male G3/8 ↔ male G1/4: GBB0203male G1/2 ↔ male G1/4: GBB0204male G1/4 ↔ female G1/8: GBD01026 × 4: GBKC0604-02,UE95A060040100MBU,US98A060040100MBU8 × 5: GBKC0805-02,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: GBKC0806-0210 × 6.5: GBKC1065-02,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: GBKC1075-0212 × 8: GBKC1208-02,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: GBKC1209-0210: GBPC1002,GPC1002,GPC1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPH1002,GPH1002D,GPHW1002,GPHW1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPYB1002,GPYB1002D,GPZB1002,GPZB1002D12: GBPC1202,GPC1202,GPC1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPYB1202,GPYB1202D4: GBPC402,GPC402-M,GPC402D-M,GPEB402,GPEB402D,GPED402,GPED402D,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPYB402,GPYB402D6: GBPC602,GPC602,GPC602D,GPEB602,GPEB602D,GPED602,GPED602D,GPH602,GPH602D,GPHW602,GPHW602D,GPL602,GPL602D,GPLL602,GPLL602D,GPYB602,GPYB602D,GPZB602,GPZB602D8: GBPC802,GPC802,GPC802D,GPEB802,GPEB802D,GPED802,GPED802D,GPH802,GPH802D,GPHW802,GPHW802D,GPL802,GPL802D,GPLL802,GPLL802D,GPYB802,GPYB802D,GPZB802,GPZB802D10; male RA G1/4 / female RB G1/4: GPHF1002,GPHF1002D6; male RA G1/4 / female RB G1/4: GPHF602,GPHF602D8; male RA G1/4 / female RB G1/4: GPHF802,GPHF802Dmain 8 / branch 6: GPKD8-602,GPKD8-602D4 × 2.5: UE95A040025100MBU,US98A040025100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. GPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.65

  View options

•

  View options

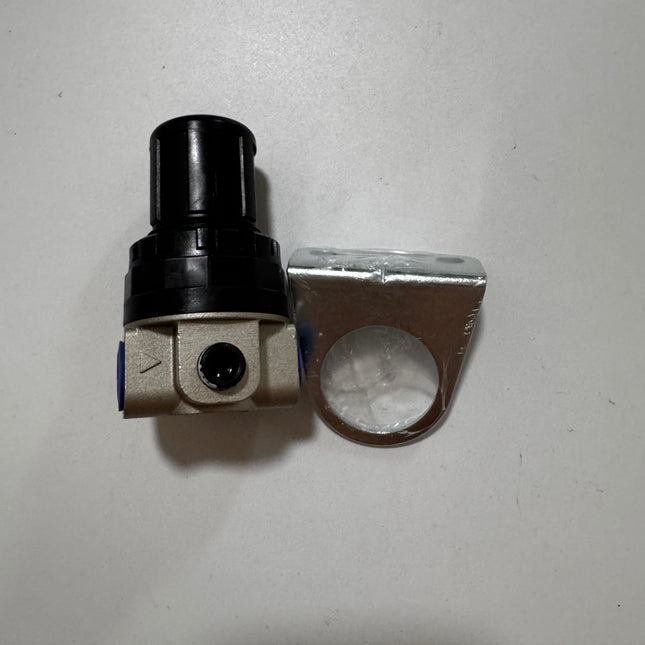

  Airtac SDR series: compact pressure regulator - SDR20008L3

  Specifications: SDR20008L3 is an Airtac 200-series compact pressure regulator with PT 1/4 main ports. Its current configuration has 0.03–0.4 MPa adjustment, an included mounting bracket, an included bar-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 PT 1/4 main connection L Low-pressure type; 0.03–0.4 MPa Blank — bracket Bracket included 3 Pressure gauge included; bar scale Blank — thread PT thread Technical Specifications Parameter Details Model SDR20008L3 Working medium Air Main port PT 1/4 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. no separate mass correction is calculated for pressure type L, gauge 3, thread (blank). Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P PT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Included with this model Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s PT1/4 female supply-air inlet on the left of the section; OUT = its PT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPOC metal straight; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT1/4 ↔ male PT1/4: BB0202,BB0202-Smale PT3/8 ↔ male PT1/4: BB0203,BB0203-Smale PT1/2 ↔ male PT1/4: BB0204,BB0204-Smale PT1/4 ↔ female PT1/8: BD0102,BD0102-S6 × 4: BKC0604-02,BKC0604-02-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-02,BKC0805-02-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-02,BKC0806-02-S10 × 6.5: BKC1065-02,BKC1065-02-S,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: BKC1075-02,BKC1075-02-S12 × 8: BKC1208-02,BKC1208-02-S,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: BKC1209-02,BKC1209-02-S10: BPC1002,BPOC1002,PC1002,PC1002-S,PC1002D,PC1002D-S,PEB1002,PEB1002-S,PEB1002D,PEB1002D-S,PED1002,PED1002-S,PED1002D,PED1002D-S,PH1002,PH1002-S,PH1002D,PH1002D-S,PHW1002,PHW1002-S,PHW1002D,PHW1002D-S,PL1002,PL1002-S,PL1002D,PL1002D-S,PLL1002,PLL1002-S,PLL1002D,PLL1002D-S,POC1002,POC1002-S,POC1002D,POC1002D-S,PYB1002,PYB1002-S,PYB1002D,PYB1002D-S,PZB1002,PZB1002-S,PZB1002D,PZB1002D-S12: BPC1202,PC1202,PC1202-S,PC1202D,PC1202D-S,PEB1202,PEB1202-S,PEB1202D,PEB1202D-S,PED1202,PED1202-S,PED1202D,PED1202D-S,PL1202,PL1202-S,PL1202D,PL1202D-S,PLL1202,PLL1202-S,PLL1202D,PLL1202D-S,POC1202,POC1202-S,POC1202D,POC1202D-S,PYB1202,PYB1202-S,PYB1202D,PYB1202D-S4: BPC402,PC402,PC402-S,PC402D,PC402D-S,PEB402,PEB402-S,PEB402D,PEB402D-S,PED402,PED402-S,PED402D,PED402D-S,PL402,PL402-S,PL402D,PL402D-S,PLL402,PLL402-S,PLL402D,PLL402D-S,POC402,POC402-S,POC402D,POC402D-S,PYB402,PYB402-S,PYB402D,PYB402D-S6: BPC602,BPOC602,PC602,PC602-S,PC602D,PC602D-S,PEB602,PEB602-S,PEB602D,PEB602D-S,PED602,PED602-S,PED602D,PED602D-S,PH602,PH602-S,PH602D,PH602D-S,PHW602,PHW602-S,PHW602D,PHW602D-S,PL602,PL602-S,PL602D,PL602D-S,PLL602,PLL602-S,PLL602D,PLL602D-S,POC602,POC602-S,POC602D,POC602D-S,PYB602,PYB602-S,PYB602D,PYB602D-S,PZB602,PZB602-S,PZB602D,PZB602D-S8: BPC802,BPOC802,PC802,PC802-S,PC802D,PC802D-S,PEB802,PEB802-S,PEB802D,PEB802D-S,PED802,PED802-S,PED802D,PED802D-S,PH802,PH802-S,PH802D,PH802D-S,PHW802,PHW802-S,PHW802D,PHW802D-S,PL802,PL802-S,PL802D,PL802D-S,PLL802,PLL802-S,PLL802D,PLL802D-S,POC802,POC802-S,POC802D,POC802D-S,PYB802,PYB802-S,PYB802D,PYB802D-S,PZB802,PZB802-S,PZB802D,PZB802D-S10; male RA PT1/4 / female RB PT1/4: PHF1002,PHF1002-S,PHF1002D,PHF1002D-S6; male RA PT1/4 / female RB PT1/4: PHF602,PHF602-S,PHF602D,PHF602D-S8; male RA PT1/4 / female RB PT1/4: PHF802,PHF802-S,PHF802D,PHF802D-Smain 8 / branch 6: PKD8-602,PKD8-602-S,PKD8-602D,PKD8-602D-S4 × 2.5: UE95A040025100MBU,US98A040025100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. PHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.65

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20006LJ2T

  Specifications: SDR20006LJ2T is an Airtac 200-series compact pressure regulator with NPT 1/8 main ports. Its current configuration has 0.03–0.4 MPa adjustment, no mounting bracket, an included psi-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 06 NPT 1/8 main connection L Low-pressure type; 0.03–0.4 MPa J Without bracket 2 Pressure gauge included; psi scale T NPT thread Technical Specifications Parameter Details Model SDR20006LJ2T Working medium Air Main port NPT 1/8 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the current 06 port code shares the same-size 08 port reference; the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type L, gauge 2, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. For SDR20006, E is 24 mm in the 2022 Chinese catalog, printed page 244; the linked English edition prints 23 mm. The Chinese dimension is used here. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/8 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/8 female supply-air inlet on the left of the section; OUT = its NPT1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross; NUE polyurethane tube. Use Size / complete codes IN,OUT (discontinued) male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/8 ↔ male NPT1/8: NBB1/8-1/8male NPT1/8 ↔ male NPT3/8: NBB1/8-3/81/4 × 5/32 in: NBKC1/4-5/32-1/85/16 × 1/5 in: NBKC5/16-1/5-1/85/32 × 3/32 in: NBKC5/32-3/32-1/81/4 in: NBPC1/4-1/8,NPH1/4-1/8,NPHW1/4-1/8,NPLL1/4-1/8,NPZB1/4-1/83/8 in: NBPC3/8-1/8,NPLL3/8-1/85/16 in: NBPC5/16-1/8,NPH5/16-1/8,NPHW5/16-1/8,NPLL5/16-1/8,NPZB5/16-1/85/32 in: NBPC5/32-1/8,NPH5/32-1/8,NPHW5/32-1/8,NPLL5/32-1/81/4 in; male RA NPT1/8 / female RB NPT1/8: NPHF1/4-1/85/16 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/16-1/85/32 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/32-1/8main 1/4 / branches 5/32 in: NPKD1/4-5/32-1/8 IN,OUT 1/4 in: NPC1/4-1/8,NPEB1/4-1/8,NPED1/4-1/8,NPL1/4-1/8,NPYB1/4-1/83/8 in: NPC3/8-1/8,NPEB3/8-1/8,NPED3/8-1/8,NPL3/8-1/8,NPYB3/8-1/85/16 in: NPC5/16-1/8,NPEB5/16-1/8,NPED5/16-1/8,NPL5/16-1/8,NPYB5/16-1/85/32 in: NPC5/32-1/8,NPEB5/32-1/8,NPED5/32-1/8,NPL5/32-1/8,NPYB5/32-1/85/32 × 3/32 in: NUE95A5/32X3/32-100BK,NUE95A5/32X3/32-100BR,NUE95A5/32X3/32-100BU,NUE95A5/32X3/32-100C,NUE95A5/32X3/32-100CB,NUE95A5/32X3/32-100CE,NUE95A5/32X3/32-100CG,NUE95A5/32X3/32-100CR,NUE95A5/32X3/32-100CY,NUE95A5/32X3/32-100GA,NUE95A5/32X3/32-100GE,NUE95A5/32X3/32-100GN,NUE95A5/32X3/32-100R,NUE95A5/32X3/32-100WH,NUE95A5/32X3/32-100Y,NUE95A5/32X3/32-250BK,NUE95A5/32X3/32-250BR,NUE95A5/32X3/32-250BU,NUE95A5/32X3/32-250C,NUE95A5/32X3/32-250CB,NUE95A5/32X3/32-250CE,NUE95A5/32X3/32-250CG,NUE95A5/32X3/32-250CR,NUE95A5/32X3/32-250CY,NUE95A5/32X3/32-250GA,NUE95A5/32X3/32-250GE,NUE95A5/32X3/32-250GN,NUE95A5/32X3/32-250R,NUE95A5/32X3/32-250WH,NUE95A5/32X3/32-250Y,NUE95A5/32X3/32-500BK,NUE95A5/32X3/32-500BR,NUE95A5/32X3/32-500BU,NUE95A5/32X3/32-500C,NUE95A5/32X3/32-500CB,NUE95A5/32X3/32-500CE,NUE95A5/32X3/32-500CG,NUE95A5/32X3/32-500CR,NUE95A5/32X3/32-500CY,NUE95A5/32X3/32-500GA,NUE95A5/32X3/32-500GE,NUE95A5/32X3/32-500GN,NUE95A5/32X3/32-500R,NUE95A5/32X3/32-500WH,NUE95A5/32X3/32-500Y These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. NBKC5/32-3/32-1/8 specifies 3/32 in ID in its dimension row, but the selection matrix differs. Confirm that ID with the supplier before selecting the tube. The listed NUE95A tubes serve IN and OUT only through a listed exact 5/32 in OD connection; they do not connect directly to an NPT thread. For NBKC5/32-3/32-1/8, the supplier must also confirm 3/32 in ID. Do not substitute 4 mm, 3.2 mm, 3 mm or 1/8 in OD tube. These tubes are assigned only to the main air lines. NUE95A5/32X3/32 is ether-based PU, Shore A95±2, with 5/32 in OD × 3/32 in ID and 1/32 in wall. Working pressure is 145 psi at 73°F; 363 psi is burst pressure, not a working rating. Temperature range: −40–158°F; minimum bend radius: 8 mm. Derate with increasing temperature and obey every stricter unit, fitting and tube limit. In NUE codes, 100/250/500 after the hyphen are coil lengths in feet, not metres. Colours: BU blue, BK black, GE orange, C clear, WH white, CB clear blue, R red, Y yellow, GA gray, GN green, BR brown, CR clear red, CG clear green, CY clear yellow, CE clear orange. Match the complete length-and-colour code. Current lifecycle and supply of these catalog-listed tubes are unverified; confirm the exact item or an approved replacement before ordering. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.10

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR10006J1

  Specifications: SDR10006J1 is an Airtac 100-series compact pressure regulator with PT 1/8 main ports. Its current configuration has 0.05–0.9 MPa adjustment, no mounting bracket, an included MPa-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 100 100 size series 06 PT 1/8 main connection Blank — pressure Standard type; 0.05–0.9 MPa J Without bracket 1 Pressure gauge included; MPa scale Blank — thread PT thread Technical Specifications Parameter Details Model SDR10006J1 Working medium Air Main port PT 1/8 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 77 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR100-06. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type (blank), gauge 1, thread (blank). Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 35 mm AB — diameter 20 mm AC 32 mm B 65.5 mm BA 26 mm BC 39.5 mm BD 14.5 mm BE 29 mm C 62.5 mm CA 54.5 mm D — diameter 33 mm E 17 mm K 5.5 mm KA 22 mm KB 7 mm KC 29 mm P PT 1/8 PA 7.5 mm Q 1/16 Panel mounting thread M22×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–700 L/min, 100 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s PT1/8 female supply-air inlet on the left of the section; OUT = its PT1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): BB male–male; BKC compression fitting; BPC metal straight; BPOC metal straight; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. PHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.10

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR100M51

  Specifications: SDR100M51 is an Airtac 100-series compact pressure regulator with M5 main ports. Its current configuration has 0.05–0.9 MPa adjustment, an included mounting bracket, an included MPa-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 100 100 size series M5 M5 main connection Blank — pressure Standard type; 0.05–0.9 MPa Blank — bracket Bracket included 1 Pressure gauge included; MPa scale Technical Specifications Parameter Details Model SDR100M51 Working medium Air Main port M5 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 77 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR100-06. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the current M5 port code shares the same-size 06 port reference; no separate mass correction is calculated for pressure type (blank), gauge 1, thread (blank). Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 35 mm AB — diameter 20 mm AC 32 mm B 65.5 mm BA 26 mm BC 39.5 mm BD 14.5 mm BE 29 mm C 62.5 mm CA 54.5 mm D — diameter 33 mm E 17 mm K 5.5 mm KA 22 mm KB 7 mm KC 29 mm P M5 PA 7.5 mm Q 1/16 Panel mounting thread M22×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Included with this model Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–700 L/min, 100 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s M5×0.8 female supply-air inlet on the left of the section; OUT = its M5×0.8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. The catalog labels these main ports M5; the listed M5×0.8 fittings use the verified metric mating standard, not #10-32 UNF. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): BKC/GBKC compression fitting; BPC/GBPC metal straight; BPOC metal straight; GPC/PC straight; GPEB/PEB branch tee; GPED/PED run tee; GPH/PH banjo elbow; GPHF/PHF female branch banjo; GPL/PL elbow; GPLL/PLL extended elbow; GPYB/PYB Y; POC round straight; UE PU tube; US PU tube. Use Size / complete codes IN,OUT 4 × 2.5: BKC0425-M5,BKC0425-M5-S,GBKC0425-M5,UE95A040025100MBU,US98A040025100MBU4: BPC4M5,BPOC4M5,GBPC4M5,GPC4M5-M,GPC4M5D-M,GPEB4M5,GPEB4M5D,GPED4M5,GPED4M5D,GPH4M5,GPH4M5D,GPHF4M5,GPHF4M5D,GPL4M5,GPL4M5-M,GPL4M5D,GPL4M5D-M,GPLL4M5,GPLL4M5D,GPYB4M5,GPYB4M5D,PC4M5,PC4M5-M,PC4M5-S,PC4M5D,PC4M5D-M,PC4M5D-S,PEB4M5,PEB4M5-S,PEB4M5D,PEB4M5D-S,PED4M5,PED4M5-S,PED4M5D,PED4M5D-S,PH4M5,PH4M5-S,PH4M5D,PH4M5D-S,PHF4M5,PHF4M5-S,PHF4M5D,PHF4M5D-S,PL4M5,PL4M5-M,PL4M5-S,PL4M5D,PL4M5D-M,PL4M5D-S,PLL4M5,PLL4M5-S,PLL4M5D,PLL4M5D-S,POC4M5,POC4M5-S,POC4M5D,POC4M5D-S,PYB4M5,PYB4M5-S,PYB4M5D,PYB4M5D-S6: BPC6M5,BPOC6M5,GBPC6M5,GPC6M5,GPC6M5-M,GPC6M5D,GPC6M5D-M,GPEB6M5,GPEB6M5D,GPED6M5,GPED6M5D,GPH6M5,GPH6M5D,GPHF6M5,GPHF6M5D,GPL6M5,GPL6M5-M,GPL6M5D,GPL6M5D-M,GPLL6M5,GPLL6M5D,GPYB6M5,GPYB6M5D,PC6M5,PC6M5-M,PC6M5-S,PC6M5D,PC6M5D-M,PC6M5D-S,PEB6M5,PEB6M5-S,PEB6M5D,PEB6M5D-S,PED6M5,PED6M5-S,PED6M5D,PED6M5D-S,PH6M5,PH6M5-S,PH6M5D,PH6M5D-S,PHF6M5,PHF6M5-S,PHF6M5D,PHF6M5D-S,PL6M5,PL6M5-M,PL6M5-S,PL6M5D,PL6M5D-M,PL6M5D-S,PLL6M5,PLL6M5-S,PLL6M5D,PLL6M5D-S,POC6M5,POC6M5-S,POC6M5D,POC6M5D-S,PYB6M5,PYB6M5-S,PYB6M5D,PYB6M5D-S3.2: GPC3.2M5-M,GPC3.2M5D-M,GPL3.2M5-M,GPL3.2M5D-M,PC3.2M5-M,PC3.2M5D-M,PL3.2M5-M,PL3.2M5D-M3.2 × 2: UE95A032020100MBU,US98A032020100MBU6 × 4: UE95A060040100MBU,US98A060040100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. The SDR catalog labels the main connection M5. Use the verified M5×0.8 metric fitting standard and its specified gasket or face seal; confirm seating without treating this as a tapered pipe thread. M5×0.8 and #10-32 UNF are not interchangeable. The catalog’s M5 label is retained; pitch is supplied by the verified mating-fitting specification. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. PHF/GPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC/GBPC: ≤0.9 MPa; compression fittings: ≤1 MPa. The listed metal push-in and compression groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.65

  View options

•

  View options

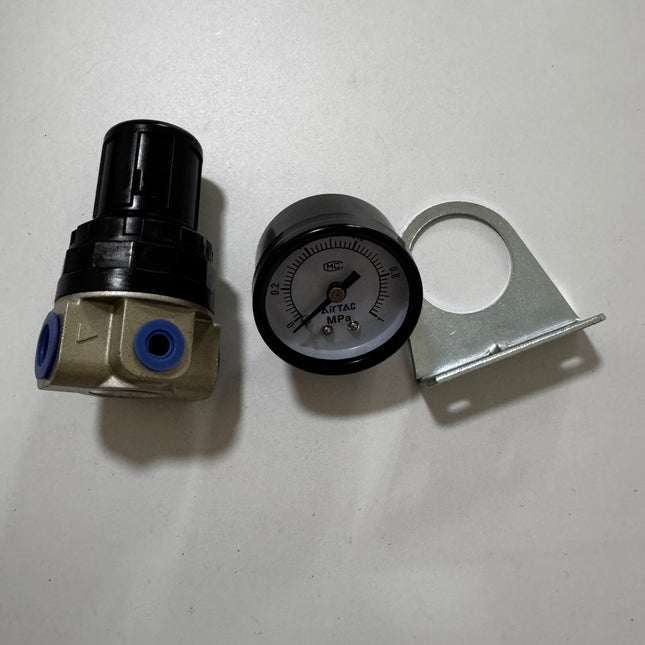

  Airtac SDR series: compact pressure regulator - SDR200081

  Specifications: SDR200081 is an Airtac 200-series compact pressure regulator with PT 1/4 main ports. Its current configuration has 0.05–0.9 MPa adjustment, an included mounting bracket, an included MPa-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 PT 1/4 main connection Blank — pressure Standard type; 0.05–0.9 MPa Blank — bracket Bracket included 1 Pressure gauge included; MPa scale Blank — thread PT thread Technical Specifications Parameter Details Model SDR200081 Working medium Air Main port PT 1/4 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. no separate mass correction is calculated for pressure type (blank), gauge 1, thread (blank). Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P PT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Included with this model Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s PT1/4 female supply-air inlet on the left of the section; OUT = its PT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPOC metal straight; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT1/4 ↔ male PT1/4: BB0202,BB0202-Smale PT3/8 ↔ male PT1/4: BB0203,BB0203-Smale PT1/2 ↔ male PT1/4: BB0204,BB0204-Smale PT1/4 ↔ female PT1/8: BD0102,BD0102-S6 × 4: BKC0604-02,BKC0604-02-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-02,BKC0805-02-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-02,BKC0806-02-S10 × 6.5: BKC1065-02,BKC1065-02-S,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: BKC1075-02,BKC1075-02-S12 × 8: BKC1208-02,BKC1208-02-S,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: BKC1209-02,BKC1209-02-S10: BPC1002,BPOC1002,PC1002,PC1002-S,PC1002D,PC1002D-S,PEB1002,PEB1002-S,PEB1002D,PEB1002D-S,PED1002,PED1002-S,PED1002D,PED1002D-S,PH1002,PH1002-S,PH1002D,PH1002D-S,PHW1002,PHW1002-S,PHW1002D,PHW1002D-S,PL1002,PL1002-S,PL1002D,PL1002D-S,PLL1002,PLL1002-S,PLL1002D,PLL1002D-S,POC1002,POC1002-S,POC1002D,POC1002D-S,PYB1002,PYB1002-S,PYB1002D,PYB1002D-S,PZB1002,PZB1002-S,PZB1002D,PZB1002D-S12: BPC1202,PC1202,PC1202-S,PC1202D,PC1202D-S,PEB1202,PEB1202-S,PEB1202D,PEB1202D-S,PED1202,PED1202-S,PED1202D,PED1202D-S,PL1202,PL1202-S,PL1202D,PL1202D-S,PLL1202,PLL1202-S,PLL1202D,PLL1202D-S,POC1202,POC1202-S,POC1202D,POC1202D-S,PYB1202,PYB1202-S,PYB1202D,PYB1202D-S4: BPC402,PC402,PC402-S,PC402D,PC402D-S,PEB402,PEB402-S,PEB402D,PEB402D-S,PED402,PED402-S,PED402D,PED402D-S,PL402,PL402-S,PL402D,PL402D-S,PLL402,PLL402-S,PLL402D,PLL402D-S,POC402,POC402-S,POC402D,POC402D-S,PYB402,PYB402-S,PYB402D,PYB402D-S6: BPC602,BPOC602,PC602,PC602-S,PC602D,PC602D-S,PEB602,PEB602-S,PEB602D,PEB602D-S,PED602,PED602-S,PED602D,PED602D-S,PH602,PH602-S,PH602D,PH602D-S,PHW602,PHW602-S,PHW602D,PHW602D-S,PL602,PL602-S,PL602D,PL602D-S,PLL602,PLL602-S,PLL602D,PLL602D-S,POC602,POC602-S,POC602D,POC602D-S,PYB602,PYB602-S,PYB602D,PYB602D-S,PZB602,PZB602-S,PZB602D,PZB602D-S8: BPC802,BPOC802,PC802,PC802-S,PC802D,PC802D-S,PEB802,PEB802-S,PEB802D,PEB802D-S,PED802,PED802-S,PED802D,PED802D-S,PH802,PH802-S,PH802D,PH802D-S,PHW802,PHW802-S,PHW802D,PHW802D-S,PL802,PL802-S,PL802D,PL802D-S,PLL802,PLL802-S,PLL802D,PLL802D-S,POC802,POC802-S,POC802D,POC802D-S,PYB802,PYB802-S,PYB802D,PYB802D-S,PZB802,PZB802-S,PZB802D,PZB802D-S10; male RA PT1/4 / female RB PT1/4: PHF1002,PHF1002-S,PHF1002D,PHF1002D-S6; male RA PT1/4 / female RB PT1/4: PHF602,PHF602-S,PHF602D,PHF602D-S8; male RA PT1/4 / female RB PT1/4: PHF802,PHF802-S,PHF802D,PHF802D-Smain 8 / branch 6: PKD8-602,PKD8-602-S,PKD8-602D,PKD8-602D-S4 × 2.5: UE95A040025100MBU,US98A040025100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. PHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.65

  View options

•

  View options

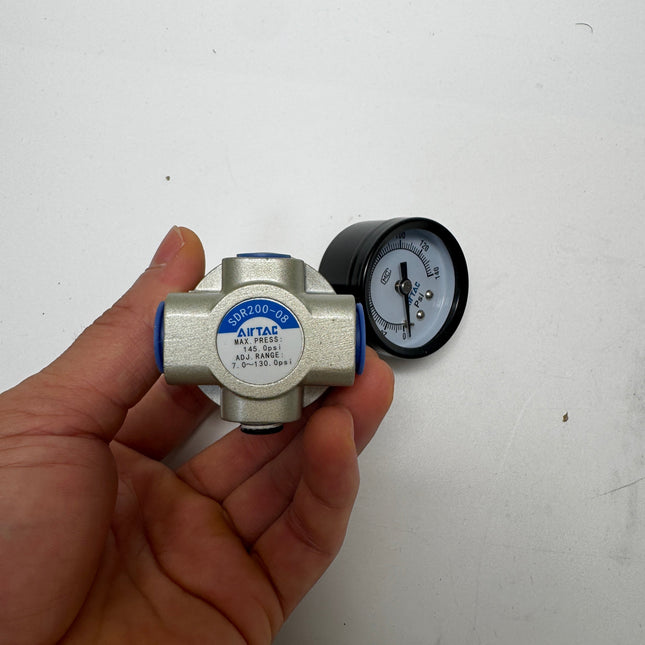

  Airtac SDR series: compact pressure regulator - SDR20008J2T

  Specifications: SDR20008J2T is an Airtac 200-series compact pressure regulator with NPT 1/4 main ports. Its current configuration has 0.05–0.9 MPa adjustment, no mounting bracket, an included psi-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 NPT 1/4 main connection Blank — pressure Standard type; 0.05–0.9 MPa J Without bracket 2 Pressure gauge included; psi scale T NPT thread Technical Specifications Parameter Details Model SDR20008J2T Working medium Air Main port NPT 1/4 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type (blank), gauge 2, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/4 female supply-air inlet on the left of the section; OUT = its NPT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBD male–female; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross. Use Size / complete codes IN,OUT (discontinued) male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/4 ↔ female NPT1/8: NBD1/8-1/41/2 × 1/3 in: NBKC1/2-1/3-1/41/4 × 5/32 in: NBKC1/4-5/32-1/43/8 × 1/4 in: NBKC3/8-1/4-1/45/16 × 1/5 in: NBKC5/16-1/5-1/41/2 in: NBPC1/2-1/4,NPLL1/2-1/41/4 in: NBPC1/4-1/4,NPH1/4-1/4,NPHW1/4-1/4,NPLL1/4-1/4,NPZB1/4-1/43/8 in: NBPC3/8-1/4,NPH3/8-1/4,NPHW3/8-1/4,NPLL3/8-1/4,NPZB3/8-1/45/16 in: NBPC5/16-1/4,NPH5/16-1/4,NPHW5/16-1/4,NPLL5/16-1/4,NPZB5/16-1/41/4 in; male RA NPT1/4 / female RB NPT1/4: NPHF1/4-1/43/8 in; male RA NPT1/4 / female RB NPT1/4: NPHF3/8-1/45/16 in; male RA NPT1/4 / female RB NPT1/4: NPHF5/16-1/4main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4 IN,OUT 1/2 in: NPC1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPL1/2-1/4,NPYB1/2-1/41/4 in: NPC1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPL1/4-1/4,NPYB1/4-1/43/8 in: NPC3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPL3/8-1/4,NPYB3/8-1/45/16 in: NPC5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPL5/16-1/4,NPYB5/16-1/4 These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.10

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR200082T

  Specifications: SDR200082T is an Airtac 200-series compact pressure regulator with NPT 1/4 main ports. Its current configuration has 0.05–0.9 MPa adjustment, an included mounting bracket, an included psi-scale pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 NPT 1/4 main connection Blank — pressure Standard type; 0.05–0.9 MPa Blank — bracket Bracket included 2 Pressure gauge included; psi scale T NPT thread Technical Specifications Parameter Details Model SDR200082T Working medium Air Main port NPT 1/4 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. no separate mass correction is calculated for pressure type (blank), gauge 2, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Included with this model Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/4 female supply-air inlet on the left of the section; OUT = its NPT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBD male–female; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross. Use Size / complete codes IN,OUT (discontinued) male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/4 ↔ female NPT1/8: NBD1/8-1/41/2 × 1/3 in: NBKC1/2-1/3-1/41/4 × 5/32 in: NBKC1/4-5/32-1/43/8 × 1/4 in: NBKC3/8-1/4-1/45/16 × 1/5 in: NBKC5/16-1/5-1/41/2 in: NBPC1/2-1/4,NPLL1/2-1/41/4 in: NBPC1/4-1/4,NPH1/4-1/4,NPHW1/4-1/4,NPLL1/4-1/4,NPZB1/4-1/43/8 in: NBPC3/8-1/4,NPH3/8-1/4,NPHW3/8-1/4,NPLL3/8-1/4,NPZB3/8-1/45/16 in: NBPC5/16-1/4,NPH5/16-1/4,NPHW5/16-1/4,NPLL5/16-1/4,NPZB5/16-1/41/4 in; male RA NPT1/4 / female RB NPT1/4: NPHF1/4-1/43/8 in; male RA NPT1/4 / female RB NPT1/4: NPHF3/8-1/45/16 in; male RA NPT1/4 / female RB NPT1/4: NPHF5/16-1/4main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4 IN,OUT 1/2 in: NPC1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPL1/2-1/4,NPYB1/2-1/41/4 in: NPC1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPL1/4-1/4,NPYB1/4-1/43/8 in: NPC3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPL3/8-1/4,NPYB3/8-1/45/16 in: NPC5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPL5/16-1/4,NPYB5/16-1/4 These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $21.65

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20008LJNT

  Specifications: SDR20008LJNT is an Airtac 200-series compact pressure regulator with NPT 1/4 main ports. Its current configuration has 0.03–0.4 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 NPT 1/4 main connection L Low-pressure type; 0.03–0.4 MPa J Without bracket N Without pressure gauge T NPT thread Technical Specifications Parameter Details Model SDR20008LJNT Working medium Air Main port NPT 1/4 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type L, gauge N, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/4 female supply-air inlet on the left of the section; OUT = its NPT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBD male–female; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross. Use Size / complete codes IN,OUT (discontinued) male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/4 ↔ female NPT1/8: NBD1/8-1/41/2 × 1/3 in: NBKC1/2-1/3-1/41/4 × 5/32 in: NBKC1/4-5/32-1/43/8 × 1/4 in: NBKC3/8-1/4-1/45/16 × 1/5 in: NBKC5/16-1/5-1/41/2 in: NBPC1/2-1/4,NPLL1/2-1/41/4 in: NBPC1/4-1/4,NPH1/4-1/4,NPHW1/4-1/4,NPLL1/4-1/4,NPZB1/4-1/43/8 in: NBPC3/8-1/4,NPH3/8-1/4,NPHW3/8-1/4,NPLL3/8-1/4,NPZB3/8-1/45/16 in: NBPC5/16-1/4,NPH5/16-1/4,NPHW5/16-1/4,NPLL5/16-1/4,NPZB5/16-1/41/4 in; male RA NPT1/4 / female RB NPT1/4: NPHF1/4-1/43/8 in; male RA NPT1/4 / female RB NPT1/4: NPHF3/8-1/45/16 in; male RA NPT1/4 / female RB NPT1/4: NPHF5/16-1/4main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4 IN,OUT 1/2 in: NPC1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPL1/2-1/4,NPYB1/2-1/41/4 in: NPC1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPL1/4-1/4,NPYB1/4-1/43/8 in: NPC3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPL3/8-1/4,NPYB3/8-1/45/16 in: NPC5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPL5/16-1/4,NPYB5/16-1/4 These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20008LJNG

  Specifications: SDR20008LJNG is an Airtac 200-series compact pressure regulator with G 1/4 main ports. Its current configuration has 0.03–0.4 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 G 1/4 main connection L Low-pressure type; 0.03–0.4 MPa J Without bracket N Without pressure gauge G G thread Technical Specifications Parameter Details Model SDR20008LJNG Working medium Air Main port G 1/4 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type L, gauge N, thread G. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P G 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s G1/4 female supply-air inlet on the left of the section; OUT = its G1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLL extended elbow; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male G1/4 ↔ male G1/8: GBB0102male G1/4 ↔ male G1/4: GBB0202male G3/8 ↔ male G1/4: GBB0203male G1/2 ↔ male G1/4: GBB0204male G1/4 ↔ female G1/8: GBD01026 × 4: GBKC0604-02,UE95A060040100MBU,US98A060040100MBU8 × 5: GBKC0805-02,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: GBKC0806-0210 × 6.5: GBKC1065-02,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: GBKC1075-0212 × 8: GBKC1208-02,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: GBKC1209-0210: GBPC1002,GPC1002,GPC1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPH1002,GPH1002D,GPHW1002,GPHW1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPYB1002,GPYB1002D,GPZB1002,GPZB1002D12: GBPC1202,GPC1202,GPC1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPYB1202,GPYB1202D4: GBPC402,GPC402-M,GPC402D-M,GPEB402,GPEB402D,GPED402,GPED402D,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPYB402,GPYB402D6: GBPC602,GPC602,GPC602D,GPEB602,GPEB602D,GPED602,GPED602D,GPH602,GPH602D,GPHW602,GPHW602D,GPL602,GPL602D,GPLL602,GPLL602D,GPYB602,GPYB602D,GPZB602,GPZB602D8: GBPC802,GPC802,GPC802D,GPEB802,GPEB802D,GPED802,GPED802D,GPH802,GPH802D,GPHW802,GPHW802D,GPL802,GPL802D,GPLL802,GPLL802D,GPYB802,GPYB802D,GPZB802,GPZB802D10; male RA G1/4 / female RB G1/4: GPHF1002,GPHF1002D6; male RA G1/4 / female RB G1/4: GPHF602,GPHF602D8; male RA G1/4 / female RB G1/4: GPHF802,GPHF802Dmain 8 / branch 6: GPKD8-602,GPKD8-602D4 × 2.5: UE95A040025100MBU,US98A040025100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. GPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20008LJN

  Specifications: SDR20008LJN is an Airtac 200-series compact pressure regulator with PT 1/4 main ports. Its current configuration has 0.03–0.4 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 PT 1/4 main connection L Low-pressure type; 0.03–0.4 MPa J Without bracket N Without pressure gauge Blank — thread PT thread Technical Specifications Parameter Details Model SDR20008LJN Working medium Air Main port PT 1/4 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type L, gauge N, thread (blank). Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P PT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s PT1/4 female supply-air inlet on the left of the section; OUT = its PT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPOC metal straight; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT1/4 ↔ male PT1/4: BB0202,BB0202-Smale PT3/8 ↔ male PT1/4: BB0203,BB0203-Smale PT1/2 ↔ male PT1/4: BB0204,BB0204-Smale PT1/4 ↔ female PT1/8: BD0102,BD0102-S6 × 4: BKC0604-02,BKC0604-02-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-02,BKC0805-02-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-02,BKC0806-02-S10 × 6.5: BKC1065-02,BKC1065-02-S,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: BKC1075-02,BKC1075-02-S12 × 8: BKC1208-02,BKC1208-02-S,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: BKC1209-02,BKC1209-02-S10: BPC1002,BPOC1002,PC1002,PC1002-S,PC1002D,PC1002D-S,PEB1002,PEB1002-S,PEB1002D,PEB1002D-S,PED1002,PED1002-S,PED1002D,PED1002D-S,PH1002,PH1002-S,PH1002D,PH1002D-S,PHW1002,PHW1002-S,PHW1002D,PHW1002D-S,PL1002,PL1002-S,PL1002D,PL1002D-S,PLL1002,PLL1002-S,PLL1002D,PLL1002D-S,POC1002,POC1002-S,POC1002D,POC1002D-S,PYB1002,PYB1002-S,PYB1002D,PYB1002D-S,PZB1002,PZB1002-S,PZB1002D,PZB1002D-S12: BPC1202,PC1202,PC1202-S,PC1202D,PC1202D-S,PEB1202,PEB1202-S,PEB1202D,PEB1202D-S,PED1202,PED1202-S,PED1202D,PED1202D-S,PL1202,PL1202-S,PL1202D,PL1202D-S,PLL1202,PLL1202-S,PLL1202D,PLL1202D-S,POC1202,POC1202-S,POC1202D,POC1202D-S,PYB1202,PYB1202-S,PYB1202D,PYB1202D-S4: BPC402,PC402,PC402-S,PC402D,PC402D-S,PEB402,PEB402-S,PEB402D,PEB402D-S,PED402,PED402-S,PED402D,PED402D-S,PL402,PL402-S,PL402D,PL402D-S,PLL402,PLL402-S,PLL402D,PLL402D-S,POC402,POC402-S,POC402D,POC402D-S,PYB402,PYB402-S,PYB402D,PYB402D-S6: BPC602,BPOC602,PC602,PC602-S,PC602D,PC602D-S,PEB602,PEB602-S,PEB602D,PEB602D-S,PED602,PED602-S,PED602D,PED602D-S,PH602,PH602-S,PH602D,PH602D-S,PHW602,PHW602-S,PHW602D,PHW602D-S,PL602,PL602-S,PL602D,PL602D-S,PLL602,PLL602-S,PLL602D,PLL602D-S,POC602,POC602-S,POC602D,POC602D-S,PYB602,PYB602-S,PYB602D,PYB602D-S,PZB602,PZB602-S,PZB602D,PZB602D-S8: BPC802,BPOC802,PC802,PC802-S,PC802D,PC802D-S,PEB802,PEB802-S,PEB802D,PEB802D-S,PED802,PED802-S,PED802D,PED802D-S,PH802,PH802-S,PH802D,PH802D-S,PHW802,PHW802-S,PHW802D,PHW802D-S,PL802,PL802-S,PL802D,PL802D-S,PLL802,PLL802-S,PLL802D,PLL802D-S,POC802,POC802-S,POC802D,POC802D-S,PYB802,PYB802-S,PYB802D,PYB802D-S,PZB802,PZB802-S,PZB802D,PZB802D-S10; male RA PT1/4 / female RB PT1/4: PHF1002,PHF1002-S,PHF1002D,PHF1002D-S6; male RA PT1/4 / female RB PT1/4: PHF602,PHF602-S,PHF602D,PHF602D-S8; male RA PT1/4 / female RB PT1/4: PHF802,PHF802-S,PHF802D,PHF802D-Smain 8 / branch 6: PKD8-602,PKD8-602-S,PKD8-602D,PKD8-602D-S4 × 2.5: UE95A040025100MBU,US98A040025100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. PHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20008JNT

  Specifications: SDR20008JNT is an Airtac 200-series compact pressure regulator with NPT 1/4 main ports. Its current configuration has 0.05–0.9 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 NPT 1/4 main connection Blank — pressure Standard type; 0.05–0.9 MPa J Without bracket N Without pressure gauge T NPT thread Technical Specifications Parameter Details Model SDR20008JNT Working medium Air Main port NPT 1/4 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type (blank), gauge N, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/4 female supply-air inlet on the left of the section; OUT = its NPT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBD male–female; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross. Use Size / complete codes IN,OUT (discontinued) male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/4 ↔ female NPT1/8: NBD1/8-1/41/2 × 1/3 in: NBKC1/2-1/3-1/41/4 × 5/32 in: NBKC1/4-5/32-1/43/8 × 1/4 in: NBKC3/8-1/4-1/45/16 × 1/5 in: NBKC5/16-1/5-1/41/2 in: NBPC1/2-1/4,NPLL1/2-1/41/4 in: NBPC1/4-1/4,NPH1/4-1/4,NPHW1/4-1/4,NPLL1/4-1/4,NPZB1/4-1/43/8 in: NBPC3/8-1/4,NPH3/8-1/4,NPHW3/8-1/4,NPLL3/8-1/4,NPZB3/8-1/45/16 in: NBPC5/16-1/4,NPH5/16-1/4,NPHW5/16-1/4,NPLL5/16-1/4,NPZB5/16-1/41/4 in; male RA NPT1/4 / female RB NPT1/4: NPHF1/4-1/43/8 in; male RA NPT1/4 / female RB NPT1/4: NPHF3/8-1/45/16 in; male RA NPT1/4 / female RB NPT1/4: NPHF5/16-1/4main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4 IN,OUT 1/2 in: NPC1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPL1/2-1/4,NPYB1/2-1/41/4 in: NPC1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPL1/4-1/4,NPYB1/4-1/43/8 in: NPC3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPL3/8-1/4,NPYB3/8-1/45/16 in: NPC5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPL5/16-1/4,NPYB5/16-1/4 These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20008JNG

  Specifications: SDR20008JNG is an Airtac 200-series compact pressure regulator with G 1/4 main ports. Its current configuration has 0.05–0.9 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 G 1/4 main connection Blank — pressure Standard type; 0.05–0.9 MPa J Without bracket N Without pressure gauge G G thread Technical Specifications Parameter Details Model SDR20008JNG Working medium Air Main port G 1/4 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type (blank), gauge N, thread G. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P G 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s G1/4 female supply-air inlet on the left of the section; OUT = its G1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): GBB male–male; GBD male–female; GBKC compression fitting; GBPC metal straight; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLL extended elbow; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male G1/4 ↔ male G1/8: GBB0102male G1/4 ↔ male G1/4: GBB0202male G3/8 ↔ male G1/4: GBB0203male G1/2 ↔ male G1/4: GBB0204male G1/4 ↔ female G1/8: GBD01026 × 4: GBKC0604-02,UE95A060040100MBU,US98A060040100MBU8 × 5: GBKC0805-02,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: GBKC0806-0210 × 6.5: GBKC1065-02,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: GBKC1075-0212 × 8: GBKC1208-02,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: GBKC1209-0210: GBPC1002,GPC1002,GPC1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPH1002,GPH1002D,GPHW1002,GPHW1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPYB1002,GPYB1002D,GPZB1002,GPZB1002D12: GBPC1202,GPC1202,GPC1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPYB1202,GPYB1202D4: GBPC402,GPC402-M,GPC402D-M,GPEB402,GPEB402D,GPED402,GPED402D,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPYB402,GPYB402D6: GBPC602,GPC602,GPC602D,GPEB602,GPEB602D,GPED602,GPED602D,GPH602,GPH602D,GPHW602,GPHW602D,GPL602,GPL602D,GPLL602,GPLL602D,GPYB602,GPYB602D,GPZB602,GPZB602D8: GBPC802,GPC802,GPC802D,GPEB802,GPEB802D,GPED802,GPED802D,GPH802,GPH802D,GPHW802,GPHW802D,GPL802,GPL802D,GPLL802,GPLL802D,GPYB802,GPYB802D,GPZB802,GPZB802D10; male RA G1/4 / female RB G1/4: GPHF1002,GPHF1002D6; male RA G1/4 / female RB G1/4: GPHF602,GPHF602D8; male RA G1/4 / female RB G1/4: GPHF802,GPHF802Dmain 8 / branch 6: GPKD8-602,GPKD8-602D4 × 2.5: UE95A040025100MBU,US98A040025100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. GPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20008JN

  Specifications: SDR20008JN is an Airtac 200-series compact pressure regulator with PT 1/4 main ports. Its current configuration has 0.05–0.9 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 08 PT 1/4 main connection Blank — pressure Standard type; 0.05–0.9 MPa J Without bracket N Without pressure gauge Blank — thread PT thread Technical Specifications Parameter Details Model SDR20008JN Working medium Air Main port PT 1/4 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type (blank), gauge N, thread (blank). Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P PT 1/4 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s PT1/4 female supply-air inlet on the left of the section; OUT = its PT1/4 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPOC metal straight; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT1/4 ↔ male PT1/4: BB0202,BB0202-Smale PT3/8 ↔ male PT1/4: BB0203,BB0203-Smale PT1/2 ↔ male PT1/4: BB0204,BB0204-Smale PT1/4 ↔ female PT1/8: BD0102,BD0102-S6 × 4: BKC0604-02,BKC0604-02-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-02,BKC0805-02-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-02,BKC0806-02-S10 × 6.5: BKC1065-02,BKC1065-02-S,UE95A100065100MBU,US98A100065100MBU10 × 7.5 or 8: BKC1075-02,BKC1075-02-S12 × 8: BKC1208-02,BKC1208-02-S,UE95A120080100MBU,US98A120080100MBU12 × 9 or 10: BKC1209-02,BKC1209-02-S10: BPC1002,BPOC1002,PC1002,PC1002-S,PC1002D,PC1002D-S,PEB1002,PEB1002-S,PEB1002D,PEB1002D-S,PED1002,PED1002-S,PED1002D,PED1002D-S,PH1002,PH1002-S,PH1002D,PH1002D-S,PHW1002,PHW1002-S,PHW1002D,PHW1002D-S,PL1002,PL1002-S,PL1002D,PL1002D-S,PLL1002,PLL1002-S,PLL1002D,PLL1002D-S,POC1002,POC1002-S,POC1002D,POC1002D-S,PYB1002,PYB1002-S,PYB1002D,PYB1002D-S,PZB1002,PZB1002-S,PZB1002D,PZB1002D-S12: BPC1202,PC1202,PC1202-S,PC1202D,PC1202D-S,PEB1202,PEB1202-S,PEB1202D,PEB1202D-S,PED1202,PED1202-S,PED1202D,PED1202D-S,PL1202,PL1202-S,PL1202D,PL1202D-S,PLL1202,PLL1202-S,PLL1202D,PLL1202D-S,POC1202,POC1202-S,POC1202D,POC1202D-S,PYB1202,PYB1202-S,PYB1202D,PYB1202D-S4: BPC402,PC402,PC402-S,PC402D,PC402D-S,PEB402,PEB402-S,PEB402D,PEB402D-S,PED402,PED402-S,PED402D,PED402D-S,PL402,PL402-S,PL402D,PL402D-S,PLL402,PLL402-S,PLL402D,PLL402D-S,POC402,POC402-S,POC402D,POC402D-S,PYB402,PYB402-S,PYB402D,PYB402D-S6: BPC602,BPOC602,PC602,PC602-S,PC602D,PC602D-S,PEB602,PEB602-S,PEB602D,PEB602D-S,PED602,PED602-S,PED602D,PED602D-S,PH602,PH602-S,PH602D,PH602D-S,PHW602,PHW602-S,PHW602D,PHW602D-S,PL602,PL602-S,PL602D,PL602D-S,PLL602,PLL602-S,PLL602D,PLL602D-S,POC602,POC602-S,POC602D,POC602D-S,PYB602,PYB602-S,PYB602D,PYB602D-S,PZB602,PZB602-S,PZB602D,PZB602D-S8: BPC802,BPOC802,PC802,PC802-S,PC802D,PC802D-S,PEB802,PEB802-S,PEB802D,PEB802D-S,PED802,PED802-S,PED802D,PED802D-S,PH802,PH802-S,PH802D,PH802D-S,PHW802,PHW802-S,PHW802D,PHW802D-S,PL802,PL802-S,PL802D,PL802D-S,PLL802,PLL802-S,PLL802D,PLL802D-S,POC802,POC802-S,POC802D,POC802D-S,PYB802,PYB802-S,PYB802D,PYB802D-S,PZB802,PZB802-S,PZB802D,PZB802D-S10; male RA PT1/4 / female RB PT1/4: PHF1002,PHF1002-S,PHF1002D,PHF1002D-S6; male RA PT1/4 / female RB PT1/4: PHF602,PHF602-S,PHF602D,PHF602D-S8; male RA PT1/4 / female RB PT1/4: PHF802,PHF802-S,PHF802D,PHF802D-Smain 8 / branch 6: PKD8-602,PKD8-602-S,PKD8-602D,PKD8-602D-S4 × 2.5: UE95A040025100MBU,US98A040025100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. PHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20006LJNT

  Specifications: SDR20006LJNT is an Airtac 200-series compact pressure regulator with NPT 1/8 main ports. Its current configuration has 0.03–0.4 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 06 NPT 1/8 main connection L Low-pressure type; 0.03–0.4 MPa J Without bracket N Without pressure gauge T NPT thread Technical Specifications Parameter Details Model SDR20006LJNT Working medium Air Main port NPT 1/8 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the current 06 port code shares the same-size 08 port reference; the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type L, gauge N, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. For SDR20006, E is 24 mm in the 2022 Chinese catalog, printed page 244; the linked English edition prints 23 mm. The Chinese dimension is used here. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/8 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/8 female supply-air inlet on the left of the section; OUT = its NPT1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross; NUE polyurethane tube. Use Size / complete codes IN,OUT (discontinued) male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/8 ↔ male NPT1/8: NBB1/8-1/8male NPT1/8 ↔ male NPT3/8: NBB1/8-3/81/4 × 5/32 in: NBKC1/4-5/32-1/85/16 × 1/5 in: NBKC5/16-1/5-1/85/32 × 3/32 in: NBKC5/32-3/32-1/81/4 in: NBPC1/4-1/8,NPH1/4-1/8,NPHW1/4-1/8,NPLL1/4-1/8,NPZB1/4-1/83/8 in: NBPC3/8-1/8,NPLL3/8-1/85/16 in: NBPC5/16-1/8,NPH5/16-1/8,NPHW5/16-1/8,NPLL5/16-1/8,NPZB5/16-1/85/32 in: NBPC5/32-1/8,NPH5/32-1/8,NPHW5/32-1/8,NPLL5/32-1/81/4 in; male RA NPT1/8 / female RB NPT1/8: NPHF1/4-1/85/16 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/16-1/85/32 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/32-1/8main 1/4 / branches 5/32 in: NPKD1/4-5/32-1/8 IN,OUT 1/4 in: NPC1/4-1/8,NPEB1/4-1/8,NPED1/4-1/8,NPL1/4-1/8,NPYB1/4-1/83/8 in: NPC3/8-1/8,NPEB3/8-1/8,NPED3/8-1/8,NPL3/8-1/8,NPYB3/8-1/85/16 in: NPC5/16-1/8,NPEB5/16-1/8,NPED5/16-1/8,NPL5/16-1/8,NPYB5/16-1/85/32 in: NPC5/32-1/8,NPEB5/32-1/8,NPED5/32-1/8,NPL5/32-1/8,NPYB5/32-1/85/32 × 3/32 in: NUE95A5/32X3/32-100BK,NUE95A5/32X3/32-100BR,NUE95A5/32X3/32-100BU,NUE95A5/32X3/32-100C,NUE95A5/32X3/32-100CB,NUE95A5/32X3/32-100CE,NUE95A5/32X3/32-100CG,NUE95A5/32X3/32-100CR,NUE95A5/32X3/32-100CY,NUE95A5/32X3/32-100GA,NUE95A5/32X3/32-100GE,NUE95A5/32X3/32-100GN,NUE95A5/32X3/32-100R,NUE95A5/32X3/32-100WH,NUE95A5/32X3/32-100Y,NUE95A5/32X3/32-250BK,NUE95A5/32X3/32-250BR,NUE95A5/32X3/32-250BU,NUE95A5/32X3/32-250C,NUE95A5/32X3/32-250CB,NUE95A5/32X3/32-250CE,NUE95A5/32X3/32-250CG,NUE95A5/32X3/32-250CR,NUE95A5/32X3/32-250CY,NUE95A5/32X3/32-250GA,NUE95A5/32X3/32-250GE,NUE95A5/32X3/32-250GN,NUE95A5/32X3/32-250R,NUE95A5/32X3/32-250WH,NUE95A5/32X3/32-250Y,NUE95A5/32X3/32-500BK,NUE95A5/32X3/32-500BR,NUE95A5/32X3/32-500BU,NUE95A5/32X3/32-500C,NUE95A5/32X3/32-500CB,NUE95A5/32X3/32-500CE,NUE95A5/32X3/32-500CG,NUE95A5/32X3/32-500CR,NUE95A5/32X3/32-500CY,NUE95A5/32X3/32-500GA,NUE95A5/32X3/32-500GE,NUE95A5/32X3/32-500GN,NUE95A5/32X3/32-500R,NUE95A5/32X3/32-500WH,NUE95A5/32X3/32-500Y These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. NBKC5/32-3/32-1/8 specifies 3/32 in ID in its dimension row, but the selection matrix differs. Confirm that ID with the supplier before selecting the tube. The listed NUE95A tubes serve IN and OUT only through a listed exact 5/32 in OD connection; they do not connect directly to an NPT thread. For NBKC5/32-3/32-1/8, the supplier must also confirm 3/32 in ID. Do not substitute 4 mm, 3.2 mm, 3 mm or 1/8 in OD tube. These tubes are assigned only to the main air lines. NUE95A5/32X3/32 is ether-based PU, Shore A95±2, with 5/32 in OD × 3/32 in ID and 1/32 in wall. Working pressure is 145 psi at 73°F; 363 psi is burst pressure, not a working rating. Temperature range: −40–158°F; minimum bend radius: 8 mm. Derate with increasing temperature and obey every stricter unit, fitting and tube limit. In NUE codes, 100/250/500 after the hyphen are coil lengths in feet, not metres. Colours: BU blue, BK black, GE orange, C clear, WH white, CB clear blue, R red, Y yellow, GA gray, GN green, BR brown, CR clear red, CG clear green, CY clear yellow, CE clear orange. Match the complete length-and-colour code. Current lifecycle and supply of these catalog-listed tubes are unverified; confirm the exact item or an approved replacement before ordering. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20006LJNG

  Specifications: SDR20006LJNG is an Airtac 200-series compact pressure regulator with G 1/8 main ports. Its current configuration has 0.03–0.4 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 06 G 1/8 main connection L Low-pressure type; 0.03–0.4 MPa J Without bracket N Without pressure gauge G G thread Technical Specifications Parameter Details Model SDR20006LJNG Working medium Air Main port G 1/8 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the current 06 port code shares the same-size 08 port reference; the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type L, gauge N, thread G. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. For SDR20006, E is 24 mm in the 2022 Chinese catalog, printed page 244; the linked English edition prints 23 mm. The Chinese dimension is used here. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P G 1/8 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s G1/8 female supply-air inlet on the left of the section; OUT = its G1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): GBB male–male; GBKC compression fitting; GBPC metal straight; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLL extended elbow; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male G1/8 ↔ male G1/8: GBB0101male G1/4 ↔ male G1/8: GBB0102male G3/8 ↔ male G1/8: GBB01034 × 2.5: GBKC0425-01,UE95A040025100MBU,US98A040025100MBU6 × 4: GBKC0604-01,UE95A060040100MBU,US98A060040100MBU8 × 5: GBKC0805-01,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: GBKC0806-0110: GBPC1001,GPC1001,GPC1001D,GPEB1001,GPEB1001D,GPED1001,GPED1001D,GPL1001,GPL1001D,GPLL1001,GPLL1001D,GPYB1001,GPYB1001D4: GBPC401,GPC401-M,GPC401D-M,GPEB401,GPEB401D,GPED401,GPED401D,GPH401,GPH401D,GPHW401,GPHW401D,GPL401-M,GPL401D-M,GPLL401,GPLL401D,GPYB401,GPYB401D6: GBPC601,GPC601,GPC601-M,GPC601D,GPC601D-M,GPEB601,GPEB601D,GPED601,GPED601D,GPH601,GPH601D,GPHW601,GPHW601D,GPL601,GPL601-M,GPL601D,GPL601D-M,GPLL601,GPLL601D,GPYB601,GPYB601D,GPZB601,GPZB601D8: GBPC801,GPC801,GPC801D,GPEB801,GPEB801D,GPED801,GPED801D,GPH801,GPH801D,GPHW801,GPHW801D,GPL801,GPL801D,GPLL801,GPLL801D,GPYB801,GPYB801D,GPZB801,GPZB801D12: GPC1201,GPC1201D,GPL1201,GPL1201D4; male RA G1/8 / female RB G1/8: GPHF401,GPHF401D6; male RA G1/8 / female RB G1/8: GPHF601,GPHF601D8; male RA G1/8 / female RB G1/8: GPHF801,GPHF801Dmain 6 / branch 4: GPKD6-401,GPKD6-401D10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. GPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20006LJN

  Specifications: SDR20006LJN is an Airtac 200-series compact pressure regulator with PT 1/8 main ports. Its current configuration has 0.03–0.4 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 06 PT 1/8 main connection L Low-pressure type; 0.03–0.4 MPa J Without bracket N Without pressure gauge Blank — thread PT thread Technical Specifications Parameter Details Model SDR20006LJN Working medium Air Main port PT 1/8 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the current 06 port code shares the same-size 08 port reference; the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type L, gauge N, thread (blank). Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. For SDR20006, E is 24 mm in the 2022 Chinese catalog, printed page 244; the linked English edition prints 23 mm. The Chinese dimension is used here. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P PT 1/8 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s PT1/8 female supply-air inlet on the left of the section; OUT = its PT1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): BB male–male; BKC compression fitting; BPC metal straight; BPOC metal straight; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. PHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20006JNT

  Specifications: SDR20006JNT is an Airtac 200-series compact pressure regulator with NPT 1/8 main ports. Its current configuration has 0.05–0.9 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 06 NPT 1/8 main connection Blank — pressure Standard type; 0.05–0.9 MPa J Without bracket N Without pressure gauge T NPT thread Technical Specifications Parameter Details Model SDR20006JNT Working medium Air Main port NPT 1/8 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the current 06 port code shares the same-size 08 port reference; the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type (blank), gauge N, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. For SDR20006, E is 24 mm in the 2022 Chinese catalog, printed page 244; the linked English edition prints 23 mm. The Chinese dimension is used here. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P NPT 1/8 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/8 female supply-air inlet on the left of the section; OUT = its NPT1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross; NUE polyurethane tube. Use Size / complete codes IN,OUT (discontinued) male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/8 ↔ male NPT1/8: NBB1/8-1/8male NPT1/8 ↔ male NPT3/8: NBB1/8-3/81/4 × 5/32 in: NBKC1/4-5/32-1/85/16 × 1/5 in: NBKC5/16-1/5-1/85/32 × 3/32 in: NBKC5/32-3/32-1/81/4 in: NBPC1/4-1/8,NPH1/4-1/8,NPHW1/4-1/8,NPLL1/4-1/8,NPZB1/4-1/83/8 in: NBPC3/8-1/8,NPLL3/8-1/85/16 in: NBPC5/16-1/8,NPH5/16-1/8,NPHW5/16-1/8,NPLL5/16-1/8,NPZB5/16-1/85/32 in: NBPC5/32-1/8,NPH5/32-1/8,NPHW5/32-1/8,NPLL5/32-1/81/4 in; male RA NPT1/8 / female RB NPT1/8: NPHF1/4-1/85/16 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/16-1/85/32 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/32-1/8main 1/4 / branches 5/32 in: NPKD1/4-5/32-1/8 IN,OUT 1/4 in: NPC1/4-1/8,NPEB1/4-1/8,NPED1/4-1/8,NPL1/4-1/8,NPYB1/4-1/83/8 in: NPC3/8-1/8,NPEB3/8-1/8,NPED3/8-1/8,NPL3/8-1/8,NPYB3/8-1/85/16 in: NPC5/16-1/8,NPEB5/16-1/8,NPED5/16-1/8,NPL5/16-1/8,NPYB5/16-1/85/32 in: NPC5/32-1/8,NPEB5/32-1/8,NPED5/32-1/8,NPL5/32-1/8,NPYB5/32-1/85/32 × 3/32 in: NUE95A5/32X3/32-100BK,NUE95A5/32X3/32-100BR,NUE95A5/32X3/32-100BU,NUE95A5/32X3/32-100C,NUE95A5/32X3/32-100CB,NUE95A5/32X3/32-100CE,NUE95A5/32X3/32-100CG,NUE95A5/32X3/32-100CR,NUE95A5/32X3/32-100CY,NUE95A5/32X3/32-100GA,NUE95A5/32X3/32-100GE,NUE95A5/32X3/32-100GN,NUE95A5/32X3/32-100R,NUE95A5/32X3/32-100WH,NUE95A5/32X3/32-100Y,NUE95A5/32X3/32-250BK,NUE95A5/32X3/32-250BR,NUE95A5/32X3/32-250BU,NUE95A5/32X3/32-250C,NUE95A5/32X3/32-250CB,NUE95A5/32X3/32-250CE,NUE95A5/32X3/32-250CG,NUE95A5/32X3/32-250CR,NUE95A5/32X3/32-250CY,NUE95A5/32X3/32-250GA,NUE95A5/32X3/32-250GE,NUE95A5/32X3/32-250GN,NUE95A5/32X3/32-250R,NUE95A5/32X3/32-250WH,NUE95A5/32X3/32-250Y,NUE95A5/32X3/32-500BK,NUE95A5/32X3/32-500BR,NUE95A5/32X3/32-500BU,NUE95A5/32X3/32-500C,NUE95A5/32X3/32-500CB,NUE95A5/32X3/32-500CE,NUE95A5/32X3/32-500CG,NUE95A5/32X3/32-500CR,NUE95A5/32X3/32-500CY,NUE95A5/32X3/32-500GA,NUE95A5/32X3/32-500GE,NUE95A5/32X3/32-500GN,NUE95A5/32X3/32-500R,NUE95A5/32X3/32-500WH,NUE95A5/32X3/32-500Y These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. NBKC5/32-3/32-1/8 specifies 3/32 in ID in its dimension row, but the selection matrix differs. Confirm that ID with the supplier before selecting the tube. The listed NUE95A tubes serve IN and OUT only through a listed exact 5/32 in OD connection; they do not connect directly to an NPT thread. For NBKC5/32-3/32-1/8, the supplier must also confirm 3/32 in ID. Do not substitute 4 mm, 3.2 mm, 3 mm or 1/8 in OD tube. These tubes are assigned only to the main air lines. NUE95A5/32X3/32 is ether-based PU, Shore A95±2, with 5/32 in OD × 3/32 in ID and 1/32 in wall. Working pressure is 145 psi at 73°F; 363 psi is burst pressure, not a working rating. Temperature range: −40–158°F; minimum bend radius: 8 mm. Derate with increasing temperature and obey every stricter unit, fitting and tube limit. In NUE codes, 100/250/500 after the hyphen are coil lengths in feet, not metres. Colours: BU blue, BK black, GE orange, C clear, WH white, CB clear blue, R red, Y yellow, GA gray, GN green, BR brown, CR clear red, CG clear green, CY clear yellow, CE clear orange. Match the complete length-and-colour code. Current lifecycle and supply of these catalog-listed tubes are unverified; confirm the exact item or an approved replacement before ordering. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20006JNG

  Specifications: SDR20006JNG is an Airtac 200-series compact pressure regulator with G 1/8 main ports. Its current configuration has 0.05–0.9 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 06 G 1/8 main connection Blank — pressure Standard type; 0.05–0.9 MPa J Without bracket N Without pressure gauge G G thread Technical Specifications Parameter Details Model SDR20006JNG Working medium Air Main port G 1/8 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the current 06 port code shares the same-size 08 port reference; the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type (blank), gauge N, thread G. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. For SDR20006, E is 24 mm in the 2022 Chinese catalog, printed page 244; the linked English edition prints 23 mm. The Chinese dimension is used here. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P G 1/8 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s G1/8 female supply-air inlet on the left of the section; OUT = its G1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): GBB male–male; GBKC compression fitting; GBPC metal straight; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLL extended elbow; GPYB Y; GPZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male G1/8 ↔ male G1/8: GBB0101male G1/4 ↔ male G1/8: GBB0102male G3/8 ↔ male G1/8: GBB01034 × 2.5: GBKC0425-01,UE95A040025100MBU,US98A040025100MBU6 × 4: GBKC0604-01,UE95A060040100MBU,US98A060040100MBU8 × 5: GBKC0805-01,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: GBKC0806-0110: GBPC1001,GPC1001,GPC1001D,GPEB1001,GPEB1001D,GPED1001,GPED1001D,GPL1001,GPL1001D,GPLL1001,GPLL1001D,GPYB1001,GPYB1001D4: GBPC401,GPC401-M,GPC401D-M,GPEB401,GPEB401D,GPED401,GPED401D,GPH401,GPH401D,GPHW401,GPHW401D,GPL401-M,GPL401D-M,GPLL401,GPLL401D,GPYB401,GPYB401D6: GBPC601,GPC601,GPC601-M,GPC601D,GPC601D-M,GPEB601,GPEB601D,GPED601,GPED601D,GPH601,GPH601D,GPHW601,GPHW601D,GPL601,GPL601-M,GPL601D,GPL601D-M,GPLL601,GPLL601D,GPYB601,GPYB601D,GPZB601,GPZB601D8: GBPC801,GPC801,GPC801D,GPEB801,GPEB801D,GPED801,GPED801D,GPH801,GPH801D,GPHW801,GPHW801D,GPL801,GPL801D,GPLL801,GPLL801D,GPYB801,GPYB801D,GPZB801,GPZB801D12: GPC1201,GPC1201D,GPL1201,GPL1201D4; male RA G1/8 / female RB G1/8: GPHF401,GPHF401D6; male RA G1/8 / female RB G1/8: GPHF601,GPHF601D8; male RA G1/8 / female RB G1/8: GPHF801,GPHF801Dmain 6 / branch 4: GPKD6-401,GPKD6-401D10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. GPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR20006JN

  Specifications: SDR20006JN is an Airtac 200-series compact pressure regulator with PT 1/8 main ports. Its current configuration has 0.05–0.9 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 200 200 size series 06 PT 1/8 main connection Blank — pressure Standard type; 0.05–0.9 MPa J Without bracket N Without pressure gauge Blank — thread PT thread Technical Specifications Parameter Details Model SDR20006JN Working medium Air Main port PT 1/8 Pressure regulation range 0.05–0.9 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 153 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR200-08. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the current 06 port code shares the same-size 08 port reference; the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type (blank), gauge N, thread (blank). Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. For SDR20006, E is 24 mm in the 2022 Chinese catalog, printed page 244; the linked English edition prints 23 mm. The Chinese dimension is used here. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 50 mm AB — diameter 28 mm AC 40 mm B 80 mm BA 30 mm BC 50 mm BD 20 mm BE 35 mm C 83.5 mm CA 72.5 mm D — diameter 42 mm E 24 mm K 5.5 mm KA 34 mm KB 7.5 mm KC 38 mm P PT 1/8 PA 10 mm Q 1/8 Panel mounting thread M30×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–1200 L/min, 200 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s PT1/8 female supply-air inlet on the left of the section; OUT = its PT1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): BB male–male; BKC compression fitting; BPC metal straight; BPOC metal straight; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PKD reducing distribution fitting; PL elbow; PLL extended elbow; POC round straight; PYB Y; PZB cross; UE PU tube; US PU tube. Use Size / complete codes IN,OUT male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. PHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.05–0.9 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match the assigned air connection’s required OD/ID and derate as temperature rises within all unit, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute. These examples are assigned only to the main air lines. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

•

  View options

  Airtac SDR series: compact pressure regulator - SDR10006LJNT

  Specifications: SDR10006LJNT is an Airtac 100-series compact pressure regulator with NPT 1/8 main ports. Its current configuration has 0.03–0.4 MPa adjustment, no mounting bracket, no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this model SDR compact pressure regulator 100 100 size series 06 NPT 1/8 main connection L Low-pressure type; 0.03–0.4 MPa J Without bracket N Without pressure gauge T NPT thread Technical Specifications Parameter Details Model SDR10006LJNT Working medium Air Main port NPT 1/8 Pressure regulation range 0.03–0.4 MPa Maximum operating pressure 1.0 MPa Proof pressure 1.5 MPa Operating temperature −20–70 °C Weight Reference Parameter Details Reference weight 77 g; 2022 Chinese comprehensive catalog, printed page 300 / PDF page 301; published reference SDR100-06. Assigned as an estimated reference for the current configuration, not a measured product or shipping weight. the reference is the entry without a J omission code; no bracket-mass adjustment has been made for the current mounting option; no separate mass correction is calculated for pressure type L, gauge N, thread T. Actual supplied-product weight may differ. Features and Operation The compact back-pressure structure is intended for economical standalone installation. Its broad adjustment range and stable output suit applications that do not demand high output-pressure precision. Pull the knob until the orange identification ring is visible before adjusting. Push the knob back until the orange ring is fully hidden to lock it; incorrect adjustment can damage the knob or change the setting. External and Mounting Dimensions Dimensions are in millimeters unless a thread or other unit is shown. Lettered entries follow the catalog drawing; local callouts must not be combined into an invented length × width × height. Optional brackets and gauges are shown for reference only when their omission code is selected. Parameter Details A 35 mm AB — diameter 20 mm AC 32 mm B 65.5 mm BA 26 mm BC 39.5 mm BD 14.5 mm BE 29 mm C 62.5 mm CA 54.5 mm D — diameter 33 mm E 17 mm K 5.5 mm KA 22 mm KB 7 mm KC 29 mm P NPT 1/8 PA 7.5 mm Q 1/16 Panel mounting thread M22×1.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbers below follow the catalog sectional drawing. They identify components, not spare-part ordering codes or a kit quantity schedule. Bowl guards and liquid-level parts are shown for their respective bowl structures; a gauge is included only when the current ordering code specifies it. Drawing number / component Catalog material or scope 1 — Body Aluminum alloy 2 — Regulator plug gasket NBR 3 — O-ring NBR 4 — Profiled seal NBR 5 — Fixation-ring cap POM 6 — Identification ring POM 7 — Main regulator seat POM 8 — Spindle Steel 9 — Knob POM 10 — Nut Steel 11 — Spring SWC 12 — Piston rod POM 13 — Regulator valve seat POM 14 — Return spring SUS304 Accessories and Installation Parameter Details Mounting bracket Omitted by J; do not count a bracket as included Flow / Performance Characteristics Parameter Details Pressure-chart horizontal axis Inlet pressure, 0.15–0.75 MPa; 0.1 MPa labels Pressure-chart outlet labels 0.2 and 0.3 MPa Pressure-curve legend — 2022 Chinese catalog 2022 Chinese catalog, printed page 244: triangle = outlet pressure 0.2 MPa; square = outlet pressure 0.3 MPa. The horizontal axis is inlet pressure. The linked English edition labels these traces as inlet pressure; the Chinese outlet-pressure legend is used here. Flow horizontal axis 0–700 L/min, 100 L/min labels Flow vertical axis Outlet pressure, 0–0.7 MPa Flow condition No additional inlet-pressure test condition is printed These values describe the printed chart axes and conditions. An axis limit is not a rated flow or a guaranteed tolerance. Curves for a representative port or configuration are series references; use the original PDF to read the plotted relationships. Series Ordering Options The following choices belong to the catalog family. They are alternatives, not a list of everything included with the current model. Parameter Details Available size / main port 100: M5 or 06 (1/8); 200: 06 (1/8) or 08 (1/4) Pressure options Blank: 0.05–0.9 MPa; L: 0.03–0.4 MPa Bracket Blank: included; J: omitted Gauge N: omitted; 1: MPa, 2: psi, 3: bar Thread Blank: PT; G: G; T: NPT; an M5 port remains metric and does not take a G/NPT suffix Optional Piping Accessories IN = the SDR regulator’s NPT1/8 female supply-air inlet on the left of the section; OUT = its NPT1/8 female regulated-air outlet on the right. Match these separate connections and follow the actual body’s IN → OUT markings; do not bridge or bypass the regulator. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately. Code-prefix uses (match the longest listed family prefix): NBB male–male; NBKC compression fitting; NBPC metal straight; NPC straight; NPEB branch tee; NPED run tee; NPH banjo elbow; NPHF female branch banjo; NPHW twin banjo; NPKD reducing distribution fitting; NPL elbow; NPLL extended elbow; NPYB Y; NPZB cross; NUE polyurethane tube. Use Size / complete codes IN,OUT (discontinued) male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4male NPT1/8 ↔ male NPT1/8: NBB1/8-1/8male NPT1/8 ↔ male NPT3/8: NBB1/8-3/81/4 × 5/32 in: NBKC1/4-5/32-1/85/16 × 1/5 in: NBKC5/16-1/5-1/85/32 × 3/32 in: NBKC5/32-3/32-1/81/4 in: NBPC1/4-1/8,NPH1/4-1/8,NPHW1/4-1/8,NPLL1/4-1/8,NPZB1/4-1/83/8 in: NBPC3/8-1/8,NPLL3/8-1/85/16 in: NBPC5/16-1/8,NPH5/16-1/8,NPHW5/16-1/8,NPLL5/16-1/8,NPZB5/16-1/85/32 in: NBPC5/32-1/8,NPH5/32-1/8,NPHW5/32-1/8,NPLL5/32-1/81/4 in; male RA NPT1/8 / female RB NPT1/8: NPHF1/4-1/85/16 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/16-1/85/32 in; male RA NPT1/8 / female RB NPT1/8: NPHF5/32-1/8main 1/4 / branches 5/32 in: NPKD1/4-5/32-1/8 IN,OUT 1/4 in: NPC1/4-1/8,NPEB1/4-1/8,NPED1/4-1/8,NPL1/4-1/8,NPYB1/4-1/83/8 in: NPC3/8-1/8,NPEB3/8-1/8,NPED3/8-1/8,NPL3/8-1/8,NPYB3/8-1/85/16 in: NPC5/16-1/8,NPEB5/16-1/8,NPED5/16-1/8,NPL5/16-1/8,NPYB5/16-1/85/32 in: NPC5/32-1/8,NPEB5/32-1/8,NPED5/32-1/8,NPL5/32-1/8,NPYB5/32-1/85/32 × 3/32 in: NUE95A5/32X3/32-100BK,NUE95A5/32X3/32-100BR,NUE95A5/32X3/32-100BU,NUE95A5/32X3/32-100C,NUE95A5/32X3/32-100CB,NUE95A5/32X3/32-100CE,NUE95A5/32X3/32-100CG,NUE95A5/32X3/32-100CR,NUE95A5/32X3/32-100CY,NUE95A5/32X3/32-100GA,NUE95A5/32X3/32-100GE,NUE95A5/32X3/32-100GN,NUE95A5/32X3/32-100R,NUE95A5/32X3/32-100WH,NUE95A5/32X3/32-100Y,NUE95A5/32X3/32-250BK,NUE95A5/32X3/32-250BR,NUE95A5/32X3/32-250BU,NUE95A5/32X3/32-250C,NUE95A5/32X3/32-250CB,NUE95A5/32X3/32-250CE,NUE95A5/32X3/32-250CG,NUE95A5/32X3/32-250CR,NUE95A5/32X3/32-250CY,NUE95A5/32X3/32-250GA,NUE95A5/32X3/32-250GE,NUE95A5/32X3/32-250GN,NUE95A5/32X3/32-250R,NUE95A5/32X3/32-250WH,NUE95A5/32X3/32-250Y,NUE95A5/32X3/32-500BK,NUE95A5/32X3/32-500BR,NUE95A5/32X3/32-500BU,NUE95A5/32X3/32-500C,NUE95A5/32X3/32-500CB,NUE95A5/32X3/32-500CE,NUE95A5/32X3/32-500CG,NUE95A5/32X3/32-500CR,NUE95A5/32X3/32-500CY,NUE95A5/32X3/32-500GA,NUE95A5/32X3/32-500GE,NUE95A5/32X3/32-500GN,NUE95A5/32X3/32-500R,NUE95A5/32X3/32-500WH,NUE95A5/32X3/32-500Y These optional connections and tubes are ordered separately for the SDR regulator. Match PT/G/NPT exactly and use the specified thread seal or face gasket. IN and OUT are female ports and require their own matching male connections. Follow the body’s normal IN → OUT markings; do not bridge or bypass the regulator. Keep the main air lines separate from the gauge connections and mounting features. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends, support and required flow. Tighten compression bodies by the hex, not tube nuts. Where listed, a D suffix means black, blank means grey, -M means miniature, and -S applies only to the specified 304 stainless parts. NPHF fittings use male RA at the selected IN or OUT port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Keep every extra branch on its assigned side of the regulator; do not connect IN to OUT around the regulator or use a mounting feature as an air connection. The regulator’s maximum inlet pressure is 1.0 MPa; this configuration’s adjustable outlet range is 0.03–0.4 MPa. Keep actual IN pressure within the inlet limit and actual OUT pressure within the selected regulation range and downstream limits. Every fitting, seal and tube must satisfy its own local pressure rating during operation, adjustment and pressure changes. The 1.5 MPa proof pressure is not a continuous working rating; the 1 MPa inlet limit does not mean the outlet can be regulated to 1 MPa. Use within −20–70°C and every stricter accessory limit. Confirm that fittings, seals, tubing and downstream equipment are compatible with the actual air contaminants and any upstream lubricant or additives. These are main-air connections, not gauge or process-liquid lines. This regulator does not add filtration, lubrication or drying, and does not establish oil-free air or a dew-point rating. These selections do not establish liquid or vacuum service for the listed air-piping accessories. Pull the adjustment knob up until the orange ring is visible before adjustment, then push it down until the ring is hidden to lock it. Confirm the required inlet supply, pressure drop and installed flow at the chosen outlet setting. Curve-axis maxima and plotted examples are not a rated system flow or a guaranteed operating point; the original English/Chinese curve-label notes remain applicable. Standard push-in fittings: ≤1 MPa, −20–70°C. NBPC/compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C component range, so a path using them is limited to 0–70°C or narrower with this regulator. A lower-rated fitting at IN requires a correspondingly lower inlet pressure; the unit’s 1 MPa inlet rating does not raise any accessory rating. Confirm compatibility with the actual air contaminants and lubricant. NBKC5/32-3/32-1/8 specifies 3/32 in ID in its dimension row, but the selection matrix differs. Confirm that ID with the supplier before selecting the tube. The listed NUE95A tubes serve IN and OUT only through a listed exact 5/32 in OD connection; they do not connect directly to an NPT thread. For NBKC5/32-3/32-1/8, the supplier must also confirm 3/32 in ID. Do not substitute 4 mm, 3.2 mm, 3 mm or 1/8 in OD tube. These tubes are assigned only to the main air lines. NUE95A5/32X3/32 is ether-based PU, Shore A95±2, with 5/32 in OD × 3/32 in ID and 1/32 in wall. Working pressure is 145 psi at 73°F; 363 psi is burst pressure, not a working rating. Temperature range: −40–158°F; minimum bend radius: 8 mm. Derate with increasing temperature and obey every stricter unit, fitting and tube limit. In NUE codes, 100/250/500 after the hyphen are coil lengths in feet, not metres. Colours: BU blue, BK black, GE orange, C clear, WH white, CB clear blue, R red, Y yellow, GA gray, GN green, BR brown, CR clear red, CG clear green, CY clear yellow, CE clear orange. Match the complete length-and-colour code. Current lifecycle and supply of these catalog-listed tubes are unverified; confirm the exact item or an approved replacement before ordering. When J is selected, the mounting bracket is omitted; without J, the bracket is included as stated in the original specification. Support the regulator and connected piping. M22×1.5 on SDR100 and M30×1.5 on SDR200 are panel-mounting threads, not air ports. Gauge code N omits the gauge; codes 1, 2 and 3 select MPa, psi and bar scales respectively. The nominal Q gauge-tapping size is not a verified PT/G/NPT specification for every main-thread configuration. No listed item is assigned to the gauge tapping or to a mounting, bowl or drain feature. Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

  Read more less

  $16.99

  View options

Show more products
