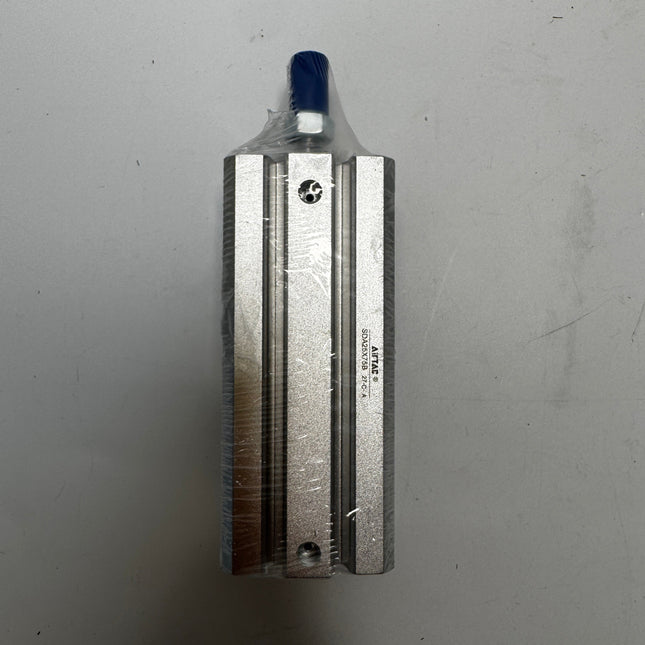

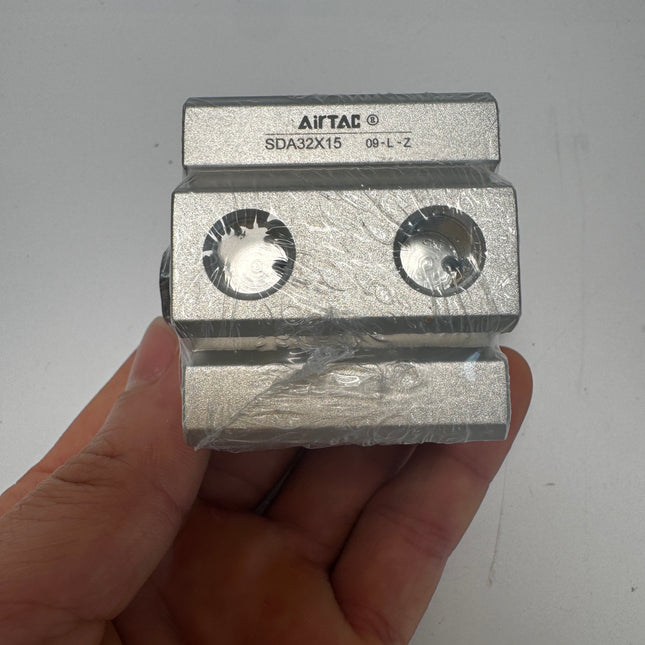

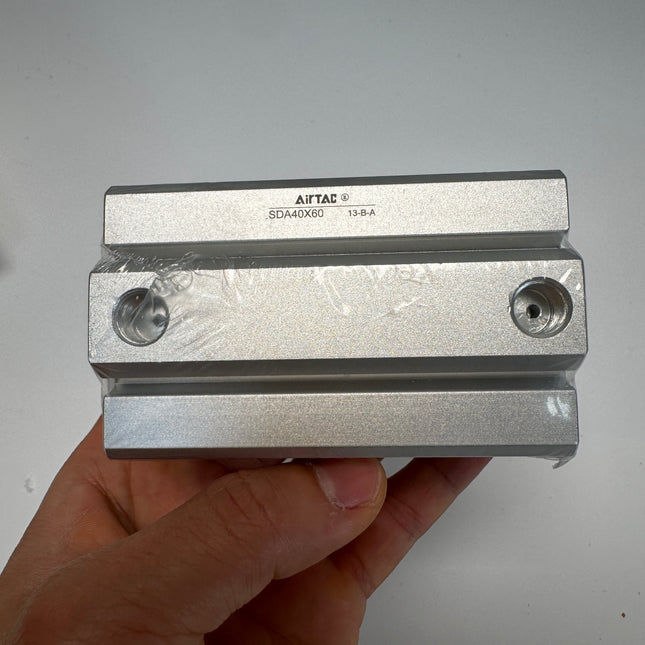

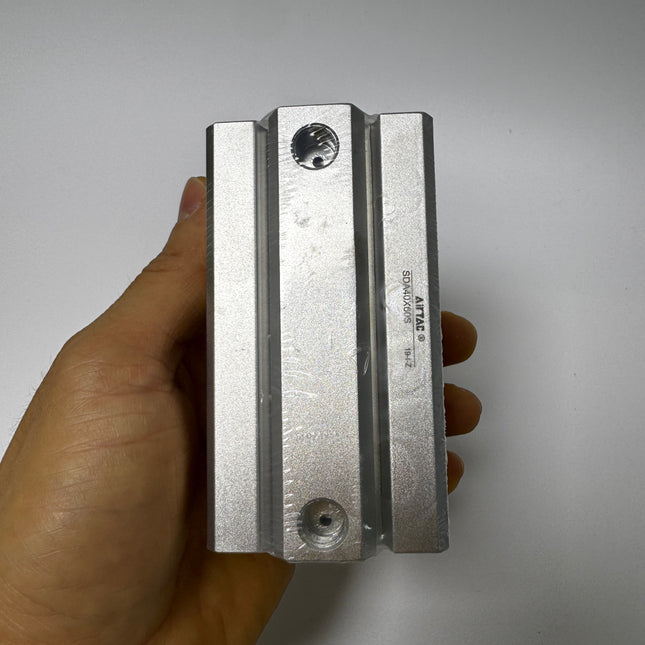

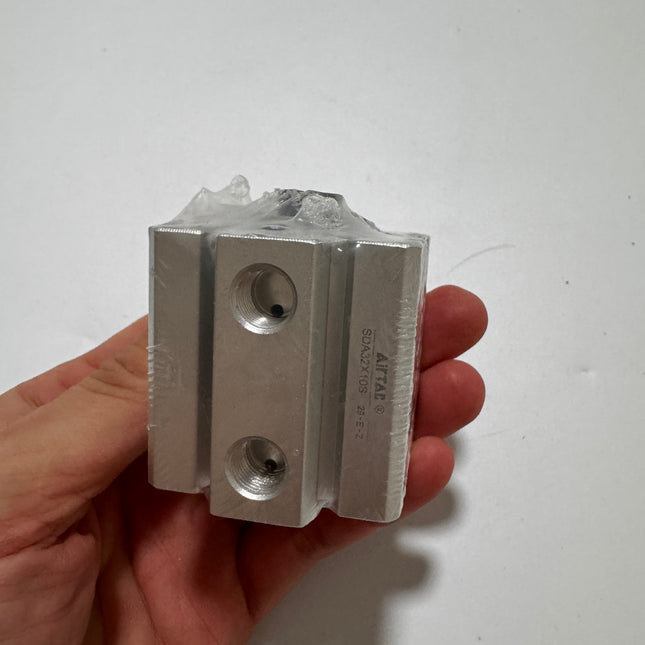

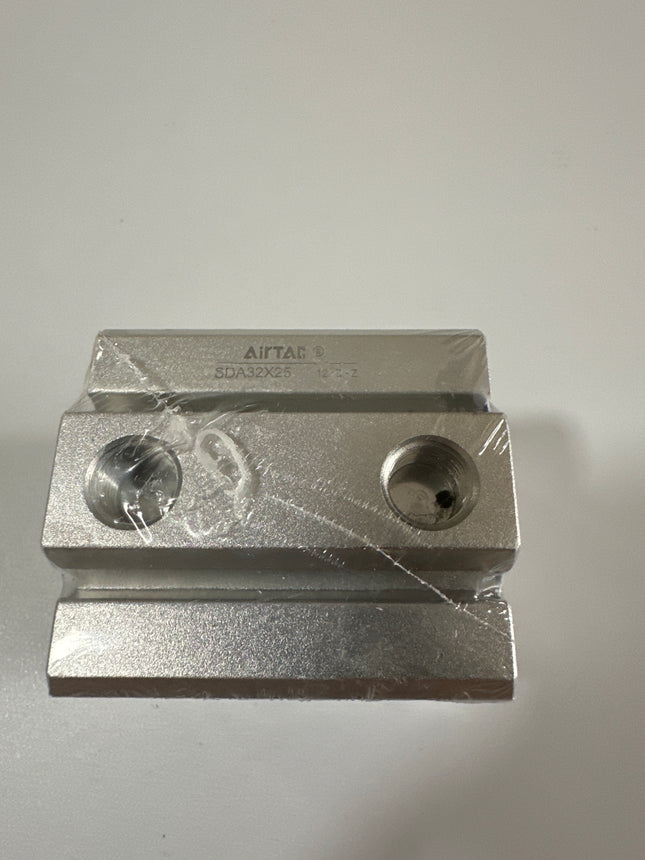

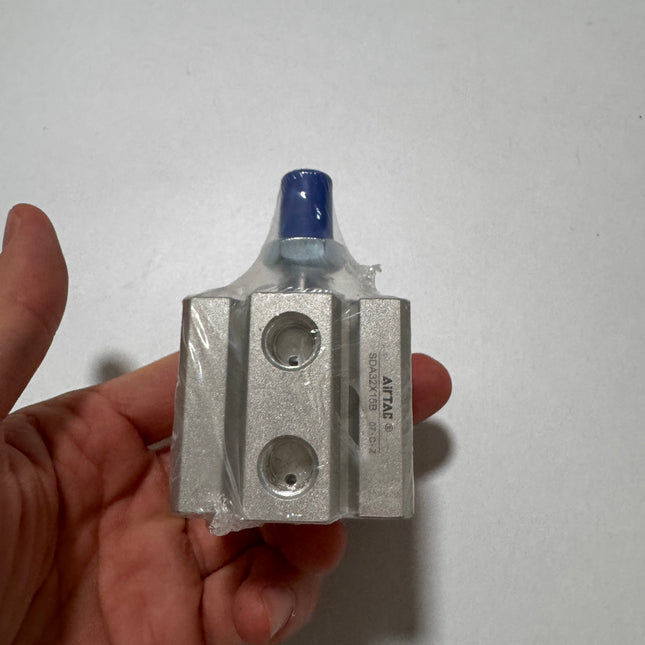

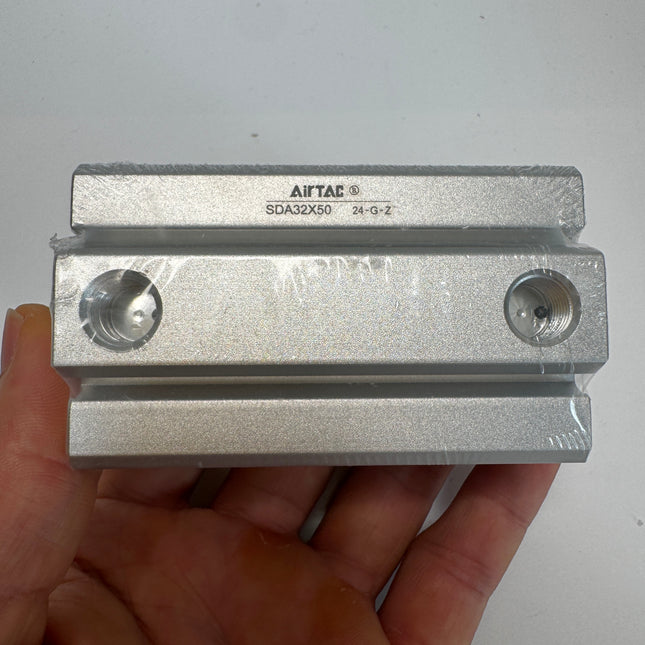

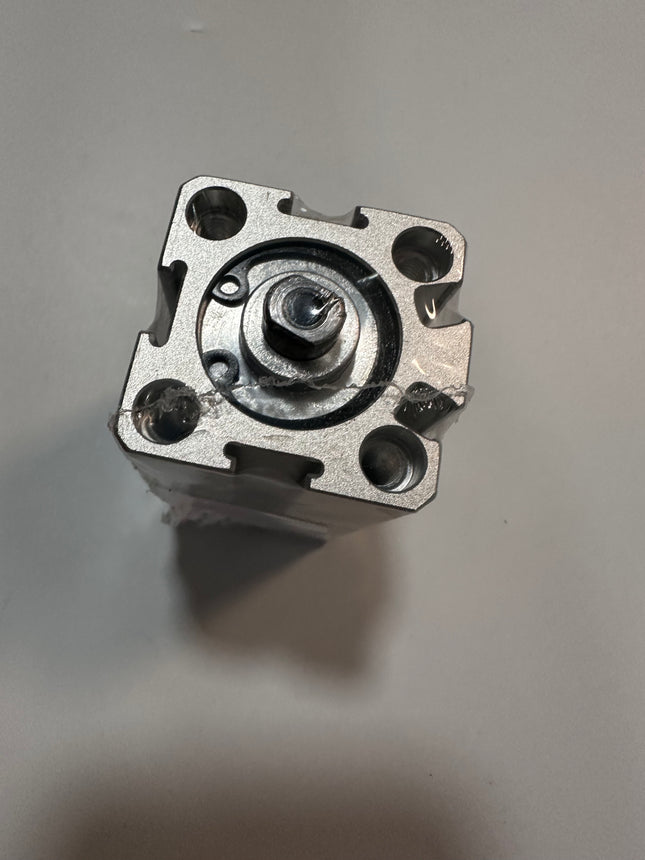

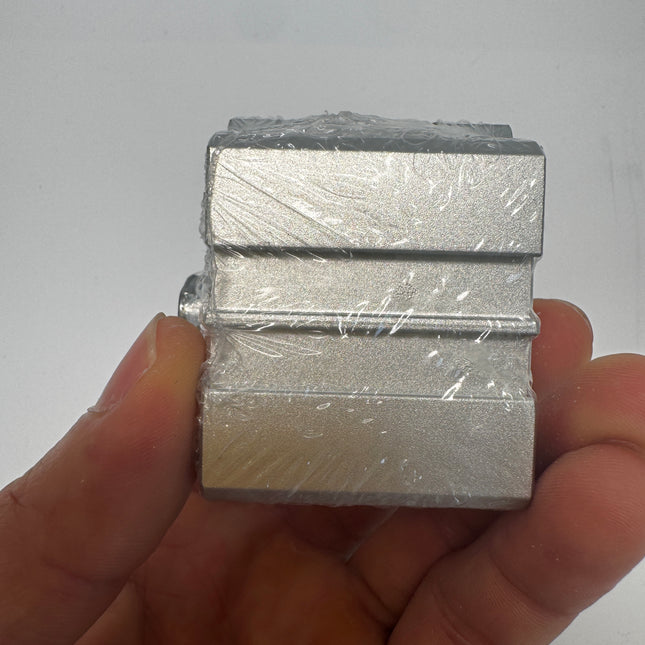

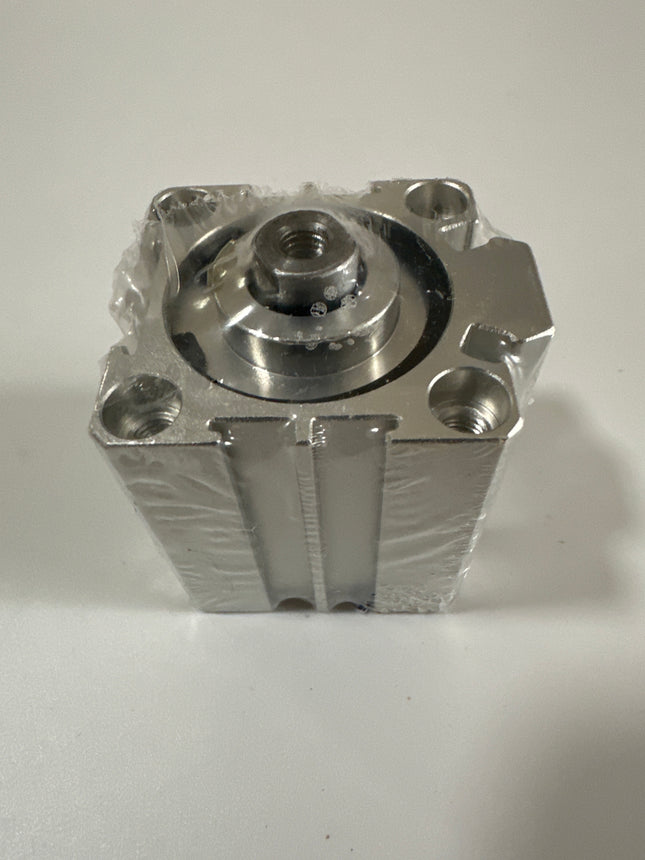

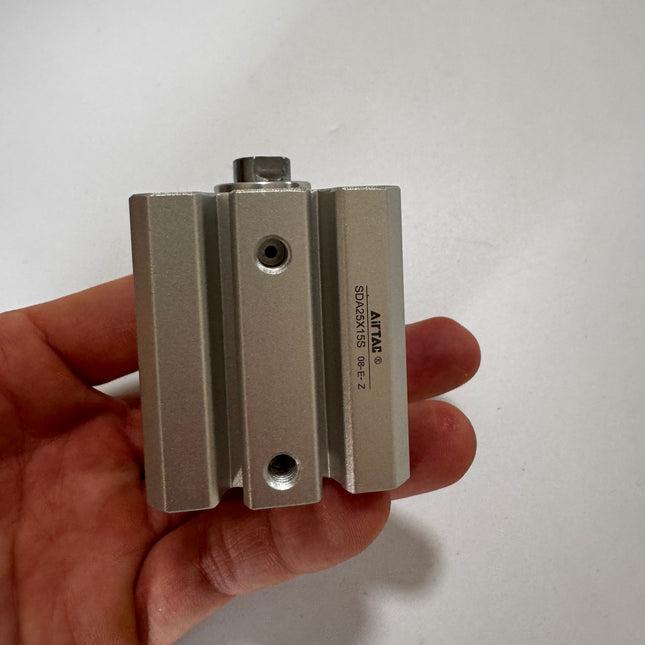

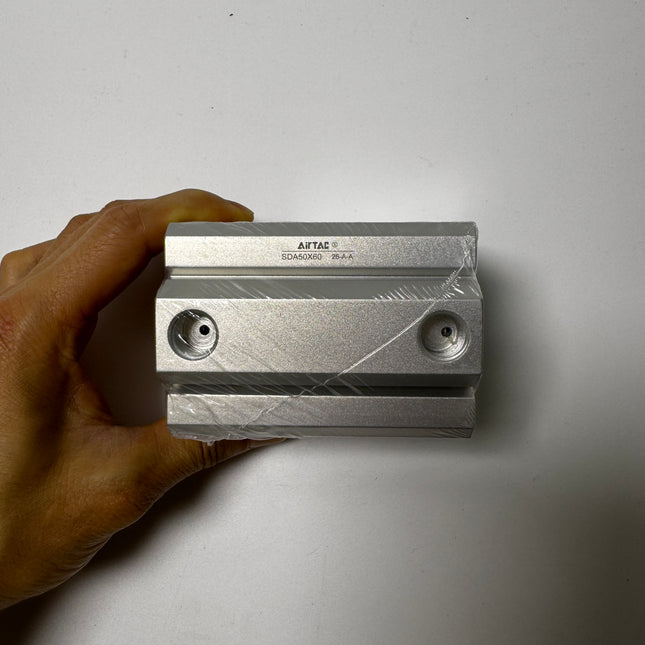

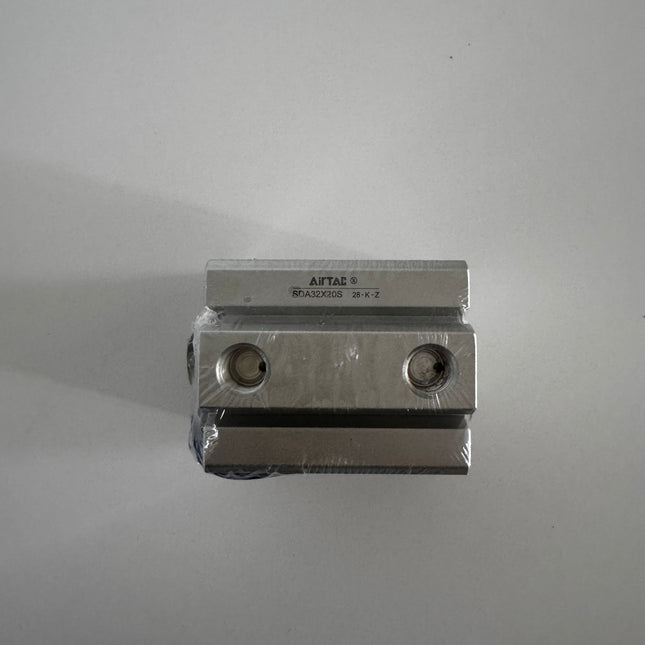

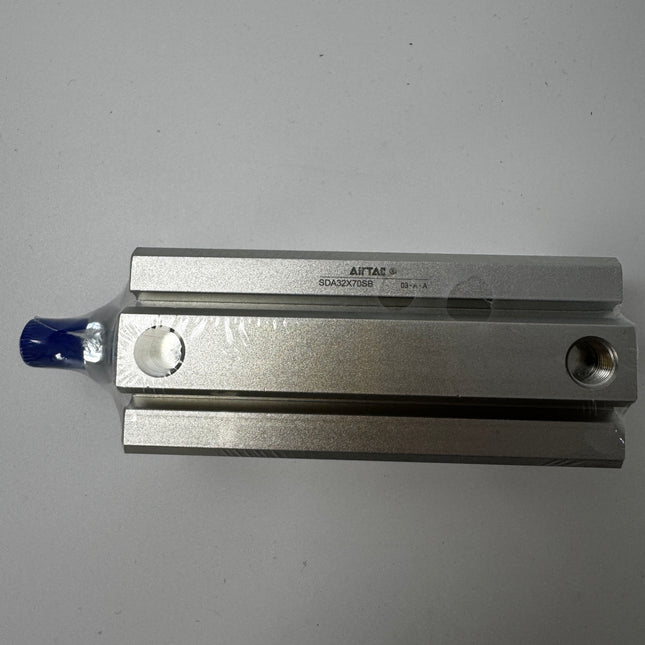

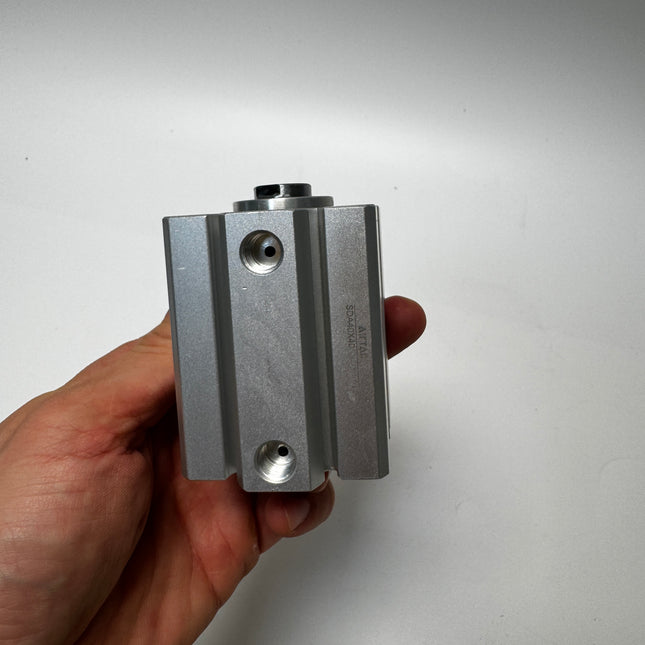

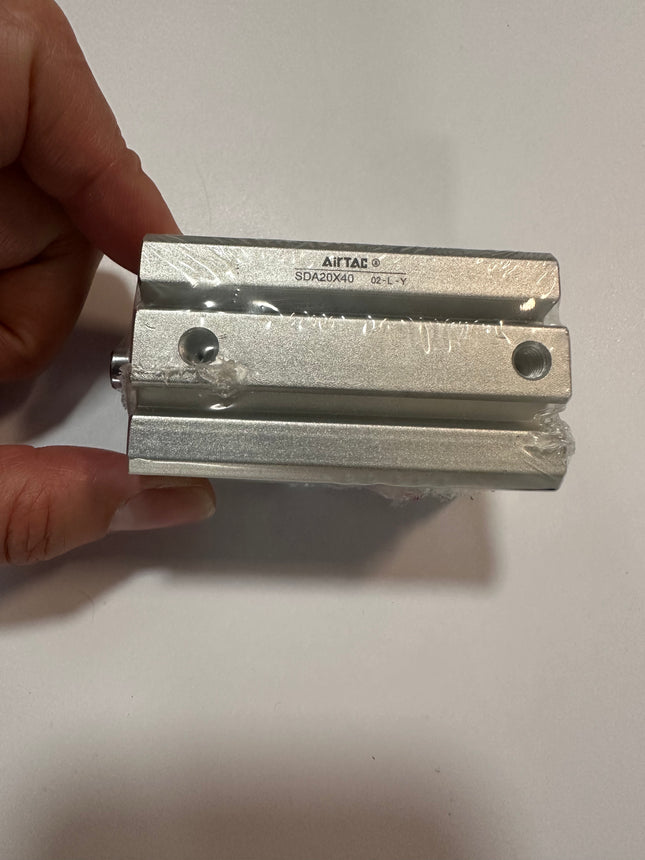

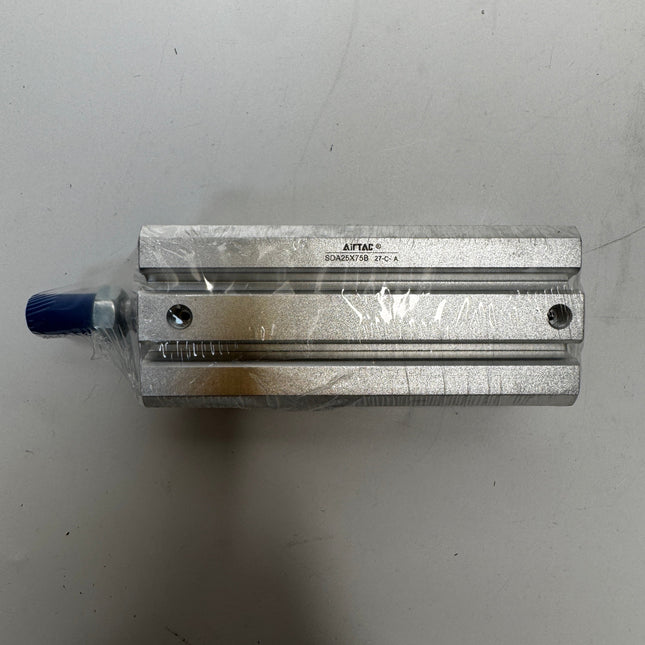

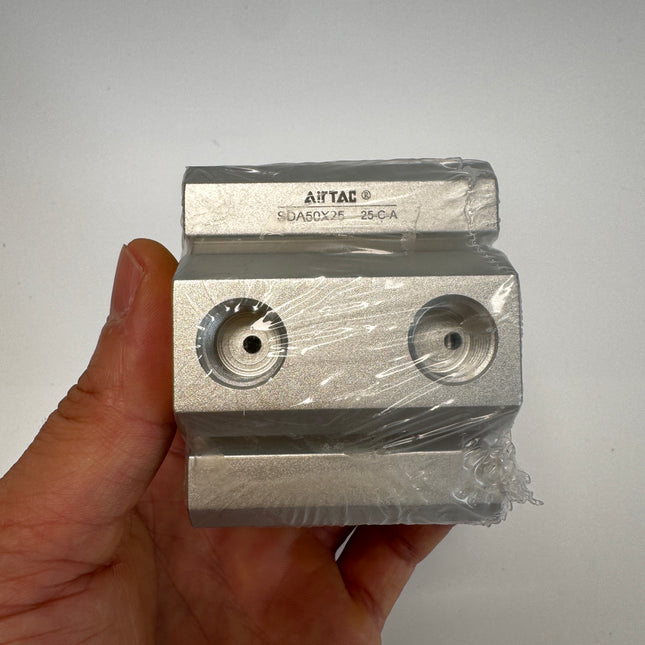

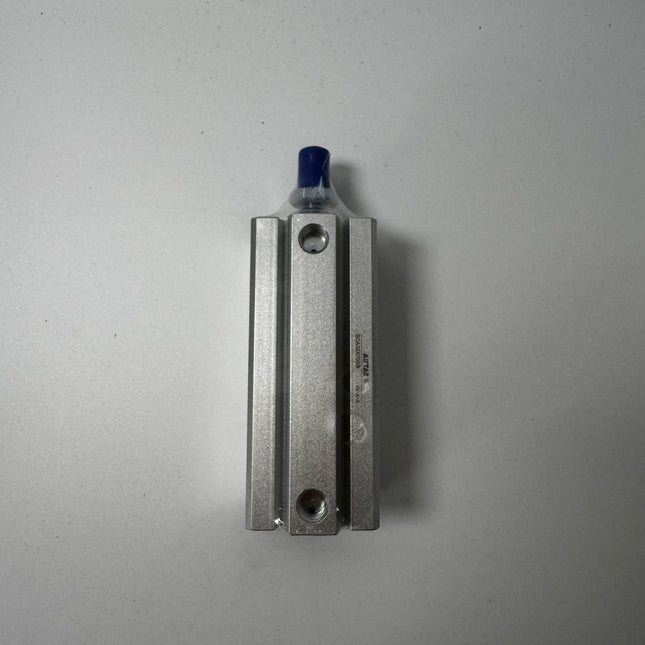

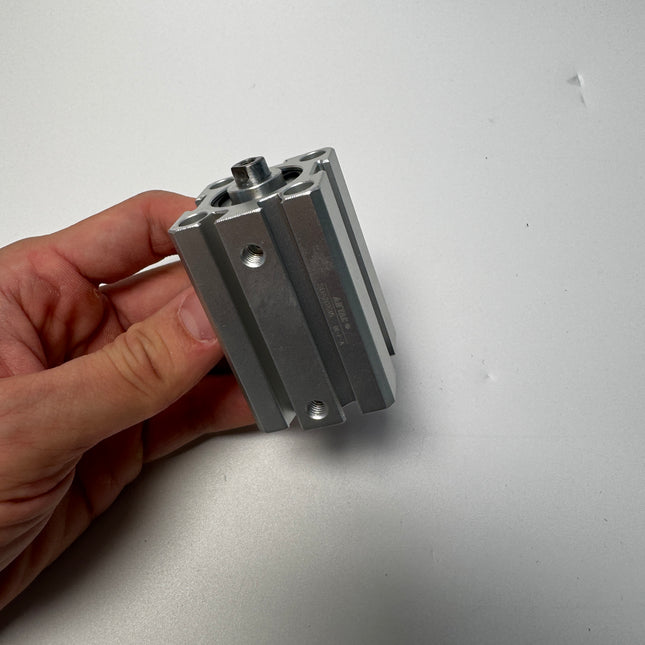

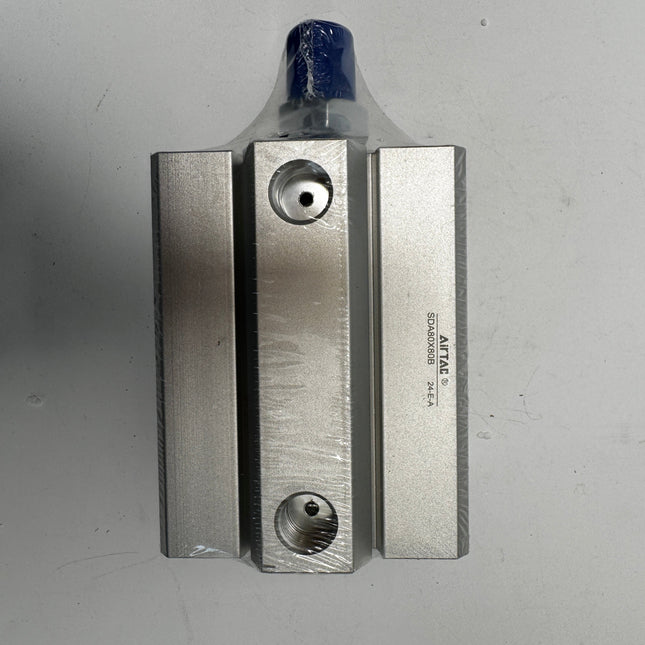

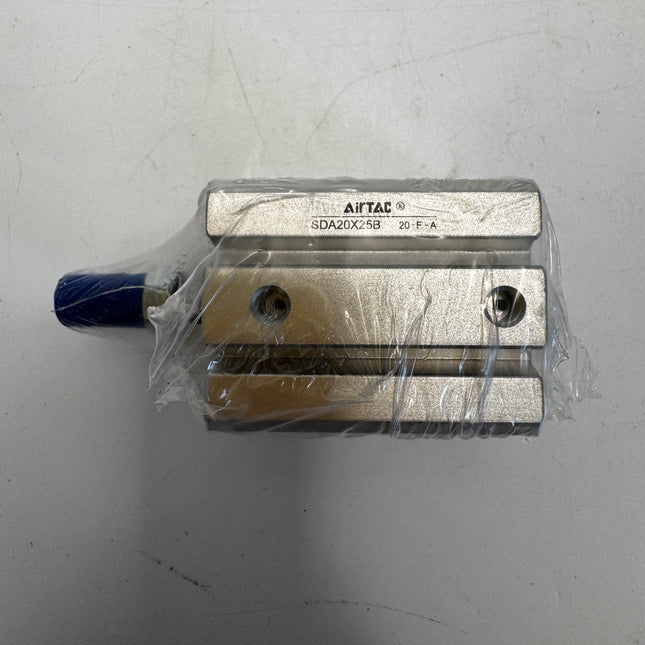

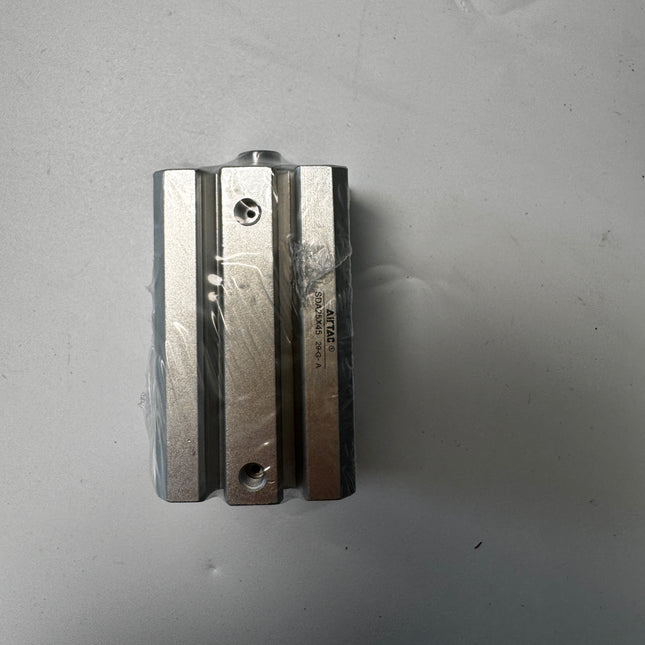

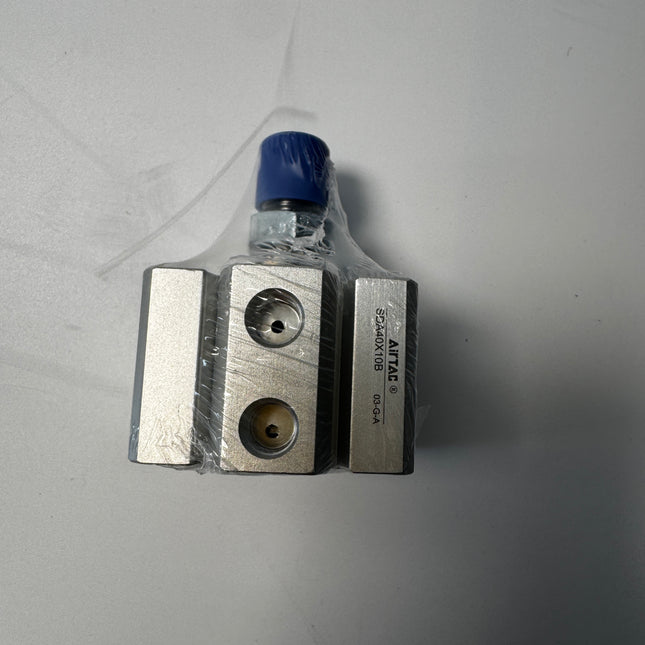

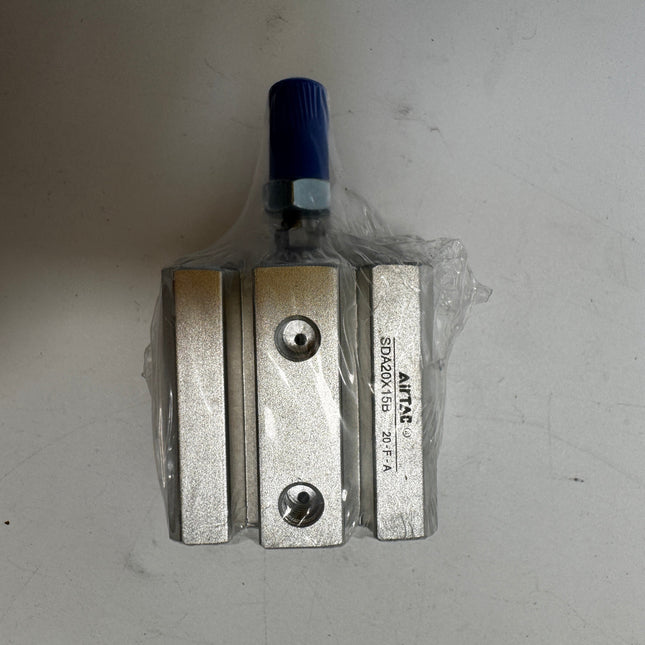

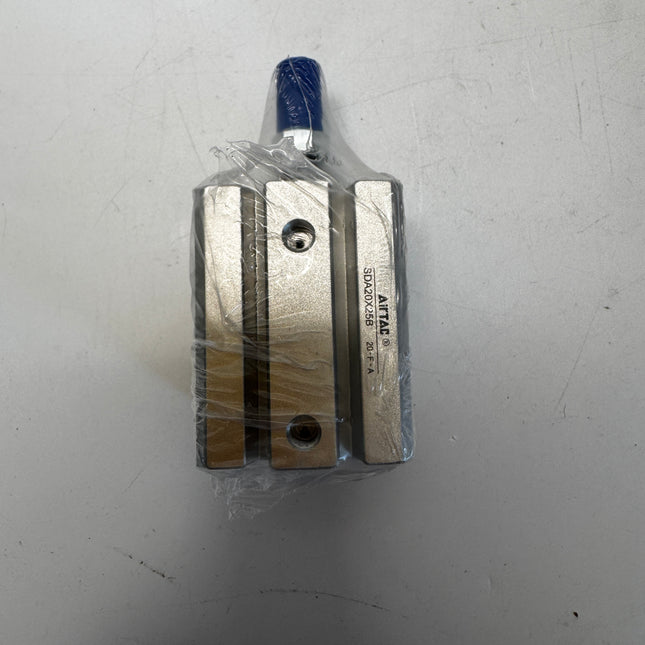

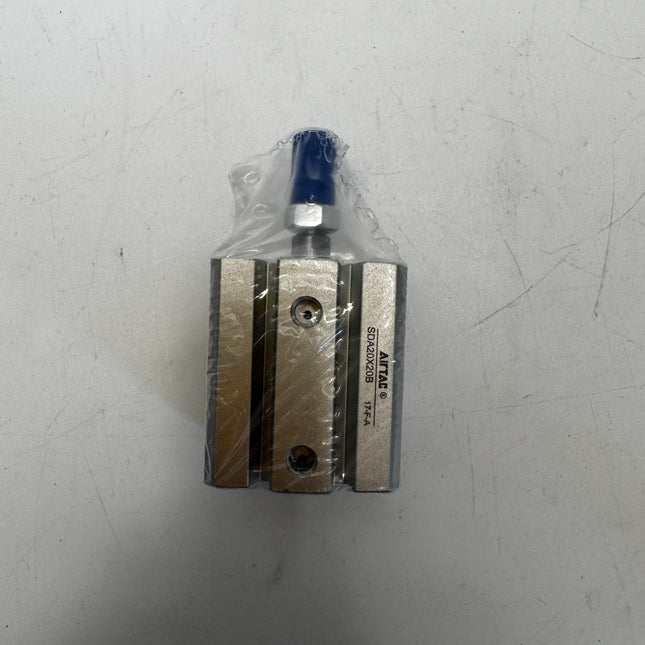

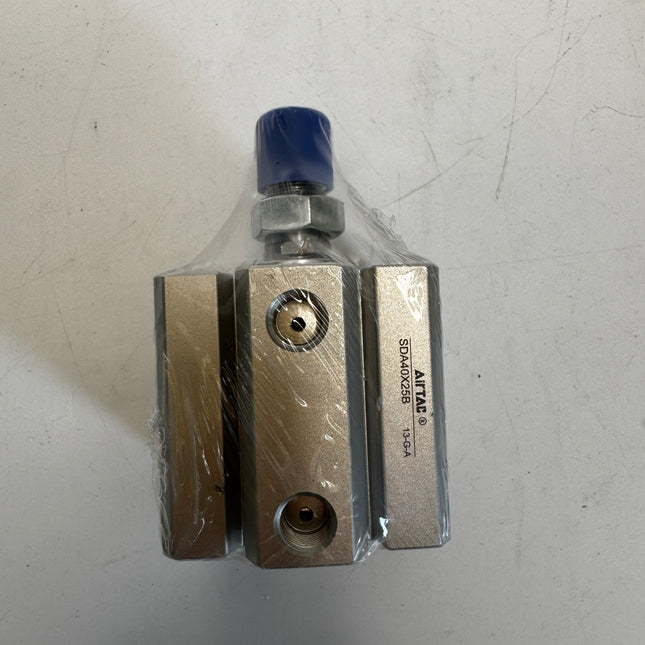

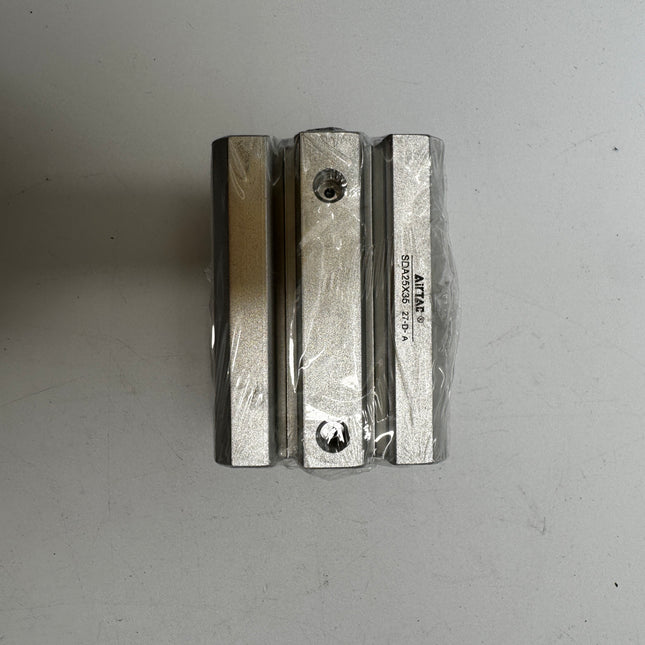

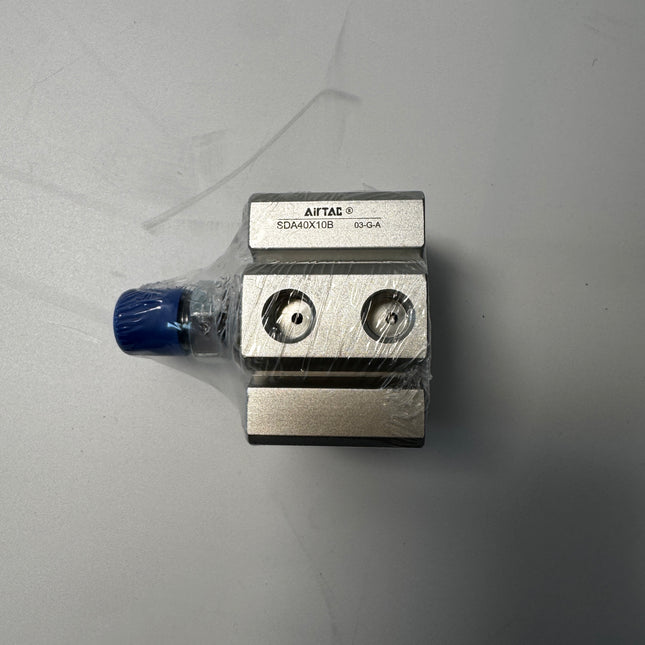

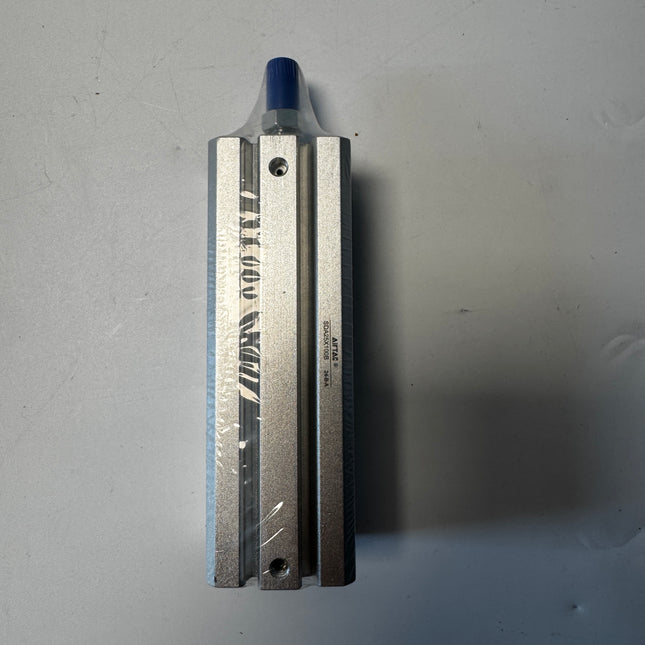

SDA Series Ultra-thin Cylinder
Product Features
- 1. Executing the enterprise standard.
- 2. The cylinder body and rear cover, as well as the piston and piston rod, adopt a riveted structure, which is compact and reliable.
- 3. The cylinder inner diameter is treated with rolling followed by hard anodizing, ensuring excellent abrasion resistance and durability.
- 4. The piston seal adopts a heterogeneous two-way seal structure, which has a compact size and oil storage function.
- 5. Compact structure effectively saves installation space.

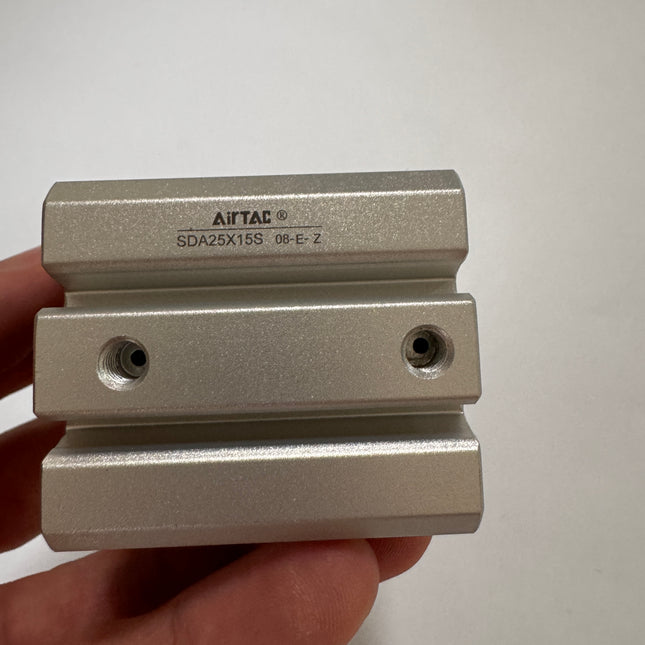

- 6. There are sensor grooves around the cylinder body, making sensor installation convenient.
- 7. Various mounting accessories are available for selection.
Specifications
| Bore Size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Acting Type |
Double Acting Single Acting Push / Single Acting Pull |
Double Acting | ||||||||
| Fluid | Air (filtered to 40μm or better) | |||||||||
| Operating Pressure |
Double Acting: 0.15~1.0MPa (22~145psi) Single Acting: 0.2~1.0MPa (28~145psi) |
|||||||||
| Proof Pressure | 1.5MPa (215psi) | |||||||||
| Temperature | -20 ~ 70 °C | |||||||||
| Speed Range | Double Acting: 30~500 mm/s | Single Acting: 50~500 mm/s | |||||||||
| Stroke Tolerance | Stroke ≤ 100: +1.00 | Stroke > 100: +1.50 | |||||||||
| Cushion Type | Bumper (Anti-collision pad) | |||||||||
| Port Size [Note 1] | M5 × 0.8 | PT1/8 | PT1/4 | PT3/8 | ||||||
[Note 1] PT thread is standard.
Stroke Table
| Bore (mm) | Acting Type | Config | Standard Stroke (mm) | Max Stroke |
|---|---|---|---|---|
| 12, 16 | Double | With/No Magnet |
5~50 5~60 |
50/60 |
| Single | - | 5, 10, 15, 20, 25, 30 | 30 | |
| 20 | Double | With Magnet | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90 | 90 |
| No Magnet | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100 | 100 | ||
| Single | - | 5, 10, 15, 20, 25, 30 | 30 | |
| 25, 32 | Double | With Magnet | 5... 100, 110, 120 | 120 |
| No Magnet | 5... 100, 110, 120, 130 | 130 | ||
| Single | - | 5, 10, 15, 20, 25, 30 | 30 | |
| 40, 50, 63 | Double | With Magnet | 5... 100, 110, 120 | 120 |
| No Magnet | 5... 100, 110, 120, 130 | 130 | ||
| Single | - | 5, 10, 15, 20, 25, 30 | 30 | |
| 80, 100 | Double | With Magnet | 5... 100, 110, 120 | 120 |
| No Magnet | 5... 100, 110, 120, 130 | 130 |
Note:
1. Strokes exceeding the allowable range are treated as non-standard.
2. Non-standard strokes within the max range are modified from the next larger standard stroke cylinder.
2. Non-standard strokes within the max range are modified from the next larger standard stroke cylinder.
Ordering Code Guide
SDA 20 x 30 S B - □
| No. | Item | Applicable Model | Description |
|---|---|---|---|
| 1 | Model | All |
SDA: Ultra-thin Cylinder (Double Acting) SSA: Single Acting (Push) [Note 1] STA: Single Acting (Pull) SDAD: Double Shaft Double Acting SDAJ: Double Shaft Adj. Stroke SDAT: Multi-position (Double Acting) SDAW: Multi-position (Double Shaft) |
| 2 | Bore Size |
SDA, SDAD, SDAJ, SDAT, SDAW SSA, STA |
12, 16, 20, 25, 32, 40, 50, 63, 80, 100
12, 16, 20, 25, 32, 40, 50, 63 |
| 3 | Stroke | All | Refer to Stroke Table |
| 4 | Adj. Stroke | SDAJ Only |
No Code: For other models SDAJ: 10, 20, 30, 40, 50, 75, 100 |
| 5 | Magnet | All |
Blank: No Magnet S: With Magnet |
| 6 | Rod Thread | All |
Blank: Internal Thread (Female) B: External Thread (Male) |
| 7 | Thread Type [Note 3] | All |
Blank: PT Thread G: G Thread T: NPT Thread |
[Note 1]
Single Acting Push: Piston rod extends when air is supplied; retracts by spring force.
Single Acting Pull: Piston rod retracts when air is supplied; extends by spring force.
[Note 2] SDAT/SDAW (Multi-position) requires two stroke values (Stroke 1, Stroke 2).
[Note 3] When port size is M5, this code is blank.
