SDA Series Ultra-thin Cylinder

Show previous products

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA50X20

  Specifications: SDA50X20 is an AirTAC double-acting cylinder with a 50 mm bore, 20 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 50 50 mm bore X20 20 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/4 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 37 mm AC 28 mm AB 9 mm B 62 mm BA 71.5 mm D 20 mm DA 5 mm E M10 × 1.5 EA 15 mm H 17 mm J 10.5 mm JA 6.5 mm K M8 × 1.25 KA 25 mm KB 48 mm M 38 mm MA 4 mm P PT1/4 PA 10.5 mm PB 10.5 mm T Not listed for this size Through-hole diameter 6.7 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 20 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 50 mm Effective flow area at the reference speed 5.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 10 mm OD tubing in the circuit reference in this description, choose either a straight fitting or an A-type controller at each cylinder port. Match the separate valve work and pilot ends as listed, keep the two chamber lines separate, and order options separately. PC1002: PT1/4 male × 10 mm tube ODStraight cylinder-port connection; no speed adjustment; also connects the selected valve A/B work ports PTL1002A: PT1/4 male × 10 mm tube OD; A-typeAlternative cylinder-port meter-out speed controller for the same tube OD PC1001: PT1/8 male × 10 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 10 mm OD tubing US98A100065100MBU: polyester polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A100065100MBU: polyether polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V21008A050, 5V21008A200, 5V22008A050, 5V22008A200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V21008B050, 5V21008B200, 5V22008B050, 5V22008B200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V21008C050, 5V21008C200, 5V22008C050, 5V22008C200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V21008E050, 5V21008E200, 5V22008E050, 5V22008E200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V21008F050, 5V21008F200, 5V22008F050, 5V22008F200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL01: PT1/8 maleSilencer at the selected 5V200 or 4A200 valve exhaust ports R/S The A-type controller restricts flow from the cylinder port toward the tube; reverse flow is free. Recommended cap-rotation torque is 0.16 N·m, not thread-tightening torque. Seal tapered PT connections correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V210 codes are single-solenoid spring-return valves; 5V220 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A21008 and 4A22008 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 10 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/8; use BSL01. The BSL02 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 25/20 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 417 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $64.42

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA40X40

  Specifications: SDA40X40 is an AirTAC double-acting cylinder with a 40 mm bore, 40 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 40 40 mm bore X40 40 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 33 mm AC 26 mm AB 7 mm B 52 mm BA 58.5 mm D 16 mm DA 4 mm E M8 × 1.25 EA 12 mm H 14 mm J 10.5 mm JA 6.5 mm K M8 × 1.25 KA 20 mm KB 40 mm M 28 mm MA 3 mm P PT1/8 PA 9.5 mm PB 7.5 mm T Not listed for this size Through-hole diameter 6.7 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 40 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 40 mm Effective flow area at the reference speed 3.3 mm² Tube outside / inside diameter 8 / 5 mm Example speed controller PTL01 Example silencer BSL01 Example solenoid valves 5V11006 / 5V12006 Example air-piloted valves 4A11006 / 4A12006 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 8 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Match the separate valve ends as listed, keep the two chamber lines separate, and order options separately. PC801: PT1/8 male × 8 mm tube ODStraight connection at the cylinder port; no speed adjustment; also connects the selected valve A/B work ports and, if the pneumatic scheme uses the same tube OD, the separate 4A pilot ports PTL801A: PT1/8 male × 8 mm tube OD; A-typeCylinder-port meter-out speed control instead of the straight fitting US98A080050100MBU: polyester polyurethane; 8 mm OD × 5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A080050100MBU: polyether polyurethane; 8 mm OD × 5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V11006A050, 5V11006A200, 5V12006A050, 5V12006A200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V11006B050, 5V11006B200, 5V12006B050, 5V12006B200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V11006C050, 5V11006C200, 5V12006C050, 5V12006C200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V11006E050, 5V11006E200, 5V12006E050, 5V12006E200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V11006F050, 5V11006F200, 5V12006F050, 5V12006F200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.08 N·m, not thread-tightening torque. Seal tapered PT connections correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A11006 and 4A12006 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 8 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSL01 reference at the selected PT1/8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 20/17 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 370 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $56.53

  View options

•

  View options

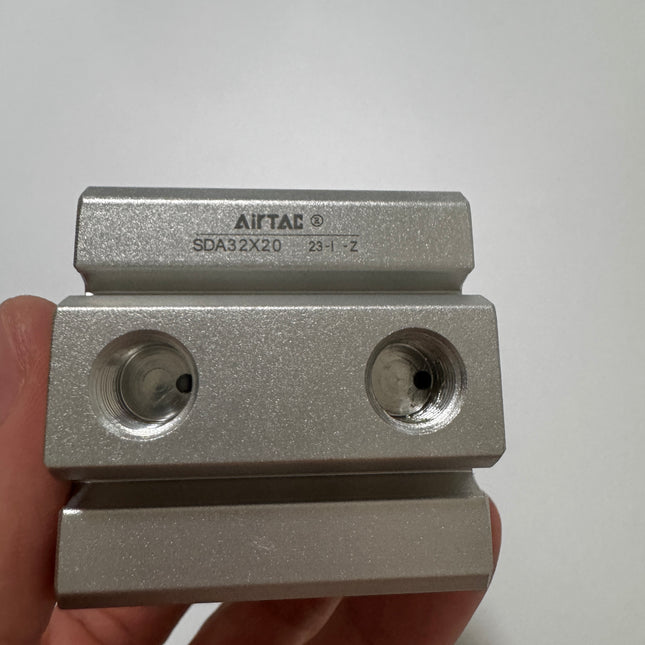

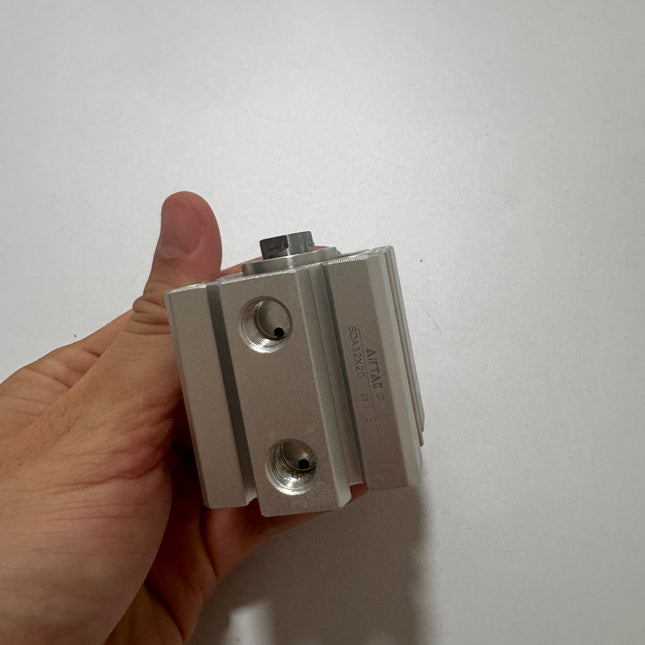

  Airtac SDA series: double-acting compact cylinder - SDA32X20

  Specifications: SDA32X20 is an AirTAC double-acting cylinder with a 32 mm bore, 20 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 32 32 mm bore X20 20 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 31.5 mm AC 24.5 mm AB 7 mm B 44 mm BA 50 mm D 12 mm DA 4.5 mm E M6 × 1.0 EA 12 mm H 10 mm J 8.2 mm JA 5.5 mm K M6 × 1.0 KA 16 mm KB 34 mm M 22 mm MA 2.5 mm P PT1/8 PA 9 mm PB 9 mm T Not listed for this size Through-hole diameter 5.2 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 20 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Match the separate valve ends as listed, keep the two chamber lines separate, and order options separately. PC601: PT1/8 male × 6 mm tube ODStraight connection at the cylinder port; no speed adjustment; also connects the separate 4A pilot ports if their lines use the same tube OD PTL601A: PT1/8 male × 6 mm tube OD; A-typeCylinder-port meter-out speed control instead of the straight fitting PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at the selected valve A/B work ports US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.08 N·m, not thread-tightening torque. Seal tapered PT connections correctly. Seat the M5 valve connector’s sealing gasket correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 15/12 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 182 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $37.10

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA32X15

  Specifications: SDA32X15 is an AirTAC double-acting cylinder with a 32 mm bore, 15 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 32 32 mm bore X15 15 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 31.5 mm AC 24.5 mm AB 7 mm B 44 mm BA 50 mm D 12 mm DA 4.5 mm E M6 × 1.0 EA 12 mm H 10 mm J 8.2 mm JA 5.5 mm K M6 × 1.0 KA 16 mm KB 34 mm M 22 mm MA 2.5 mm P PT1/8 PA 9 mm PB 9 mm T Not listed for this size Through-hole diameter 5.2 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 15 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Match the separate valve ends as listed, keep the two chamber lines separate, and order options separately. PC601: PT1/8 male × 6 mm tube ODStraight connection at the cylinder port; no speed adjustment; also connects the separate 4A pilot ports if their lines use the same tube OD PTL601A: PT1/8 male × 6 mm tube OD; A-typeCylinder-port meter-out speed control instead of the straight fitting PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at the selected valve A/B work ports US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.08 N·m, not thread-tightening torque. Seal tapered PT connections correctly. Seat the M5 valve connector’s sealing gasket correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 15/12 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 164.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $35.29

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA25X30

  Specifications: SDA25X30 is an AirTAC double-acting cylinder with a 25 mm bore, 30 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 25 25 mm bore X30 30 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection M5 × 0.8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 27 mm AC 21 mm AB 6 mm B 40 mm BA 42 mm D 10 mm DA 4 mm E M5 × 0.8 EA 10 mm H 8 mm J 8.2 mm JA 5.5 mm K M6 × 1.0 KA 15 mm KB 28 mm M 17 mm MA 2 mm P M5 × 0.8 PA 9 mm PB 5.5 mm T Not listed for this size Through-hole diameter 5.2 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 30 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 25 mm Effective flow area at the reference speed 1.3 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. All options are selected and ordered separately. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 15/12 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 157 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $33.62

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA20X15

  Specifications: SDA20X15 is an AirTAC double-acting cylinder with a 20 mm bore, 15 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 20 20 mm bore X15 15 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection M5 × 0.8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 25 mm AC 19.5 mm AB 5.5 mm B 34 mm BA 36 mm D 8 mm DA 4 mm E M4 × 0.7 EA 8 mm H 6 mm J 6.5 mm JA 4.5 mm K M5 × 0.8 KA 14 mm KB 24 mm M 13 mm MA 1.5 mm P M5 × 0.8 PA 9 mm PB 5.5 mm T Not listed for this size Through-hole diameter 4.2 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 15 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 20 mm Effective flow area at the reference speed .8 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. All options are selected and ordered separately. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 15/12 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 95.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $26.03

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA20X10

  Specifications: SDA20X10 is an AirTAC double-acting cylinder with a 20 mm bore, 10 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 20 20 mm bore X10 10 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection M5 × 0.8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 25 mm AC 19.5 mm AB 5.5 mm B 34 mm BA 36 mm D 8 mm DA 4 mm E M4 × 0.7 EA 8 mm H 6 mm J 6.5 mm JA 4.5 mm K M5 × 0.8 KA 14 mm KB 24 mm M 13 mm MA 1.5 mm P M5 × 0.8 PA 9 mm PB 5.5 mm T Not listed for this size Through-hole diameter 4.2 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 10 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 20 mm Effective flow area at the reference speed .8 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. All options are selected and ordered separately. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 15/12 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 84 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $24.61

  View options

•

  View options

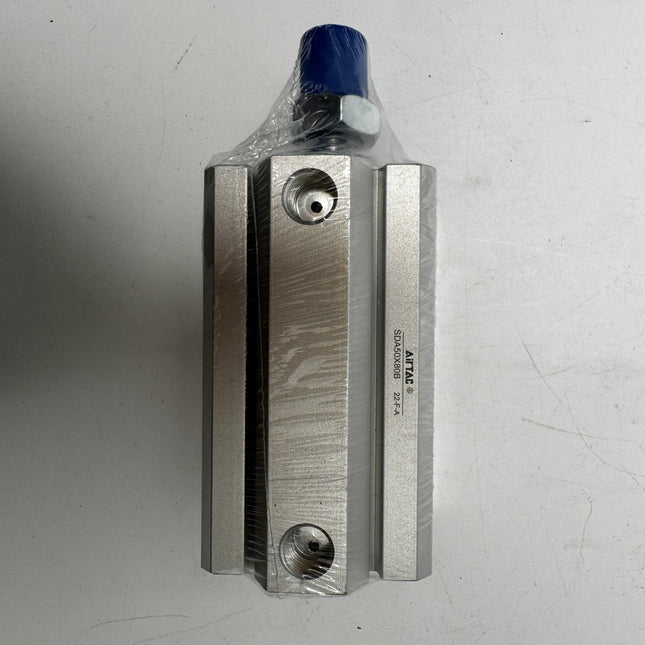

  Airtac SDA series: double-acting compact cylinder - SDA50X80B

  Specifications: SDA50X80B is an AirTAC double-acting cylinder with a 50 mm bore, 80 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 50 50 mm bore X80 80 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position B male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/4 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 37 mm AC 28 mm AB 9 mm B 62 mm BA 71.5 mm D 20 mm DA 5 mm E M10 × 1.5 EA 15 mm H 17 mm J 10.5 mm JA 6.5 mm K M8 × 1.25 KA 25 mm KB 48 mm M 38 mm MA 4 mm P PT1/4 PA 10.5 mm PB 10.5 mm T Not listed for this size Through-hole diameter 6.7 mm Male rod AB 37 mm Male rod D 20 mm Male rod DA 33 mm Male rod E M18 × 1.5 Male rod EA 25 mm Male rod EB 28 mm Male rod F 27 mm Male rod FA 11 mm Male rod H 17 mm Male rod M 38 mm Male rod MA 4 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 80 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 50 mm Effective flow area at the reference speed 5.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 10 mm OD tubing in the circuit reference in this description, choose either a straight fitting or an A-type controller at each cylinder port. Match the separate valve work and pilot ends as listed, keep the two chamber lines separate, and order options separately. PC1002: PT1/4 male × 10 mm tube ODStraight cylinder-port connection; no speed adjustment; also connects the selected valve A/B work ports PTL1002A: PT1/4 male × 10 mm tube OD; A-typeAlternative cylinder-port meter-out speed controller for the same tube OD PC1001: PT1/8 male × 10 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 10 mm OD tubing US98A100065100MBU: polyester polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A100065100MBU: polyether polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V21008A050, 5V21008A200, 5V22008A050, 5V22008A200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V21008B050, 5V21008B200, 5V22008B050, 5V22008B200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V21008C050, 5V21008C200, 5V22008C050, 5V22008C200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V21008E050, 5V21008E200, 5V22008E050, 5V22008E200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V21008F050, 5V21008F200, 5V22008F050, 5V22008F200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL01: PT1/8 maleSilencer at the selected 5V200 or 4A200 valve exhaust ports R/S The A-type controller restricts flow from the cylinder port toward the tube; reverse flow is free. Recommended cap-rotation torque is 0.16 N·m, not thread-tightening torque. Seal tapered PT connections correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V210 codes are single-solenoid spring-return valves; 5V220 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A21008 and 4A22008 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 10 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/8; use BSL01. The BSL02 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 25/20 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 937 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $106.56

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA25X35B

  Specifications: SDA25X35B is an AirTAC double-acting cylinder with a 25 mm bore, 35 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 25 25 mm bore X35 35 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position B male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection M5 × 0.8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 27 mm AC 21 mm AB 6 mm B 40 mm BA 42 mm D 10 mm DA 4 mm E M5 × 0.8 EA 10 mm H 8 mm J 8.2 mm JA 5.5 mm K M6 × 1.0 KA 15 mm KB 28 mm M 17 mm MA 2 mm P M5 × 0.8 PA 9 mm PB 5.5 mm T Not listed for this size Through-hole diameter 5.2 mm Male rod AB 23 mm Male rod D 10 mm Male rod DA 21 mm Male rod E M8 × 1.25 Male rod EA 15 mm Male rod EB 17 mm Male rod F 12 mm Male rod FA 6 mm Male rod H 8 mm Male rod M 17 mm Male rod MA 2 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 35 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 25 mm Effective flow area at the reference speed 1.3 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. All options are selected and ordered separately. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 15/12 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 181 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $35.54

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA25X25B

  Specifications: SDA25X25B is an AirTAC double-acting cylinder with a 25 mm bore, 25 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 25 25 mm bore X25 25 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position B male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection M5 × 0.8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 27 mm AC 21 mm AB 6 mm B 40 mm BA 42 mm D 10 mm DA 4 mm E M5 × 0.8 EA 10 mm H 8 mm J 8.2 mm JA 5.5 mm K M6 × 1.0 KA 15 mm KB 28 mm M 17 mm MA 2 mm P M5 × 0.8 PA 9 mm PB 5.5 mm T Not listed for this size Through-hole diameter 5.2 mm Male rod AB 23 mm Male rod D 10 mm Male rod DA 21 mm Male rod E M8 × 1.25 Male rod EA 15 mm Male rod EB 17 mm Male rod F 12 mm Male rod FA 6 mm Male rod H 8 mm Male rod M 17 mm Male rod MA 2 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 25 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 25 mm Effective flow area at the reference speed 1.3 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. All options are selected and ordered separately. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 15/12 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 152 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $32.58

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA20X5B

  Specifications: SDA20X5B is an AirTAC double-acting cylinder with a 20 mm bore, 5 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 20 20 mm bore X5 5 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position B male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection M5 × 0.8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 25 mm AC 19.5 mm AB 5.5 mm B 34 mm BA 36 mm D 8 mm DA 4 mm E M4 × 0.7 EA 8 mm H 6 mm J 6.5 mm JA 4.5 mm K M5 × 0.8 KA 14 mm KB 24 mm M 13 mm MA 1.5 mm P M5 × 0.8 PA 8 mm PB 5.5 mm T Not listed for this size Through-hole diameter 4.2 mm Male rod AB 20.5 mm Male rod D 8 mm Male rod DA 19 mm Male rod E M6 × 1.0 Male rod EA 13 mm Male rod EB 15 mm Male rod F 10 mm Male rod FA 5 mm Male rod H 6 mm Male rod M 13 mm Male rod MA 1.5 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 5 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 20 mm Effective flow area at the reference speed .8 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. All options are selected and ordered separately. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 15/12 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 76.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $23.76

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA12X30B

  Specifications: SDA12X30B is an AirTAC double-acting cylinder with a 12 mm bore, 30 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 12 12 mm bore X30 30 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position B male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection M5 × 0.8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 22 mm AC 17 mm AB 5 mm B 25 mm BA Not listed for this size D 6 mm DA 4 mm E M3 × 0.5 EA 6 mm H 5 mm J 6.5 mm JA 4.5 mm K M5 × 0.8 KA 12 mm KB 16.3 mm M 10.2 mm MA 1 mm P M5 × 0.8 PA 7.5 mm PB 5 mm T 23 mm Through-hole diameter 4.2 mm Male rod AB 17 mm Male rod D 6 mm Male rod DA 16 mm Male rod E M5 × 0.8 Male rod EA 10 mm Male rod EB 12 mm Male rod F 8 mm Male rod FA 4 mm Male rod H 5 mm Male rod M 10.2 mm Male rod MA 1 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 30 mm Construction and Materials Parameter Details 1 Rear cover Not fitted at this bore 2 Bumper NBR 3 Piston Brass 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 12 mm Effective flow area at the reference speed .3 mm² Tube outside / inside diameter 4 / 2.5 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 4 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. All options are selected and ordered separately. PC4M5: M5×0.8 male × 4 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL4M5A-M: M5×0.8 male × 4 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC401: PT1/8 male × 4 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 4 mm OD tubing US98A040025100MBU: polyester polyurethane; 4 mm OD × 2.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A040025100MBU: polyether polyurethane; 4 mm OD × 2.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 4 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 10/8 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 71 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $26.61

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA20X40S

  Specifications: SDA20X40S is an AirTAC double-acting cylinder with a 20 mm bore, 40 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 20 20 mm bore X40 40 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection M5 × 0.8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 35 mm AC 29.5 mm AB 5.5 mm B 34 mm BA 36 mm D 8 mm DA 4 mm E M4 × 0.7 EA 8 mm H 6 mm J 6.5 mm JA 4.5 mm K M5 × 0.8 KA 14 mm KB 24 mm M 13 mm MA 1.5 mm P M5 × 0.8 PA 9 mm PB 5.5 mm T Not listed for this size Through-hole diameter 4.2 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 40 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks SDA 20 mm bore; order separately DMSJ / CMSJ J-profile magnetic switches; the 2022 selection matrix marks SDA 20 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 20 mm Effective flow area at the reference speed .8 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional accessory order codes G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 J-profile: CMSJ — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSJ-020, CMSJ-030, CMSJ-050, CMSJ-100, CMSJ-M08, CMSJ-M08010, CMSJ-M08020, CMSJ-M08030, CMSJ-M12, CMSJ-M12010, CMSJ-M12020, CMSJ-M12030, A05-CMSJ-020, A05-CMSJ-030, A05-CMSJ-050, A05-CMSJ-100 J-profile: CMSJ — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSJ-020-H, CMSJ-030-H, CMSJ-050-H, CMSJ-100-H, CMSJ-M08-H, CMSJ-M08010-H, CMSJ-M08020-H, CMSJ-M08030-H, CMSJ-M12-H, CMSJ-M12010-H, CMSJ-M12020-H, CMSJ-M12030-H J-profile: DMSJ — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSJ-020, DMSJ-030, DMSJ-050, DMSJ-100, DMSJ-M08, DMSJ-M08010, DMSJ-M08020, DMSJ-M08030, DMSJ-M12, DMSJ-M12010, DMSJ-M12020, DMSJ-M12030, DMSJ-020-W, DMSJ-030-W, DMSJ-050-W, DMSJ-100-W, A05-DMSJ-020, A05-DMSJ-030, A05-DMSJ-050, A05-DMSJ-100 J-profile: DMSJ — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSJ-N020, DMSJ-N030, DMSJ-N050, DMSJ-N100, DMSJ-NM08, DMSJ-NM08010, DMSJ-NM08020, DMSJ-NM08030, DMSJ-NM12, DMSJ-NM12010, DMSJ-NM12020, DMSJ-NM12030, DMSJ-N020-W, DMSJ-N030-W, DMSJ-N050-W, DMSJ-N100-W J-profile: DMSJ — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSJ-P020, DMSJ-P030, DMSJ-P050, DMSJ-P100, DMSJ-PM08, DMSJ-PM08010, DMSJ-PM08020, DMSJ-PM08030, DMSJ-PM12, DMSJ-PM12010, DMSJ-PM12020, DMSJ-PM12030, DMSJ-P020-W, DMSJ-P030-W, DMSJ-P050-W, DMSJ-P100-W Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 G-profile and J-profile groups are alternative sensor choices for this magnetic SDA cylinder. Select the profile that fits the intended switch groove, then match the electrical circuit and cable. These separately ordered options are not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG and CMSJ reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG/DMSJ and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG/DMSJ outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMS also excludes the final high-temperature -H suffix. W means waterproof: DMS-W has direct leads only; the listed EMS-W options also include connectors. DMSJ is not available with A06 cable; the listed A05-DMSJ options use two-wire direct leads. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMS versions with the final -H suffix. The SDA cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected sensor in its matching switch groove. For a G-profile sensor, loosen the locking screw so it does not project below the sensor base. For a J-profile sensor, loosen the screw enough to let its lower mounting piece enter the groove. Slide it to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. All options are selected and ordered separately. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 15/12 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 181 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $38.55

  View options

•

  View options

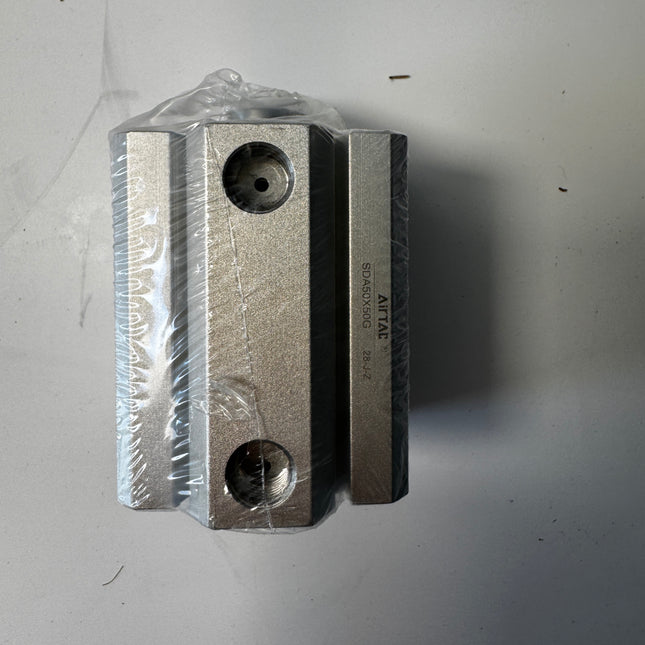

  Airtac SDA series: double-acting compact cylinder - SDA50X50G

  Specifications: SDA50X50G is an AirTAC double-acting cylinder with a 50 mm bore, 50 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 50 50 mm bore X50 50 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The G suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/4 (standard catalog reference; suffix is not defined in the order chart) Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 37 mm AC 28 mm AB 9 mm B 62 mm BA 71.5 mm D 20 mm DA 5 mm E M10 × 1.5 EA 15 mm H 17 mm J 10.5 mm JA 6.5 mm K M8 × 1.25 KA 25 mm KB 48 mm M 38 mm MA 4 mm P PT1/4 PA 10.5 mm PB 10.5 mm T Not listed for this size Through-hole diameter 6.7 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 50 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 50 mm Effective flow area at the reference speed 5.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Weight Reference Estimated reference weight: 633 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $82.94

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDAS32X50

  Specifications: SDAS32X50 is an AirTAC double-acting cylinder with a 32 mm bore, 50 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDAS double-acting cylinder 32 32 mm bore X50 50 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Extra prefix S SDAS is not a separate series code defined by this catalog; it must not be silently moved to the magnetic-option position Configuration Notes SDAS is retained as the product code. The catalog defines SDA and places the magnetic S after the stroke; the extra prefix S does not establish a catalog magnetic configuration. Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 31.5 mm AC 24.5 mm AB 7 mm B 44 mm BA 50 mm D 12 mm DA 4.5 mm E M6 × 1.0 EA 12 mm H 10 mm J 8.2 mm JA 5.5 mm K M6 × 1.0 KA 16 mm KB 34 mm M 22 mm MA 2.5 mm P PT1/8 PA 9 mm PB 9 mm T Not listed for this size Through-hole diameter 5.2 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 50 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Not fitted at this bore Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Weight Reference Estimated reference weight: 287 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $56.47

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA100X10

  Specifications: SDA100X10 is an AirTAC double-acting cylinder with a 100 mm bore, 10 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 100 100 mm bore X10 10 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 3/8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 63 mm AC 51 mm AB 12 mm B 114 mm BA 124 mm D 32 mm DA 7 mm E M18 × 1.5 EA 20 mm H 27 mm J 19 mm JA 13 mm K M14 × 2.0 KA 30 mm KB 90 mm M 55 mm MA 5 mm P PT3/8 PA 20.5 mm PB 20.5 mm T Not listed for this size Through-hole diameter 12.4 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 10 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 100 mm Effective flow area at the reference speed 20.4 mm² Tube outside / inside diameter 16 / 11 mm Example speed controller PTL03 Example silencer BSL03 Example solenoid valves 5V31010 / 5V32010 Example air-piloted valves 4A31010 / 4A32010 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional valve and tubing choices for the circuit reference These separately ordered valve and tube options relate to the 16 mm OD × 11 mm ID circuit reference in this description. They do not constitute a complete connection kit. The cylinder ports are PT3/8 and the selected valve work ports are PT3/8; obtain connectors specifically matching each actual thread and 16 mm tube, and verify the complete flow path before assembly. Do not insert a 16 mm tube into a smaller push-in fitting. US98A160110100MBU: polyester polyurethane; 16 mm OD × 11 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V31010A050, 5V31010A200, 5V32010A050, 5V32010A200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V31010B050, 5V31010B200, 5V32010B050, 5V32010B200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V31010C050, 5V31010C200, 5V32010C050, 5V32010C200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V31010E050, 5V31010E200, 5V32010E050, 5V32010E200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V31010F050, 5V31010F200, 5V32010F050, 5V32010F200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL02: PT1/4 maleSilencer at the selected 5V300 or 4A300 valve exhaust ports R/S Choose the valve voltage and control action for your circuit. The 5V310 codes are single-solenoid spring-return valves; 5V320 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A31010 and 4A32010 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. Select the pilot tubing and its connectors independently of the main work lines. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/4; use BSL02. The BSL03 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m US98A tube code is a purchasable packaging example, not the required installed length. It is polyester polyurethane, rated to 1 MPa at 23°C and −20 to +70°C, with an 80 mm minimum bend radius. Apply temperature derating and the lowest limit of the whole circuit; avoid solvents, corrosive media and prolonged direct sunlight.Weight Reference Catalog reference weight: 1811 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $198.29

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA80X80

  Specifications: SDA80X80 is an AirTAC double-acting cylinder with a 80 mm bore, 80 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 80 80 mm bore X80 80 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 3/8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 52 mm AC 41 mm AB 11 mm B 94 mm BA 104 mm D 25 mm DA 6 mm E M14 × 1.5 EA 20 mm H 22 mm J 17 mm JA 11 mm K M12 × 1.75 KA 25 mm KB 74 mm M 45 mm MA 5 mm P PT3/8 PA 14.5 mm PB 14.5 mm T Not listed for this size Through-hole diameter 10.4 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 80 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 80 mm Effective flow area at the reference speed 13.1 mm² Tube outside / inside diameter 16 / 11 mm Example speed controller PTL03 Example silencer BSL03 Example solenoid valves 5V31010 / 5V32010 Example air-piloted valves 4A31010 / 4A32010 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional valve and tubing choices for the circuit reference These separately ordered valve and tube options relate to the 16 mm OD × 11 mm ID circuit reference in this description. They do not constitute a complete connection kit. The cylinder ports are PT3/8 and the selected valve work ports are PT3/8; obtain connectors specifically matching each actual thread and 16 mm tube, and verify the complete flow path before assembly. Do not insert a 16 mm tube into a smaller push-in fitting. US98A160110100MBU: polyester polyurethane; 16 mm OD × 11 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V31010A050, 5V31010A200, 5V32010A050, 5V32010A200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V31010B050, 5V31010B200, 5V32010B050, 5V32010B200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V31010C050, 5V31010C200, 5V32010C050, 5V32010C200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V31010E050, 5V31010E200, 5V32010E050, 5V32010E200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V31010F050, 5V31010F200, 5V32010F050, 5V32010F200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL02: PT1/4 maleSilencer at the selected 5V300 or 4A300 valve exhaust ports R/S Choose the valve voltage and control action for your circuit. The 5V310 codes are single-solenoid spring-return valves; 5V320 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A31010 and 4A32010 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. Select the pilot tubing and its connectors independently of the main work lines. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/4; use BSL02. The BSL03 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m US98A tube code is a purchasable packaging example, not the required installed length. It is polyester polyurethane, rated to 1 MPa at 23°C and −20 to +70°C, with an 80 mm minimum bend radius. Apply temperature derating and the lowest limit of the whole circuit; avoid solvents, corrosive media and prolonged direct sunlight.Weight Reference Catalog reference weight: 1966 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $212.16

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA80X40

  Specifications: SDA80X40 is an AirTAC double-acting cylinder with a 80 mm bore, 40 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 80 80 mm bore X40 40 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 3/8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 52 mm AC 41 mm AB 11 mm B 94 mm BA 104 mm D 25 mm DA 6 mm E M14 × 1.5 EA 20 mm H 22 mm J 17 mm JA 11 mm K M12 × 1.75 KA 25 mm KB 74 mm M 45 mm MA 5 mm P PT3/8 PA 14.5 mm PB 14.5 mm T Not listed for this size Through-hole diameter 10.4 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 40 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 80 mm Effective flow area at the reference speed 13.1 mm² Tube outside / inside diameter 16 / 11 mm Example speed controller PTL03 Example silencer BSL03 Example solenoid valves 5V31010 / 5V32010 Example air-piloted valves 4A31010 / 4A32010 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional valve and tubing choices for the circuit reference These separately ordered valve and tube options relate to the 16 mm OD × 11 mm ID circuit reference in this description. They do not constitute a complete connection kit. The cylinder ports are PT3/8 and the selected valve work ports are PT3/8; obtain connectors specifically matching each actual thread and 16 mm tube, and verify the complete flow path before assembly. Do not insert a 16 mm tube into a smaller push-in fitting. US98A160110100MBU: polyester polyurethane; 16 mm OD × 11 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V31010A050, 5V31010A200, 5V32010A050, 5V32010A200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V31010B050, 5V31010B200, 5V32010B050, 5V32010B200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V31010C050, 5V31010C200, 5V32010C050, 5V32010C200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V31010E050, 5V31010E200, 5V32010E050, 5V32010E200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V31010F050, 5V31010F200, 5V32010F050, 5V32010F200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL02: PT1/4 maleSilencer at the selected 5V300 or 4A300 valve exhaust ports R/S Choose the valve voltage and control action for your circuit. The 5V310 codes are single-solenoid spring-return valves; 5V320 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A31010 and 4A32010 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. Select the pilot tubing and its connectors independently of the main work lines. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/4; use BSL02. The BSL03 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m US98A tube code is a purchasable packaging example, not the required installed length. It is polyester polyurethane, rated to 1 MPa at 23°C and −20 to +70°C, with an 80 mm minimum bend radius. Apply temperature derating and the lowest limit of the whole circuit; avoid solvents, corrosive media and prolonged direct sunlight.Weight Reference Catalog reference weight: 1418 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $159.28

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA80X10

  Specifications: SDA80X10 is an AirTAC double-acting cylinder with a 80 mm bore, 10 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 80 80 mm bore X10 10 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 3/8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 52 mm AC 41 mm AB 11 mm B 94 mm BA 104 mm D 25 mm DA 6 mm E M14 × 1.5 EA 20 mm H 22 mm J 17 mm JA 11 mm K M12 × 1.75 KA 25 mm KB 74 mm M 45 mm MA 5 mm P PT3/8 PA 14.5 mm PB 14.5 mm T Not listed for this size Through-hole diameter 10.4 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 10 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 80 mm Effective flow area at the reference speed 13.1 mm² Tube outside / inside diameter 16 / 11 mm Example speed controller PTL03 Example silencer BSL03 Example solenoid valves 5V31010 / 5V32010 Example air-piloted valves 4A31010 / 4A32010 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional valve and tubing choices for the circuit reference These separately ordered valve and tube options relate to the 16 mm OD × 11 mm ID circuit reference in this description. They do not constitute a complete connection kit. The cylinder ports are PT3/8 and the selected valve work ports are PT3/8; obtain connectors specifically matching each actual thread and 16 mm tube, and verify the complete flow path before assembly. Do not insert a 16 mm tube into a smaller push-in fitting. US98A160110100MBU: polyester polyurethane; 16 mm OD × 11 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V31010A050, 5V31010A200, 5V32010A050, 5V32010A200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V31010B050, 5V31010B200, 5V32010B050, 5V32010B200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V31010C050, 5V31010C200, 5V32010C050, 5V32010C200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V31010E050, 5V31010E200, 5V32010E050, 5V32010E200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V31010F050, 5V31010F200, 5V32010F050, 5V32010F200: PT3/8 female main ports; PT1/4 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL02: PT1/4 maleSilencer at the selected 5V300 or 4A300 valve exhaust ports R/S Choose the valve voltage and control action for your circuit. The 5V310 codes are single-solenoid spring-return valves; 5V320 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A31010 and 4A32010 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. Select the pilot tubing and its connectors independently of the main work lines. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/4; use BSL02. The BSL03 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m US98A tube code is a purchasable packaging example, not the required installed length. It is polyester polyurethane, rated to 1 MPa at 23°C and −20 to +70°C, with an 80 mm minimum bend radius. Apply temperature derating and the lowest limit of the whole circuit; avoid solvents, corrosive media and prolonged direct sunlight.Weight Reference Catalog reference weight: 1007 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $122.56

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA63X40

  Specifications: SDA63X40 is an AirTAC double-acting cylinder with a 63 mm bore, 40 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 63 63 mm bore X40 40 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/4 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 41 mm AC 32 mm AB 9 mm B 75 mm BA 84.5 mm D 20 mm DA 5 mm E M10 × 1.5 EA 15 mm H 17 mm J 10.5 mm JA 6.5 mm K M8 × 1.25 KA 25 mm KB 60 mm M 40 mm MA 4 mm P PT1/4 PA 12 mm PB 11 mm T Not listed for this size Through-hole diameter 6.7 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 40 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 63 mm Effective flow area at the reference speed 8.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 10 mm OD tubing in the circuit reference in this description, choose either a straight fitting or an A-type controller at each cylinder port. Match the separate valve work and pilot ends as listed, keep the two chamber lines separate, and order options separately. PC1002: PT1/4 male × 10 mm tube ODStraight cylinder-port connection; no speed adjustment; also connects the selected valve A/B work ports PTL1002A: PT1/4 male × 10 mm tube OD; A-typeAlternative cylinder-port meter-out speed controller for the same tube OD PC1001: PT1/8 male × 10 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 10 mm OD tubing US98A100065100MBU: polyester polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A100065100MBU: polyether polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V21008A050, 5V21008A200, 5V22008A050, 5V22008A200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V21008B050, 5V21008B200, 5V22008B050, 5V22008B200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V21008C050, 5V21008C200, 5V22008C050, 5V22008C200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V21008E050, 5V21008E200, 5V22008E050, 5V22008E200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V21008F050, 5V21008F200, 5V22008F050, 5V22008F200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL01: PT1/8 maleSilencer at the selected 5V200 or 4A200 valve exhaust ports R/S The A-type controller restricts flow from the cylinder port toward the tube; reverse flow is free. Recommended cap-rotation torque is 0.16 N·m, not thread-tightening torque. Seal tapered PT connections correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V210 codes are single-solenoid spring-return valves; 5V220 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A21008 and 4A22008 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 10 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/8; use BSL01. The BSL02 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 25/20 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 798 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $96.42

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA63X35

  Specifications: SDA63X35 is an AirTAC double-acting cylinder with a 63 mm bore, 35 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 63 63 mm bore X35 35 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/4 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 41 mm AC 32 mm AB 9 mm B 75 mm BA 84.5 mm D 20 mm DA 5 mm E M10 × 1.5 EA 15 mm H 17 mm J 10.5 mm JA 6.5 mm K M8 × 1.25 KA 25 mm KB 60 mm M 40 mm MA 4 mm P PT1/4 PA 12 mm PB 11 mm T Not listed for this size Through-hole diameter 6.7 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 35 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 63 mm Effective flow area at the reference speed 8.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 10 mm OD tubing in the circuit reference in this description, choose either a straight fitting or an A-type controller at each cylinder port. Match the separate valve work and pilot ends as listed, keep the two chamber lines separate, and order options separately. PC1002: PT1/4 male × 10 mm tube ODStraight cylinder-port connection; no speed adjustment; also connects the selected valve A/B work ports PTL1002A: PT1/4 male × 10 mm tube OD; A-typeAlternative cylinder-port meter-out speed controller for the same tube OD PC1001: PT1/8 male × 10 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 10 mm OD tubing US98A100065100MBU: polyester polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A100065100MBU: polyether polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V21008A050, 5V21008A200, 5V22008A050, 5V22008A200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V21008B050, 5V21008B200, 5V22008B050, 5V22008B200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V21008C050, 5V21008C200, 5V22008C050, 5V22008C200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V21008E050, 5V21008E200, 5V22008E050, 5V22008E200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V21008F050, 5V21008F200, 5V22008F050, 5V22008F200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL01: PT1/8 maleSilencer at the selected 5V200 or 4A200 valve exhaust ports R/S The A-type controller restricts flow from the cylinder port toward the tube; reverse flow is free. Recommended cap-rotation torque is 0.16 N·m, not thread-tightening torque. Seal tapered PT connections correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V210 codes are single-solenoid spring-return valves; 5V220 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A21008 and 4A22008 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 10 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/8; use BSL01. The BSL02 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 25/20 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 753.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $92.83

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA63X25

  Specifications: SDA63X25 is an AirTAC double-acting cylinder with a 63 mm bore, 25 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 63 63 mm bore X25 25 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/4 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 41 mm AC 32 mm AB 9 mm B 75 mm BA 84.5 mm D 20 mm DA 5 mm E M10 × 1.5 EA 15 mm H 17 mm J 10.5 mm JA 6.5 mm K M8 × 1.25 KA 25 mm KB 60 mm M 40 mm MA 4 mm P PT1/4 PA 12 mm PB 11 mm T Not listed for this size Through-hole diameter 6.7 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 25 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 63 mm Effective flow area at the reference speed 8.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 10 mm OD tubing in the circuit reference in this description, choose either a straight fitting or an A-type controller at each cylinder port. Match the separate valve work and pilot ends as listed, keep the two chamber lines separate, and order options separately. PC1002: PT1/4 male × 10 mm tube ODStraight cylinder-port connection; no speed adjustment; also connects the selected valve A/B work ports PTL1002A: PT1/4 male × 10 mm tube OD; A-typeAlternative cylinder-port meter-out speed controller for the same tube OD PC1001: PT1/8 male × 10 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 10 mm OD tubing US98A100065100MBU: polyester polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A100065100MBU: polyether polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V21008A050, 5V21008A200, 5V22008A050, 5V22008A200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V21008B050, 5V21008B200, 5V22008B050, 5V22008B200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V21008C050, 5V21008C200, 5V22008C050, 5V22008C200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V21008E050, 5V21008E200, 5V22008E050, 5V22008E200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V21008F050, 5V21008F200, 5V22008F050, 5V22008F200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL01: PT1/8 maleSilencer at the selected 5V200 or 4A200 valve exhaust ports R/S The A-type controller restricts flow from the cylinder port toward the tube; reverse flow is free. Recommended cap-rotation torque is 0.16 N·m, not thread-tightening torque. Seal tapered PT connections correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V210 codes are single-solenoid spring-return valves; 5V220 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A21008 and 4A22008 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 10 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/8; use BSL01. The BSL02 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 25/20 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 664.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $84.42

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA50X40

  Specifications: SDA50X40 is an AirTAC double-acting cylinder with a 50 mm bore, 40 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 50 50 mm bore X40 40 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/4 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 37 mm AC 28 mm AB 9 mm B 62 mm BA 71.5 mm D 20 mm DA 5 mm E M10 × 1.5 EA 15 mm H 17 mm J 10.5 mm JA 6.5 mm K M8 × 1.25 KA 25 mm KB 48 mm M 38 mm MA 4 mm P PT1/4 PA 10.5 mm PB 10.5 mm T Not listed for this size Through-hole diameter 6.7 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 40 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 50 mm Effective flow area at the reference speed 5.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 10 mm OD tubing in the circuit reference in this description, choose either a straight fitting or an A-type controller at each cylinder port. Match the separate valve work and pilot ends as listed, keep the two chamber lines separate, and order options separately. PC1002: PT1/4 male × 10 mm tube ODStraight cylinder-port connection; no speed adjustment; also connects the selected valve A/B work ports PTL1002A: PT1/4 male × 10 mm tube OD; A-typeAlternative cylinder-port meter-out speed controller for the same tube OD PC1001: PT1/8 male × 10 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 10 mm OD tubing US98A100065100MBU: polyester polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A100065100MBU: polyether polyurethane; 10 mm OD × 6.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V21008A050, 5V21008A200, 5V22008A050, 5V22008A200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V21008B050, 5V21008B200, 5V22008B050, 5V22008B200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V21008C050, 5V21008C200, 5V22008C050, 5V22008C200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V21008E050, 5V21008E200, 5V22008E050, 5V22008E200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V21008F050, 5V21008F200, 5V22008F050, 5V22008F200: PT1/4 female main ports; PT1/8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction BSL01: PT1/8 maleSilencer at the selected 5V200 or 4A200 valve exhaust ports R/S The A-type controller restricts flow from the cylinder port toward the tube; reverse flow is free. Recommended cap-rotation torque is 0.16 N·m, not thread-tightening torque. Seal tapered PT connections correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V210 codes are single-solenoid spring-return valves; 5V220 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A21008 and 4A22008 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 10 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. For these selected valves, the actual exhaust ports R/S are PT1/8; use BSL01. The BSL02 in the general circuit reference has a different thread and is not a direct fit to these exhaust ports. Keep exhaust paths open and do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 25/20 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 561 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $76.86

  View options

•

  View options

  Airtac SDA series: double-acting compact cylinder - SDA40X60

  Specifications: SDA40X60 is an AirTAC double-acting cylinder with a 40 mm bore, 60 mm stroke, no magnetic option in the standard suffix position, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model SDA double-acting cylinder 40 40 mm bore X60 60 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/8 Product Features The body/rear-cover and piston/rod connections use a compact riveted construction. The rolled and hard-anodized bore provides wear resistance. The compact double-lip piston seal retains lubricant; switch grooves run around the body. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 148–153 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 33 mm AC 26 mm AB 7 mm B 52 mm BA 58.5 mm D 16 mm DA 4 mm E M8 × 1.25 EA 12 mm H 14 mm J 10.5 mm JA 6.5 mm K M8 × 1.25 KA 20 mm KB 40 mm M 28 mm MA 3 mm P PT1/8 PA 9.5 mm PB 7.5 mm T Not listed for this size Through-hole diameter 6.7 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 60 mm Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Bumper NBR 3 Piston Aluminum alloy 4 Piston seal NBR 5 Piston rod Hard-chrome-plated S45C steel 6 Body Aluminum alloy 7 Front cover Aluminum alloy 8 O-ring NBR 9 C-ring Spring steel 10 Rod seal NBR 11 Hex nut Carbon steel 12 Bushing Wear-resistant material Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 100, 110, 120, 130 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 40 mm Effective flow area at the reference speed 3.3 mm² Tube outside / inside diameter 8 / 5 mm Example speed controller PTL01 Example silencer BSL01 Example solenoid valves 5V11006 / 5V12006 Example air-piloted valves 4A11006 / 4A12006 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 8 mm OD tubing in the circuit reference in this description, select either a straight fitting or an A-type speed controller at each cylinder port. Match the separate valve ends as listed, keep the two chamber lines separate, and order options separately. PC801: PT1/8 male × 8 mm tube ODStraight connection at the cylinder port; no speed adjustment; also connects the selected valve A/B work ports and, if the pneumatic scheme uses the same tube OD, the separate 4A pilot ports PTL801A: PT1/8 male × 8 mm tube OD; A-typeCylinder-port meter-out speed control instead of the straight fitting US98A080050100MBU: polyester polyurethane; 8 mm OD × 5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A080050100MBU: polyether polyurethane; 8 mm OD × 5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V11006A050, 5V11006A200, 5V12006A050, 5V12006A200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V11006B050, 5V11006B200, 5V12006B050, 5V12006B200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V11006C050, 5V11006C200, 5V12006C050, 5V12006C200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V11006E050, 5V11006E200, 5V12006E050, 5V12006E200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V11006F050, 5V11006F200, 5V12006F050, 5V12006F200: PT1/8 female main ports; PT1/8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.08 N·m, not thread-tightening torque. Seal tapered PT connections correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. Choose the valve voltage and control action for your circuit. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A11006 and 4A12006 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 8 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. These choices do not guarantee a particular cylinder speed; verify flow, pressure loss and the load. Use the existing BSL01 reference at the selected PT1/8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for the listed US98A/UE95A tube are 20/17 mm. Check the actual route and tube length before ordering.Weight Reference Catalog reference weight: 470 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $66.47

  View options
