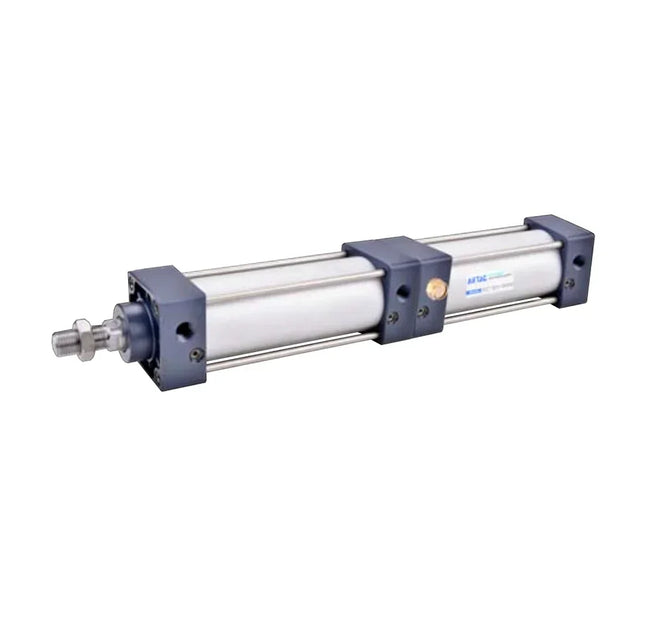

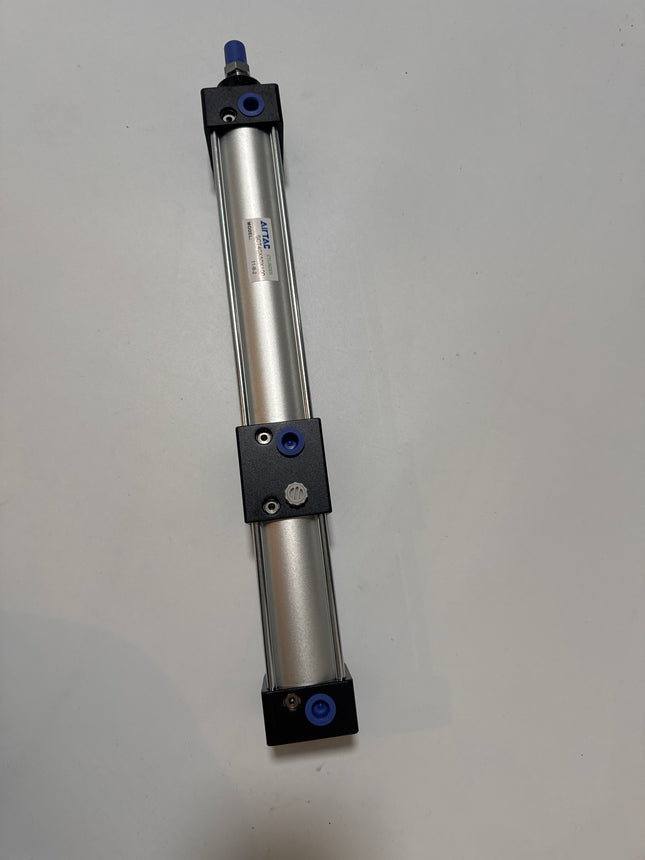

Standard Cylinder — SCT Series (Multi-position Type)
Product Features
- Manufactured to enterprise standards.
- The piston seal adopts a heterogeneous two-way seal structure, featuring compact dimensions and an oil storage function.
- Tie-rod cylinder design: The front and rear caps are connected to the aluminum cylinder body via support pillars, ensuring good reliability.
- Multi-position capability: The piston can realize positioning at multiple locations throughout the movement process (Stroke 1 / Stroke 2).
- Equipped with adjustable air cushioning adjustment for smooth balance.
- A variety of specifications and cylinder mounting accessories are available for customers to choose from.
- High-temperature resistant sealing material is optional, ensuring normal operation of the cylinder at 150°C.
Specifications
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|---|
| Acting Type | Double Acting | |||||
| Fluid | Air (filtered 40μm or better) | |||||
| Mounting Type | Basic, FA, FB, CA, CB, LB | |||||
| Operating Pressure | 0.15~1.0 MPa (22~145 psi) (1.5~10.0 bar) | |||||
| Proof Pressure | 1.5 MPa (215 psi) (15 bar) | |||||
| Temperature °C | -20 ~ 70 | |||||
| Speed Range mm/s | 30 ~ 800 | |||||
| Stroke Tolerance | 0~250 +1.0/0 | 251~1000 +1.5/0 | 1001~1500 +2.0/0 | |||||
| Cushion Type | Adjustable Cushion | |||||
| Cushion Stroke | 21 | 21 | 21 | 21 | 28 | 29 |
| Port Size [Note 1] | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 |
Note:
[1] PT thread and G thread are available options.
[1] PT thread and G thread are available options.
Stroke Specifications
| Bore (mm) | Standard Stroke (mm) | Max. Stroke | Allowable Stroke |
|---|---|---|---|
| 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
Note: If stroke is ≥ 800mm, it is treated as non-standard. Please contact the company for special stroke requests.
Product Ordering Code
Example: SCT 50 x 50 x 50 S LB
| No. | Category | Description / Options |
|---|---|---|
| ① | Model | SCT: Multi-position Double Acting Cylinder |
| ② | Bore Size | 32, 40, 50, 63, 80, 100 mm |
| ③ | Stroke 1 | Refer to Stroke table |
| ④ | Stroke 2 | Refer to Stroke table |
| ⑤ | Magnet |
Blank: No Magnet S: With Magnet |
| ⑥ | Mounting |
Blank: Standard (None) LB: Axial Foot FA: Front Flange FB: Rear Flange CA: Single Clevis CB: Double Clevis |
| ⑦ | Seal Material |
Blank: TPU (Standard) H: Viton (Heat resistant) N: NBR |
| ⑧ | Thread |
Blank: PT Thread G: G Thread |
